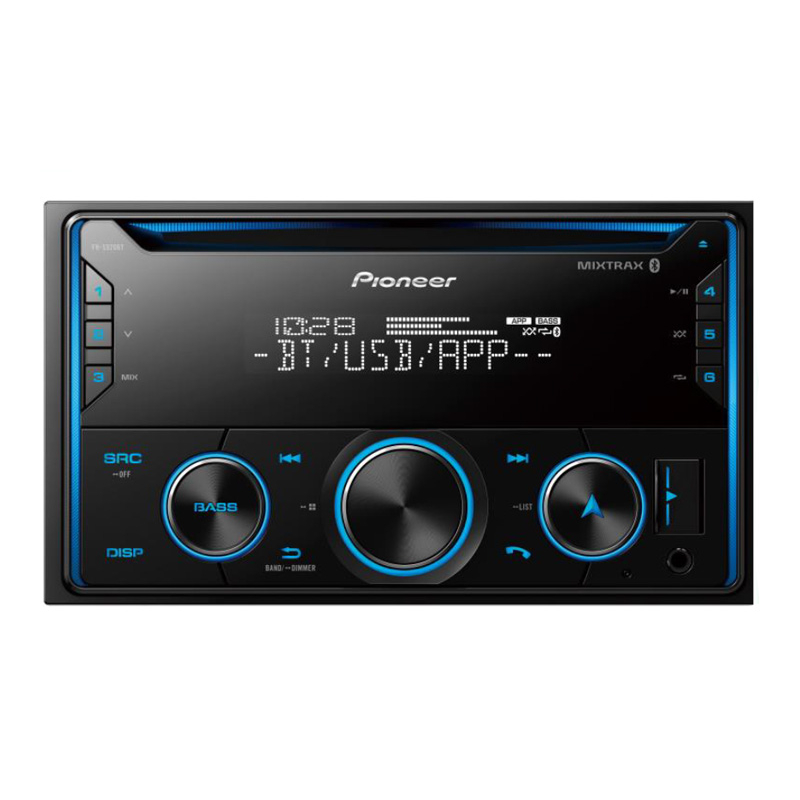

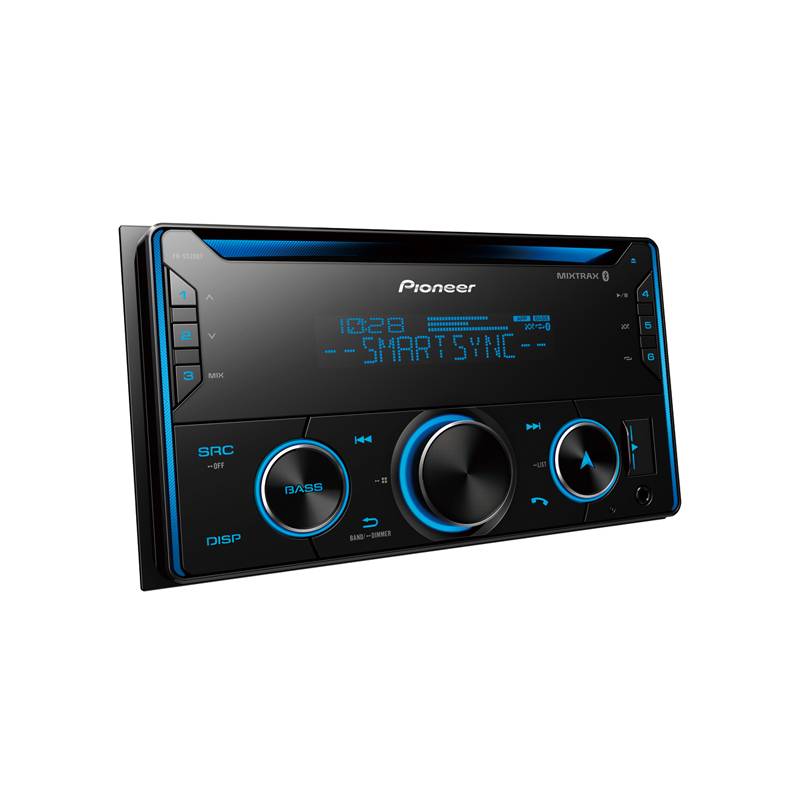

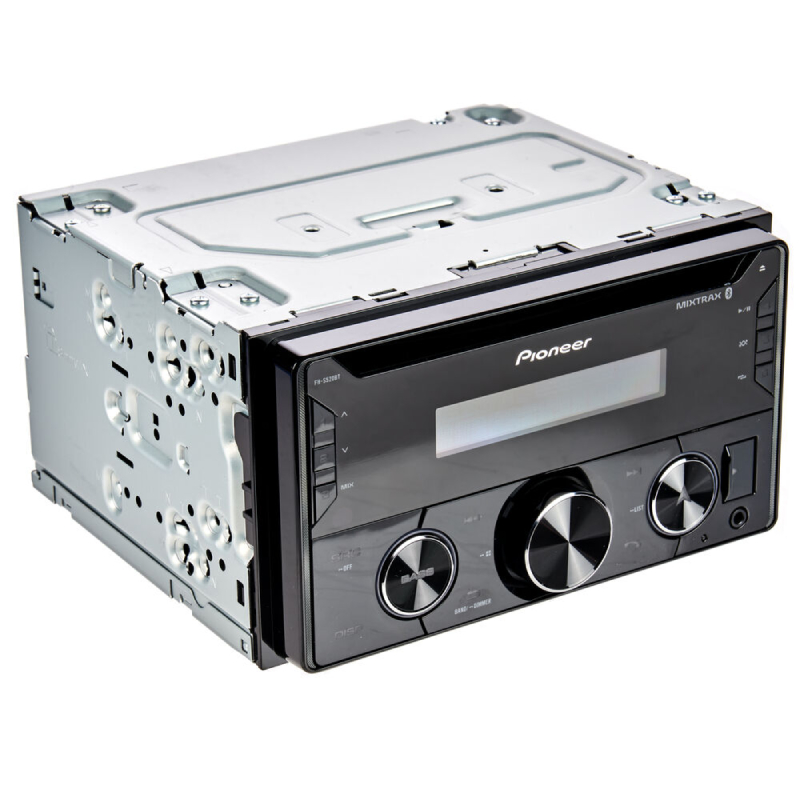

Pioneer FH-S520BT 2-DIN Bluetooth CD Receiver with Amazon Alexa
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

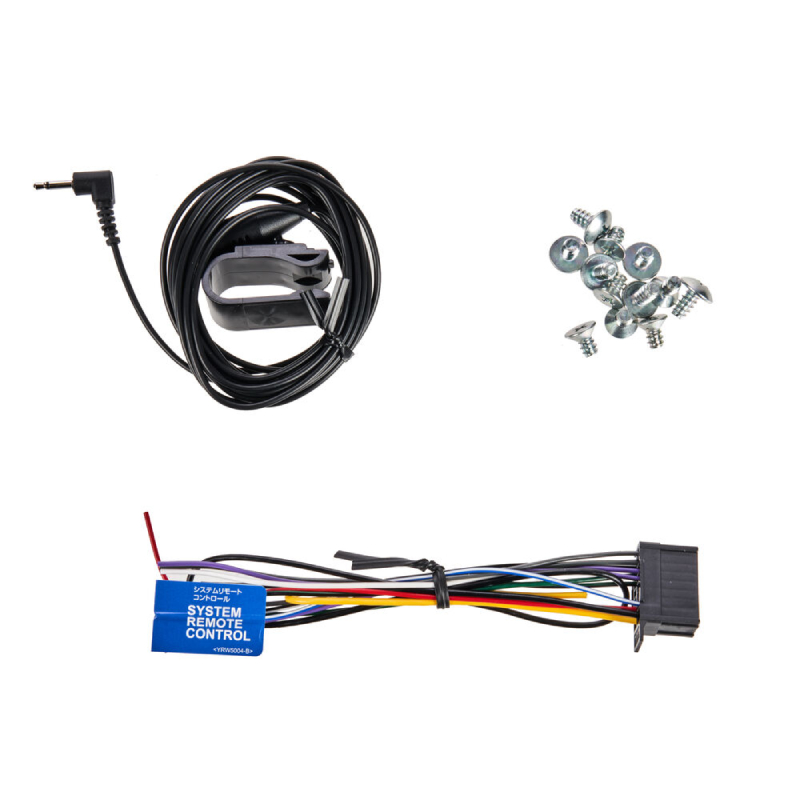

What's Inside?
- • CD receiver (10A fuse)
- • Wiring harness
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- • 8 various Installation screws
- • Quick Start Guide
- • 1 Year Warranty Sheet
- • Owner's Manual
Why Choose Pioneer FH-S520BT CD Receiver?
Sleek Connectivity & Hands-Free Control
The Pioneer FH-S520BT is a feature-rich, sleekly designed car entertainment system that integrates seamlessly into your dashboard. Featuring Bluetooth, USB, and AUX connections, it allows easy audio playback from multiple devices while enabling hands-free calling and wireless streaming for a safer drive.
Bluetooth
This Pioneer model offers smooth interoperability and access to features like music playback and app control for both Android and iPhone devices. You can easily access your preferred music streaming services and take advantage of a variety of entertainment alternatives while on the go whether you use Pandora or Spotify.

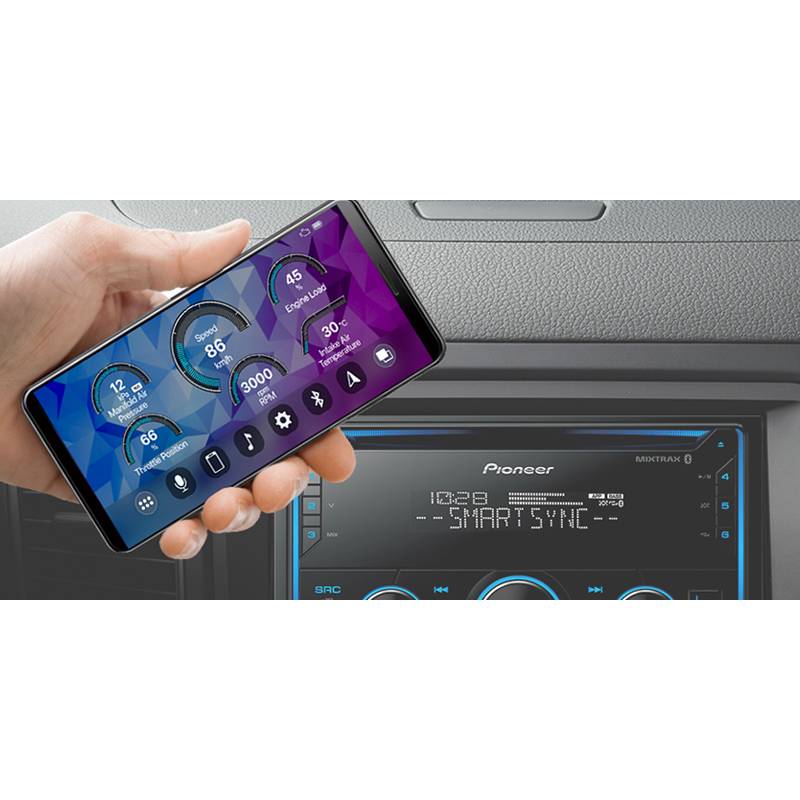

Pioneer Smart Sync
Integrate Your Smartphone with Your Receiver. Pioneer Smart Sync is a highly evolved app available for both iOS and Android OS that utilizes the power of a connected smartphone to expand the features and user interface of compatible Pioneer in-dash receivers. With support for either a Bluetooth® or USB connection, the link between your smartphone and the in-dash receiver can be either wired or wireless.
MIXTRAX®
The FH-S520BT's built-in MOSFET amplifier produces loud and precise sound. It has a 13-band graphic equalizer that lets you adjust the audio to your tastes and get the best sound possible. Additionally, the FH-S520BT features AM/FM radio capabilities, giving users access to a variety of radio stations. The device also has a CD player, so you may listen to your preferred CDs during your journey.
Frequently Asked Questions (FAQ)
- • Why won't my phone connect to Bluetooth after pairing once?
This is often caused by corrupted pairing data or your phone automatically connecting to another device. Delete the existing pairing on both devices and pair them again.
- • Why does the receiver lose power every time I start my car?
This usually indicates an issue with the ignition or constant power wiring. Check the wiring harness to ensure both power leads are connected correctly.
- • Why won't my USB device play music?
The USB drive may use an unsupported file format or file system. Formatting the drive properly and using compatible audio files will usually solve the problem.
- • Why do my radio stations have poor reception?
Weak reception is commonly caused by a loose antenna connection or a damaged antenna adapter. Inspect the antenna wiring to ensure it is securely connected.
- • Can I stream music while another phone is paired for calls?
Yes. Compatible Bluetooth features allow one phone to stream music while another remains connected for hands-free calling.
- • Why does the CD skip even though the disc looks clean?
Skipping can occur because of vibrations, disc damage that is difficult to see, or an aging CD mechanism. Testing with another disc can help determine the source of the problem.
- • Why does the display dim unexpectedly?
The dimmer setting may be activated or connected to the vehicle's lighting circuit. Review the illumination settings and verify the wiring if the brightness changes unexpectedly.
- • Why isn't my external amplifier turning on?
The remote turn-on wire may not be connected properly or the amplifier fuse may have failed. Check the remote output wiring and inspect the amplifier's power connections.
- • How can I make the audio sound better without replacing my speakers?
Adjusting the equalizer, bass, treble, balance, and fader settings can noticeably improve sound quality. Proper audio tuning often delivers better performance even with factory-installed speakers.
- DIN : 2
- Preamp Voltage : 2 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes

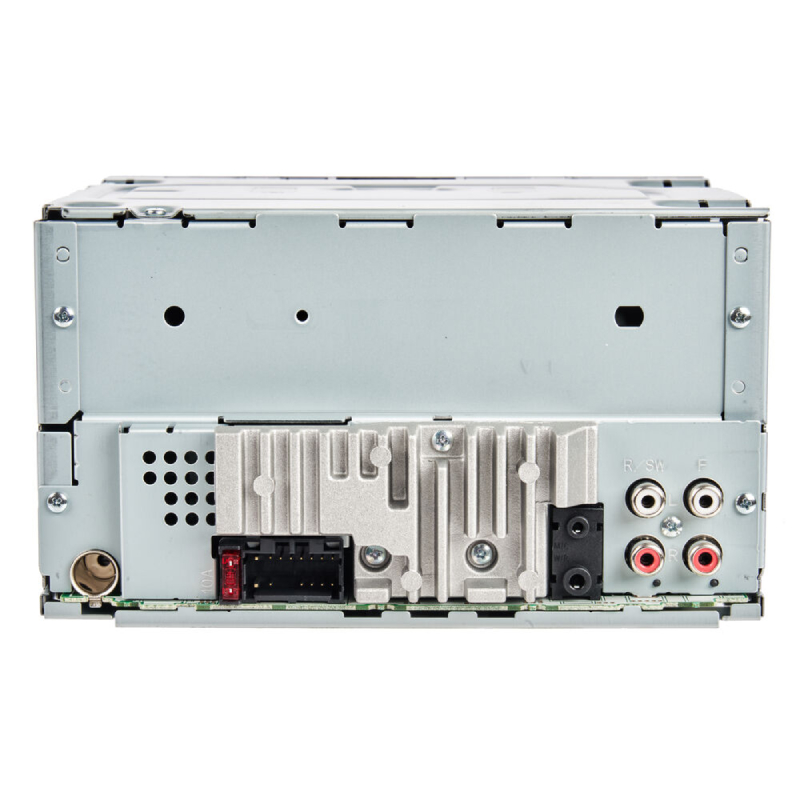

- Preamp Outputs : Front, Rear & Sub
- Apple CarPlay : No
- Android Auto : No
Features
- Alexa Built-in When Paired with Pioneer Smart Sync App
- Android™ Compatibility
- Works with Pandora® and Spotify®
- iPhone® Compatibility
- Enhanced Bluetooth® enabled phone connectivity with Pioneer Smart Sync
Specifications:
STANDARDS
PERFORMANCE
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
- RCA Preamp Outputs: 4-ch
- RCA Pre-out: 2V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
DISPLAY
- Back Light: LED
- Brightness Control: Yes
- Color Customization: Fixed Color - Blue
- Device (Non-DIN/Modular Unit): 2-DIN
- Device Display: VA LCD (2-Line)
- Dimmer: Timer Controlled, Manual
BLUETOOTH
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- Hands Free Version: 1.6
- Hands-Free: Yes
- Microphone Included: Included
- Phone Registration: 5-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
- Sound Retriever Air: Mode 1/Mode 2/Off
TUNER
- Best Station Memory: Yes
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- RDS: Yes
INTEGRATION
- Amazon Alexa: Paired with Pioneer Smart Sync
- Mobile Operating System: Android / Apple iOS
- Music Playback (MTP): Yes
- Pandora®: Source through iPhone/Android
- Pioneer App Compatibility: Pioneer Smart Sync Android, Pioneer Smart Sync iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: Streaming audio through iPhone/Android via Bluetooth or AUX input
- Voice Control: Yes
DIGITAL MEDIA PLAYBACK
- Audio Playback via CD: AAC Audio Playback / MP3 Audio Playback / WAV Audio Playback / WMA Audio Playback
- Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
AUDIO
- Advanced Sound Retriever: Mode-1/Mode-2/Off
- Balance: Yes
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band, 31 Band with Pioneer Smart Sync app
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Dynamic Bass Enhancer: Off/Low/High
- Easy EQ (EEQ) Preset Equalizer: Yes
- Fade: Yes
- Listening Position Selector: Yes
- Loudness: High/Mid/Low/Off
- MIXTRAX®: Yes
- Source Level Adjuster: Yes
- Speaker Output: 4-ch
- Spectrum Analyzer: Yes
- Subwoofer Control: Yes
- Time Alignment: Manual
EXPANDABILITY
- USB: Front Type-A (5V, 1-1/2 A)
- USB Direct Control for iPhone®: 5s and newer
INPUTS
GENERAL
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish
- Music Browser: USB / With Smart Sync App
- Remote Control: Optional
- Rotary Volume Control: Yes
- Steering Wheel Control Ready (Adapter Sold Separately): Yes
- UPC: 884938434188
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
This radio's solid for the price, sounds good in my car, great fit! Its app can run the whole show, pretty cool. Sound quality's on point, but it gets dirty quick, and no changing display colors is a letdown. Overall, it's a decent entry-level deck, and it comes with clear instructions and easy setup.
