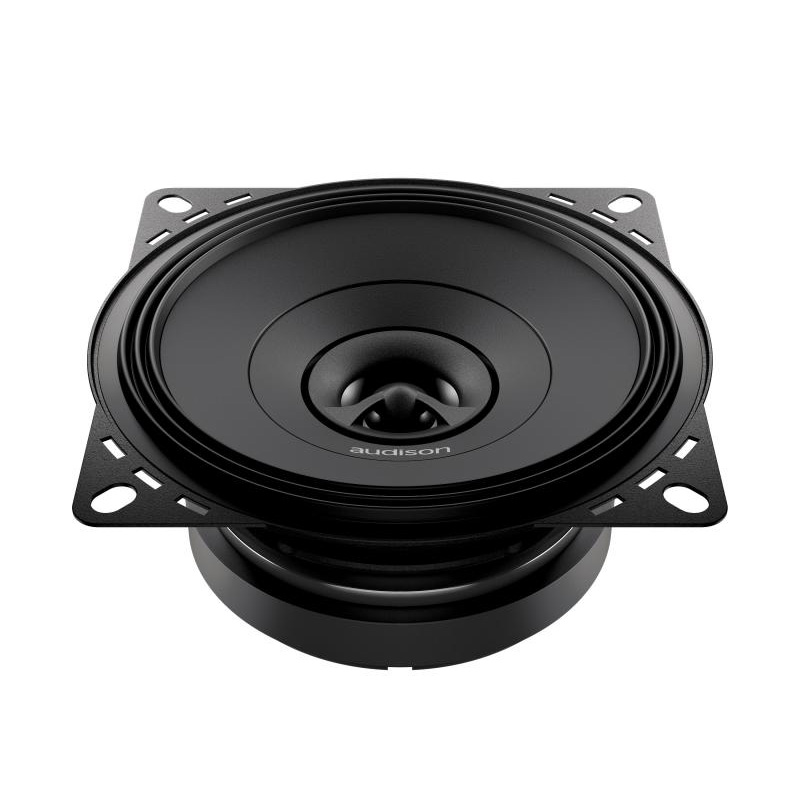

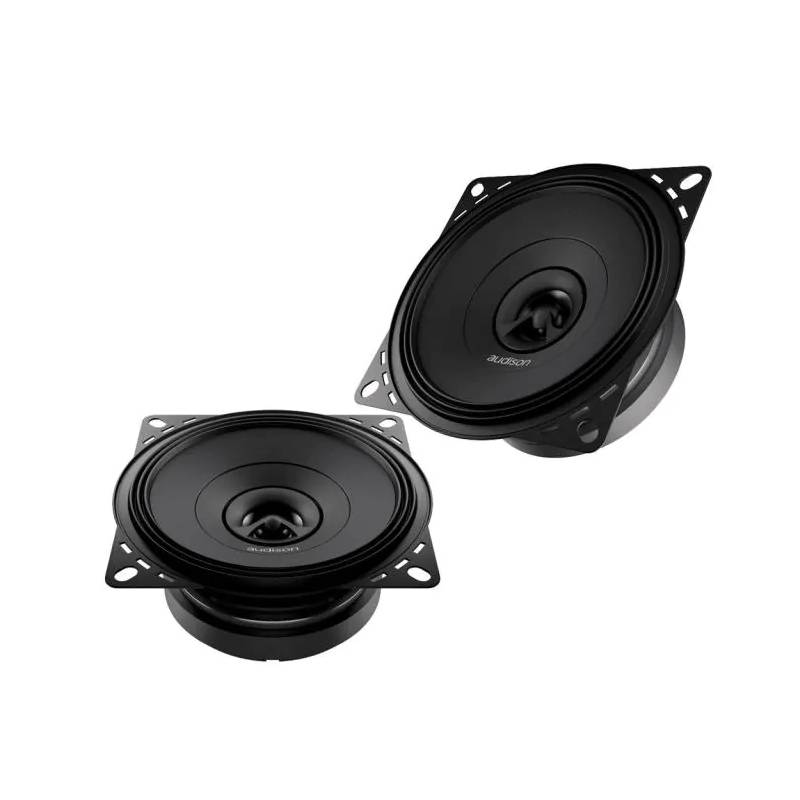

Audison APX4 PRIMA Series 4" 120W Peak Power Handling, 4-Ohms, 2-Way Coaxial Speakers
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 2* Speakers
- • 2* Tweeters
- • 2* Woofers
- • Pair of 165mm speaker protective grilles
- • Owner's Manual
Concentric Coaxial Tweeter
APX 4 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter. The 4″ cones surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
Unified Audio Excellence: Advanced Coaxial Speaker System with Integrated Tweeter for Seamless Sound
The concentric coaxial tweeter integrates seamlessly within the woofer, emitting sound from a single point for consistent phase response and precise sound staging. With a 32 mm copper voice coil, water-repellent paper cone, and TPU suspension for maximum linearity, it's designed for high power handling and low-frequency control. The compact basket, abrasion-resistant coating, and fast-on terminal with double contact points ensure durability and easy installation. Developed with KLIPPEL, this speaker system delivers advanced features for optimal audio performance.
- Diameter : 4 Inch
- Sensitivity : 91 dB
- Impedance : 4 Ohm
- Frequency Response : 80-23000 Hz
- Peak Power Handling : 120 Watts
- Design : 2 Way
- RMS Power Handling : 40 Watts
Product Highlights:
- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control
- Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
- Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
Specifications:
- Comp: Two way coaxial
- Size:
- Woofer 100 mm (4″)
- Tweeter diaphragm 24 mm (0.9″)
- Power Handling:
- 40 W Continuous Power
- 120 W Peak Power
- Impedance: 4 ohms
- Frequency Response: 80 ÷ 23k Hz
- Sensitivity: 91 dB/Spl
- Magnet: High density flux ferrite
- Dome: Water-repellent pressed paper
- UPC: 8018823111706
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Audison dealer will have a three (3) year limited warranty from the original date of purchase.
