Audison  APK130

PRIMA Series 5" 225W Peak Power Handling at 4-Ohms, 2-Way Component System Speaker with Crossovers

Item #54314

Condition:   Brand New

Product Highlights

  • PRIMA Series 5" Speaker
  • 225W Peak Power Handling
  • 2-Way Component System
  • 4 Ohms Impedance
  • Includes Crossovers

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$449.99

Reg. Price $475.00  Save $25.01
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Audison Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Audison Banner

Audison APK130 - PRIMA Series 5" 225W Peak Power Handling at 4-Ohms, 2-Way Component System Speaker with Crossovers


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

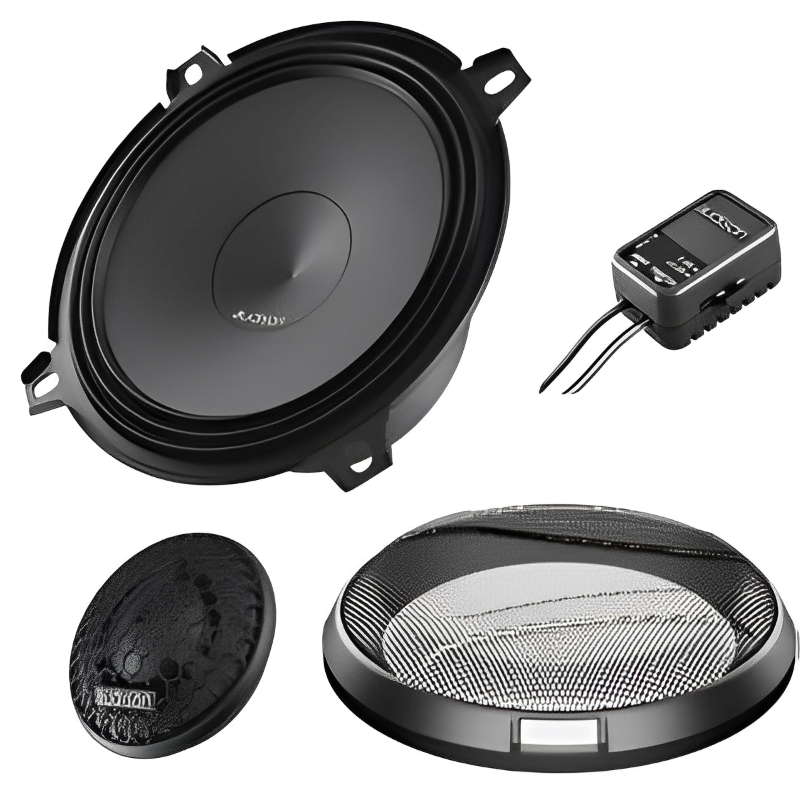

What's Inside?
  • • 2* Speakers
  • • 2* Speaker Grilles
  • • 2* Crossovers
  • • 2* Tweeters
  • • 16* Screws
  • • 1* Warranty Card
  • Owner's Manual
APK130
Two Way System

Two way system features AP 1 tweeter and AP 5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener. To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.


SPECIFICATIONS


  • Diameter : 5 Inch
  • Sensitivity : 93 dB
  • Frequency Response : 70-20000 Hz
  • Peak Power Handling : 225 Watts
  • RMS Power Handling : 75 Watts

FEATURES


Features:

  • AP1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
  • AP 1 tweeter with acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10kHz-13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
  • APCX TW very compact tweeter passive crossover optimised for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
  • Passive crossovers are supplied with “OEM Integration compliant” fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
  • AP 5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
  • AP 5 woofer with water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
  • AP5 woofer with reduced mounting depth, providing ease of installation in OEM placements.
  • AP5 woofer with TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
  • AP 5 woofer with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
  • AP 5 woofer with high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.
  • Grille included



Specifications:

  • Comp: 2 way System
  • Size:
    • 130 mm (5″) Woofer
    • 26 mm (1″) Tweeter
    • 46,5 x 37,5 x 20,1 mm (1.83″ x 1.47 x 0.8) Crossover
  • Power Handling:
    • 75 W Continuous Power
    • 225 W Peak Power
  • Impedance: 4 ohms
  • Frequency Response: 70 – 20k Hz
  • Sensitivity: 93 dB/Spl



  • UPC: 8018823111737
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
