Audison Bit DMI
alternate product image 1alternate product image 2
Item# 54336 / Condition:  Brand New    Review this product

Audison Bit DMI

Bit DMI
MOST Bus Digital Interface to TOSLINK Optical Out
$699.99

FREE Shipping in US 48!

Save $140.00 | Reg. Price $839.99
Add Extended Warranty

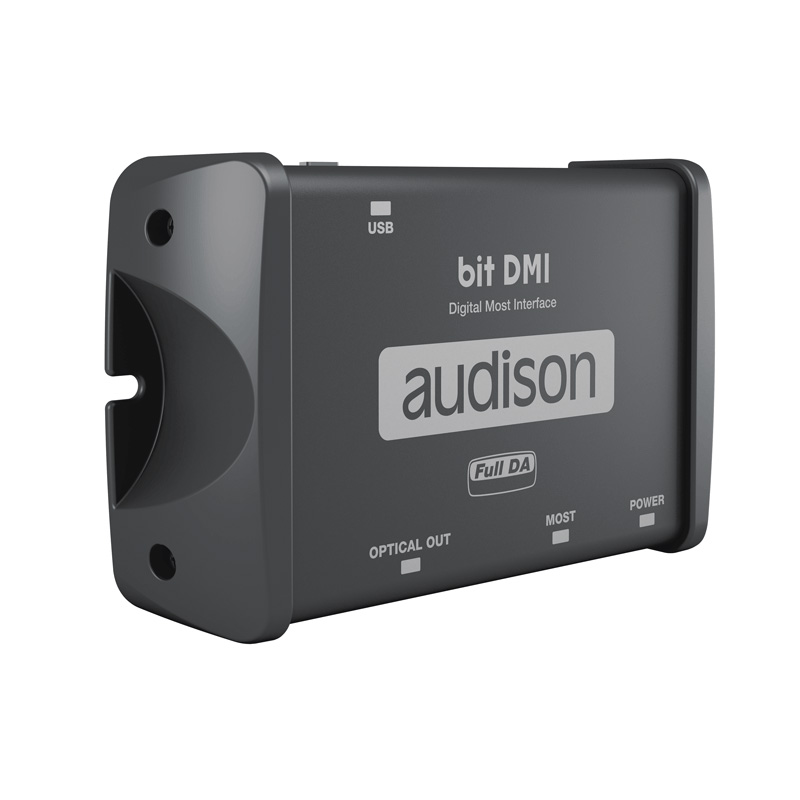

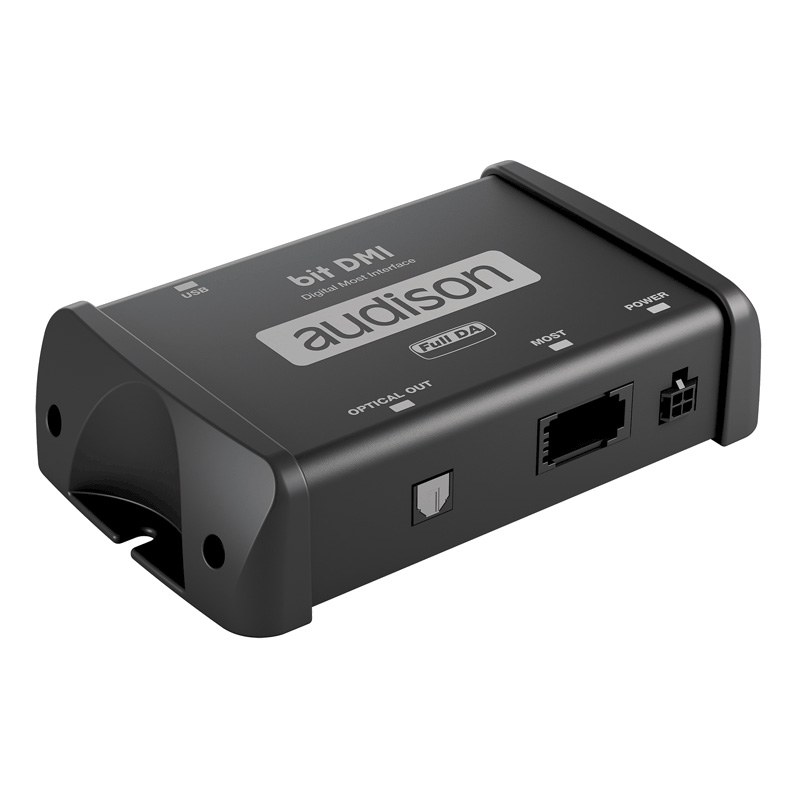

Bit DMI DIGITAL MOST INTERFACE

bit DMI is a digital interface for MOST systems, providing the ability to connect the Audison bit processors and the Audison amplifiers, equipped with digital input, to OEM multimedia systems in cars featuring the MOST technology based on optical fibre. Thanks to the digital connection, the signal can be transmitted without loss of quality, keeping the audio controls built in the OEM head unit – such as volume, balance and tone controls- as well as the hands-free kit, navigation system and parking sensors alerts unaltered.

Power Supply

  • Voltage: 8 ÷ 18 VDC
  • Idling current: 150 mA
  • Switched off: < 5 mA
  • Remote IN: Automatic turn On/Off via MOST
  • Remote OUT: 12 VDC (200 mA)

Input Stage

  • MOST optical input: MOST IN/OUT socket connector

Output Stage

  • TOSLINK optical output S/PDIF max 48 kHz/16 bit STEREO PCM
    • DOLBY DIGITAL (AC3), DTS or other proprietary multichannel
    • sound-surround codecs cannot be decoded.

Control Connection

  • From / to personal computer 1 x USB Mini B to A (2.0)

General Requirements

  • PC connection: USB-A socket (1.1/2.0/3.0)
  • Software / PC requirements: Microsoft Windows (32/64 bit): XP, Vista, Windows 7, Windows 8
  • Graphic card min. resolution: 800 x 600
  • Ambient temperature range Operating: -40 °C to 100 °C (-40°F to 212°F)

Size

  • W x H x D (mm / in.): 141.5 x 36.5 x 86.5 / 5.57 x 1.43 x 3.40
  • Weight (kg / lb.): 0.26 / 0.573
  • UPC: 8018823114264
  • Weight: 5
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
