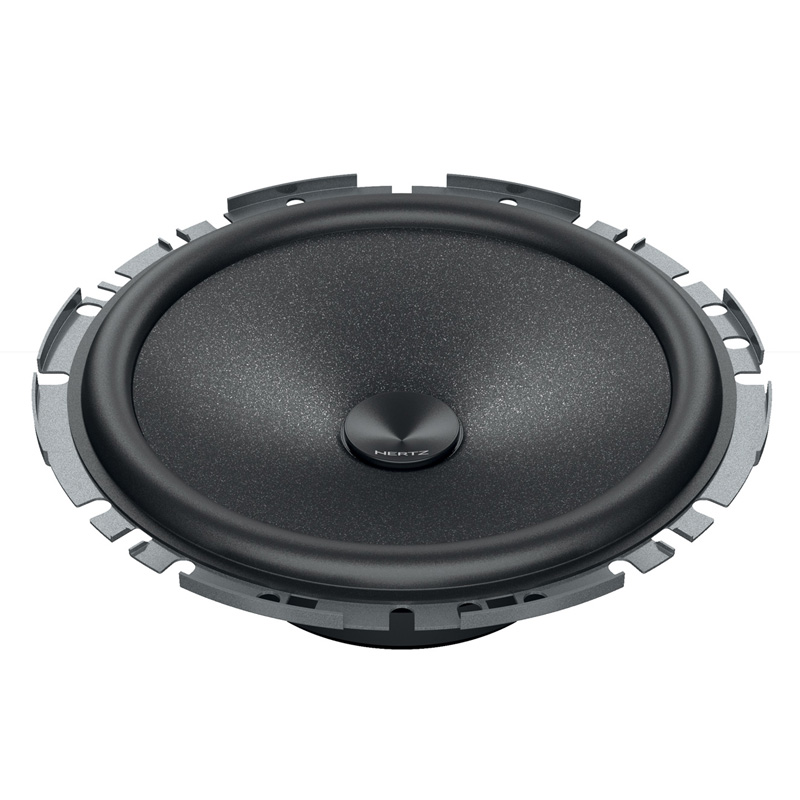

Hertz C165F Cento Series 6.5" 210W Peak Power Handling 4 Ohms Flat-profile Component Car Woofers
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) C 165 F Car Woofers
- •(8) 3/4" Screws
- •(8) Speed clips
- •Owner's manual
- •Template on box
Factory Placements Limited by a Reduced Depth
The installation of after-market woofers in factory placements limited by a reduced depth is a recurring problem that forces specialists to make complicated mechanical changes, extending the time to finish the job significantly. The Cento line new C 165 F flat profile woofer is the solution, thanks to a super slim basket with reduced depth that allows the use even in the most problematic OEM scenarios, widespread in new generation cars.

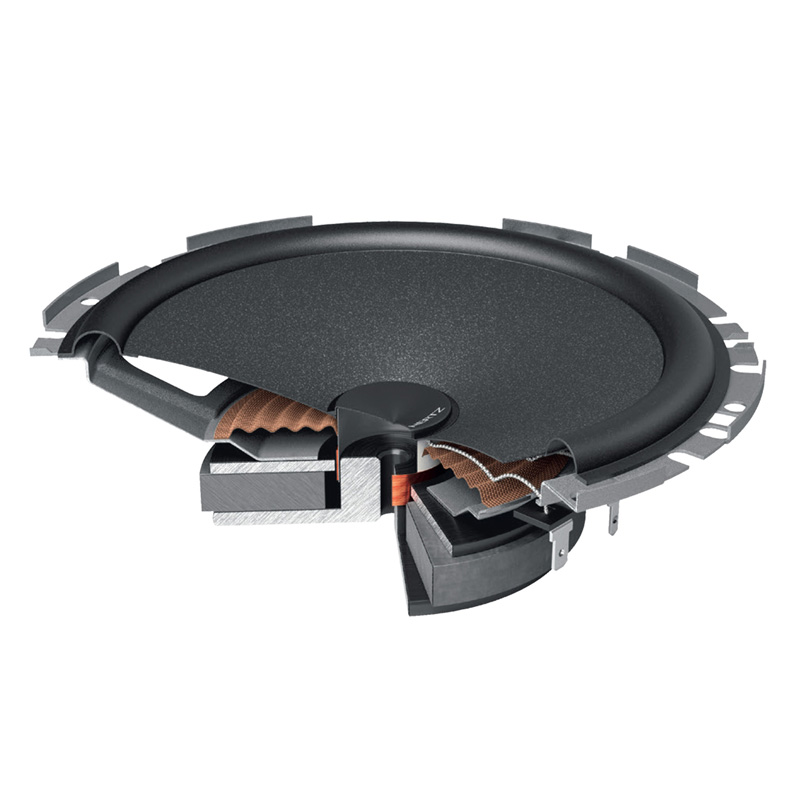

Extensive Design Process
he R&D team, through an extensive design process was able to obtain high performance even with the super slim basket feature. This was made possible by the optimization of the mobile group excursion and the new design of the cone and dustcup geometry. Like the other components of the Cento range, the use of SPP-M (Semi-Pressed Paper-Mica) provides the C 165 F with a light and rigid cone at the same time that guarantees high efficiency and an extended frequency response.
Electro-acoustic Specifications
The diameter (D) is 134 mm, the DC resistance (Re) is 2.7 Ohms, the resonant frequency (Fs) is 80 Hz, the voice coil inductance (Le) is 0.154 mH, the equivalent volume of compliance (Vas) is 9.40 liters, the moving mass (Mms) is 12 grams, the mechanical compliance of suspension (Cms) is 0.33 mm/N, the BL product (BL) is 3.9 T*m, the total Q factor (Qts) is 0.80, the electrical Q factor (Qes) is 1.00, the mechanical Q factor (Qms) is 3.4, and the sound pressure level (SPL) is 93 dB.
Physical Specifications
- • A: 165 mm (6.5 in.)
- • B: 141 mm (5.55 in.)
- • C: 50.6 mm (1.99 in.)
- • D: 43.5 mm (1.71 in.)
- Diameter : 6.5 Inch
- Low Frequency Response : 65 Hz
- High Frequency Response : 4500 Hz
- Sensitivity : 93 dB
- Impedance : 4 Ohm
- Frequency Response : 65-4500 Hz
- Peak Power Handling : 210 Watts
- Top Mount Depth : 1.75 Inches
- Bottom Mount Depth : 1.75 Inches
- RMS Power Handling : 70 Watts
Features:
- Shallow profile for an easy replacement of factory speakers.
- Semi-Pressed Paper Cone reinforced with Mica powder for superior stiffness and smooth response.
- High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
- Pure copper voice coil, wound on aluminium former, for very good thermal and mechanical capacity.
Specifications:
- Size mm (in.): 165 (6.5)
- Power Handling - Peak W: 210
- Power Handling - Continuous W: 70
- Impedance: 4 ohms
- Frequency response Hz: 65 ÷ 4,5k
- Sensitivity dB SPL: 93
- Voice coil Ø mm (in.): 25 (1)
- Magnet: High density flux ferrite
- Cone/Dome: Semi-Pressed paper with Mica
Electro-acoustic Specficications:
- Diameter (D): 134 mm
- DC Resistance (Re): 2.7 Ohms
- Resonant Frequency (Fs): 80 Hz
- Voice Coil Inductance (Le): 0.154 mH
- Equivalent Volume of Compliance (Vas): 9.40 liters
- Moving Mass (Mms): 12 grams
- Mechanical Compliance of Suspension (Cms): 0.33 mm/N
- BL Product (BL): 3.9 T*m
- Total Q Factor (Qts): 0.80
- Electrical Q Factor (Qes): 1.00
- Mechanical Q Factor (Qms): 3.4
- Sound Pressure Level (SPL): 93 dB
- UPC: 8018823132091
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
