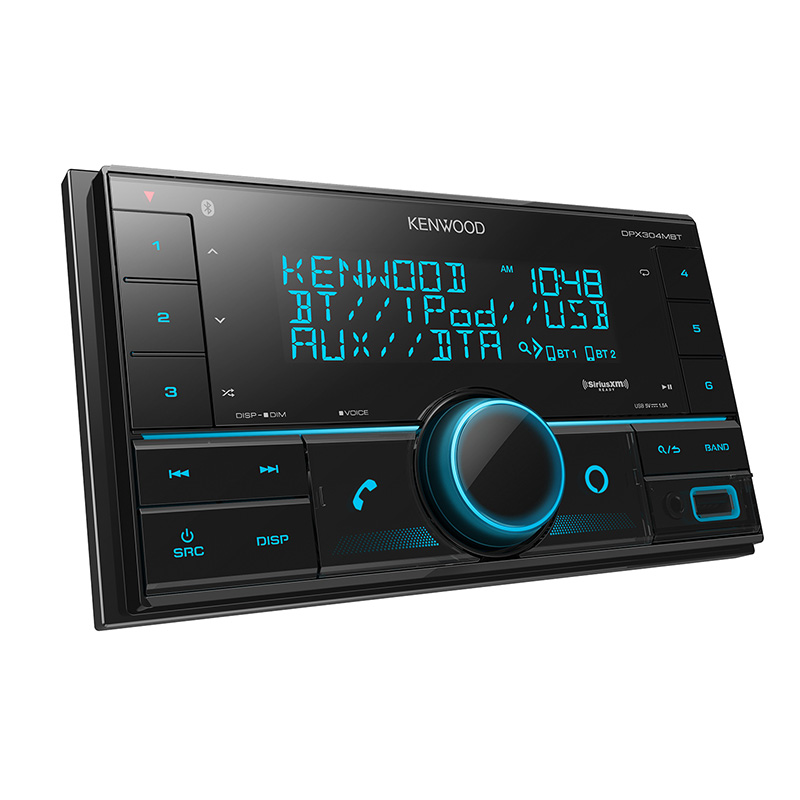

Kenwood 2-DIN Digital Media Receiver
We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

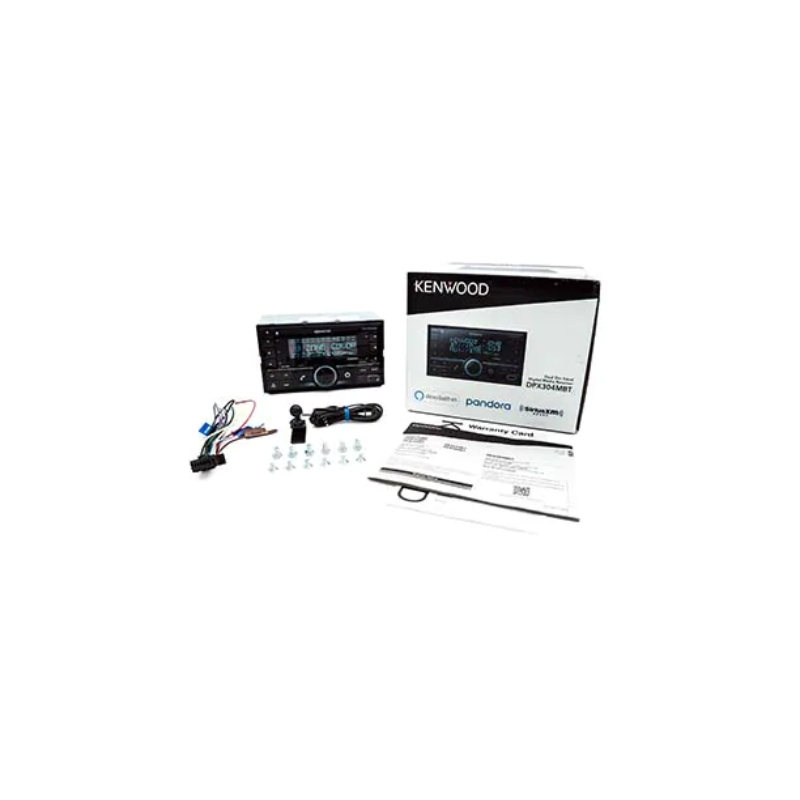

What's Inside?
- • Digital media receiver (10A fuse)
- • Wiring harness
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- • (6) Pan-head ISO-mount screws
- • (6) Flat-head ISO-mount screws
- • Owner's Manual
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
- Maximum Power : 50 Watts
- Satellite Radio Ready : Yes
- RMS Power Output : 22 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 2.5 volts
- Bluetooth : Yes
- Aux Input : Yes
- HD Radio : No
- Front USB Input : 1
- Preamp Outputs : 6
- Apple CarPlay : No
- Android Auto : No
Features:
- 420 Segment 3 Line Text Display
- Amazon Alexa Ready
- Spotify Ready
- Bluetooth Direct Access Button
- Short Chassis
- Variable Color Illumination
- 3 Preouts 2.5V
FM
- Frequency Range: 87.9MHz to 107.9MHz
- (Frequency step): (200kHz)
- Channel Space Selection:
- Usable Sensitivity: 8.2dBf
- S/N 30dB: (0.71μV/75Ω)
- Quieting Sensitivity: 17.2dBf
- DIN S/N:46dB: (2.0μV/75Ω)
- Frequency Response (±3.0dB): 30Hz to 15kHz
- S/N: 64.0dB(MONO)
- Stereo Separation: 40dB(1kHz)
AM
- Frequency Range: 530kHz to 1700kHz
- (Frequency step): (10kHz)
- Channel Space Selection:
- Usable Sensitivity S/N:20dB: 29dBμ (28.2μV)
Preout Level(mV)/Load -Unbalanced: 2500mV/10kΩ
Preout Impedance(ohms): =<600 ohms
Speaker Impedance(ohms): 4 to 8 ohms
USB I/F
- USB: USB 1.1 / 2.0 High Speed
- File System: FAT12 / 16 / 32
- Maximum Supply current: DC5V(DC logo) 1.5A
- Frequency Response: 20Hz to 20kHz(±1dB)
- S/N Ratio (dB): 99dB(1kHz)
- Dynamic Range: 93dB
- Channel Separation: 90dB
- MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode: Compliant with Windows Media Audio
- AAC Decode: AAC-LC ".aac",".m4a" files
- WAV Decode: Linear-PCM
- FLAC Decode: FLAC file (Up to 24bit/96kHz)
AUX
- Frequency Response: 20Hz to 20kHz ±3dB
Input
- Input Maximum Voltage: 1000mV
- Input Impedance: 30k ohms
AMP
- Maximum Power: 50Wx4
- Full Bandwidth Power (at less than 1%THD): 22Wx4
TONE
- Band1: 62.5Hz ±9dB
- Band2: 100Hz ±9dB
- Band3: 160Hz ±9dB
- Band4: 250Hz ±9dB
- Band5: 400Hz ±9dB
- Band6: 630Hz ±9dB
- Band7: 1kHz ±9dB
- Band8: 1.6kHz ±9dB
- Band9: 2.5kHz ±9dB
- Band10: 4kHz ±9dB
- Band11: 6.3kHz ±9dB
- Band12: 10kHz ±9dB
- Band13: 16kHz ±9dB
Bluetooth
- Version: Bluetooth 4.2
- Frequency Range: 2.402 to 2.480GHz
- RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Profile
- HFP 1.7.1 (Hands Free Profile)
- SPP(Serial Port Profile)
- PBAP(Phonebook Access Profile)
- A2DP(Advanced Audio Distribution Profile)
- AVRCP 1.6.1 (Audio/Video Remote Control Profile)
General Features
- Operating voltage: 12V DC car battery

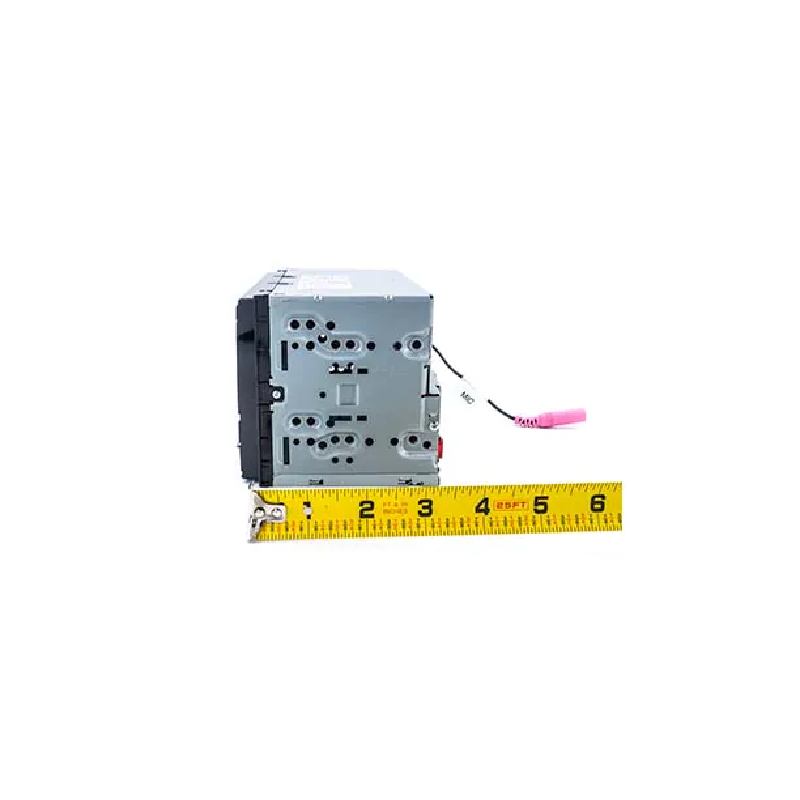

- Installation Size:
- (W) 178(mm) 7(in)
- (H) 100(mm) 3-15/16(in)
- (D) 100(mm) 3-15/16(in)
- Net Weight (Trim plate and Mounting sleeve: Included): 0.8(kg) 1.8(lbs)
- UPC: 019048229250
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
