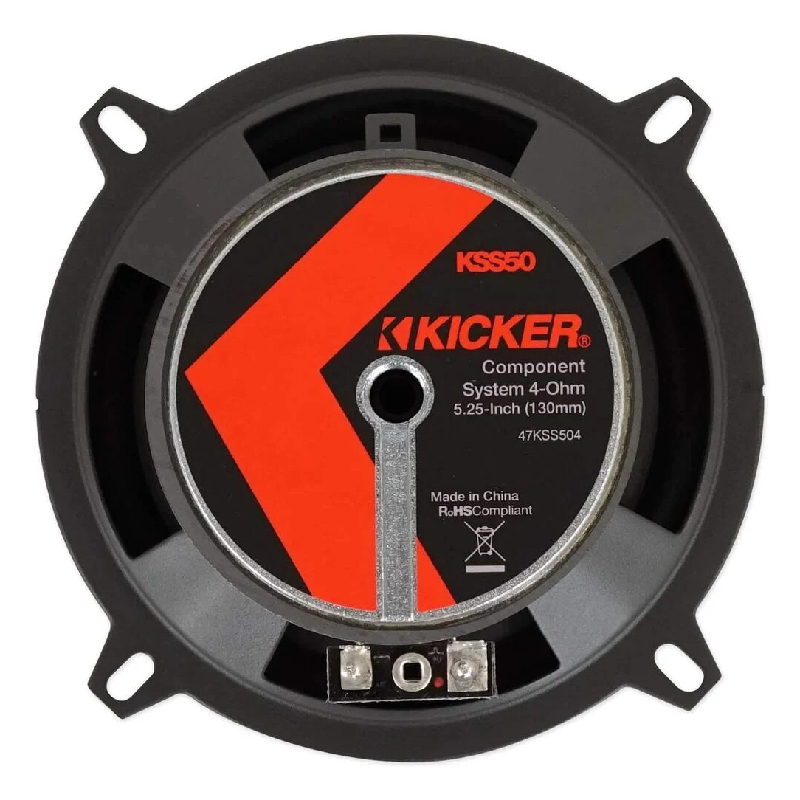

Kicker 47KSS504 KS Series 5.25" 100W RMS (200W Peak Power Handling) 4 Ohm, Car Component System with Two Silk Dome Tweeters and Two Crossovers
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

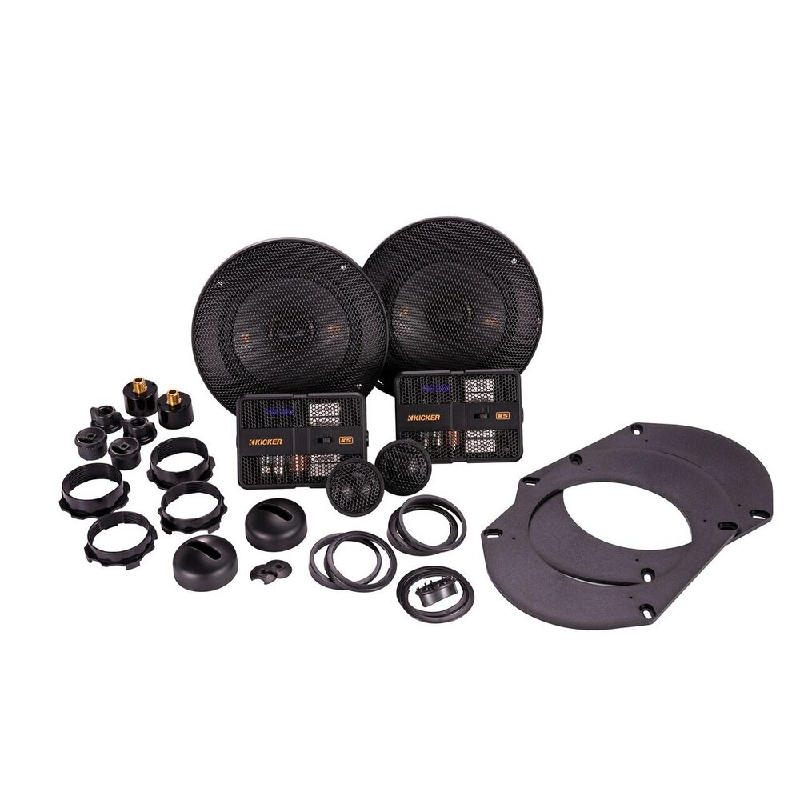

What's Inside?
- • (2) Woofers
- • (2) Phase plugs (installed)
- • (2) Woofer grilles
- • (2) Grille mounting rings
- • (2) 1" Tweeters (each with 6" Wire attached)
- • (2) Crossovers
- • (2) Upper tweeter mounting posts
- • (2) Lower tweeter mounting posts
- • (2) Tweeter housings
- • (2) Tweeter housing washers
- • (2) Flush mount rings (tweeter)
- • (2) Front angle rings (tweeter)
- • (2) Back angle rings (tweeter)
- • (2) Short mounting nuts (tweeter)
- • (2) Long mounting nuts (tweeter)
- • (2) Surface mount pods
- • (2) Pod nuts
- • (1) Tweeter tool
- • (2) 11" Zip ties
- • Grille putty
- • (4) Red plastic wire caps
- • (2) M4x7mm Machine screws
- • (12) 1-1/8" Screws
- • Quick-Start guide (English/ Spanish/ German/ French)
- • Template
- • Owner's Manual
Why Choose Kicker 47KSS504 Component System?
Silk Dome Tweeter Has a Low Profile and Diameter to Fit
Its 1-inch silk dome tweeter has a low profile and diameter to fit it anywhere inside your car easily. The Kicker 47KSS504 also comes with mounting posts for additional options to place the tweeter in unique spots inside your car.
Comes With Crossovers With Built-in Tweeter Protection
The Kicker 47KSS504 also comes with crossovers with built-in tweeter protection and attenuation to guard your tweeters against damage. The wires also have some distinction, so you won't make a mistake in pairing the correct driver to its channel, which can be dangerous for the components.
Full-range Frequency Performance
The Kicker 47KSS504 can deliver 100 Watts of RMS power and a peak power output of 200 Watts at a 4-ohm impedance. The component system has a frequency response of 38 Hz to 21 kHz and a sensitivity rate of 88 dB, which means it can give you an extensive full-range frequency performance while going loud with minimal distortion.
Frequently Asked Questions (FAQ)
- • Why do my woofers sound weak after replacing the factory speakers?
Weak output is often caused by incorrect speaker polarity or gaps between the woofer and the mounting surface. Check the wiring and ensure the speakers are securely mounted for the best midbass response.
- • Can I flush-mount or surface-mount the tweeters?
Yes. The included flush-mount rings, angle rings, and surface-mount pods provide multiple installation options to suit different vehicles.
- • Why do my tweeters produce a hissing or harsh sound?
Excessive treble boost or poor tweeter placement can make high frequencies sound overly aggressive. Reducing the EQ settings or aiming the tweeters away from the listener often improves sound quality.
- • Do I need to install the included passive crossovers?
Yes. The crossovers ensure the woofers and tweeters receive the proper frequency range for balanced sound and reliable operation.
- • Why do my speakers distort during loud music?
Amplifier clipping or incorrect gain settings are the most common causes of distortion. Proper amplifier tuning and a high-pass crossover will help produce cleaner audio.

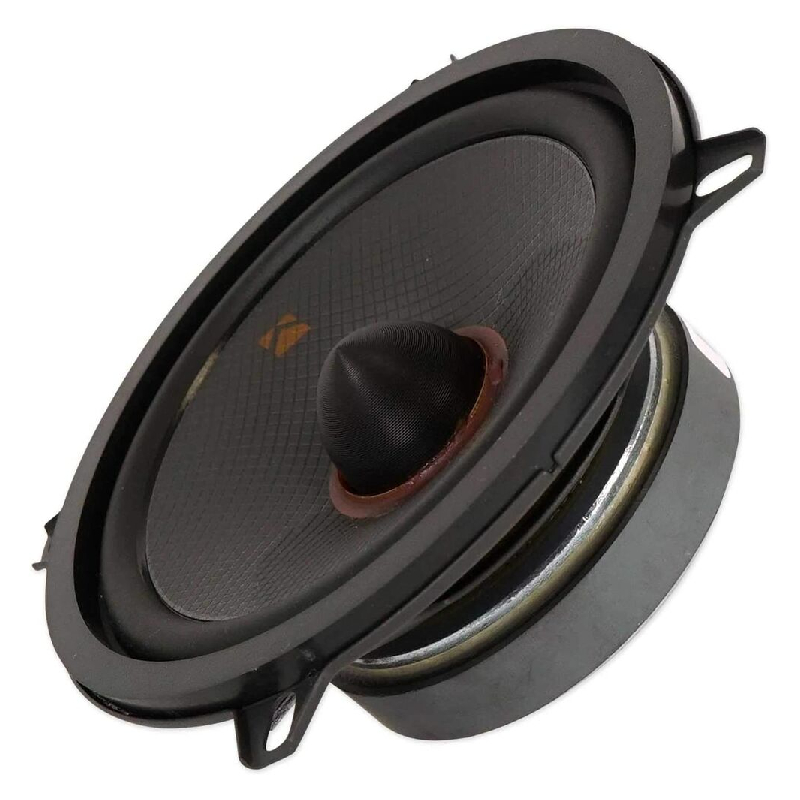

- • What are the phase plugs on the woofers designed to do?
The installed phase plugs help improve midrange performance and assist with heat dissipation around the voice coil. They are part of the speaker design and should not be removed.
- • Why does one side of the component system sound quieter than the other?
Loose wiring, incorrect crossover connections, or balance settings can create uneven sound levels. Inspect all speaker wiring before assuming a component has failed.
- • Can I use these speakers with an aftermarket amplifier?
Yes. A properly matched amplifier will provide cleaner power, improved dynamics, and better overall sound quality than most factory head units.
- • Why do my door panels vibrate more after installing the new speakers?
The higher output can expose loose trim panels and factory clips that previously didn't vibrate. Tightening the hardware and applying sound-deadening material can significantly reduce rattles.
- • Does this package include everything needed for a standard installation?
Yes. The bundle includes woofers, tweeters, passive crossovers, multiple tweeter mounting accessories, woofer grilles, mounting hardware, zip ties, templates, and an owner's manual.
- Diameter : 5.25 Inch
- Sensitivity : 88 dB
- Frequency Response : 38-21000 Hz
- Peak Power Handling : 200 Watts
- RMS Power Handling : 100 Watts
Features:

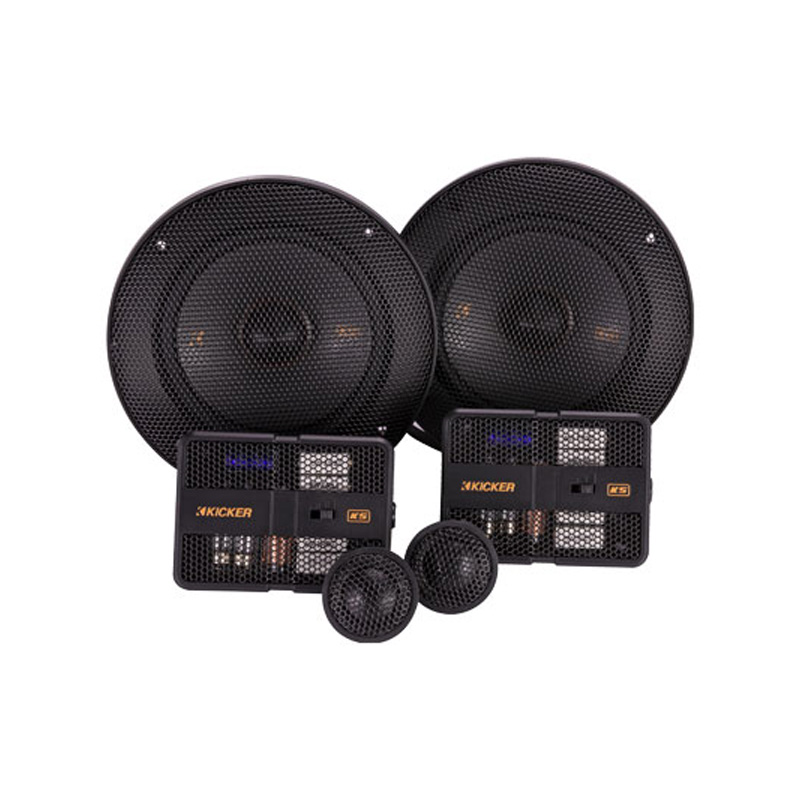

- Complete Speaker System: This package includes 2 woofers, 2 tweeters, and 2 crossovers, providing a comprehensive audio solution for your car.

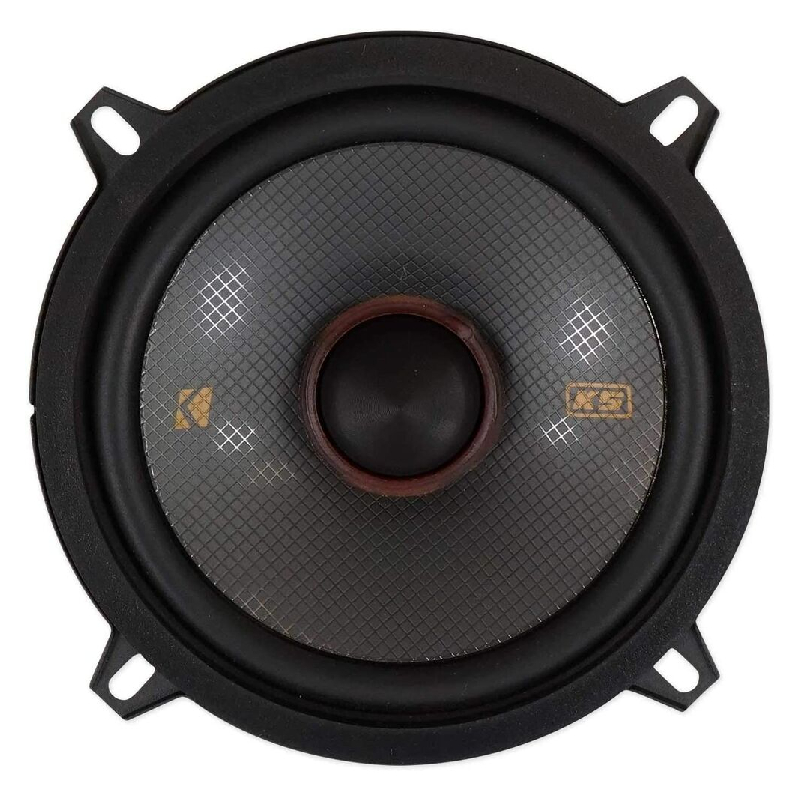

- Superior Woofer Design: Featuring 5-1/4" polypropylene woofer cones with rubber surrounds, these woofers deliver deep and accurate bass response with durability to withstand rigorous use.
- Precise Tweeter Configuration: Our speakers come equipped with 1" silk dome tweeters offering four mounting options, ensuring flexible installation and optimal sound placement.
- Advanced Crossover Network: With an external crossover network offering 3 tweeter levels (0 dB, +4.5 dB, +9 dB), you can customize the sound to suit your preferences and achieve precise audio tuning.
- High Power Handling: Capable of handling up to 100 watts RMS (200 watts peak power), these speakers deliver robust and dynamic sound performance for an immersive listening experience.
- Versatile Installation Options: Whether installed as separate components or as 2-way speakers, this system offers flexibility to accommodate your setup preferences and vehicle configuration.
- Wide Frequency Range: Experience a broad frequency range from 38 to 21,000 Hz, ensuring accurate reproduction of both low and high frequencies for lifelike sound reproduction.
- Enhanced Sensitivity: With a sensitivity rating of 88 dB, these speakers efficiently convert power into sound, delivering clear and detailed audio with minimal distortion.
- Compact Design: Featuring a woofer top-mount depth of 1-13/16", these speakers are designed to fit seamlessly into most vehicle interiors, allowing for easy installation without sacrificing performance.
- Stylish Grilles Included: Complete with grilles, our component speaker system not only enhances the aesthetic appeal of your car's interior but also provides protection for the speaker components, ensuring longevity and durability.
Specifications:
- Woofer [in, mm]: 5-¼, 130
- Tweeter [in,mm]: 1, 25
- Dome Material: Silk
- Rated Impedance: 4 ohms
- Recommended Amplifier Power [Watts RMS]: 100
- Sensitivity [1W, 1m]: 88
- Frequency Response [Hz]: 38-21k
- Woofer Mounting Hole Diameter [in, mm]: 4-½, 115
- Woofer Bottom Mount Depth [in, mm]; 1-¾, 45
- Flush Mount Tweeter Hole Diameter [in,mm]: 1-¾, 45
- Flush Mount Tweeter Depth [in,mm]: 11⁄16 , 17
- High Pass [dB], at Frequency [Hz]: 12, 4,000
- Low Pass [dB], at Frequency [Hz]: none
- High Frequency Output Attenuation [dB]: 0, 4.5, 9
- UPC: 713034011620
- Weight: 5.75
