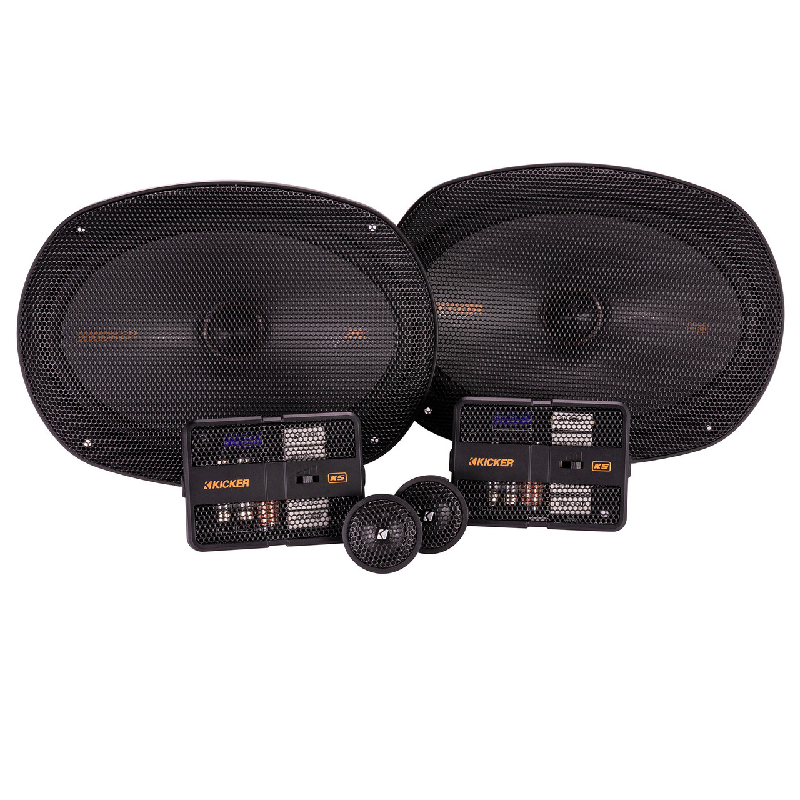

Kicker 47KSS6904 KS Series 6"x9" 150W RMS (300W Peak Power Handling) 4 Ohms 2-Way Car Component Speaker System
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

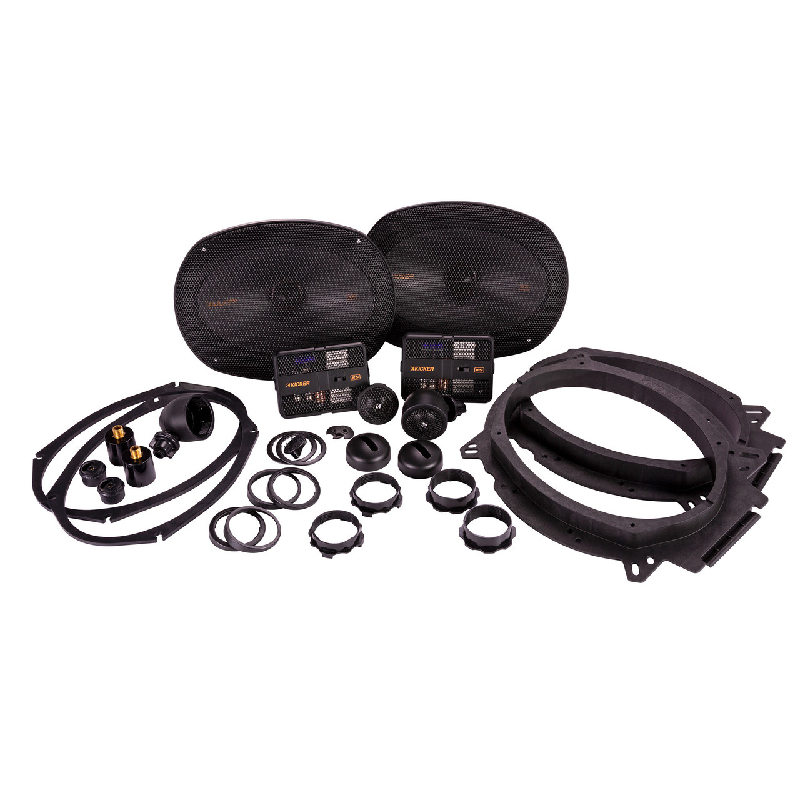

What's Inside?
- • (2) Woofers
- • (2) Phase plugs (installed)
- • (2) Woofer adapter brackets
- • (2) Bottom mount spacers
- • (2) Woofer grilles
- • (2) Grille mounting rings
- • (2) 1" Tweeters (each with 6" Wire attached)
- • (2) Crossovers
- • (2) Upper tweeter mounting posts
- • (2) Lower tweeter mounting posts
- • (2) Tweeter housings
- • (2) Tweeter housing washers
- • (2) Flush mount rings (tweeter)
- • (2) Front angle rings (tweeter)
- • (2) Back angle rings (tweeter)
- • (2) Short mounting nuts (tweeter)
- • (2) Long mounting nuts (tweeter)
- • (2) Surface mount pods
- • (2) Pod nuts
- • (1) Tweeter tool
- • (2) 11" Zip ties
- • (2) Adhesive backed foam pads
- • Grille putty
- • (4) Red plastic wire caps
- • (2) M4x7mm Machine screws
- • (12) 1-1/8" Screws
- • Quick-Start guide (English/ Spanish/ German/ French)
- • Template
- • Owner's Manual
Why Choose Kicker 47KSS6904 Component System?
Affordable but Excellent-quality Component System

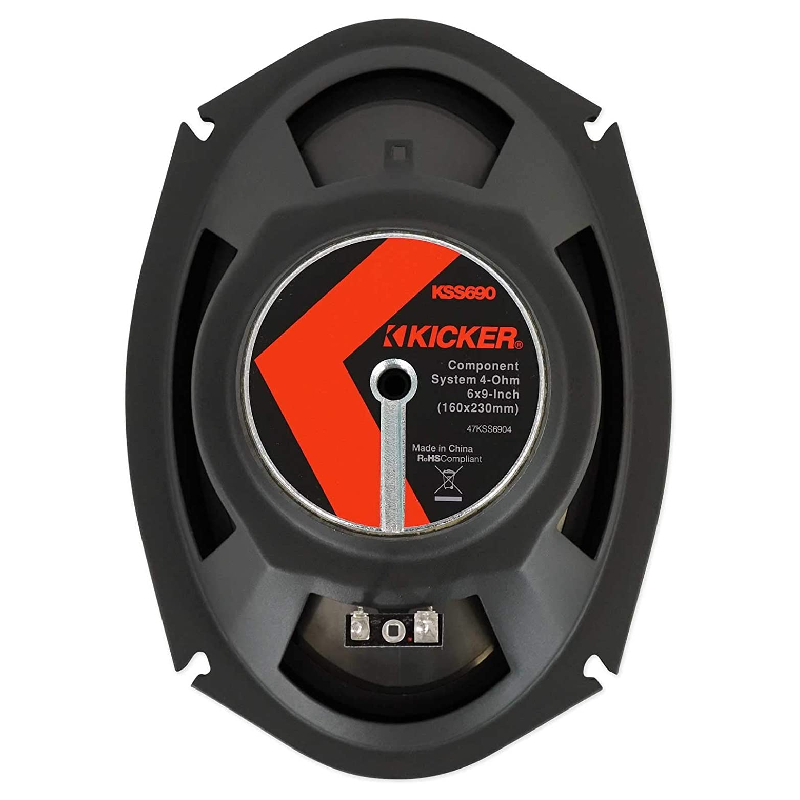

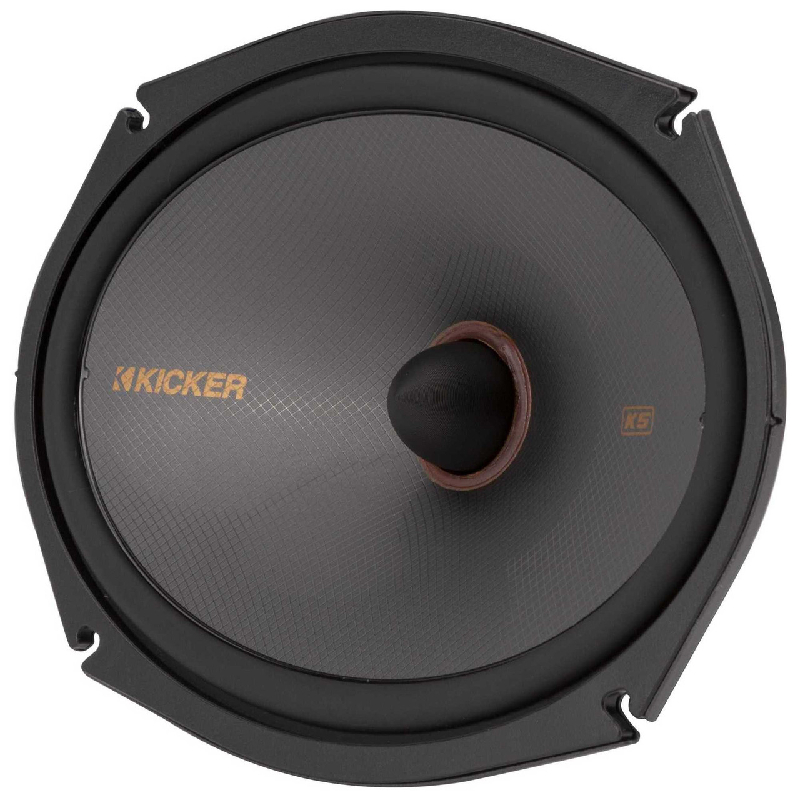

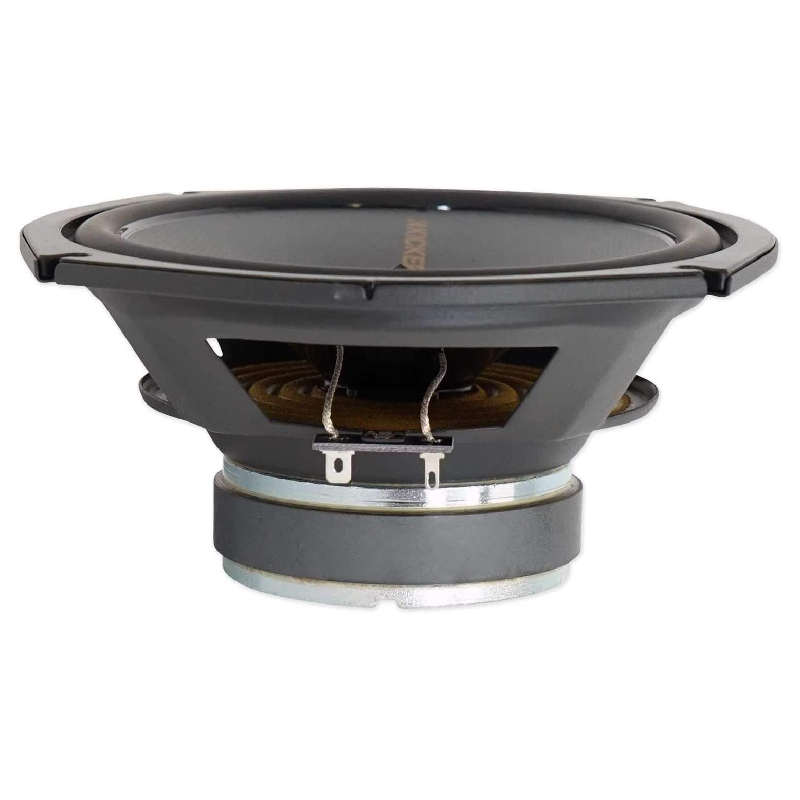

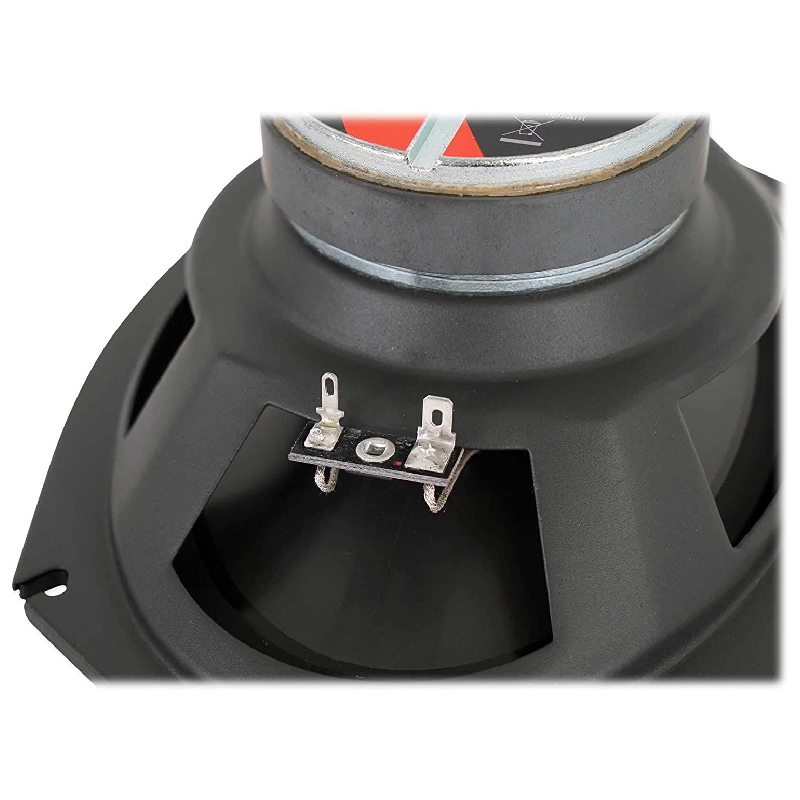

Are you looking for an affordable but excellent-quality component system to install in your car? Maybe the Kicker 47KSS6904 is the answer to what you are hoping for. Coming with two woofers, two tweeters, and two crossovers, this component system is the perfect upgrade to your factory car audio system. The Kicker 47KSS6904 has a 6x9-inch woofer with a polypropylene cone designed for all weather conditions, and its durability helps produce an accurate midrange response. Its rubber surround is meant to protect the speaker from high excursion failures.
Crossovers With Built-in Tweeter

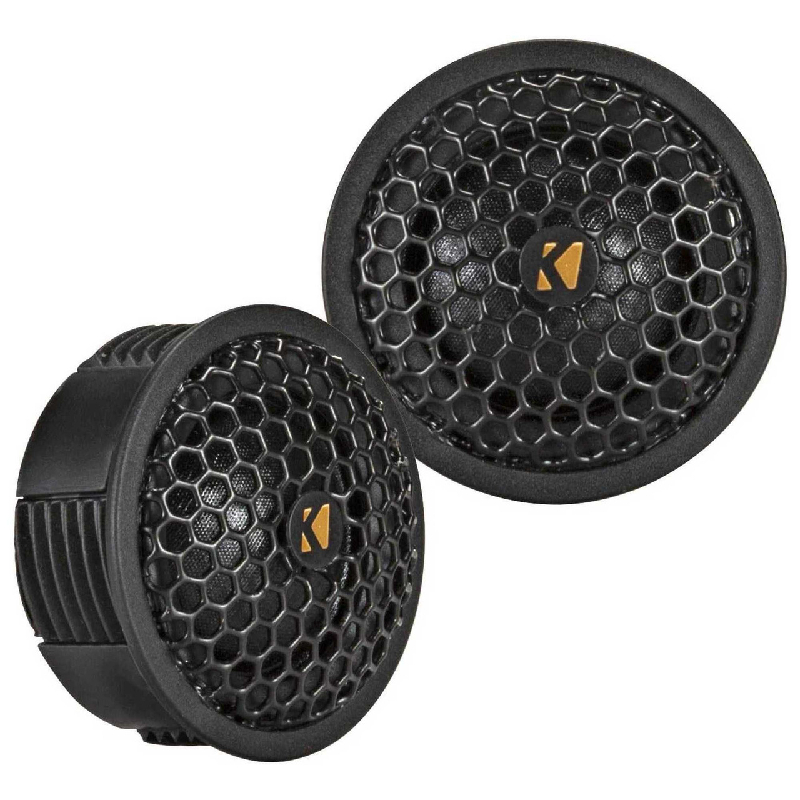

Its 1-inch silk dome tweeter has a low profile and diameter to fit it anywhere inside your car easily. It also comes with mounting posts for additional options if you want to place the tweeter in some unique spots inside your car. It also comes with crossovers with built-in tweeter protection and attenuation to guard your tweeters against damage. With its low-profile motor structure, you can use it for any sound application, adding versatility to its advantages.
Complete Sound You Deserve
The wires also have some distinction on them so that you will avoid making a mistake in pairing the correct driver to its channel, which can be dangerous for the components. The Kicker 47KSS6904 component system can deliver 150 Watts of RMS power output and reach 300 Watts of peak power at 4 ohms. Its frequency response of 35 up to 21,000 Hz means it has the full range of frequencies from lows, mids, and highs, so you get the complete sound you deserve. It can get loud quickly with a sensitivity rate of 92 dB with minimal distortion.
Frequently Asked Questions (FAQ)
- • Why do my component speakers sound thin with almost no midbass?
Poor door sealing or incorrect speaker polarity is the most common cause of weak midbass. Make sure the woofers are securely mounted and the wiring polarity matches on both sides.
- • Can I use the included adapter brackets if my factory speaker openings are different?
Yes. The supplied woofer adapter brackets are designed to simplify installation in many factory speaker locations and reduce the need for custom fabrication.
- • Why are my tweeters producing little or no sound?
Check that the crossovers are wired correctly and that the tweeter connectors are fully seated. A loose connection or incorrect wiring is usually responsible for this issue.
- • Can I choose between flush-mount and surface-mount tweeter installation?
Yes. The package includes flush-mount rings, angle rings, surface-mount pods, mounting posts, and hardware for multiple installation options.
- • Why do my speakers distort only when the volume is turned up?
Distortion is commonly caused by amplifier clipping or the lack of a proper high-pass crossover. Correct amplifier gain settings and crossover adjustments will improve sound quality.
- • Do I need an external amplifier for the best performance?
While the speakers can operate from many aftermarket and factory head units, an external amplifier provides cleaner power and greater dynamic range. It also helps the system perform closer to its full potential.
- • Why does one door speaker sound quieter than the other?
Inspect the balance settings, crossover wiring, and speaker polarity on both sides. Loose terminals or damaged wiring are common causes of uneven output.
- • What are the adhesive-backed foam pads included in the package used for?
They help reduce unwanted vibrations and create a better seal around the speakers during installation. Proper sealing can improve midbass response and reduce rattles.
- • Why do my tweeters sound too bright after installation?
Tweeters mounted directly toward the listener can emphasize high frequencies. Changing the mounting angle or reducing the treble EQ often creates a smoother sound.
- • Does this package include the hardware needed for a complete installation?
Yes. The bundle includes woofers, tweeters, passive crossovers, mounting brackets, tweeter mounting accessories, grilles, screws, foam pads, zip ties, wire caps, templates, and installation documentation.
- Diameter : 6x9 Inch
- Sensitivity : 92 dB
- Frequency Response : 35-21000 Hz
- Peak Power Handling : 300 Watts
- RMS Power Handling : 150 Watts
Features:

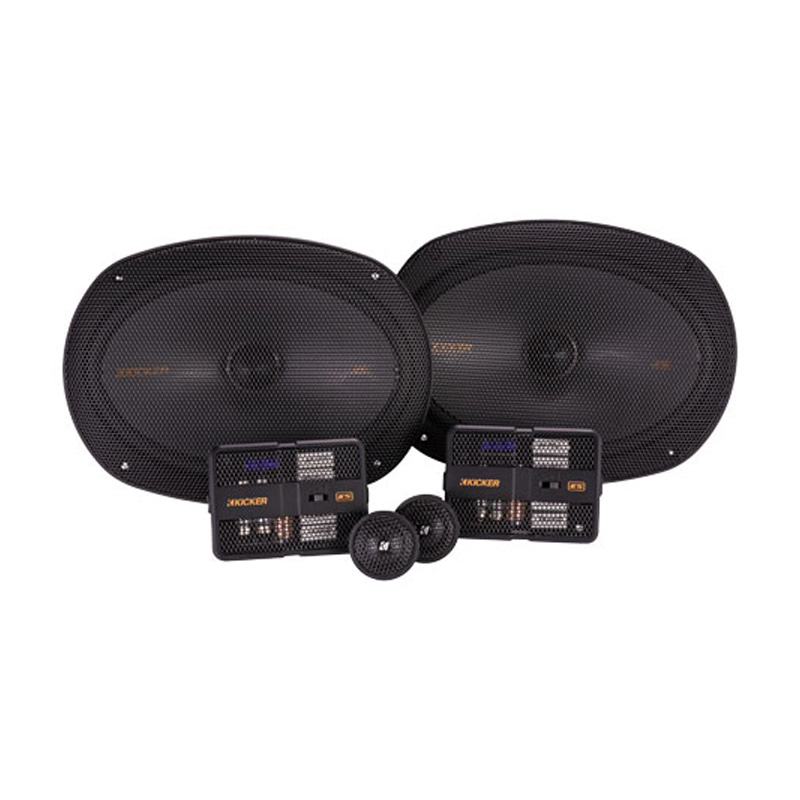

- Comprehensive Speaker System: This package includes 2 woofers, 2 tweeters, and 2 crossovers, providing a complete solution for upgrading your car audio setup.

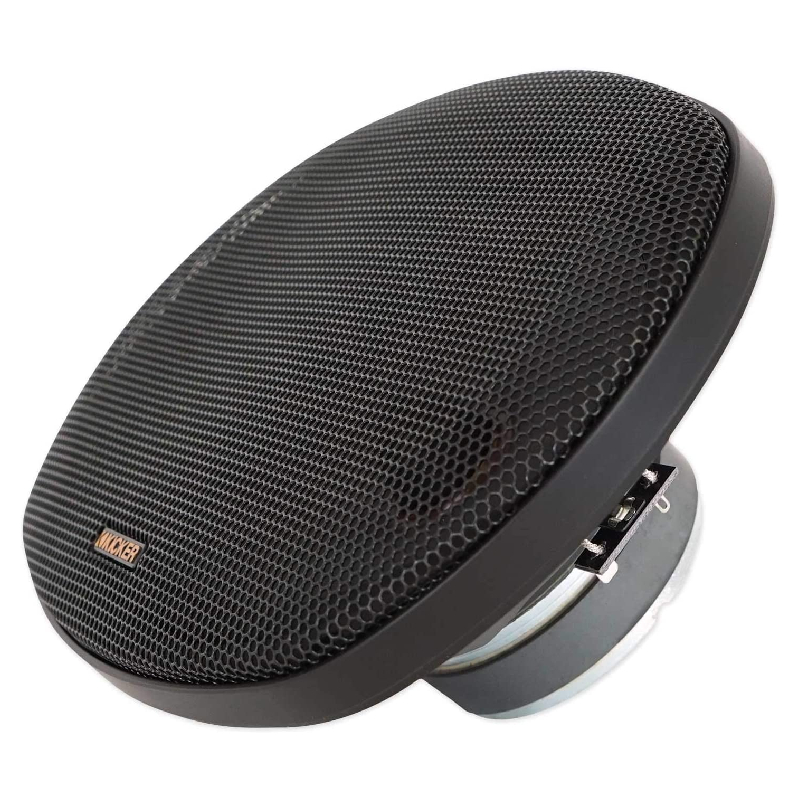

- High-Performance Woofer Design: Featuring 6"x9" polypropylene woofer cones with rubber surrounds, these woofers deliver powerful and accurate bass response, ensuring immersive sound reproduction.
- Versatile Tweeter Configuration: Equipped with 1" silk dome tweeters offering four mounting options, these speakers provide flexibility in installation and optimal sound positioning.

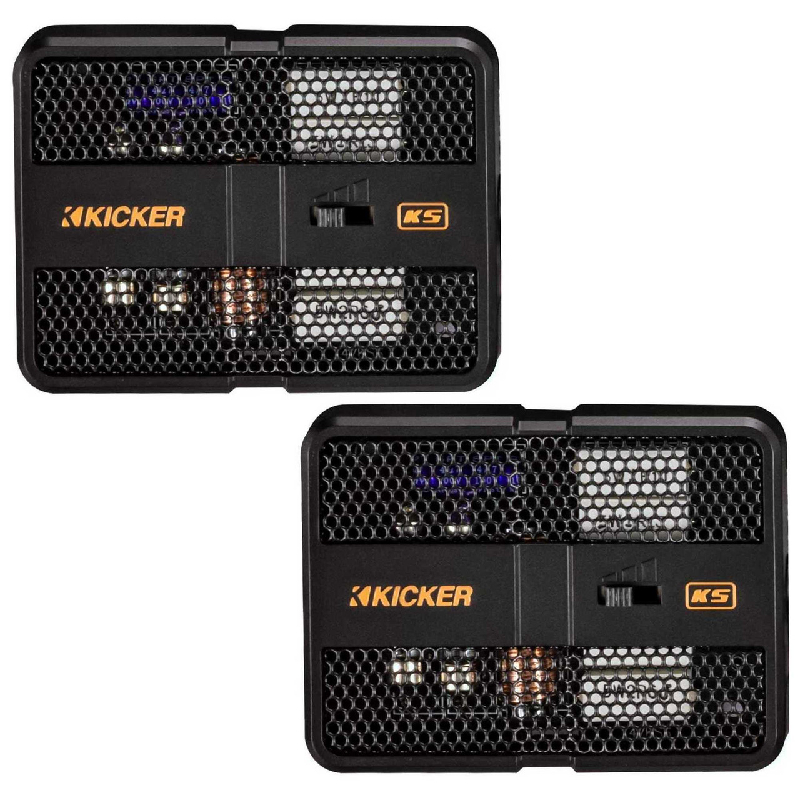

- Advanced Crossover Network: The external crossover network offers 3 tweeter levels (0 dB, +4.5 dB, +9 dB), allowing you to customize the sound output to your preferences and achieve precise audio tuning.
- Powerful Handling: Capable of handling up to 150 watts RMS (300 watts peak power), these speakers deliver dynamic and impactful sound performance, ensuring a captivating listening experience.
- Flexible Installation Options: Whether installed as separate components or as 2-way speakers, this system offers versatility to accommodate your setup preferences and vehicle configuration.
- Wide Frequency Range: Experience a broad frequency range from 35 to 21,000 Hz, delivering detailed and accurate sound reproduction across the entire audio spectrum.
- Enhanced Sensitivity: With a sensitivity rating of 92 dB, these speakers efficiently convert power into sound, delivering loud and clear audio with minimal distortion.

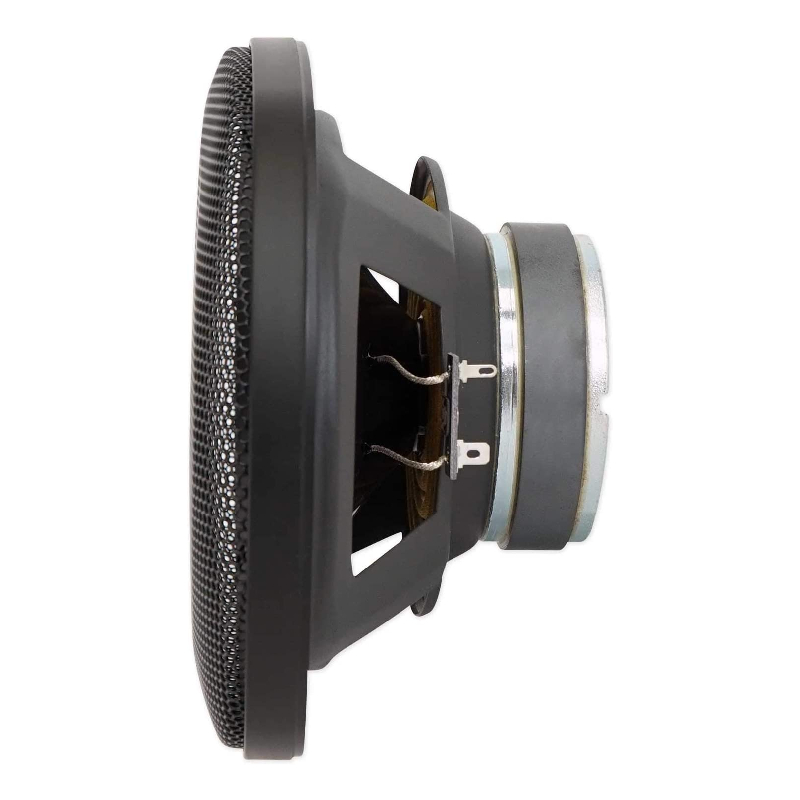

- Optimal Mounting Depth: Featuring a woofer top-mount depth of 3", these speakers are designed to fit seamlessly into most vehicle interiors, allowing for easy installation without compromising performance.

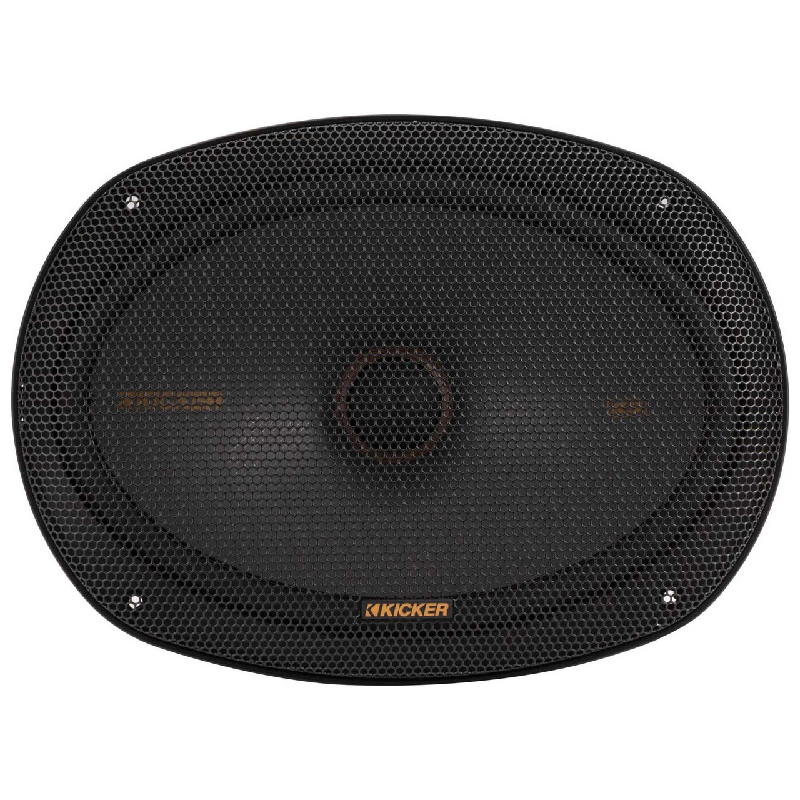

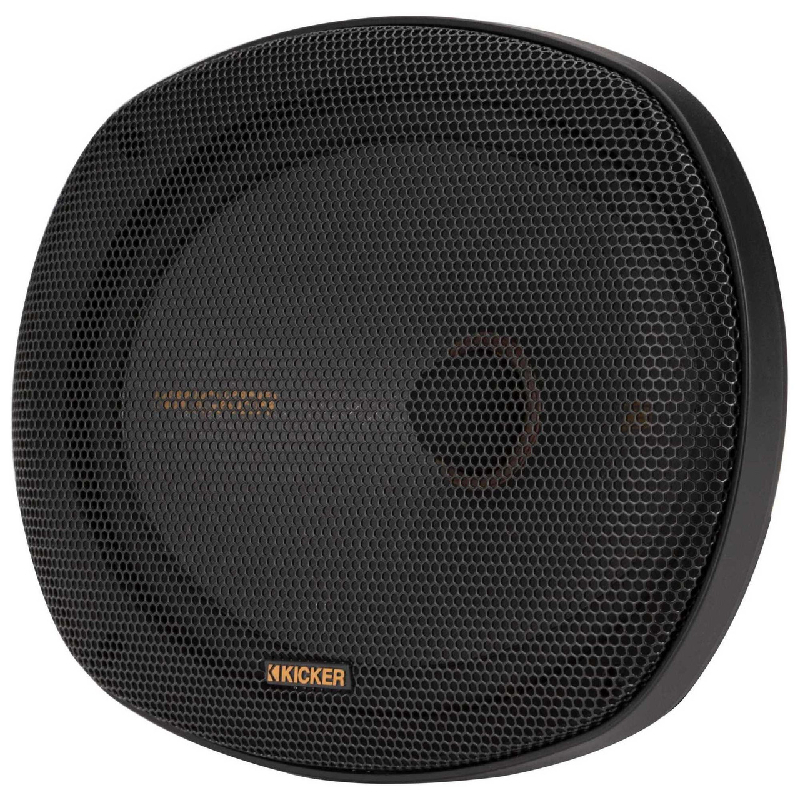

- Stylish Grilles Included: Complete with grilles, our component speaker system not only enhances the visual appeal of your car's interior but also provides protection for the speaker components, ensuring durability and longevity.
Specifications:
- Woofer [in, mm]: 6x9, 160x230
- Tweeter [in,mm]: 1, 25
- Dome Material: Silk
- Rated Impedance: 4
- Recommended Amplifier Power [Watts RMS]: 150
- Sensitivity [1W, 1m]: 92
- Frequency Response [Hz]: 35-21k
- Woofer Mounting Hole Diameter [in, mm]: 5-5⁄8x8-7⁄16, 143x215
- Woofer Bottom Mount Depth [in, mm]: 2-15⁄16, 75
- Flush Mount Tweeter Hole Diameter [in,mm]: 1-¾, 45
- Flush Mount Tweeter Depth [in,mm]: 11⁄16 , 17
- High Pass [dB], at Frequency [Hz]: 12, 4,000
- Low Pass [dB], at Frequency [Hz]: none
- High Frequency Output Attenuation [dB]: 0, 4.5, 9
- UPC: 713034011668
- Weight: 9.15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
