Pioneer DMH-220EX 6.2" WVGA Display Digital Multimedia Receiver with Bluetooth®, Android™, iPhone® and Back-up Camera Ready
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Digital media receiver w/ fixed 6.2" touchscreen monitor (10A fuse inserted in chassis)
- • Wiring harness
- • 5' USB extension cable
- • Microphone w/ mounting-bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
- • Two-sided tape
- • 6 Pan-head ISO screws (M5 x 9mm)
- • 6 Flat-head ISO screws (M5 x 9mm)
- • Quick Start Guide
- • Installation Manual
- • Warranty Information

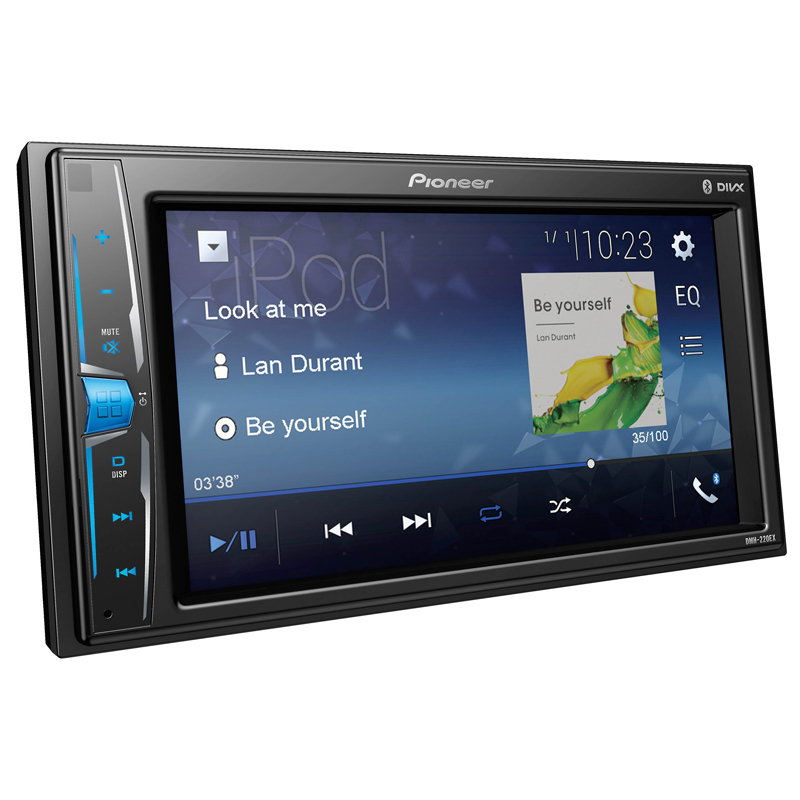

Multimedia Receiver
Today, the market for entry-level multimedia receivers has already been highly saturated, making it very difficult to choose the best component for your car's entertainment setup. One that we can highly recommend is the Pioneer DMH-220EX. Affordable but still comes with modern features, this receiver has a 6.2-inch touchscreen display for a better viewing experience.
Hands-free Streaming
The receiver allows you to control Apple Music Radio from your iPhone and Android Music from your Android phone. You can also connect with its Bluetooth feature, so you can answer calls and stream music hands-free.
Color Illumination
You can also choose the perfect color that will match your receiver's button illumination with your car's interior lighting, making it very good to look at. You can connect a backup camera to it, as well, so you can see your rearview while you are engaged in reverse gear.
Built-In Amplifier
The Pioneer DMH-220EX has a built-in amplifier that can handle a power output of 14 Watts RMS and can go up to 50 Watts of peak power per channel. It has a six-channel preamp output, allowing you to connect a pair of front and rear speakers and a pair of subwoofers. Thanks to its 13-band graphic EQ, you can shape the amplifier's frequency response to your preference. It also has high and low-pass filters for a more defined audio quality while protecting your speakers from blowing off.
- Built-in EQ : Yes
- Display Size : 6.2 Inch
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- RDS - Radio Data System : Yes
- Rear View Camera Input : Yes
- Apple CarPlay : No
- Android Auto : No
Features:
- 6.2" WVGA (Clear Resistive)
- Multilingual Display
- Direct Control for iPod®/iPhone®
- Android™ Compatibility
- Built-in Bluetooth®
- Back-up Camera Ready
Display
- Screen Size/Aspect Ratio: 6.2"/16:9
- Resolution: WVGA (800 x 480)
- Touchscreen: Clear Resistive
- LED Backlight: Yes
- Display Off Mode: Yes
- Color Customization: 5 Display Colors, 112-Key Colors
- Display Customization: 2-Background
- Dimmer Setting (ON/OFF): Yes
- Brightness Control: Yes
Bluetooth®
Tuner
- Presets: 18 FM, 6 AM
- Best Station Memory (BSM): Yes
- Local Seek Tuning: Yes
- RDS: Yes
Smartphone Integration
- Voice Control: Yes
- Siri® Eyes Free: Yes
Digital Media Playback
- MP3 Audio Playback: USB
- WMA Audio Playback: USB
- AAC Audio Playback: USB
- WAV Audio Playback: USB
- MPEG-1 Video Playback: USB
- MPEG-2 Video Playback: USB
- MPEG-4 Video Playback: USB
- AVI/DivX Video Playback: USB
- JPEG Photo Slideshow Viewer: USB
Audio
- RCA Preouts: 3 (2V)
- Built-in Amplifier: MOSFET 50 W x 4
- Customizable Graphic Equalizer: 13-Band
- D/A Converter: 24-Bit
- Time Alignment (CD-MC20 required): Manual
- Subwoofer Control: Yes
- Advanced Sound Retriever: Yes

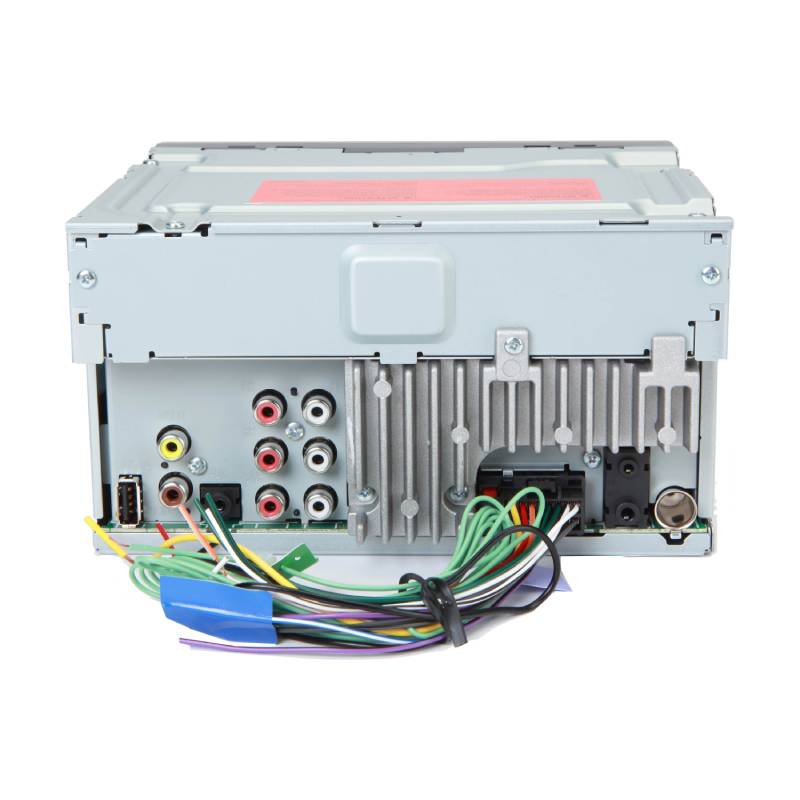

Expandability
- USB: Single, Rear (1.5 Amp
- AUX Input: Rear
- Back-Up Camera Input: Yes
- Wired Remote Input: Yes
- Composite Video Output: Yes
- Mini-jack AV Cable: 1 (Audio/Video)
- USB Direct Control for iPhone®: Yes
General
- Detachable Face Security: Fixed
- Remote Control: Optional
- Multi-Language Display: English, Chinese (Simplified), French, Spanish, Portuguese
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 Year
- 2006 CEA Compliant: Yes
- UPC: 884938445719
- Weight: 4.01
