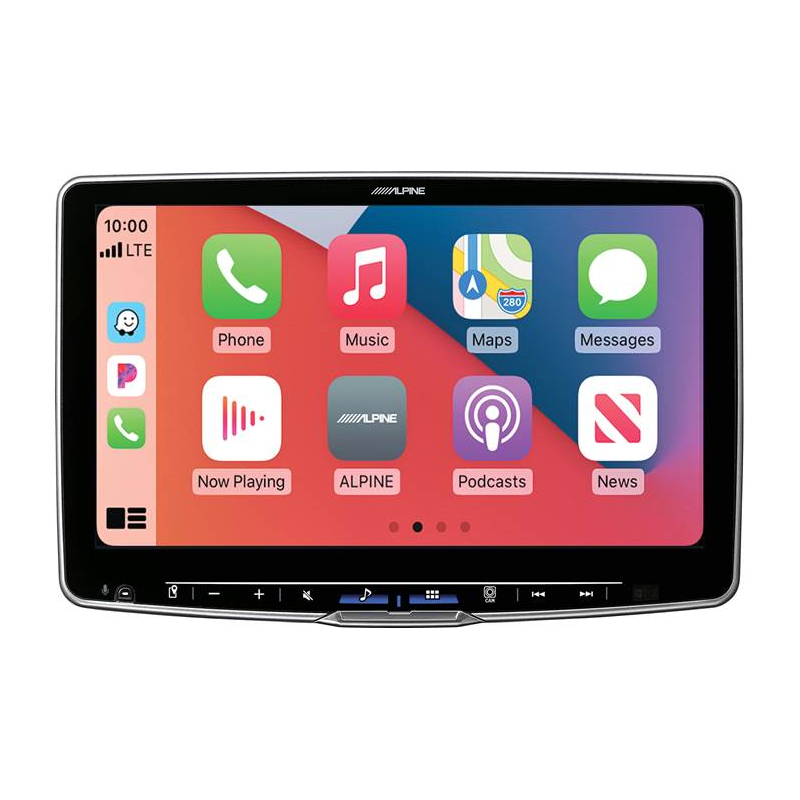

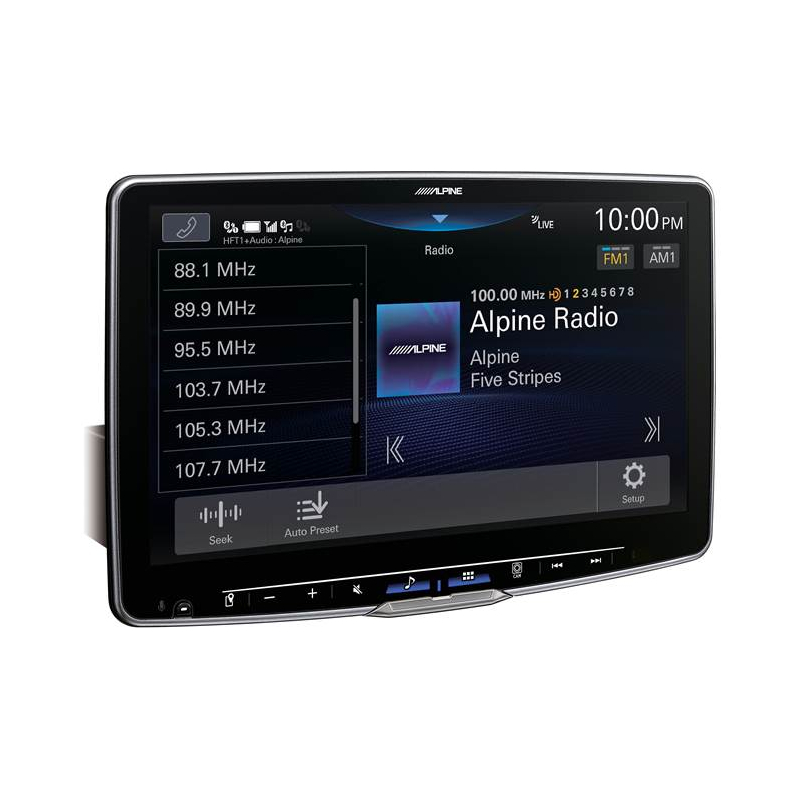

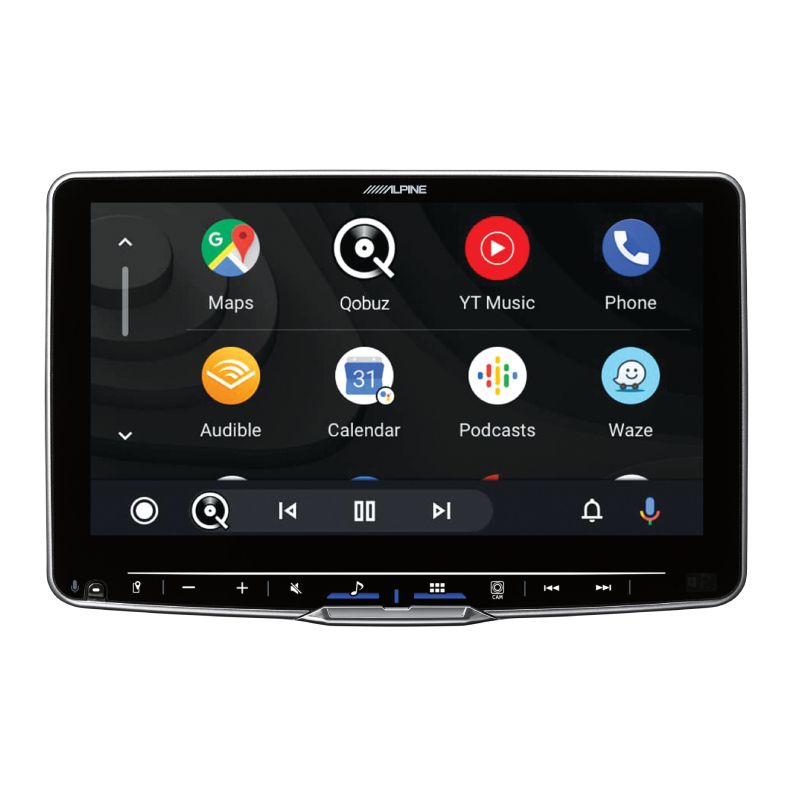

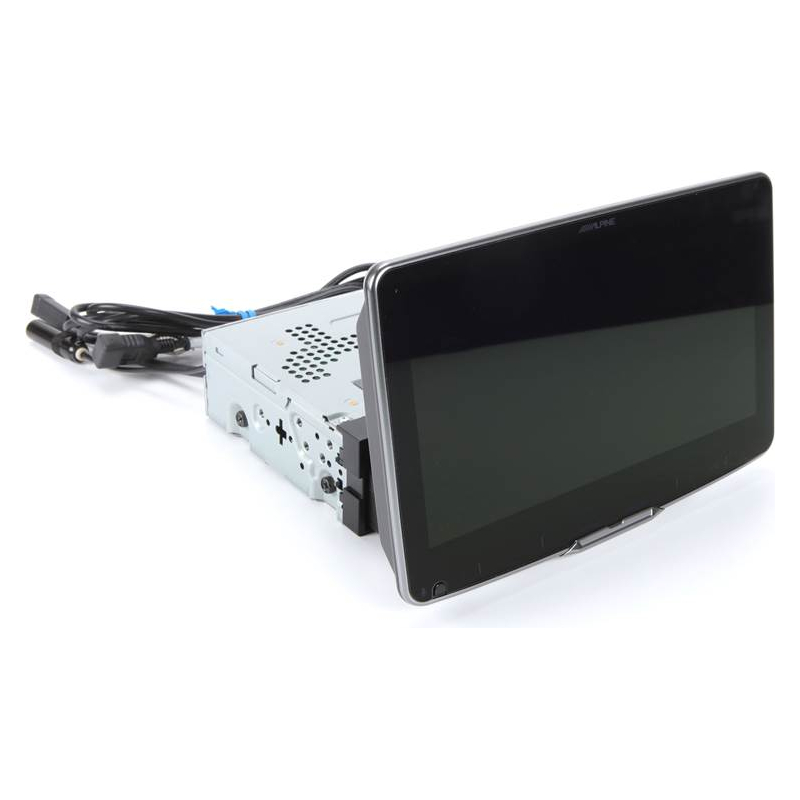

Alpine iLX-F509 Halo Series 1-DIN 9" Floating Touchscreen Display Hi-Res Audio Digital Multimedia Receiver with Wireless/Wired Apple CarPlay & Wireless/Wired Android Auto, Built-In Bluetooth® and SiriusXM®-Ready
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

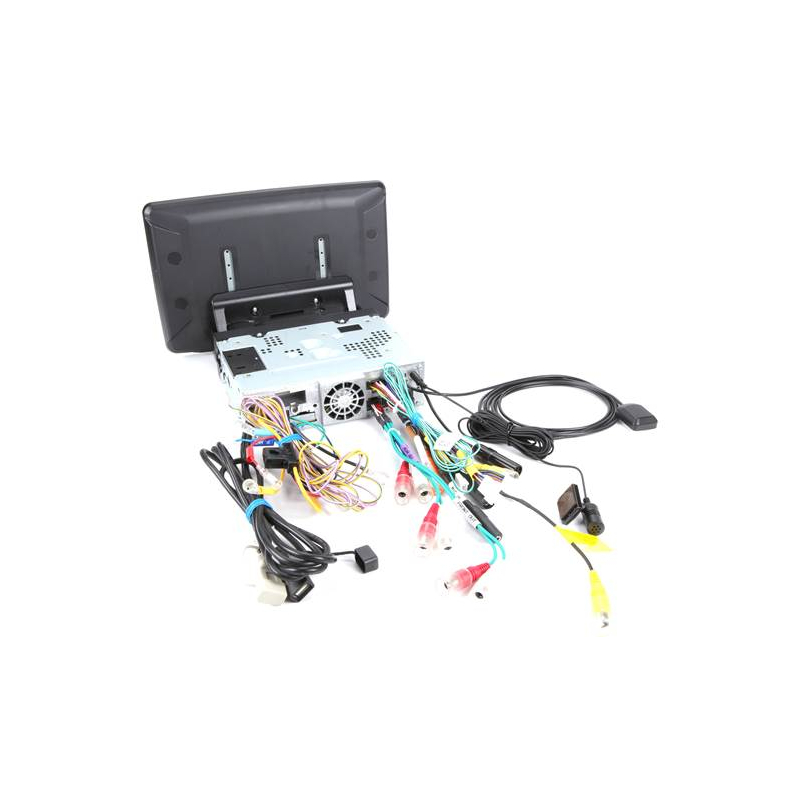

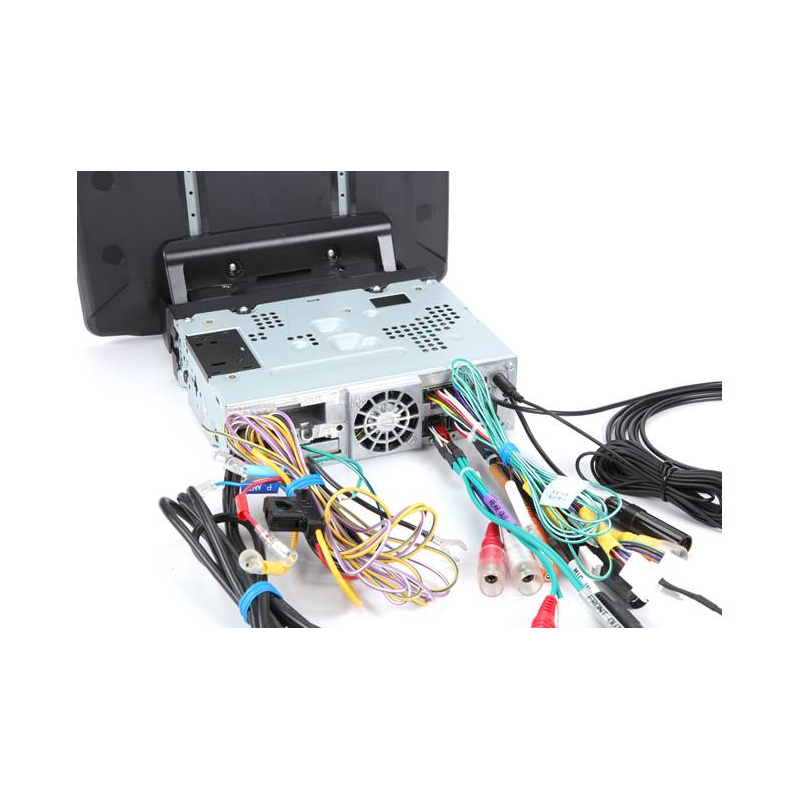

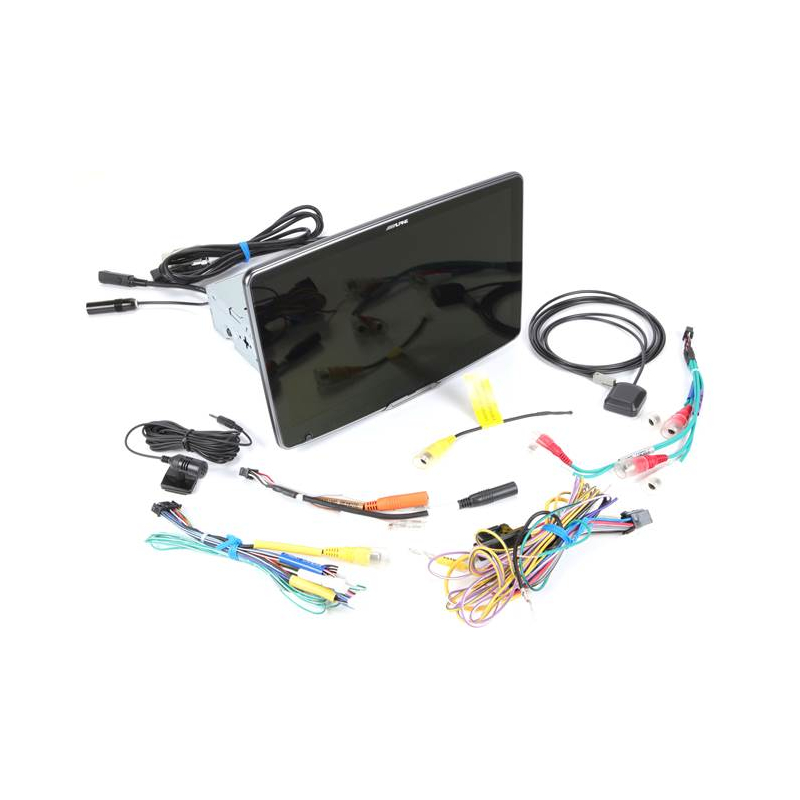

What's Inside?
- • 9" Touchscreen monitor
- • Source unit
- • Wiring harness (15A fuse)
- • Preout harness
- • iDatalink/Driver Recorder/Front Camera harness
- • Camera input adapter harness
- • Mic/SWC harness
- • Microphone (w/ attached 12.5' cable terminated by a right-angle stereo-3.5mm connector)
- • Surface-mount bracket
- • Two-sided tape
- • GPS antenna (attached 8' cable with proprietary connector)
- • Self-adhesive mounting pad
- • (3) Self-adhesive cable clamps
- • Power-plate
- • (2) Rear covers
- • HDMI connector clamp
- • (4) Pan-head ISO-screws (M5x8mm)
- • (4) Counter-sunk ISO-screws (M5x8mm)
- • (3) Display screws (M5x8mm)
- • (2) Hinge screws (M3x4mm)
- • (2) Rear cover screws (M2.6x6mm)
- • (4) Rectangle self-adhesive sheets
- • (4) Square self-adhesive sheets
- • (2) Round self-adhesive sheets
- • (2) Semi-oval self-adhesive sheets
- • Quick Reference Guide
- • Online Registration Information
- • Online Detailed Manual Card
- • Owner's Manual
Why Choose Alpine iLX-F509 Car Receiver?
Unmatched Style and Sound
Experience the perfect blend of style, sound, and smart design with a stunning 9-inch adjustable floating display, sleek silver-trimmed housing, crystal-clear Hi-Res audio (wired and wireless), and premium TIDAL streaming—all built into a universal 1-DIN chassis that fits seamlessly into almost any vehicle.
Stay Connected and Entertained

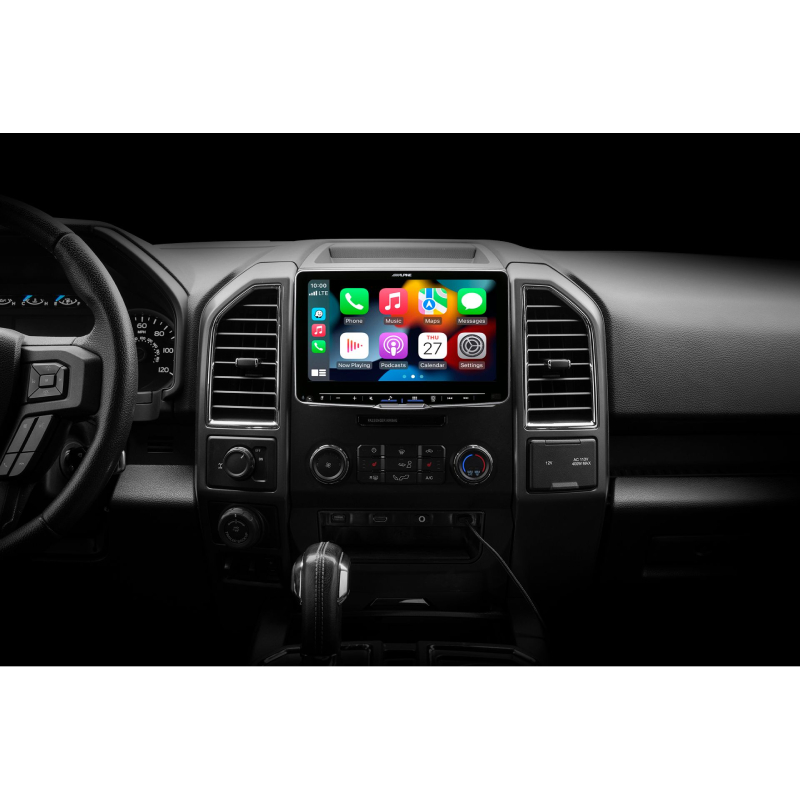

Stay effortlessly connected on every drive with seamless Apple CarPlay® and Android Auto™ (wired or wireless), hands-free Bluetooth® calling, built-in Google Assistant voice control, and access to endless entertainment with SiriusXM® 360L compatibility.
Ultimate In-Car Connectivity and Entertainment
Enjoy a fully connected driving experience with built-in HD Radio® for crystal-clear sound, advanced vehicle integration through iDatalink® Maestro, DVR-C320R dash cam support, GPS navigation compatibility, and enhanced audio clarity with Media Xpander®—all designed to elevate every journey.
Elevate Your Sound Control

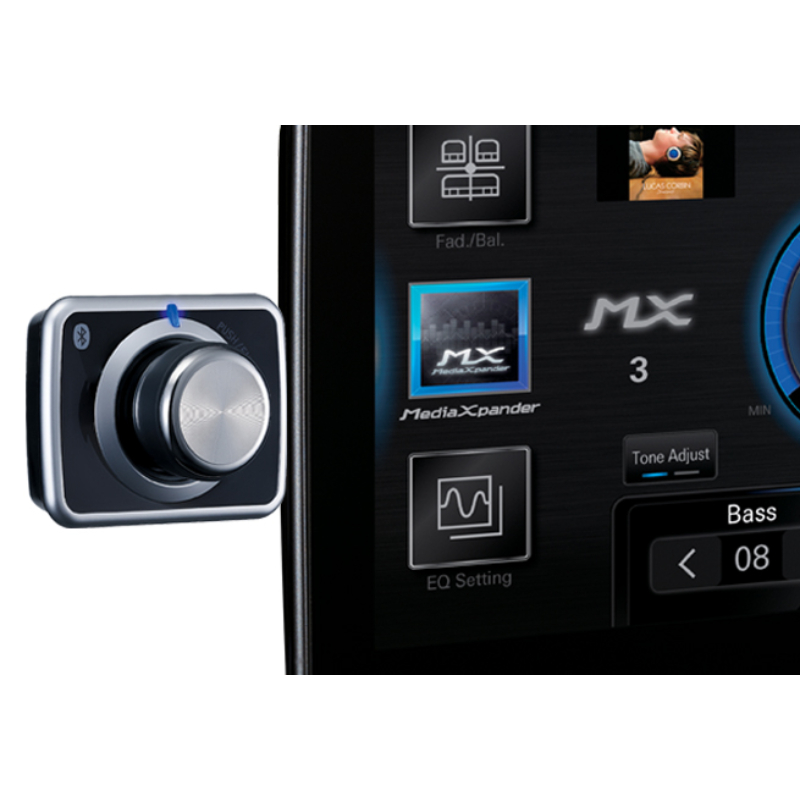

Enhance your Alpine Halo system with the sleek RUX-H02 Subwoofer Controller—effortlessly mounted to your display, it gives you quick, wireless Bluetooth control of your subwoofer and main volume, all in a stylish design that perfectly complements the Alpine Halo aesthetic.
Alpine Halo Receiver Comparison Chart | iLX-F511 vs iLX-F509
| Ultimate Alpine Halo Receiver Performance Comparison |
Alpine iLX-F511
Halo11 11" Floating Display Receiver – Large-Screen Multimedia with Wireless CarPlay & Android Auto
11-INCH DISPLAY
- • 11" WXGA 1280 x 720 display
- • 96kHz / 24-bit Hi-Res Audio
- • Wireless + wired Apple CarPlay
- • Wireless + wired Android Auto
- • 3 x 4V preamp outputs
- • 13-band parametric EQ
- • iDatalink Maestro compatible
|
Alpine iLX-F509
Halo9 9" Floating Display Receiver – High-Resolution Multimedia with Wireless CarPlay & Android Auto
9-INCH DISPLAY
- • 9" WXGA 1280 x 720 display
- • 96kHz / 24-bit Hi-Res Audio
- • Wireless + wired Apple CarPlay
- • Wireless + wired Android Auto
- • 3 x 4V preamp outputs
- • 13-band parametric EQ
- • iDatalink Maestro compatible
|

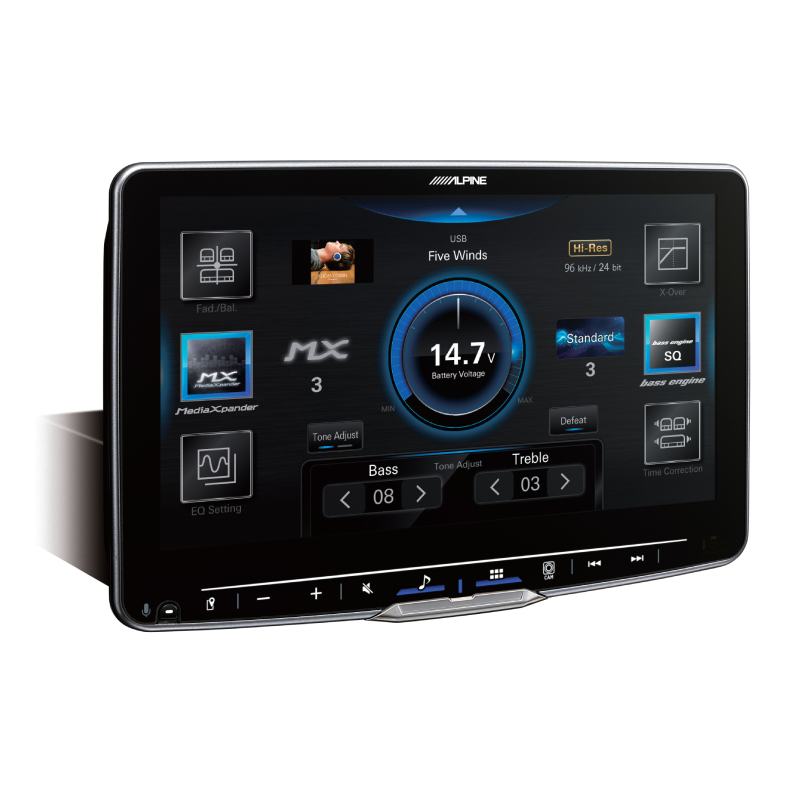

Alpine iLX-F509 Highlights

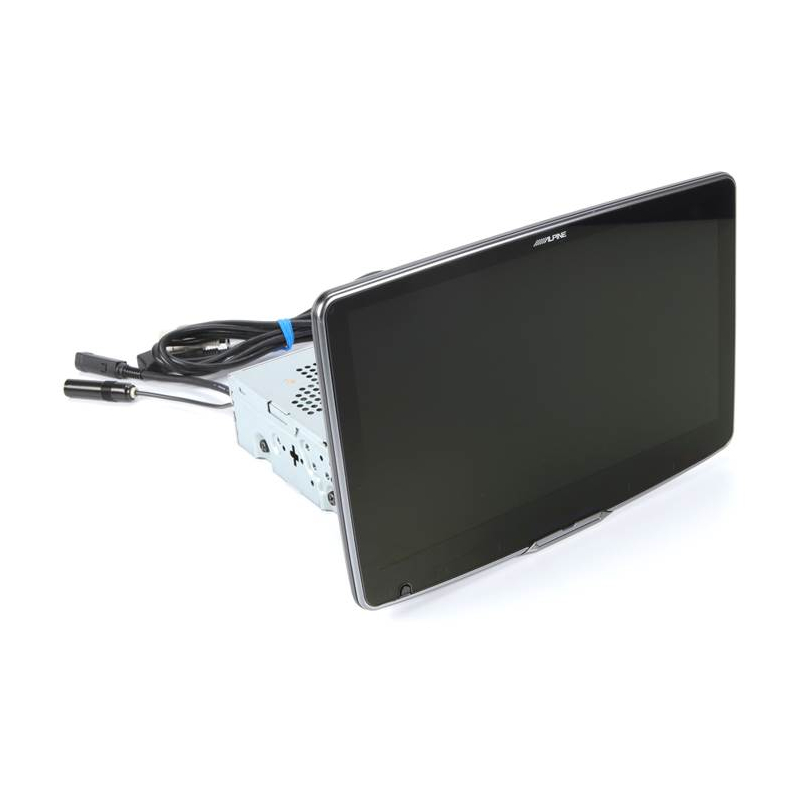

9-INCH HD DISPLAY
Halo9 Floating Screen
Enjoy a 9-inch 720p HD display with adjustable height, depth, and viewing angle.

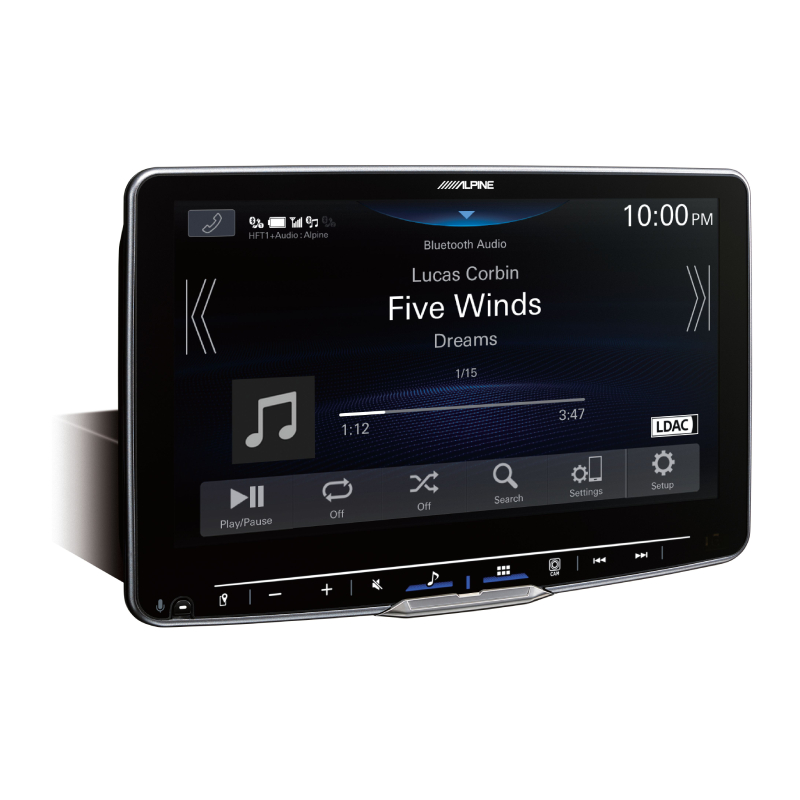

HI-RES AUDIO
96kHz / 24-Bit Playback
Experience detailed music reproduction with high-resolution wired and wireless audio support.
WIRELESS CONNECTIVITY

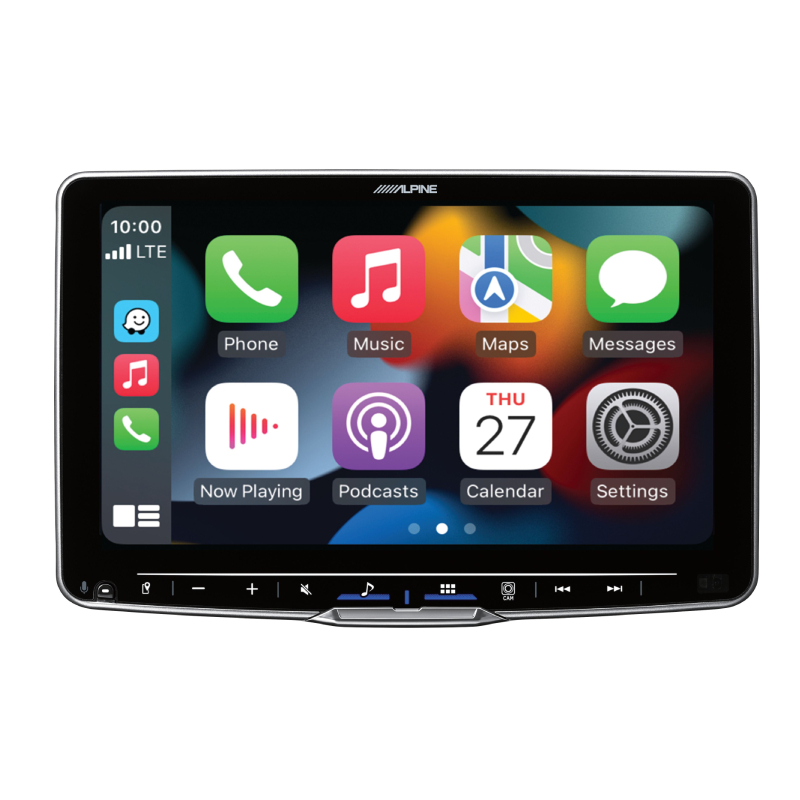

CarPlay & Android Auto
Access Apple CarPlay and Android Auto wirelessly or through a wired USB connection.
ADVANCED TUNING
13-Band Parametric EQ
Fine-tune every channel with a 13-band parametric EQ and 6-channel time correction.

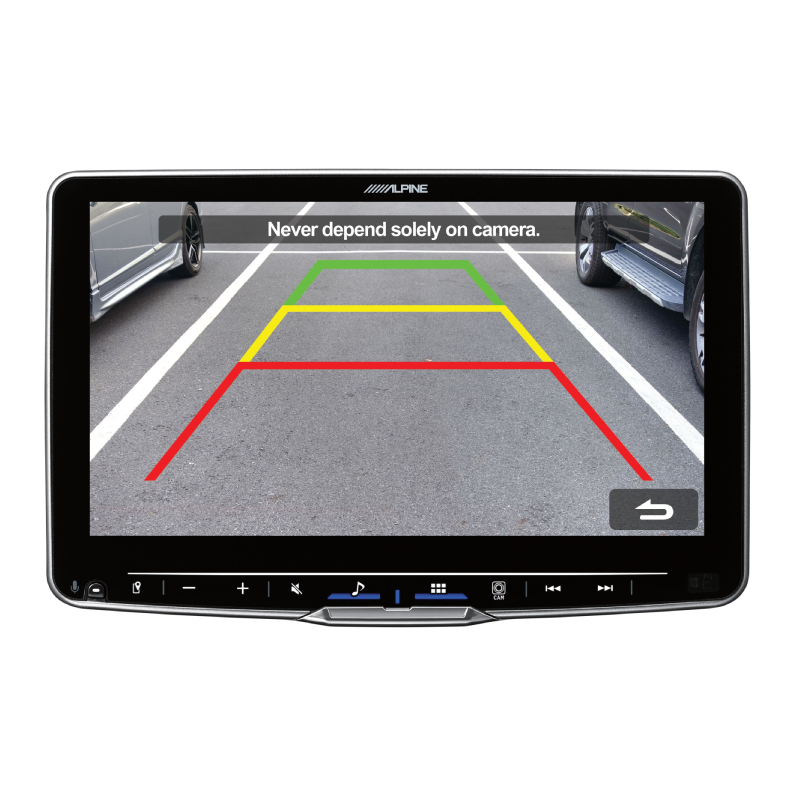

CAMERA READY
Dual Camera Inputs
Connect two cameras with dedicated rear and configurable front, side, or other camera inputs.
4V PRE-OUTS
3 Sets of Preamp Outputs
Three true 4V preamp outputs provide flexible front, rear, and subwoofer system expansion.
FLEXIBLE INSTALLATION
Single-DIN Chassis
The standard 1-DIN chassis and adjustable floating mount offer versatile vehicle installation options.
Alpine iLX-F509 Recommended Accessories & Cameras | Enhance Your Halo9 Multimedia Receiver
Build Your Alpine iLX-F509 System
Recommended cameras, SiriusXM, dash cameras, navigation and accessories designed to expand the functionality of the Alpine Halo9 multimedia receiver
Accessory & Camera Matching Overview
Compatible Receiver: Alpine iLX-F509 Halo9 Multimedia Receiver
Camera Expansion: Use the two direct camera inputs for rear, front, side or other camera applications
Entertainment: Add SiriusXM satellite radio capability with the SXV300 tuner
Dash Camera: Add the Alpine DVR-C320R for integrated dash-camera recording and drive-assist features
Navigation: Expand the system with the KTX-NS01 GPS navigation module
Audio Control: Add the RUX-H02 for convenient subwoofer and main-volume control

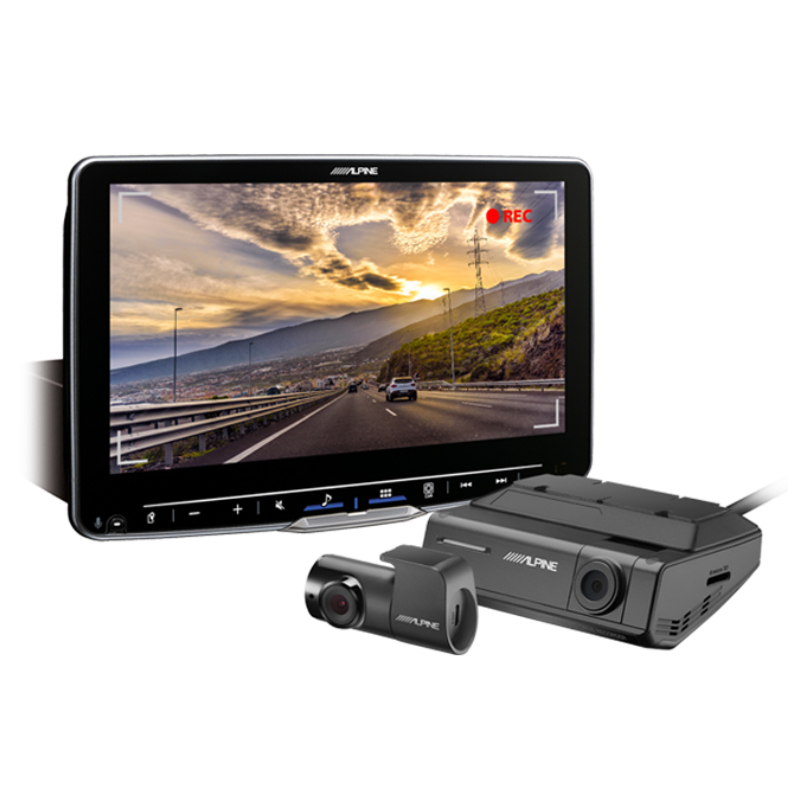

Premium Dash Camera with Drive Assist
Add integrated dash-camera recording to the Alpine iLX-F509. The DVR-C320R is designed to work with the Halo9 receiver and allows drivers to view real-time and recorded camera footage through the display.
Multi-View HDR Rear Camera
Expand the iLX-F509 with a premium rear-view camera featuring HDR image quality and multiple viewing modes. The camera provides enhanced visibility behind the vehicle when reversing or maneuvering.
Multi-View HDR Front Camera
Add a forward-facing camera to the iLX-F509 for additional visibility when parking, navigating tight spaces or checking the area immediately ahead of the vehicle.
Satellite Radio Expansion
Add SiriusXM programming to the iLX-F509. The SXV300 tuner works with the receiver's SiriusXM-Ready functionality and provides access to SiriusXM satellite and streaming features with a subscription.
Bass & Volume Controller
Add convenient wireless control for the iLX-F509. The RUX-H02 provides quick access to main volume and subwoofer level adjustments and can be mounted directly to the Alpine Halo9 display.
GPS Navigation Module
Add GPS navigation functionality to the iLX-F509 with the KTX-NS01 navigation module through USB connectivity. Firmware compatibility requirements apply.
Why Add Cameras to the iLX-F509?
Rear Visibility: Add a dedicated rear-view camera for improved visibility while reversing
Front Visibility: Use the second camera input for a front-facing camera when parking or maneuvering
Flexible Camera Inputs: The iLX-F509 provides two direct camera inputs, supporting rear plus front, side or other camera applications
Multi-View Support: Compatible Alpine cameras can provide multiple viewing perspectives depending on the camera and system configuration
Integrated Display: View compatible camera feeds directly through the 9-inch Halo9 display
Recommended iLX-F509 System Expansion
Dash Camera: Add the Alpine DVR-C320R for integrated dash-camera recording and drive-assist features
Rear Camera: Pair the iLX-F509 with the Alpine HCE-C2100RD for enhanced rear visibility
Front Camera: Add the Alpine HCE-C2600FD for an additional forward-facing camera view
Satellite Radio: Add the SiriusXM SXV300 tuner for SiriusXM programming
Navigation: Add the Alpine KTX-NS01 GPS navigation module where supported
Audio Control: Add the Alpine RUX-H02 for convenient subwoofer and main-volume control
Pro Tip: The Alpine iLX-F509 can serve as the centerpiece of an expandable vehicle multimedia system. Add cameras, dash-camera recording, SiriusXM, navigation and audio-control accessories based on your vehicle and installation needs. Always verify vehicle-specific compatibility before purchasing.
Frequently Asked Questions (FAQ)
- • Will this receiver fit in my vehicle without extensive dashboard modifications?
The receiver is compatible with many vehicles when paired with the correct dash kit and installation accessories. Checking your vehicle's fitment before purchasing helps ensure a smooth installation process.
- • Why won't Apple CarPlay connect to my iPhone?
This is commonly caused by an unsupported USB cable, incorrect Bluetooth pairing, or outdated software. Updating your iPhone and receiver firmware while reconnecting the device usually resolves the issue.
- • Can I use Android Auto as well as Apple CarPlay?
Yes, the receiver supports both Apple CarPlay and Android Auto for compatible smartphones. This allows drivers to enjoy navigation, music, messaging, and voice commands regardless of their preferred mobile platform.
- • Why is there no sound even though the screen is working normally?
Incorrect amplifier settings, muted audio, or loose speaker connections are common causes of this problem. Checking the audio settings and verifying all wiring connections typically restores sound output.
- • Does the receiver support backup and front-view cameras?
Yes, it supports compatible camera inputs to improve visibility while parking and maneuvering your vehicle. Additional cameras and wiring may be required depending on your installation.
- • Why is the touchscreen slow or not responding properly?
A temporary software issue or outdated firmware can occasionally affect touchscreen performance. Restarting the receiver and installing the latest firmware update often improves responsiveness.
- • How do I update the software to fix bugs?
You can download the latest firmware from the official support website onto a FAT32-formatted USB drive. Follow the update guide precisely, ensuring the vehicle remains powered on throughout the entire process to prevent corruption.
- • Why does Bluetooth disconnect while I'm driving?
Bluetooth interruptions may occur because of software conflicts, outdated firmware, or interference from paired devices. Removing and repairing the phone connection usually restores a stable wireless connection.
- • How do I fix Bluetooth pairing errors?
Start by deleting the receiver from your phone’s Bluetooth list and clearing the device cache in the head unit's settings. Once both devices are cleared, restart them and initiate a fresh pairing attempt from the receiver’s menu.
- • Is it normal for the display to feel warm to the touch?
Yes, the large high-resolution display generates heat during normal operation, which is standard for this type of technology. However, ensure that there is adequate airflow behind the unit to prevent it from entering a thermal protection mode.
Alpine iLX-F509 Related Videos
← Swipe left or right to browse videos →
- Satellite Radio Ready : Yes
- DIN : 1
- Preamp Voltage : 4 volts
- Display Size : 9 Inch
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Preamp Outputs : Front, Rear & Sub
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
- USB Mirroring : Yes
Features:
- Stunning 9-inch Adjustable Floating Display: Customize Height, Depth & Viewing Angle for the Perfect Fit
- Universal 1-DIN Chassis Design: Easy Installation for a Wide Range of Vehicles
- Sleek Tapered Housing with Silver Trim: Modern, Stylish Look for Any Dashboard
- Crystal-Clear Hi-Res Audio Playback: Experience Studio-Quality Sound (96kHz / 24bit)
- Next-Level Wireless Hi-Res Audio: Unlock Ultimate Sound (Requires LDAC-Compatible Device)
- TIDAL Hi-Res Music Streaming: Stream Premium Audio On-The-Go (Subscription & Hotspot Required)
- Apple CarPlay® Ready: Seamless Wired & Wireless Smartphone Connection
- Android Auto™ Ready: Wired & Wireless Integration for Android Devices
- Google Assistant Built-In: Voice Control at Your Command via Android Auto™
- Built-In Bluetooth® Hands-Free Calling: Stay Connected, Stay Safe
- SiriusXM-Ready® with 360L: Unlock Endless Entertainment (Tuner & Subscription Required)
- Built-In HD Radio®: Crystal-Clear Digital Radio Experience
- iDatalink® Maestro Compatible: Deep Vehicle Integration for Advanced Features
- Dash Cam-Ready: Compatible with Alpine DVR-C320R (Sold Separately)
- GPS Navigation Module Compatible: Supports KTX-NS01 via USB (Firmware Update Required)
- Media Xpander® Audio Boost: Breathe New Life Into Your Music
Specifications:
- AUX Input: Mini (rear)
- Audio/video Input: HDMI (rear)
- USB Input: Rear (2)
- USB Port Power: 2.4A, 1.5A
- Backup Camera Input: Yes
- Second Camera Input: Yes
- CarPlay: Wireless
- Android Auto: Wireless
- Siri Control: CarPlay only
- Alexa Voice Control: N
- Android Control: Yes
- Memory Card Slot USB memory
- Bluetooth Compatible: Built-in
- Satellite Radio Ready: SiriusXM 2.0 (360L)
- HD Radio: Y
- Navigation: Optional
- Full size: No
- Nano: No
- Touch: No
- iPhone: 6S and newer
- RMS Power (CTA-2006): 18 watts
- RMS Power (Manufacturer): 18 watts
- Peak Output: 50 watts
- RMS Power Bandwidth: 20-20kHz
- Preamp Outputs: 6-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Video Screen: Yes
- Navigation App Compatible: (iOS) Apple, Google, Waze
- Navigation App Compatible: (Android) Google, Waze
- Preamp Voltage: 4 volts
- Screen Size: 9
- Screen Type Swipeable (Capacitive)
- Key Button Color: White
- EQ Bands: 13
- Wireless Remote: No
- Steering Wheel Control Compatible: Adapter required
- FM Sensitivity: 9.3 dBf
- European Tuning: No
- Seek/Scan: Seek
- Radio Data System: Yes
- File Playback
- Music File Playback: MP3, WMA, AAC, FLAC, WAV
- High-res Playback: FLAC (96kHz)
- UPC: 793276084378
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
