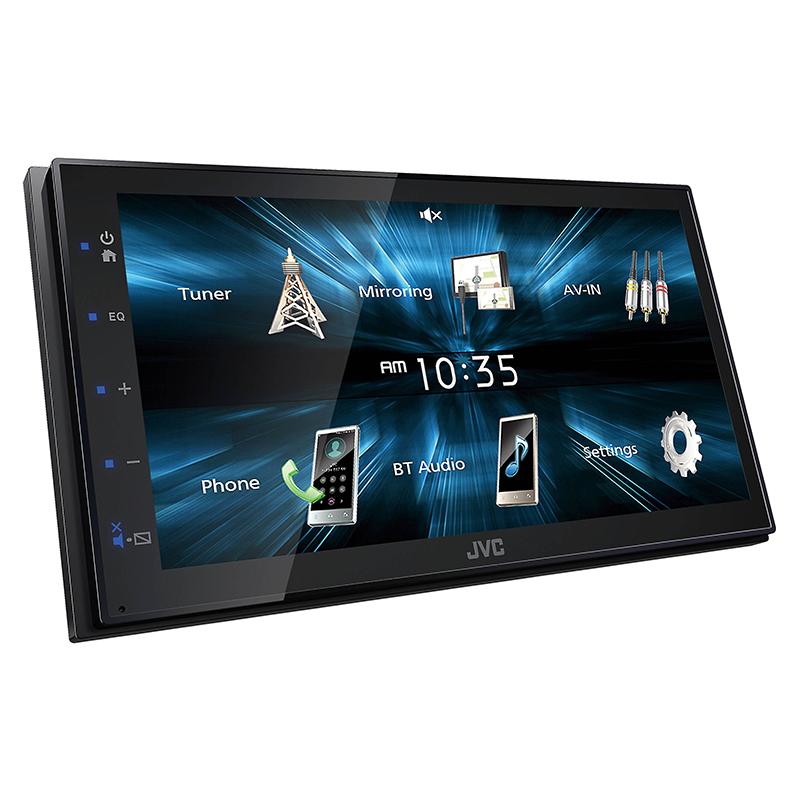

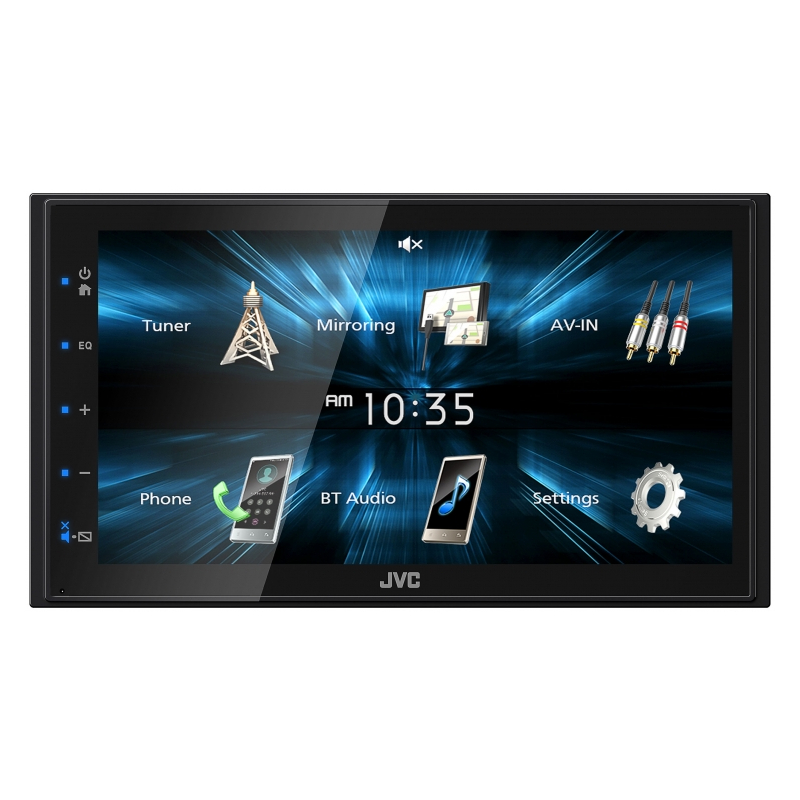

JVC KW-M150BT 2-DIN 6.8" Digital Media Receiver featuring WVGA Capacitive Monitor, USB Mirroring for Android Phones, Bluetooth, 13-Band EQ, Shallow Chassis
We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

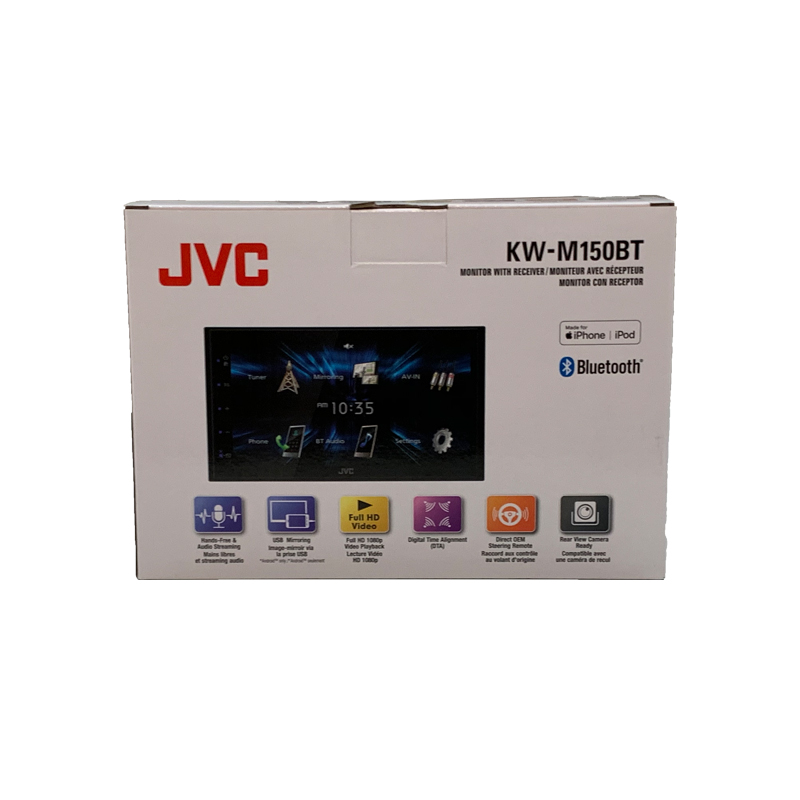

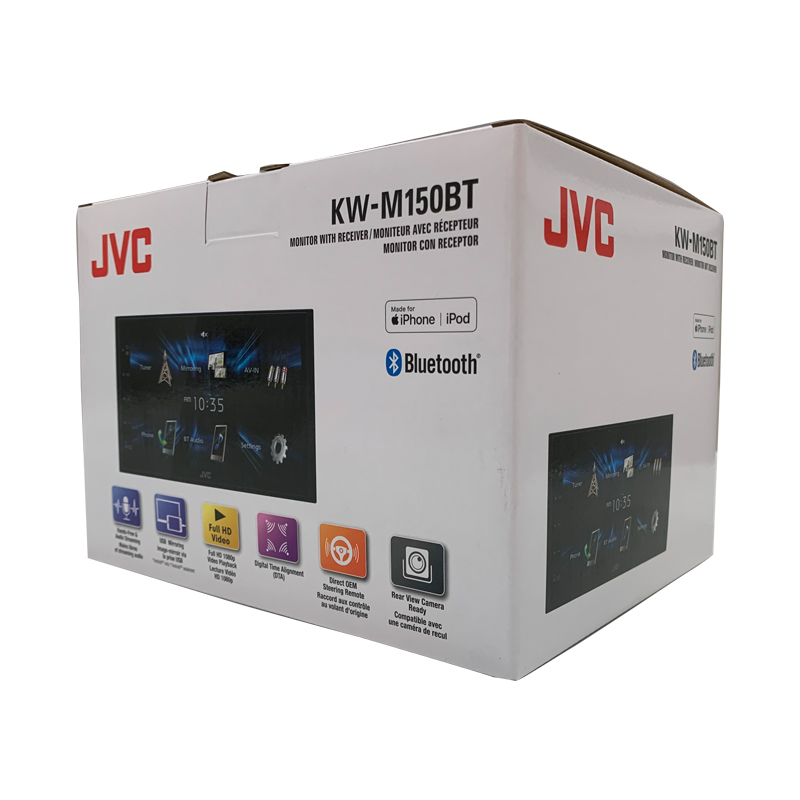

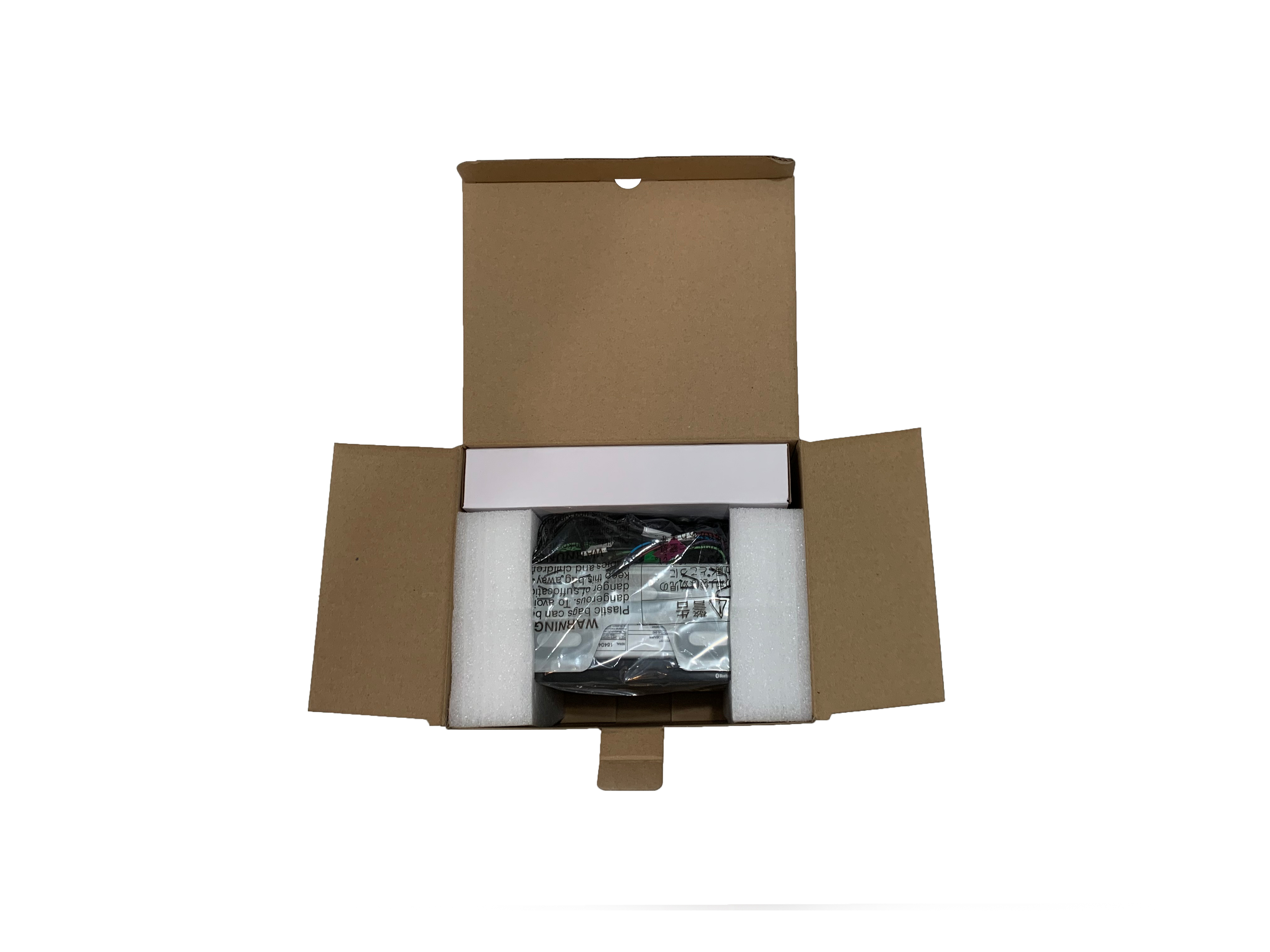

What's Inside?
- • 2-DIN 6.8" Digital Media Receiver
- • Wireless remote control
- • Learning Direct OEM Remote
- • ISO connector
- • Owner's Manual
Has Excellent Value for Its Price Tag
If you are looking for a multimedia receiver for your vehicle entertainment system that is ideally made for Android users, then you should highly consider the JVC KW-M150BT. Coming with some modern features that could take your entertainment experience to a whole new level, this entry-level 2-DIN receiver has excellent value for its price tag.
Mirroring for Android Phone – Connect via USB
You can mirror the display of your Android phone using the receiver's USB port. Download the "Mirroring for JVC" app on your phone, and then you're good to go. With its 6.75-inch display, you will really enjoy watching videos now with a bigger display rather than watching with your phone.
Hands-free Calls
The receiver has a Bluetooth feature that allows you to take calls hands-free or stream some music from your favorite streaming app wirelessly. It also has an iPhone Control feature, which enables you to play music from your iPhone or iPod using USB or Bluetooth.
Aside from its built-in radio tuner and the option to connect an external car amplifier to it, it also has a built-in amplifier in itself that can handle a power output of 16 Watts RMS per channel and has a peak power of 45 Watts per channel.
Built-in 13-band graphic EQ
To get the best sound quality that you want to hear from the receiver, you can try to tweak its frequency response by using its built-in 13-band graphic EQ. Aside from its low and high-pass filters, it also uses Digital Time Alignment technology, where you can hear the sound of all the speakers at the same time for a better listening experience.
- Maximum Power : 45 Watts
- Satellite Radio Ready : No
- RMS Power Output : 16 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 2 volts
- Display Size : 6.8 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Rear USB Input : 1
- Preamp Outputs : 5
- Audio/Video Outputs : 1
- RDS - Radio Data System : Yes
- Rear View Camera Input : Yes
- Apple CarPlay : No
- Android Auto : No
Features:
- Screen Size: 6.8" Wide VGA
- Touch Panel: Capacitive with Printing
- Key Illumination Color: Blue
- Multilingual Display: Yes
Media Playback
- MP3 Compatible with Tag: USB
- WMA Compatible with Tag: USB
- WAV Compatible with Tag: USB
- AAC Compatible with Tag: USB
- FLAC Compatible with Tag: USB
- H.264 Compatible: USB
- MPEG 1/2 Compatible: USB
- MPEG 4 Compatible: USB
- AVI/MKV Compatible: USB
Bluetooth Control
- Built-in Bluetooth[1]: Yes (Version 4.2, Wired-Mic included)
- Hands Free Call: Yes (HFP1.6 Wideband Speech)
- Audio Streaming & Control (A2DP, AVRCP): Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
Android Control / iPod/iPhone Control
- Mirroring for Android: Yes (via USB)
- Android Music Playback: Yes (via Bluetooth(R)
- iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R)
USB
- USB Port: x1 (High Speed)
- Position: Rear
- USB Power Supply: Yes (1.0A)
Radio Tuner
- Radio Broadcast Data System (RBDS): Yes
- Preset Stations: 30 (6ch x 5band)
- Automatic Presetting (Strong Station Sequential Memory): Yes
- FM
- Frequency Range: 87.9-107.9MHz
- AM
- Frequency Range: 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear): 45Wx4
- Full Bandwidth Power (Front & Rear): 16W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (7Preset + 3user)
- Bass Boost: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- Time Alignment: Yes

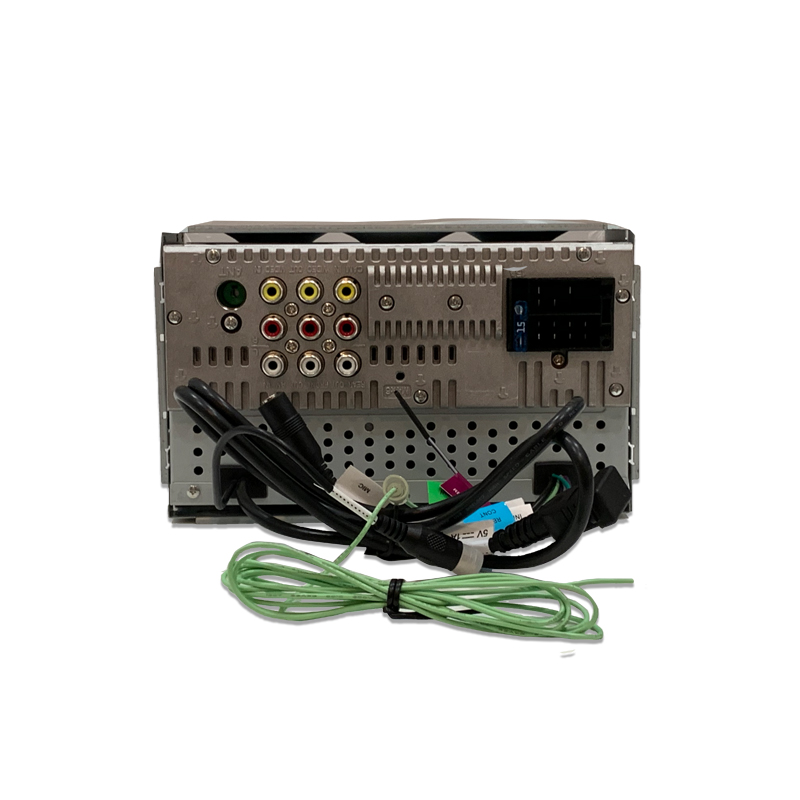

Inputs and Outputs
- AV Input: RCA x 1
- Video Out: RCA
- Rear view camera Input: Yes
- Line Output Terminals: 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
- Pre-output Level/Impedance: 2V / 10k ohms
- Subwoofer Output with Level/Frequency Control: Yes
General
- Face Type: Fixed
- Shallow Chassis: Yes
- Wireless Remote Control: Ready (RM-RK258 required)
- Steering Remote Control Ready: Yes
- Learning Direct OEM Remote: Yes
- ISO Connector: Yes
- Dimensions (W x H x D)
- Installation Size: 7-3/16" x 4-7/16" x 3" (182 x 112 x 75 mm)
- Weight: 2.7 lbs. (1.2kg) : Including sleeve and trim plate
- Unit weight in individual package: 3.75 lbs. (1.7kg)
- UPC: 046838080197
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
