Hifonics  BG-3300.1D

• Maximum Power : 3300 Watts
• Low Frequency Response : 30-250 Hz
• Number of Channels : 1
• Frequency Response : 10-500 Hz
• Built In Crossovers : No
• RMS Power Output : 1650x1 Watts
• Channel Separation : No
• Amplifier Class : D
• XP750-SE OFFER : Yes

LOW NOISE PREAMPLIFIER CIRCUIT

• Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.

RCA INPUTS

• Nickel-plated RCA jacks create the most effiecient High/Low Level audio connection and resist corrosion.

OPERATION MODE

• Mono only.

CROSSOVER TYPE

• Variable electronic crossovers allow for complete control of the sound.

ELECTRONIC EQUALIZER

• Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.

CLASS/TOPOLOGY

• Super D-Class™ designs which employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs.

OUTPUT DEVICE TECHNOLOGY

• Pro-Fi™ Output Device Technology: The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion.

HEAT SINK

• Classic aluminum Hifonics design to minimize heat build up on the Ultra-Fi™ output devices.

POWER SUPPLY

• Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

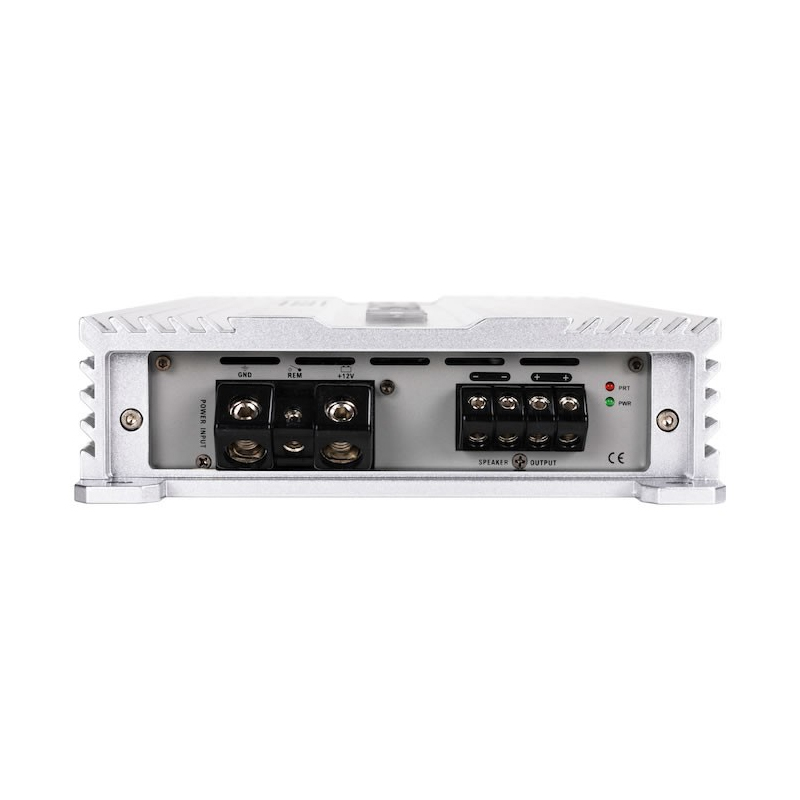

OUTPUT CONNECTIONS

• High temperature impact resistant nickel plated connectors with allen head set screws which allow for secure termination of wire and creates an erosion resistant seal.

CONNECTION TYPE

• Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.

LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS

• Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.

BASS REMOTE INCLUDED

• Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle.

PHASE ADJUSTMENT

• Phase 0-180°: Bass drum attack, snap requires phase between deep frequency subwoofers and upper midbass speakers.

STRAPPING

• Power Strapping allows the installer to Sync the input signal and output power to double the rated output of a mono amplifier which will drive a single subwoofer or group of subwoofers. Driving subwoofers with this method doubles the available power to the overall bass system, while insuring each subwoofer receives the exact same power level (output voltage). CONSULT PROFESSIONAL INSTALLER.

CEA STANDARDS

• CTA-2006B Compliant. CTA stands for Consumer Technology Association and Hifonics has been a member for decades.

CLASS

• Super D Class™

TOTAL CHANNELS

• 1

POWER @ 1 OHM (CH X WATTS)

• 1 x 3300

POWER @ 2 OHMS (CH X WATTS)

• 1 x 1650

POWER @ 4 OHMS (CH X WATTS)

• 1 x 825

CROSSOVER

• Variable Electronic 12dB Per Octave

VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE

• 30Hz-250Hz

TONE CONTROL/PARAMETRIC EQ

• Built-in bass control

BASS BOOST

• 0-10dB

SUBSONIC FILTER

• 15Hz-35Hz

PHASE SHIFT

• 0-180 Degrees

VARIABLE VOLTAGE

• .2 to 9V

FREQUENCY RESPONSE

• 10Hz-500Hz

TOTAL HARMONIC DISTORTION (THD)

• < 0.10%

SPEAKER LEVEL AUDIO INPUTS

• Yes

POWER TERMINAL 12V/GND

• 2 AWG

SPEAKER TERMINAL WIRE GAUGE

• 12 AWG

FUSING

• External

• UPC: 806576231240
• Weight: 13.01
