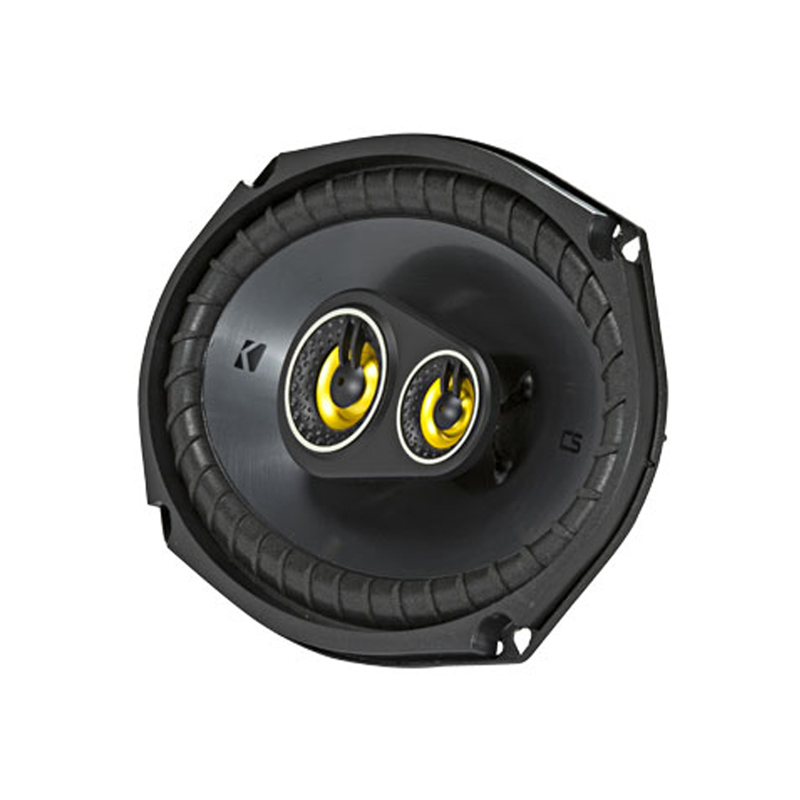

CS Series CSC693
CS-Series 6x9-inch 3-Way Speakers are the perfect way to upgrade your factory system.

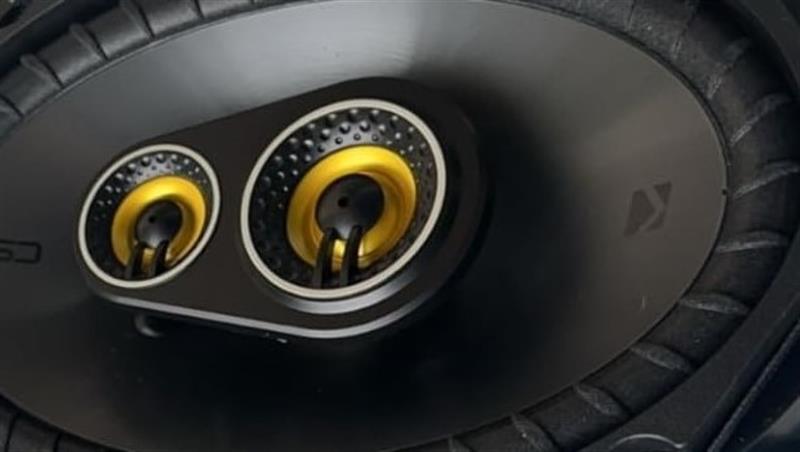

CS-Series 3-Ways deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. A stamped-steel frame supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.
The rugged 6x9-inch, 3-way speaker is especially cool. With a massive 300-watt peak power rating, this triaxial driver gives you extraordinary volume, while the integrated 2-inch midrange driver and dedicated tweeter give you crisp, accurate details for the realism you crave.
These CS speakers work best with 150 watts of recommended power. See below for more details.
- Fits nearly every car made
- Zero-protrusion tweeters to fit nearly any factory depth
- Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
- UV-treated poly-foam surround resists heat or direct sunlight
- Large woofer magnet in a heavy-duty motor for ultra-clean bass
- Integrated 2-inch (50mm) midrange drivers gives detailed attention to mid frequencies
- PEI-tweeter construction provides superb clarity
- Neodymium tweeter magnets allow for increased volume in high frequencies

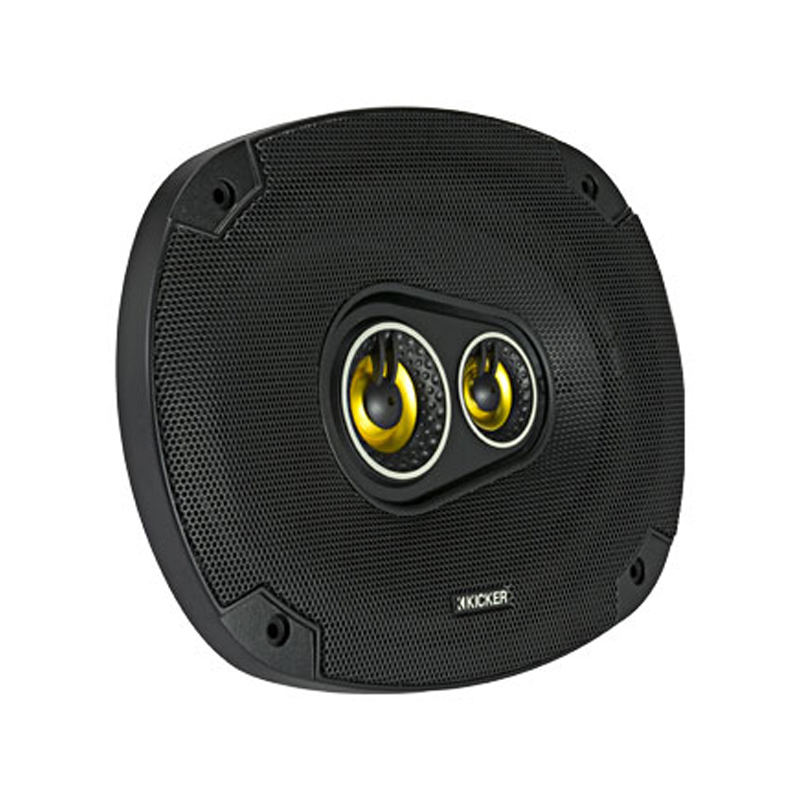

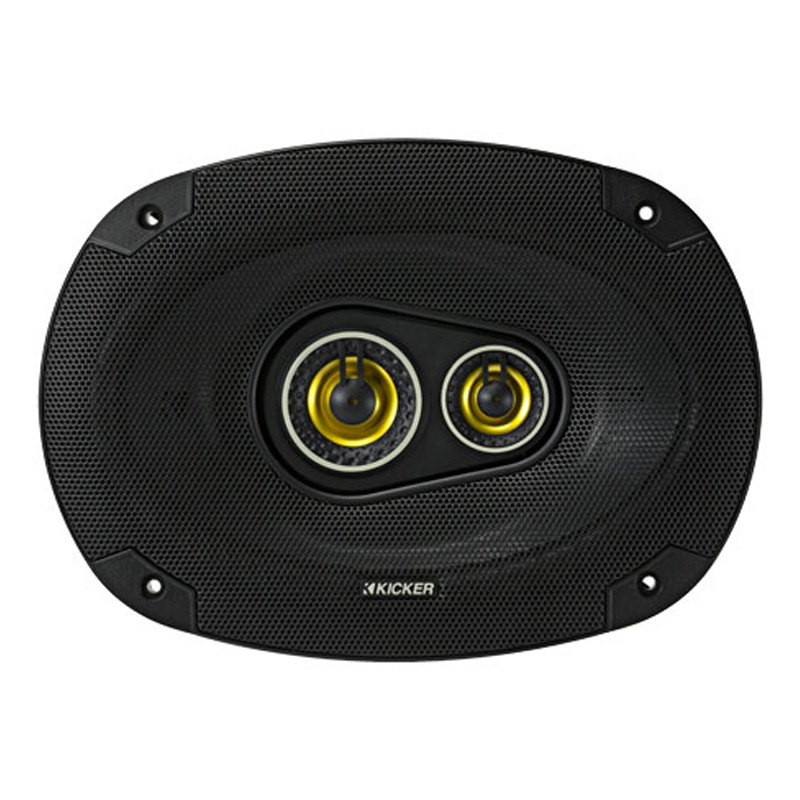

- Steel mesh grilles included for speaker protection
| Specifications |
| Speaker Design |
3-Way |
| Woofer Size | in [mm] |
6x9 [160x230] |
| Tweeter Size | in [mm] |
2 [50] |
| DC Resistance | ohm |
3.5 |
| Peak Power | Watts |
450 |
| Continuous Power | Watts, RMS |
150 |
| Sensitivity [SPLo] | dB @ 1W, 1m |
92 |
| Effective Frequency Range | Hz |
30-20k |
| Mounting Hole Diameter | in [mm] |
5 5/8 x 8 7/16 [143x215] |
| Top Mount Depth | in [mm] |
7/16 [12] |
| Bottom Mount Depth | in [mm] |
3 3/16 [81] |
| Tweeter Protrusion | in [mm] |
1/16 [1] |
| Grilles |
Yes |
| Tweeter Magnet Material |
Electric Crystal Motor |
| Tweeter Magnet Material |
Neodymium |
| Tweeter Dome Material |
PEI |
| Tweeter Design |
Balanced dome |
| Woofer Cone Material |
Polypropylene |
| Woofer Surround Material |
Polyester foam |
What's Included?
- 46CSC6934 3-Way Speaker (Pair)
- Owner's Manual
- Car speakers are usually sold as a pair unless otherwise noted.
- UPC: 713034088394
- Weight: 10
