MB Quart  PK1-113

Premium Series 5.25" 220W Peak Power Handling 4 Ohm, 2-Way Coaxial Car Speakers - Grills Included (pair)

Item #56458

Condition:   Brand New

Product Highlights

  • Premium Series
  • 5.25" 2-Way Coaxial Car Speakers
  • 4 Ohms Impedance
  • 220W Peak Power Handling
  • Grills Included

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
LIMITED TIME SALE!

Get 10% OFF on this item! Use coupon code OPTNOW

$149.99

Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More

MB Quart Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


MB Quart Banner

MB Quart PK1-113 Premium Series 5.25" 220W Peak Power Handling 4 Ohm, 2-Way Coaxial Car Speakers - Grills Included (pair)


We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (2) 2-way speakers
  • • (2) Grilles
  • • Eight 1-1/8" Screws
  • • (8) Speed clips
  • • Installation guide
  • • (2) MB Quart stickers
  • • Template
  • • Owner's Manual





Impactful Bass Response

MB Quart's Premium Series car speakers provide the best possible sound from an audio industry mainstay. The MB Quart PK1-113 5-1/4" 2-way speakers use a paper/mica hybrid woofer cone for a natural-sounding midrange and impactful bass response. The 1" magnesium dome tweeters handle the highs with precision and power, while MB Quart's WideSphere™ technology expands the tweeter's dispersion pattern for a wider, more lively soundstage.

Innovative Tweeter Design

1" magnesium dome tweeter for exceptional musical reproduction of high frequenices are the heart of the system. The innovative tweeter design develops an off-axis dispersion pattern that creates a larger sound stage which brings a concert in your car to life.

This Design Adds Strength

Lightweight aerated pop paper cone with Mica blend for strength and superior bass frequency reproduction. This design adds strength and superior bass frequency reproduction. This means that midrange and bass frequencies remain very musical without the distortions that can be caused by the cone flexing. With the curvilinear design the geometry is specifically engineered for best upper band midrange response which is critical for frequencies that are responsible for vocals and acoustic instruments like piano, guitar and percussion.

  • Diameter : 5.25 Inch
  • Sensitivity : 85.9 dB
  • Impedance : 4 Ohm
  • Frequency Response : 55-22000 Hz
  • Peak Power Handling : 220 Watts
  • Design : 2 Way
  • RMS Power Handling : 110 Watts

Features:

  • Tweeters: 1" magnesium dome tweeter for exceptional musical reproduction of high frequenices are the heart of the system. The innovative tweeter design develops an off-axis dispersion pattern that creates a larger sound stage which brings a concert in your car to life.
  • Cone Material: Lightweight aerated pop paper cone with Mica blend for strength and superior bass frequency reproduction. This design adds strength and superior bass frequency reproduction. This means that midrange and bass frequencies remain very musical without the distortions that can be caused by the cone flexing. With the curvilinear design the geometry is specifically engineered for best upper band midrange response which is critical for frequencies that are responsible for vocals and acoustic instruments like piano, guitar and percussion.
  • Surround / Cone Coupling: High temperature adhesives are utilized to keep the coupling from cone to surround fused. Adhesives are also impervious to cold weather.
  • Gasket: Molded Polymer Sealing gaskets are utilized to keep the speaker isolated from the mounting surface and improve protection from water and dust intrusion.
  • Voice Coil / Former Assembly: High temperature imported wire on Kapton former. The former is lighter than a standard speaker which allows the component to support slightly higher frequency extension and efficiency.
  • Spider: Red woven fiber cotton poly blend spider to stabilize the cone and voice coil in all musical situations.
  • Cooling System
  • Venting allows air passage through the spider and speaker frame ribs to exchange air over the voice coil.
  • Crossover: Premium coax (2-way) designs feature a built-in audiophile crossover which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components for superb sound quality.

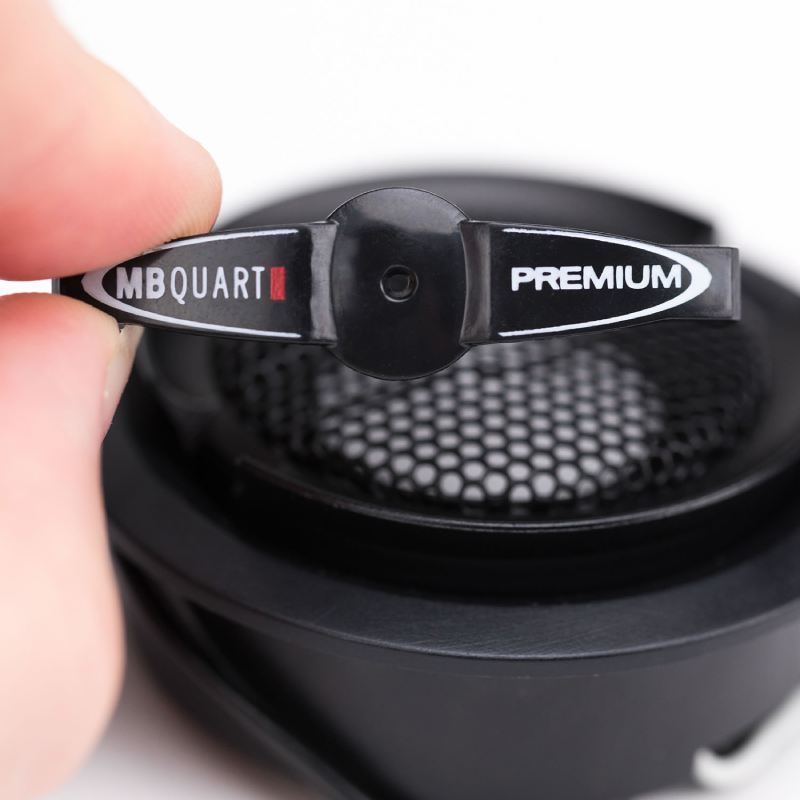

  • Tweeter Hardware: Tunable waveguide tweeter housing with removable phase lens creates larger than life sound stage.
  • Frame: Aerospace grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker.

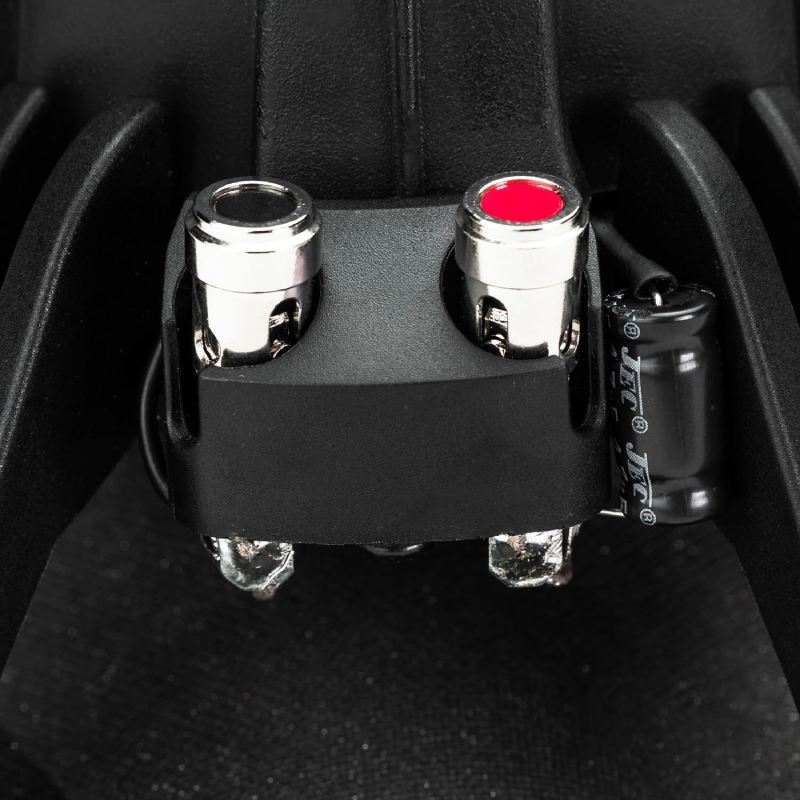

  • Connectors: Stainless steel, push and insert connectors resist corrosion and create a superior electrical connection.
  • Grills: Included



Specifications:

  • Speaker Size: 5 1/4
  • Design: 2-way
  • Tweeter Design: 1" Dome
  • Impedance (Ohms): 4
  • Tweeter Composition: Magnesium
  • Woofer Composition: Paper/Mica
  • Woofer Surround: Rubber
  • Sensitivity (1W at 1 meter): 85.9
  • Sensitivity at 2.83 volts: N/A
  • Frequency Response: 55 - 22k Hz
  • Minimum RMS Wattage: ---
  • Maximum RMS Wattage: 55
  • Peak Power Handling (Watts): 110
  • Top-mount Depth (Inches): 2 9/16
  • Bottom-mount Depth (Inches): 2 11/16
  • Cutout Diameter or Length (inches): 4 1/2
  • Mounting Height (Inches): 0.847
  • UPC: 806576230311
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
