MB Quart  RK1-110

Reference Series 4" 160W Peak Power Handling 4 Ohm, 2-Way Coaxial Car Speakers (Grills Not Included)

Item #56465

Condition:   Brand New

Product Highlights

  • Reference Series
  • 4" 2-Way Coaxial Car Speakers
  • 160W Peak Power Handling
  • 4 Ohms Impedance
  • Grills Not Included

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$69.95

Reg. Price $99.99  Save $30.04

Out of Stock Check out other products listed below
MB Quart Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


MB Quart Banner

MB Quart RK1-110 Reference Series 4" 160W Peak Power Handling 4 Ohm, 2-Way Coaxial Car Speakers (Grills Not Included)


We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (2) Woofers
  • • (2) Woofer grilles
  • • (2) Midrange
  • • (2) Tweeters (each has 9" wire attached)
  • • (2) Flush-mount cups
  • • (2) Metal flush-mount clamps
  • • (2) Surface-mount bases
  • • (2) Crossovers
  • • (16) 1-1/8" Screws
  • • (2) M4x8mm Machine screws
  • • (4) 1/2" Screws
  • • (16) Large speed clips
  • • (4) Small speed clips
  • • (2) MB Quart crossover badges
  • • (2) Adhesive backed hook and loop crossover mounts
  • • Owner's Manual
Paper/mica Hybrid Woofer Cone and Midrange Driver

MB Quart's Premium Series car speakers provide the best possible sound from an audio industry mainstay. The MB Quart PS1-316 3-way component system features two 6-1/2" woofers, two 4" midrange drivers, two 1" tweeters, and two external crossovers. The paper/mica hybrid woofer cone and midrange driver use a unique design and responsive construction for a natural-sounding midrange and impactful bass response. The 1" magnesium dome tweeter handles the highs with precision and power, while MB Quart's WideSphere™ technology expands the tweeter's dispersion pattern for a wider, more lively soundstage.


SPECIFICATIONS


  • Diameter : 4 Inch
  • Sensitivity : 84.5 dB
  • Impedance : 4 Ohm
  • Frequency Response : 80-20000 Hz
  • Peak Power Handling : 160 Watts
  • RMS Power Handling : 80 Watts

FEATURES


Features:

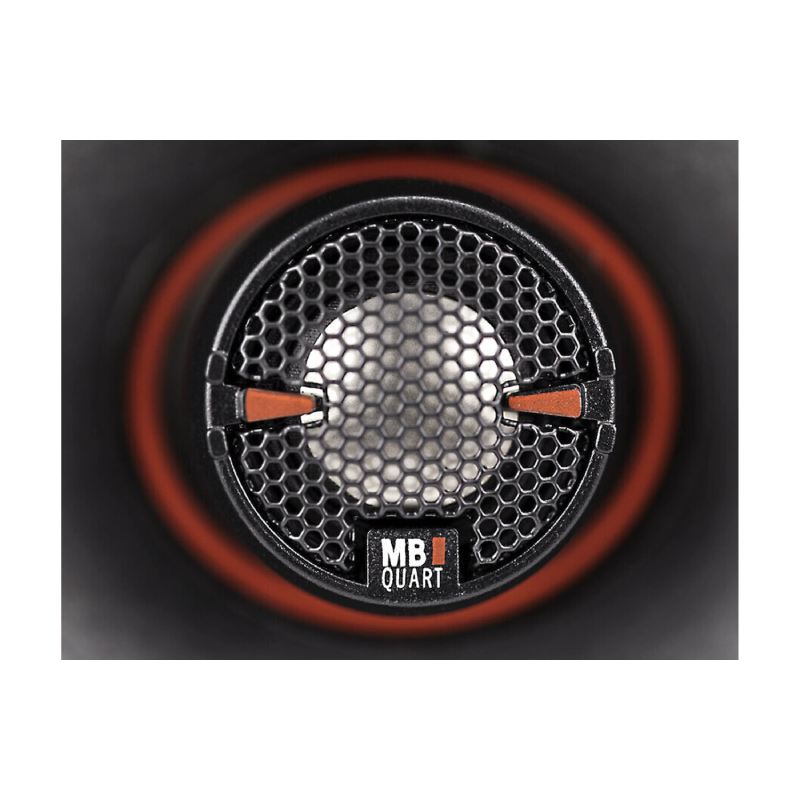

  • Tweeters: .75” titanium dome tweeters utilizing WideSphere™ Technology for exceptional musical reproduction of high frequencies are the heart of the system. The innovative tweeter design develops an off-axis dispersion pattern that creates a larger sound stage which brings a concert in your car to life.
  • Cone Material: The speaker is engineered with a Lightweight Curvilinear craft pulp with bamboo fiber cone. This design adds strength and superior bass frequency reproduction. This means that midrange and bass frequencies remain very musical without the distortions that can be caused by the cone flexing. With the curvilinear design the geometry is specifically engineered for best upper band midrange response which is critical for frequencies that are responsible for vocals and acoustic instruments like piano, guitar and percussion.
  • Surround / Cone Coupling: High temperature adhesives are utilized to keep the coupling from cone to surround fused. Adhesives are also impervious to cold weather.
  • Gasket: Molded Polymer Sealing gaskets are utilized to keep the speaker isolated from the mounting surface and improve protection from water and dust intrusion.
  • Voice Coil / Former Assembly: High temperature imported wire on Kapton former. The former is lighter than a standard speaker which allows the component to support slightly higher frequency extension and efficiency.
  • Spider:  Red woven fiber cotton poly blend spider to stabilize the cone and voice coil in all musical situations.
  • Cooling System: Venting allows air passage through the spider and speaker frame ribs to exchange air over the voice coil.
  • Crossover: Reference coax (2-way) designs feature a built-in audiophile crossover which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components for superb sound quality.
  • Frame: Aerospace grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker.

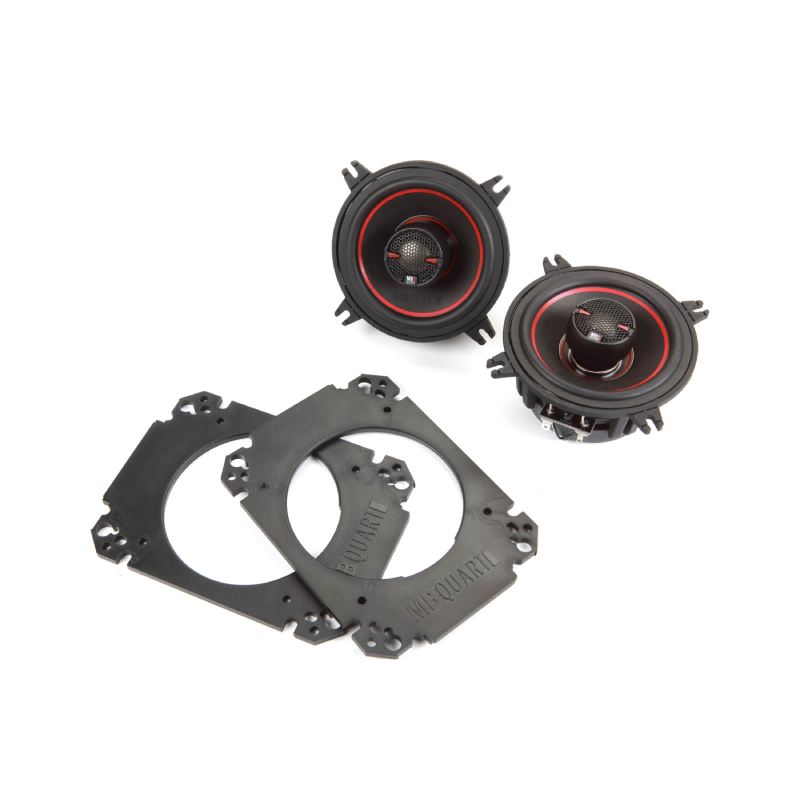

  • Grills: Not included. Mounting plate included for mounting the 4 inch speaker in a 4x6 location.



Specifications:

  • Speaker Size: 4
  • Design: 2-way
  • Tweeter Design: 3/4" Dome
  • Impedance (Ohms): 4
  • Tweeter Composition: Titanium
  • Woofer Composition: Pulp/Bamboo Fiber
  • Woofer Surround: Rubber
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year
  • Sensitivity (1W at 1 meter): 84.5
  • Sensitivity at 2.83 volts: N/A
  • Frequency Response: 80 - 20k Hz
  • Minimum RMS Wattage: ---
  • Maximum RMS Wattage: 40
  • Peak Power Handling (Watts): 80
  • Top-mount Depth (Inches): 2
  • Bottom-mount Depth (Inches): 2 1/8
  • Cutout Diameter or Length (inches): 3 9/16
  • Mounting Height (Inches): 0.694
  • UPC: 806576230243
  • Weight: 3
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
