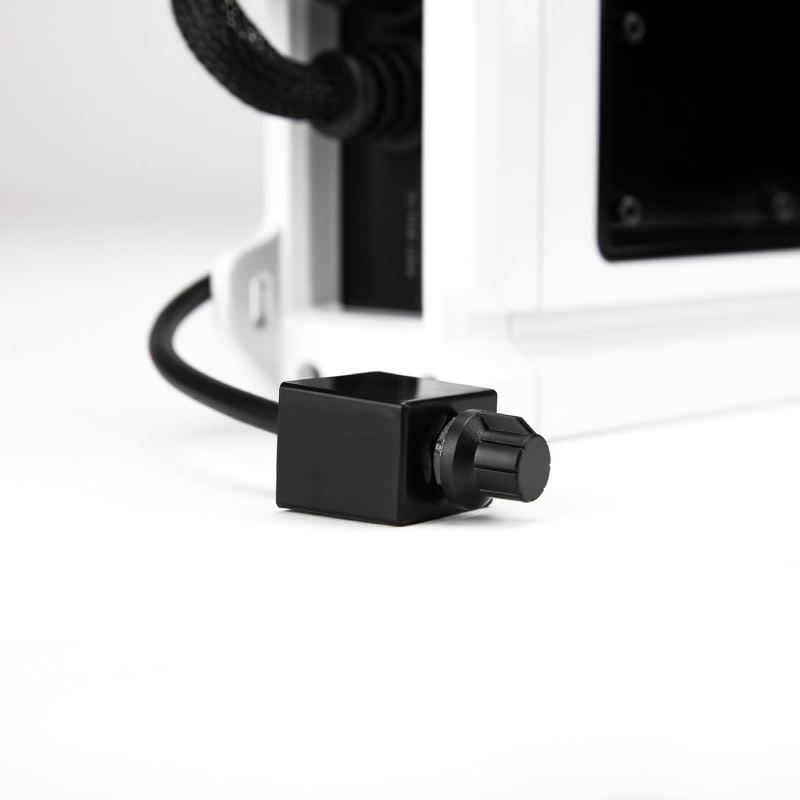

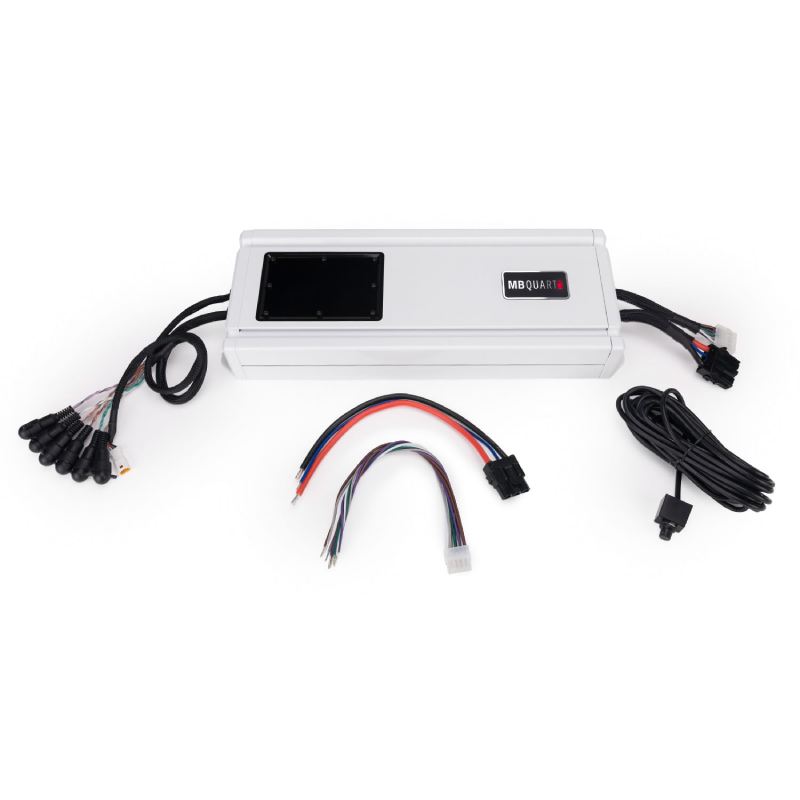

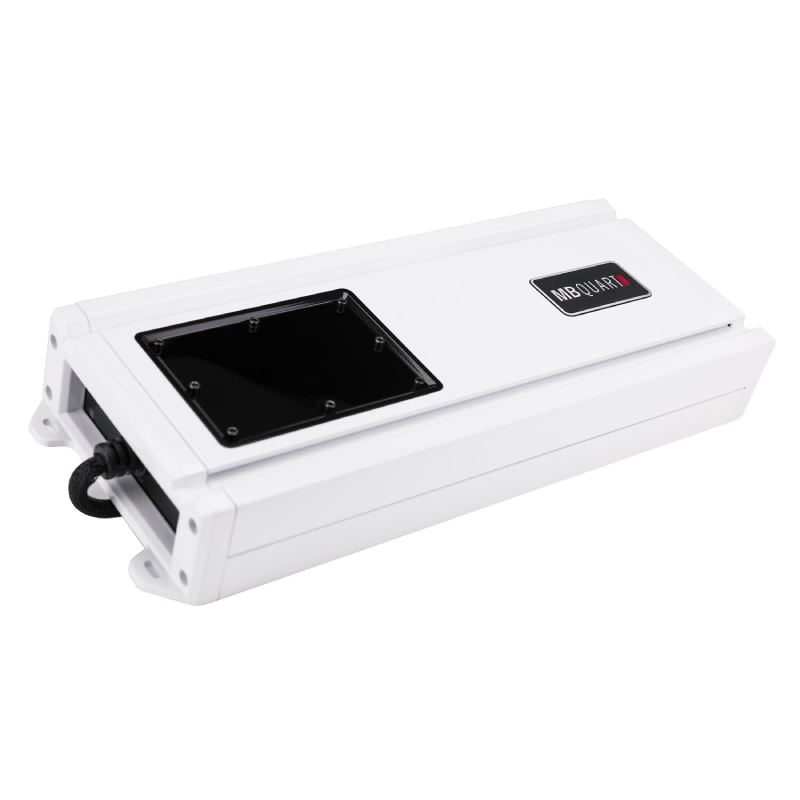

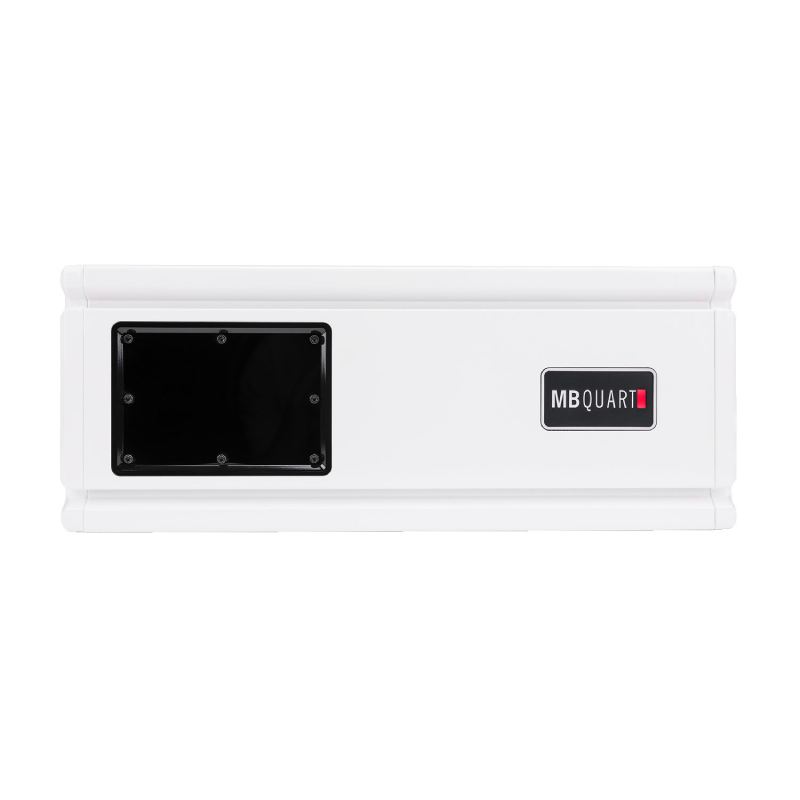

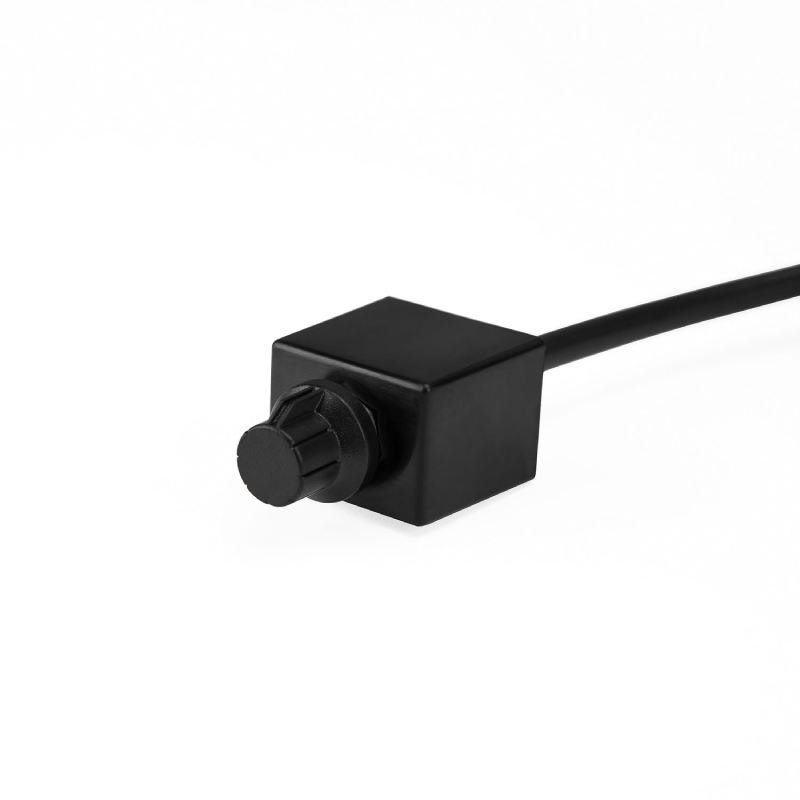

Five channel Nautic waterproof amplifier with marine specific connectors. Top mounted sound contouring with onboard crossovers, bass boost and adjustable input sensitivity all concealed behind top mounted controls. Channel 5 is 1 ohm stable and includes a bass remote.
Nautic amplifiers are not automotive amplifiers. While they will work just fine in a car or truck, however, they are purpose built to very strict standards set forth for marine electronics by the American Society for Testing and Materials, ASTM International™ and NMMA.
National Marine Manufacturers Association (NMMA) is a voluntary consortium of global boat manufacturers that set standards for marine products, from boat building to the accessories installed in them. In terms of marine audio amplifiers, NMMA defines the safety requirements which means that your MB Quart marine amplifiers are held to a higher standard that typical audio products for delivering power from the electrical system, through the PC board to the speakers and subwoofers.
Lightweight craft pulp with bamboo fiber cone for strength and superior bass frequency reproduction
Low Resonant Frame
Aerospace grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker
CONTROL & EXPANSION

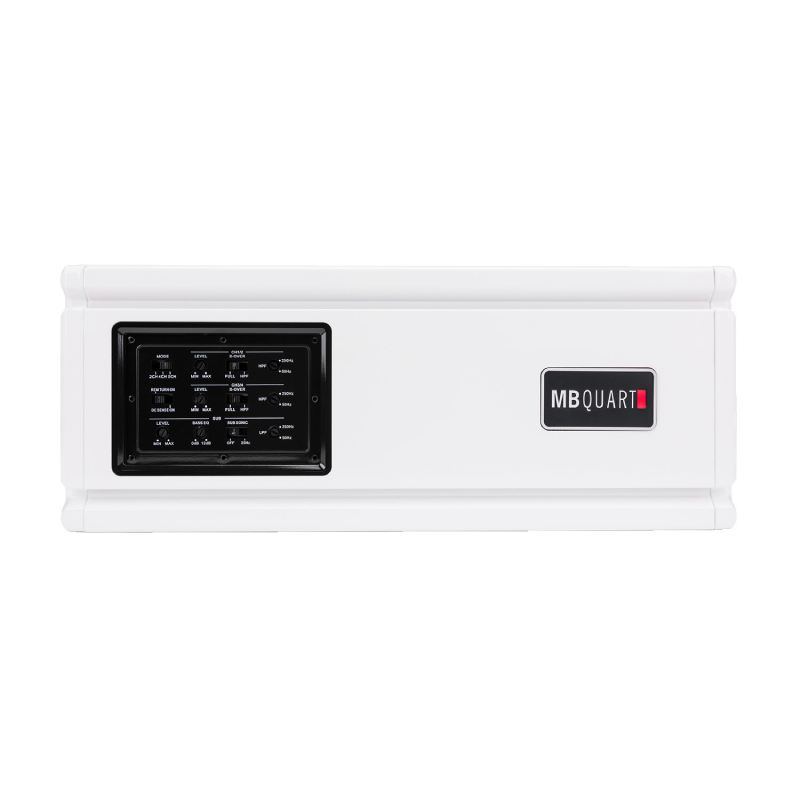

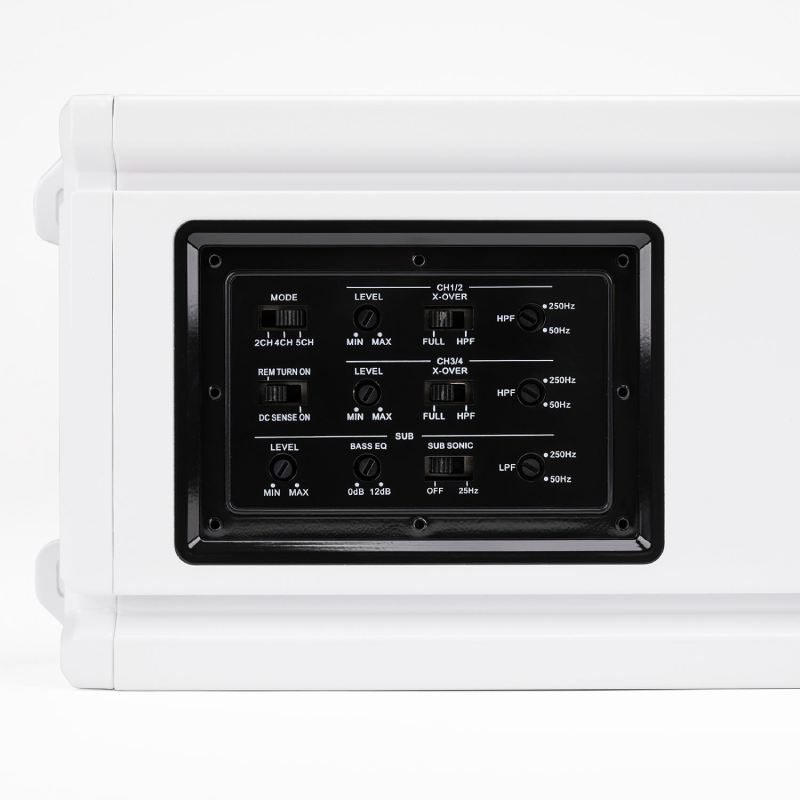

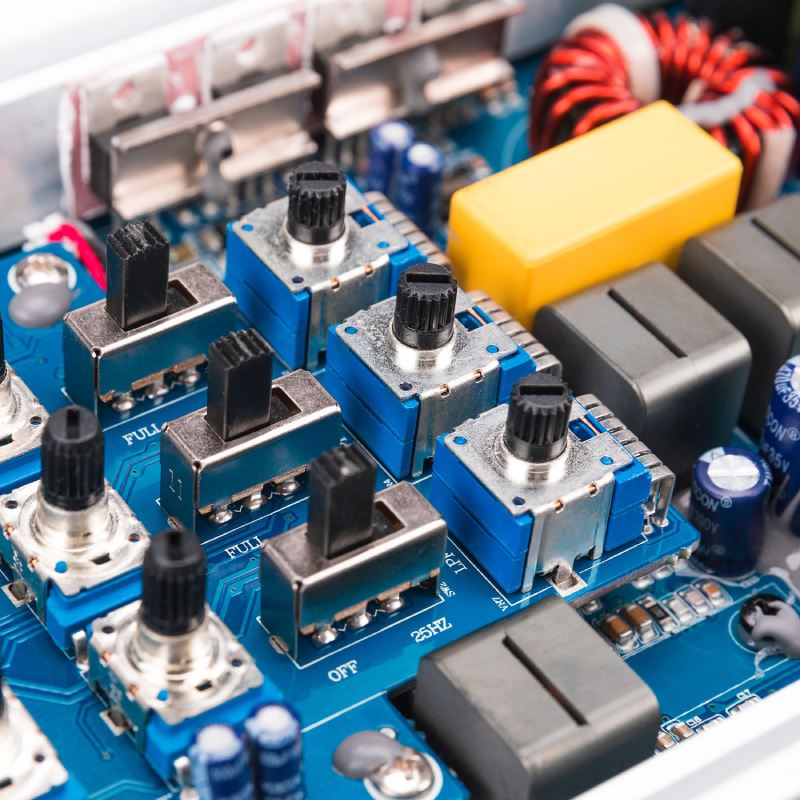

Sound contouring with onboard crossovers, bass boost and adjustable input sensitivity are all concealed behind top mounted controls. All of this control will allow you or the installer to fine tune the system using a myriad of variable frequency adjustments along with level controls within the EQ range and Bass EQ active at 45Hz while in LP/BP operation.
Nautic amplifiers are available in 4, 5 and a 6 channel configurations so you can drive speakers on the deck or in the cabin and have plenty of power for subwoofer channels. With the MB Quart source units and Bluetooth controllers it is possible to have better audio experience on the water, the solution has always been Nautic from MB Quart.
Maximum Power : 1000 Watts
Low Frequency Response : 10 Hz
High Frequency Response : 45000 Hz
Number of Channels : 5
Frequency Response : 10-45000 Hz
Built In Crossovers : Yes
Channel Separation : Yes
Amplifier Class : D
Class: Class SQ (Class A/B)
Class Q1 Mono: Channel 5 (Class D)
Total Channels: 5
Power @ 1 Ohm: 1 X 400 Watts: Ch5 Only
Power @ 2 Ohms: 4 X 150 + 1 X 200
Power @ 4 Ohms: 4 X 75 + 1 X 100
Variable High Pass Crossover 12db Per Octave
Ch1 / 2: Switched, Hpf / Full, 50hz - 250hz
Ch3 / 4: Switched, Hpf / Full, 50hz - 250hz
Variable Low Pass Crossover 12db Per Octave:
Ch5 Only: Variable, 50hz - 250hz
Bass Boost: 0-12db
Subsonic Filter: Off / 25hz
Variable Voltage: .02 - 9v
Signal To Noise: >90
Frequency Response: 10hz-45khz
Total Harmonic Distortion (Thd): <0.15%
Power Terminal 12v/gnd: 10 Awg
Speaker Terminal Wire Gauge: 12 Awg
Ipx Rating: Ipx Rated For Water Resistance
