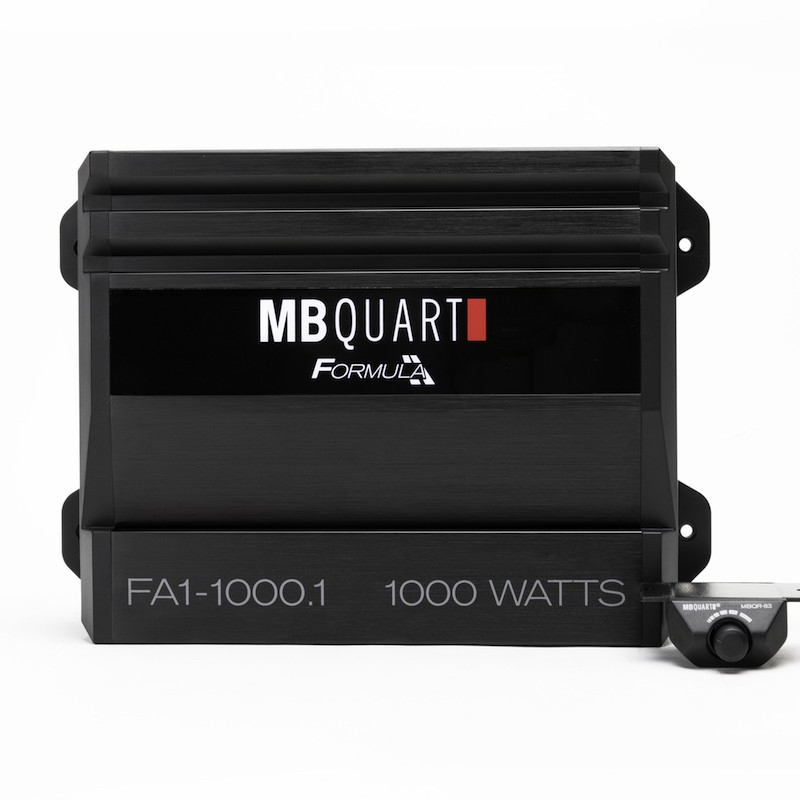

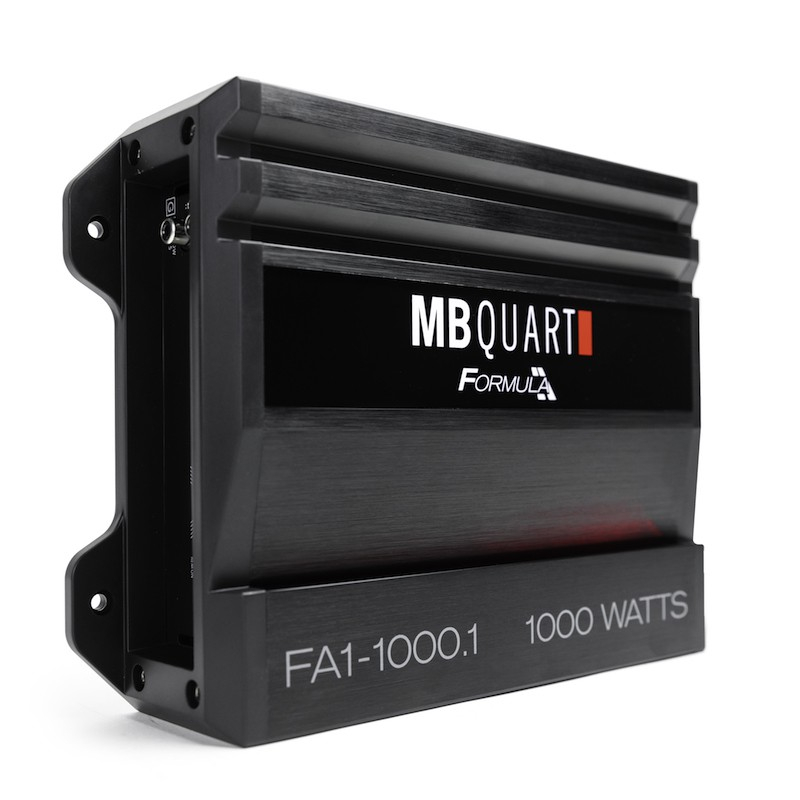

MB Quart FA1-1000.1 1000 Watt Amplifier 1 Ohm Stable Mono Car Audio Amp
We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Mono Car Audio Amp
- • Owner's Manual
Mono Subwoofer Car Audio Amplifier
MB Quart Formula series mono subwoofer car audio amplifier featuring innovative sound quality and power technology. The FA1-1000.1 is a 1000 watt 1 ohm stable car audio amplifier. Formula amplifiers feature DC Sensing to allow any amplifier to be easy integrated into an OEM system by simply adapting a RCA cable from the source unit. Bass remote is included.
Complete Control of Amplifier Output
Variable electronic crossovers allow for complete control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specs for specific frequencies for this amp. The DC Signal Sense switch allows the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier (this feature can be turned off).
High Quality Connections
High quality connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier. Secure connection is made for all power, ground and speaker connections.Output devices are selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers.
- Maximum Power : 2000 Watts
- Low Frequency Response : 50-250 Hz
- Number of Channels : 1
- Frequency Response : 15-250 Hz
- Built In Crossovers : Yes
- RMS Power Output : 500x1 Watts
- Amplifier Class : D
- Fuse Rating : 40x2 A
Features:
- Class Q1 Amplifier - MB Quart's Class Q1 offers the efficiency of today's D-Class with increased engineering to focus on sound quality from the power supply through the output devices (FLUID-FETS). Mono only operation mode.
- Complete Sound Control - Variable electronic crossovers allow for complete control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specs for specific frequencies for this amp.
- Hi Level Inputs - The DC Signal Sense switch allows the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier (this feature can be turned off).
- Heavy Duty Connections - High quality connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier. Secure connection is made for all power, ground and speaker connections.
- Powerful - Output devices are selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers. MOSFET power supply allows amp to produce efficient power without taxing the electrical system.
- Low Noise Preamplifier CircuitryQ - stasis Pre Amplifier Stage Maximum Low Voltage Signal From The Source Unit Comes Into The Amplifier Circuit With Minimal Distortion
- Rca InputsNickel Plated - High Temperature Impact Resistant With Hex Screw Terminals That Allow For Secure Connections And Is Erosion Resistant
- Hi Level InputsDc Signal Sense - The Dc Signal Sense Switch Will Allow The Amp To Turn On When A Signal Is Received On The Rca Inputs, So An Amplifier Remote Turn On Wire Is Not Needed To Turn On The Amplifier. This Feature Can Also Be Turned Off.
- Operation Mode - Mono Only
- Crossover Type - Variable Electronic Crossovers Allow For Complete Control Of The Sound
- Electronic Equalizer - Control Of Amplifier Output With On-board Electronic Crossover To Tailor Specific Frequencies To Speakers And Subwoofers. Check Specifications For Specific Frequencies For This Amplifier.
- Class / TopologyClass Q1 Mono (Class D) - Mb Quart’s Class Q1 Offers The Efficiency Of Today’s D-class With Increased Engineering To Focus On Sound Quality From The Power Supply Through The Output Devices, The Fluid-fets.
- Output Device Technology Fluid fets - Mb Quart Output Devices, Fluid-fets Are Painstakingly Selected For Their Ability To Efficiently Produce Power And Mimic The Sound Quality Of The Highest End Home Amplifiers.
- Heat Sink Heavy Duty Heat-sink - Efficiently Moves Heat From The Mosfet Where It Can Be Cooled
- Power SupplyRugged Mosfet Pulse Width Modulation Power Supply: Allows Amplifier To Product Efficient Power Without Taxing The Vehicle Electrical System

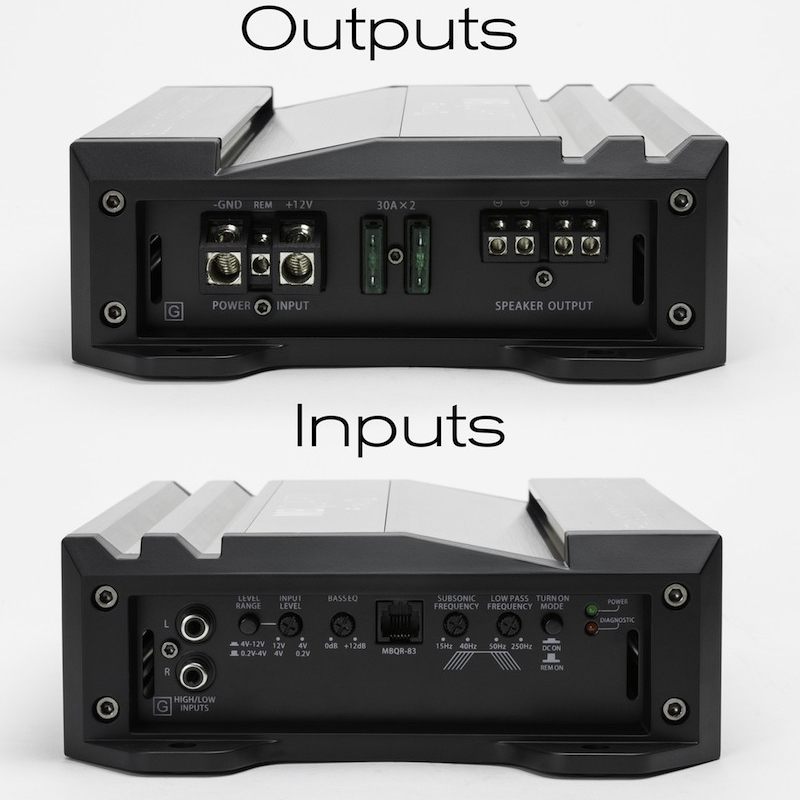

- Output Connections - Heavy Duty Connections Allow For Secure Electrical Signal To Pass Into Wiring And Resist Erosion Which Will Add Longevity To The Amplifier
- Connection Type - Secure Connection For All Power, Ground And Speaker Connections.
- Led System Protection Circuitry Diagnostics - Monitor Overload And Speaker Short Protection With Illuminated Indicators On The Amplifier End Panel
- Bass Remote Included - Included On Mono And 5 Channel Amplifiers. This Allows The Driver To Make Subtle Changes To The Bass Respond Of The Audio System From The Seated Listening Position.
Specifications:
- Class: Class Q1 Mono (Class D)
- Total Channels: Mono
- Power @ 1 Ohm: 1 X 1000 Watts
- Power @ 2 Ohms: 1 X 500 Watts
- Power @ 4 Ohms: 1 X 250 Watts
- Crossover: Electronic
- Variable High Pass Crossover 12db Per Octave: Switched
- Variable Low Pass Crossover 12db Per Octave: Variable, 50hz - 250hz
- Bass Boost: 0-12db
- Variable Voltage: .02 - 9v
- Signal To Noise: >90
- Frequency Response: 15hz-250hz
- Total Harmonic Distortion (Thd): <0.10%
- Speaker Level Audio Inputs: Rca Jack
- Power Terminal 12v/gnd: 4 Awg
- Speaker Terminal Wire Gauge: 12 Awg
- Fusing: 40a X 2
- UPC: 806576230144
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
