- • Why does my PS545L voltage drop when my audio system gets loud?
A sudden voltage drop during heavy bass can happen when the electrical system is being pushed beyond what the battery, alternator, or wiring can supply. One PS545L owner specifically reported that replacing an inadequate main battery stopped sound-system flickering, showing how insufficient electrical support can affect audio performance.
- • What could cause my PS545L to appear charged but still perform poorly?
A battery can show a normal resting voltage while having reduced capacity or internal damage. If the PS545L becomes unusually weak under load, test the battery under load and check the charging system rather than relying only on a voltage reading.
- • Can using the wrong charger damage my PS545L?
Yes. The PS545L is a sealed AGM battery and requires controlled charging. XS Power's instructions specify an automatic charger with charging voltage limited to approximately 14.4V; excessive voltage can cause permanent capacity and service-life damage.
- • Why is my PS545L getting hot during charging?
Excessive heat can indicate improper charging voltage, an unsuitable charger, or a battery problem. If the battery becomes unusually hot, stop charging and verify the charger's voltage and charging profile before continuing. XS Power warns that overcharging can cause the battery to heat excessively.
- • My battery keeps going flat overnight—could the PS545L be the problem?
Not necessarily. A parasitic electrical draw, amplifier staying active, accessories, or another vehicle-system issue can drain even a healthy battery. Check the vehicle's key-off current draw before assuming the PS545L itself has failed; similar troubleshooting discussions have identified wiring and electrical-system problems behind unexpected battery drain.
- • How tight should the PS545L battery terminals be?
Avoid treating the small terminal hardware like a conventional large automotive battery post. The PS545L uses M6 terminal hardware, and XS Power's instructions warn not to exceed 8 ft-lbs of terminal torque.
- • What should I check if my PS545L keeps losing power while driving?
Start with the alternator output, battery connections, ground cables, terminal tightness, and amplifier wiring. A weak connection can create voltage loss that looks like a failing battery; one real-world audio troubleshooting case was ultimately traced to a loose positive terminal.
- • Can I leave the PS545L sitting unused for several months?
Long-term storage requires attention to the battery's state of charge. XS Power's PS545L instructions recommend recharging when the battery is below 12.6V or has been stored for more than six months, helping prevent problems caused by extended low-charge conditions.
- • Why does my PS545L not seem powerful enough for my upgraded sound system?

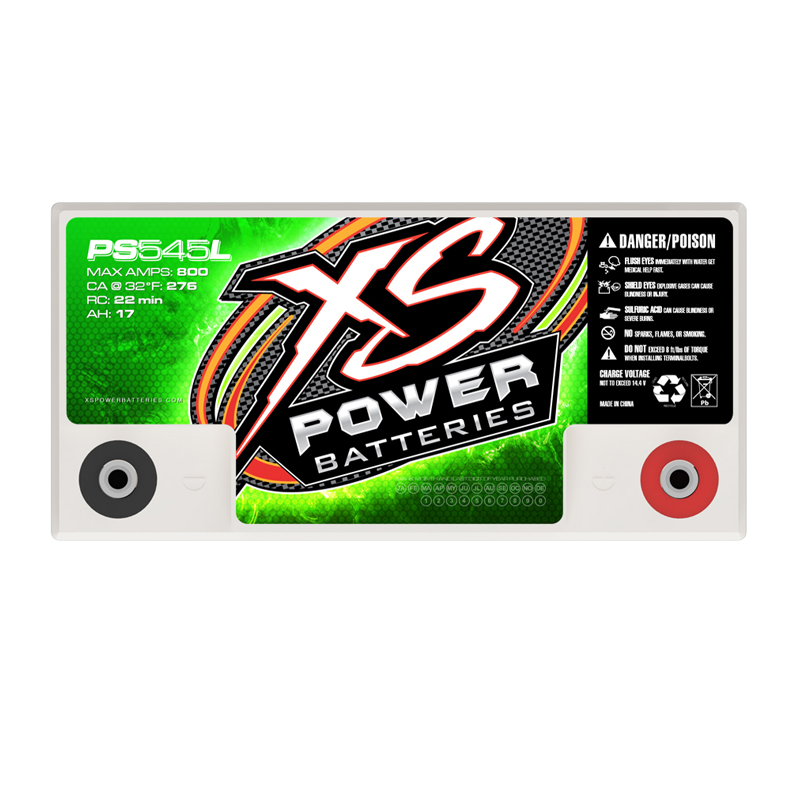

The PS545L is rated at 800 maximum amps, 276 CA, 17Ah, and up to 600 watts, so it is important to match it to the total electrical demand of the vehicle and audio system. If voltage still collapses during heavy use, the issue may involve the alternator, wiring, amplifier settings, or overall system demand rather than the battery alone.
- • What is the safest way to troubleshoot a PS545L that suddenly stops working?
Begin with the basics: inspect both terminals and grounds, measure resting voltage, verify alternator output, and perform a proper load test. If the battery has correct charging history but fails testing, it may have developed an internal fault. Online discussions about XS Power batteries show that premature failures do occur, although other users report many years of trouble-free service, so testing is more reliable than assuming the brand or installation is automatically at fault.
