•Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
•2 Radio removal tools
•Trim-ring removal tool
•6 Pan-head ISO-mount screws
•6 Flat-head ISO-mount screws
•Quick Start Guide
An Excellent Upgrade

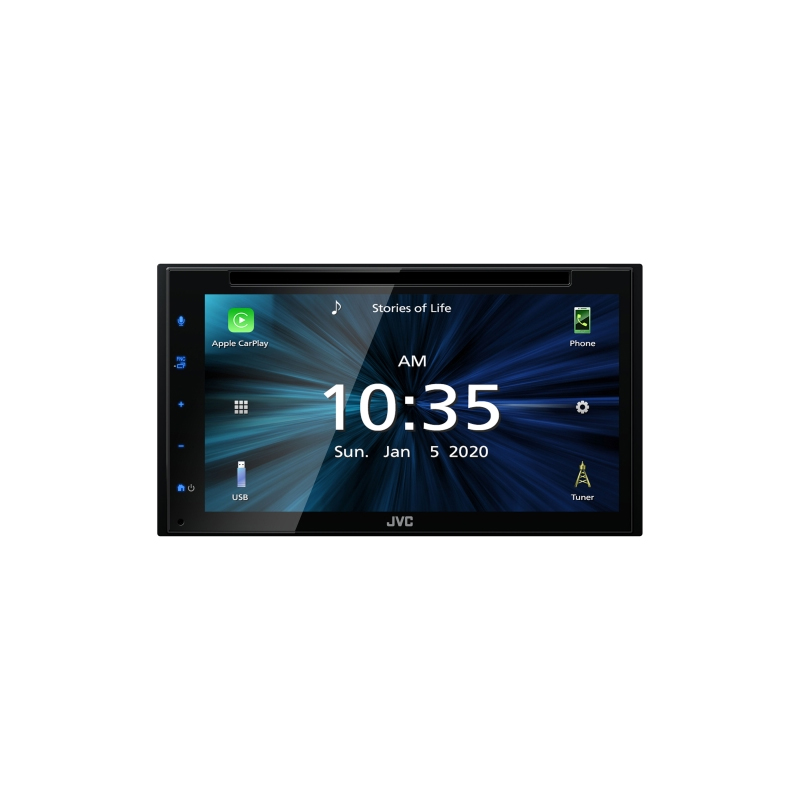

An excellent upgrade from your old in-dash receiver, the JVC KW-V660BT is a multimedia receiver that is equipped with the latest technologies to help you get the best driving experience you deserve—coming with a 6.8-inch touchscreen monitor with superior touch control that only needs a light touch to respond.

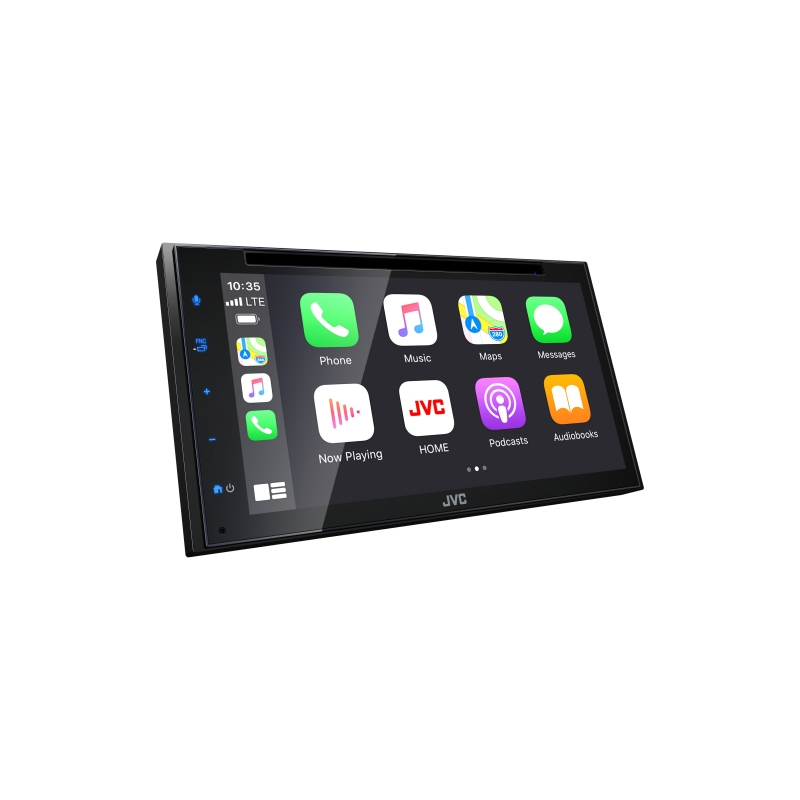

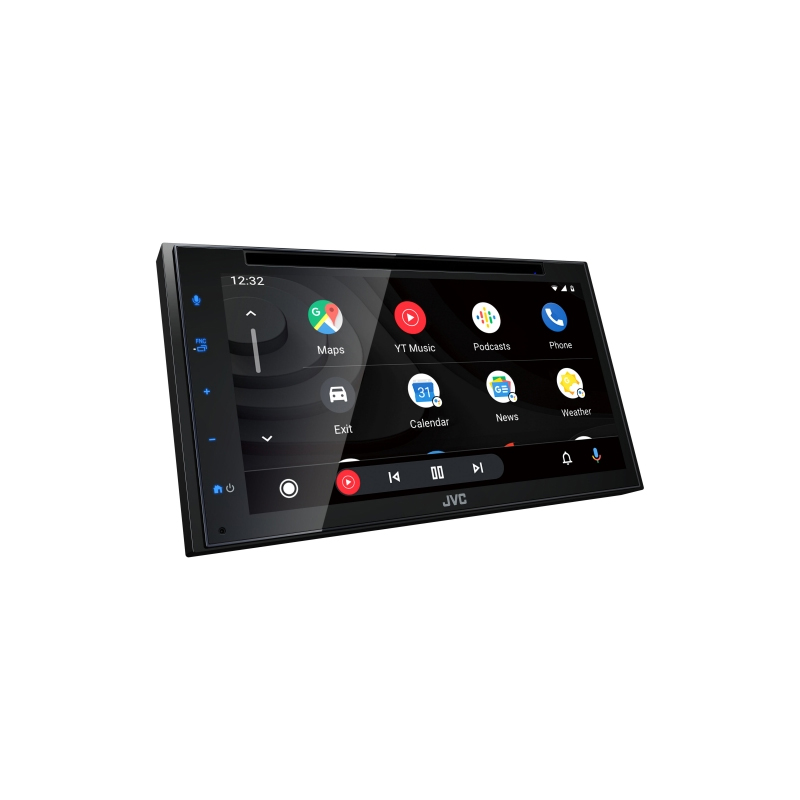

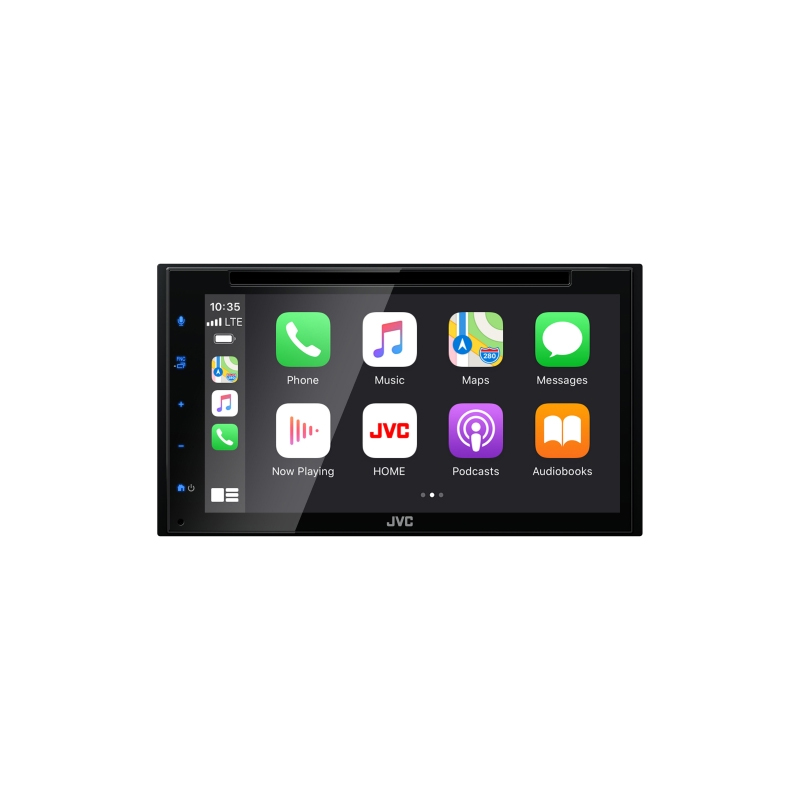

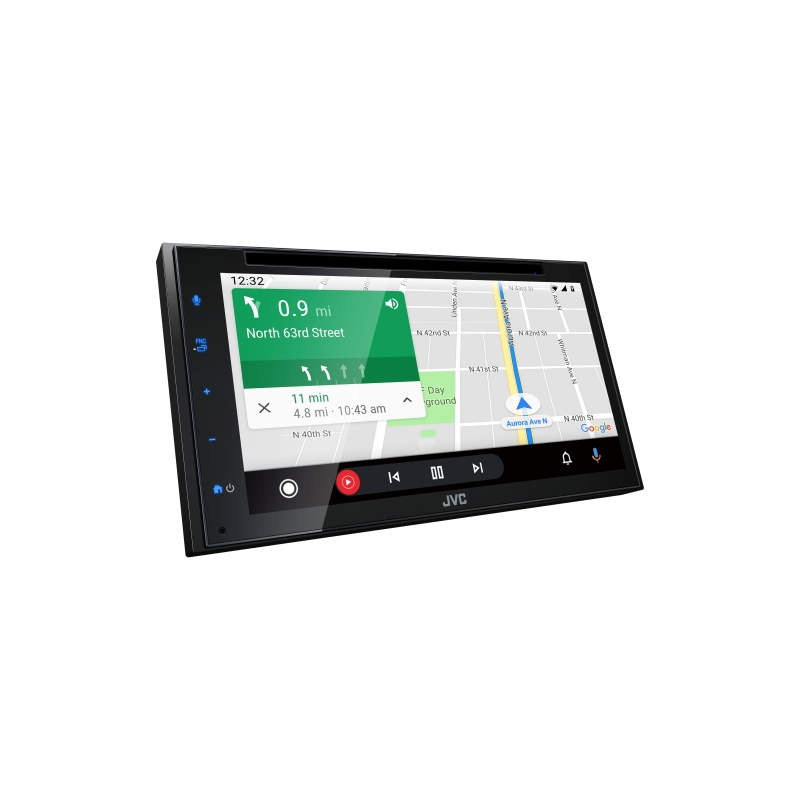

Compatible with Apple CarPlay and Android Auto
Compatible with Apple CarPlay and Android Auto, it allows you to play music, get directions, make calls, and receive and reply to messages by connecting your phone to the receiver using its USB port. You can install the "Mirroring OA for JVC" application on your Android phone if you want to show your phone's display on the bigger LCD screen. You also have the touch control option from your phone or the screen.
Supports a Vast Option of Audio and Video Formats
You can also connect your Android phone to the receiver using Bluetooth for wireless audio streaming and answering calls hands-free. It supports a vast option of audio and video formats for playback, as it can play CDs, DVDs, and flash drives, and is compatible with the SiriusXM satellite radio tuner.
Time Alignment Feature
Apart from the option of connecting external amplifiers with its 5-channel outputs, it also has a built-in amplifier with 21 Watts of continuous power and can reach up to 45 Watts of peak power per channel.
It has a built-in crossover and a 13-band EQ to adjust the audio definition of your car's audio system. Lastly, it has a time alignment feature, which purposely delays the sound of the closest speaker to you so that the audio you will hear from the speakers will reach at the same time to you.
CD-R/CD-RW Compatible : Yes
Satellite Radio Ready : Yes
Subwoofer Preamp Outputs : Yes
DIN : 2
Display Size : 6.8 Inch
Audio/Video Inputs : 1
Bluetooth : Yes
Aux Input : Yes
MP3 Playback : Yes
WMA Playback : Yes
HD Radio : No
Rear USB Input : 1
Preamp Outputs : 5
Rear View Camera Input : Yes
Apple CarPlay : Yes
Android Auto : Yes
USB Mirroring : Yes
Screen Size: 6.8"W VGA Screen
Touch Panel: Capacitive
Monitor Touch Control: Yes
Customizable GUI: Yes
Key Illumination Color: Blue
Multilingual Display: Yes
MP3 Compatible with Tag: CD / DVD / USB
WMA Compatible with Tag:CD / DVD / USB
WAV Compatible with Tag: CD / DVD / USB
AAC Compatible with Tag: CD / DVD / USB
FLAC Compatible with Tag: CD / DVD / USB
H.264 Compatible: CD / DVD / USB
WMV Compatible: CD / DVD / USB
MPEG 1/2 Compatible: CD / DVD / USB
MPEG 4 Compatible: CD / DVD / USB
AVI/MKV Compatible: CD / DVD / USB
CD-R/RW Compatible: Yes
DVD-R/-RW, +R/+RW Compatible: Yes
Video CD Playback: Yes
Built-in Bluetooth: Yes (Wired-Mic included)
Hands Free Call: Yes (HFP1.6 Wideband Speech)
Audio Streaming & Control (A2DP, AVRCP): Yes
Supported Audio Formats: AAC / SBC
Voice Dialing (voice recognition compatible mobile phone required): Yes
Phone Book Access Profile (PBAP): Yes
Alphabetical Search for Phone Book: Yes
Auto Pairing for iPhone/Android: Yes (Android only)
Android Auto: Yes (via USB)
Mirroring for Android: Yes (via USB) *Need mirroring App
Android Music Playback: Yes (via Bluetooth(R))
CarPlay: Yes (via USB)
USB Port: x1 (High Speed)
USB Power Supply: Yes (1.5A High Current Charging)
SiriusXM Ready: Yes
Radio Broadcast Data System (RBDS): Yes
Preset Stations: 20(FM:15ch, AM:5ch)
Automatic Presetting (Strong Station Sequential Memory): Yes
FM Frequency Range: 87.9 - 107.9MHz
AM Frequency Range: 530-1,700kHz
Maximum Power Output (Front & Rear): 50Wx4
Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ: Yes (13-Band Graphic EQ)
Preset EQ: Yes (7Preset + 3user)
Bass Boost: Yes
High-Pass Filter/Low-Pass Filter: Yes/Yes
Time Alignment: Yes

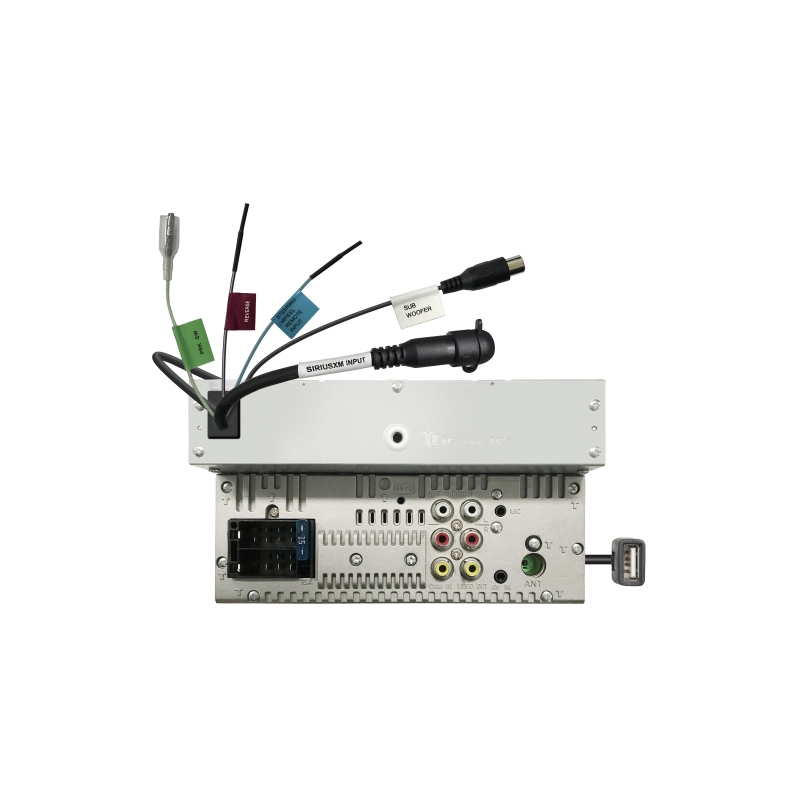

Inputs and Outputs
AV Input: mini jack (AV-IN or Camera switchable)
Video Out: RCA
Rear view camera Input: Yes
Line Output Terminals: 2Preouts (Terminal) + Sub WF (Cable)
Pre-output Level/Impedance: 2.0V / 10k ohms
Subwoofer Output with Level/Frequency Control: Yes

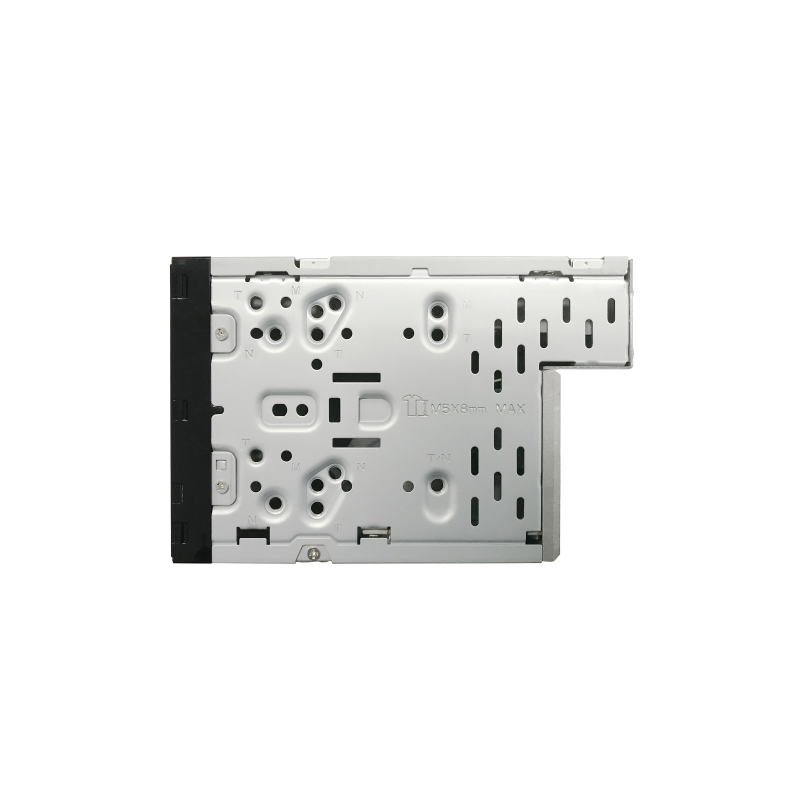

Installation Size: 7" x 3-15/16" x 6" (178 x 100 x 153 mm)
Weight: 4.4 lbs. (2.0kg) Including Sleeve and Trim plate
Unit weight in individual package: 2.7kg
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
