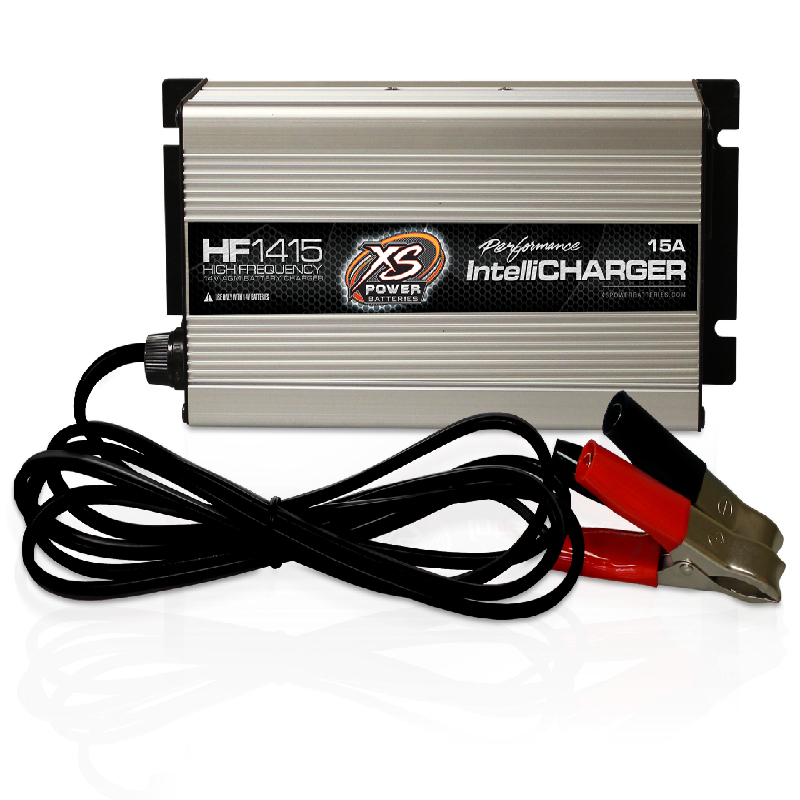

XS Power HF1415 14V High Frequency AGM IntelliCharger, 15A
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
14V 15A High-Frequency AGM Charger
Keep your AGM battery charged and ready with a compact 14V high-frequency IntelliCharger delivering 15A of charging power. Its durable design features 5-ft AWG 16 AC input and 3.9-ft AWG 10 DC output cables for reliable connections. Measuring just 8.3" × 4.7" × 2.3", it provides powerful charging performance without taking up much space.
Frequently Asked Questions (FAQ)
- • Why won't my HF1415 recognize the battery?
A common troubleshooting situation occurs when the battery is below 4.0V or the connection is incomplete. The charger may not illuminate the charge indicator until it detects an acceptable battery voltage.
- • What does it mean when the HF1415 stays orange?
If the charging light remains orange instead of turning green, the battery may not have reached full charge within the charger's 10-hour charging window. Incorrect polarity or a battery that is no longer accepting a charge can also cause the issue.
- • Can I use a normal 12V charger instead of the HF1415?
Not when charging a dedicated 14V battery system. XS Power representatives have specifically explained that the HF1415 is the appropriate IntelliCharger for 14V batteries because the charging voltage differs from 12V and 16V systems.
- • Why does my battery still need attention after being connected for a long time?
The HF1415 is a 15A charger, but charging time depends on battery size, starting state of charge, and battery condition. If the battery remains uncharged for an unusually long period, checking its condition and the connections is recommended rather than assuming the charger is defective.
- • Can leaving the HF1415 connected damage my battery?
The charger is designed to transition into a maintenance/float mode after charging, and experienced users report leaving their IntelliChargers connected for extended periods. However, some online feedback raises concerns about battery health and recommends monitoring the setup rather than assuming every battery condition is identical.
- • Why might the HF1415 appear to drain power when it is not actively charging?
One published customer summary mentions a slow power draw when the charger was left connected but not actively charging. Because this is user-reported feedback rather than a confirmed design defect, users should disconnect AC power when the charger is not needed and follow the manufacturer's operating instructions.
- • What should I check if the HF1415 has no power at all?
Start with the AC outlet, power cord, and fuse. The troubleshooting guide specifically recommends checking the fuse, cord, and input power when the power LED fails to illuminate.
- • Can the HF1415 recover a severely discharged AGM battery?
Not necessarily. If the battery has fallen below approximately 4V, the charger may not recognize it. In that situation, the battery itself may be damaged or require professional evaluation rather than simply needing more charging time.
- • Is the HF1415 useful for high-performance 14V audio systems?
Yes. Owners in car-audio and performance communities have used the HF1415 to maintain 14V battery banks between high-power amplifier tests and other demanding applications. One documented setup used three XS Power D1400 batteries with an HF1415 to maintain a 14V bank.
- • What if my HF1415 seems to charge correctly but the battery still fails later?
That can point to a battery problem rather than automatically indicating a charger failure. Online feedback includes both praise for rapid charging and reports of battery damage, so checking battery age, condition, polarity, connections, and charging behavior is important before replacing the charger.
Physical Specifications:
- Dimensions (W x H x D) : 8.3” x 4.7” x 2.3” (211mm x 119mm x 60mm)
- AC Input Connections : 5.0’ (1.5 m) AWG 16
- DC Output Connections : 3.9’ (1.19m) AWG 10
AC Input Specifications:
- AC Input Voltage : 100-120 VAC, 47-63 Hz
- AC Input Current : 7A RMS fuse protected
General Features:
TYPE: 14V High Frequency AGM IntelliCharger, 15A
AC Input Connections: 5.0’ (1.5 m) AWG 16
DC Output Connections: 3.9’ (1.19m) AWG 10
Dimensions (W x H x D) : 8.3” x 4.7” x 2.3” (211mm x 119mm x 60mm)
- UPC: 692209015444
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
