XS Power XSP-1004 16V Battery IntelliCharger, 20A Max
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 16V AGM Battery Charger
- • Owner's Manual

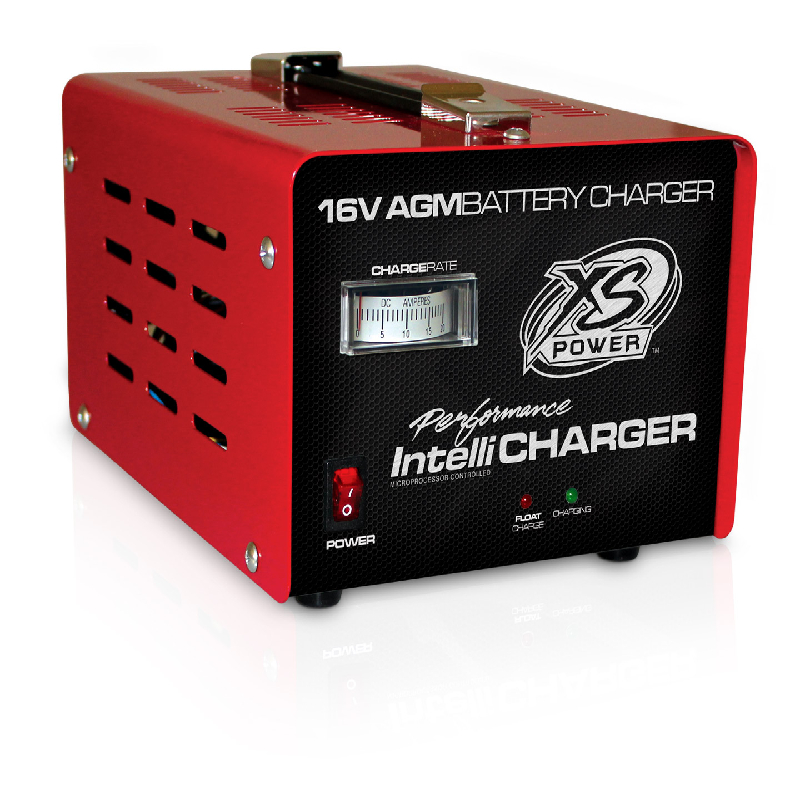

16V 20A IntelliCharger Battery Charger
Keep high-performance 16V battery systems charged with a powerful 20A Max IntelliCharger. Designed for 120VAC input, it delivers up to 19.20VDC with dedicated AWG 10 output cables for dependable power transfer. Its rugged 14-lb construction and 6-ft DC leads make it a reliable choice for demanding battery setups.
Frequently Asked Questions (FAQ)
- • Why won’t the XSP-1004 charge my regular 12V battery?
The XSP-1004 is specifically designed for 16V AGM and gel-cell batteries, so connecting it to a standard 12V battery is the wrong application. XS Power retailers explicitly warn that it is intended for 16V batteries only.
- • What happens if my 16V battery is deeply discharged?
The charger’s microprocessor checks the battery when connected. If the battery is below approximately 4V, the charger can automatically shut down rather than begin a normal charging cycle.
- • Why does the XSP-1004 stop charging before my battery seems full?
The charger uses a programmed charging cycle and can automatically shut down if the battery fails to reach the required voltage within the charging period. A weak or damaged battery may therefore look like a charger problem when the battery itself is the issue.
- • Why is the built-in cooling fan running during charging?
The fan is intentional. The XSP-1004 uses an integrated cooling fan to help keep the transformer and internal components at a safe temperature while charging at higher output levels.
- • Can I use the XSP-1004 on any type of 16V battery?
It is intended for 16V AGM and gel-cell batteries. Using it with a battery of another voltage or an incompatible chemistry can create a charging problem and is specifically discouraged by the product documentation.
- • Why does the ammeter show different readings while my battery charges?
The XSP-1004 is designed to vary its charging behavior through a multi-stage process. The built-in ammeter lets you monitor charging output, so the displayed current can change as the battery moves through different charging stages.
- • Are the included cables long enough for my battery setup?
The charger comes with approximately 6 feet of heavy-duty DC cable, which is convenient for many installations but may be limiting if the battery is mounted far away from the charger. Measure your setup before assuming the supplied leads will reach.
- • Why does the charger have two charging modes?
The two-mode design gives the XSP-1004 flexibility for different 16V charging requirements. Its constant-current/constant-voltage charging system is controlled electronically to manage the charging process rather than simply delivering a fixed output continuously.
- • Is 20 amps too much for a smaller 16V AGM battery?
The XSP-1004 can deliver up to 20A, so the battery’s recommended charging rate should be considered before use. Maximum charger output does not mean every battery should receive 20A continuously.
- • What should I check if my XSP-1004 appears completely dead?
Check the AC power source, fuse, cables, clamps, and battery voltage first. Because the charger can shut itself down when it detects an unsuitable or severely discharged battery, a no-charge condition does not automatically mean the charger has failed.
General Features:
TYPE: 16V Battery IntelliCharger, 20A Max
AC Input Connections: 5.0’ (1.5 m) AWG 18
DC Output Connections: 6.0’ (1.8 m) AWG 10
Dimensions (W x H x D) : 7 1/8” W x 5 5/8” H x 9 5/8” D
Physical Specifications:
- Dimensions: 7 1/8” W x 5 5/8” H x 9 5/8” D
- Weight: 14 lbs (6.43 kg)
- AC Input Connections: 5.0’ (1.5 m) AWG 18
- DC Output Connections: 6.0’ (1.8 m) AWG 10
Electrical Specifications:
- Absorption Voltage: 19.20 VDC
- Float Voltage at no Load: 18.08 VDC
- Maximum Output Voltage: 19.20 VDC
AC Input Specifications:
- AC Input Voltage: 120 VAC, 60 Hz
- AC Input Current: 8A RMS fuse protected
- UPC: 692209012351
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
