XS Power  TB-602v1

600 Series Aluminum Terminal Blocks, 1/0, 2 Spots, M6/M8 Bolts, Pair

Item #56714

Condition:   Brand New

Product Highlights

  • 600 Series Aluminum Terminal Blocks
  • 2-Spot Design for Efficient Power Distribution
  • Supports 1/0 Gauge Wire Connections
  • Includes M6/M8 Bolts for Secure Mounting
  • Sold as a Pair for Dual Installation Use

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$51.99

Reg. Price $64.99  Save $13.00
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

XS Power Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Morel Banner

XS Power TB-602v1 600 Series Aluminum Terminal Blocks, 1/0, 2 Spots, M6/M8 Bolts, Pair


Morel Banner

We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Aluminum Terminal Blocks
  • • Owner's Manual

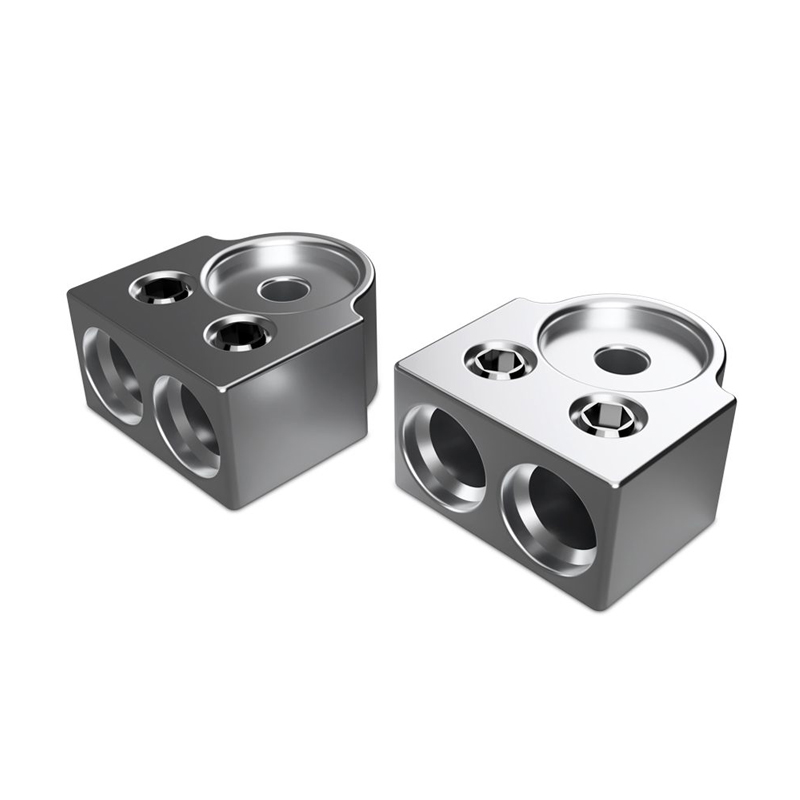

XS Power TB-602v1 600 Series Aluminum Terminal Blocks

Simplify your battery wiring with the XS Power TB-602v1 Aluminum Terminal Blocks. Designed for high-performance electrical setups, this two-piece set provides a clean and secure way to manage 1/0 gauge connections with flexible M6/M8 bolt compatibility.




Frequently Asked Questions (FAQ)


  • • Why won't my 1/0 AWG cable seat correctly in the TB-602v1?
    The block is designed for 1/0 AWG wiring, but the cable lug still needs to match the available hardware. Check that the lug is properly sized and sits flat against the terminal before tightening.
  • • Why does my cable connection feel loose after tightening the TB-602v1?
    A loose connection can happen when the ring terminal is not completely flat or the fastening hardware is positioned incorrectly. Recheck the lug placement and make sure no insulation is trapped beneath the connection.
  • • What are the M6 and M8 bolts included with the TB-602v1 used for?
    The included M6/M8 hardware gives you flexibility when mounting or connecting the terminal blocks to compatible electrical components. Select the size that matches the connection point being used.
  • • Can the TB-602v1 handle a high-current car-audio setup?
    Yes, the blocks are designed around 1/0 AWG wiring and are marketed for demanding automotive and powersports electrical applications. However, the complete system still needs properly sized cables, fuses, batteries, and connections.
  • • Why am I getting voltage loss through my TB-602v1 connection?
    The terminal block itself may not be the cause. Inspect the cable crimp, contact surfaces, mounting hardware, and cable size for resistance-producing problems. A clean, tight connection is especially important in high-current applications.
  • • Can I use the TB-602v1 for a dual-battery installation?
    Yes. The two-spot design can be useful for organizing power connections in dual-battery systems, accessory feeds, or audio installations. Make sure the wiring configuration and protection devices are appropriate for the batteries being connected.
  • • Why does my terminal block become warm when the system is running?
    Slight warming can occur when current passes through a connection, but excessive heat may indicate resistance from a loose fastener, poor crimp, undersized cable, or contaminated contact surface. Stop and inspect the connection if it becomes unusually hot.
  • • Why is the TB-602v1 too large for my battery compartment?
    The block is intended for substantial 1/0 AWG wiring, so the cables and their bend radius can require more room than a standard battery terminal. Measure the available space before installation, especially in compact engine bays.
  • • Does installing the TB-602v1 require drilling?
    The terminal block is designed for straightforward installation and is described by retailers as requiring no drilling. However, the mounting location still needs to provide adequate clearance for the block, bolts, and connected cables.
  • • What should I check if the TB-602v1 connection loosens after driving?
    Vehicle vibration can place continuous stress on heavy 1/0 AWG cables. Make sure the block is securely mounted and support the cables so their weight and movement are not pulling directly against the connection. Real buyers have generally described the XS Power terminal blocks as sturdy and well-made.

SPECIFICATIONS



FEATURES


Features:

  • 600 Series aluminum construction
  • 2 connection spots per block
  • Supports 1/0 gauge wiring
  • M6/M8 bolt compatibility
  • Includes a pair of terminal blocks
  • Ideal for XS Power battery accessories
  • UPC: 692209053798
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
