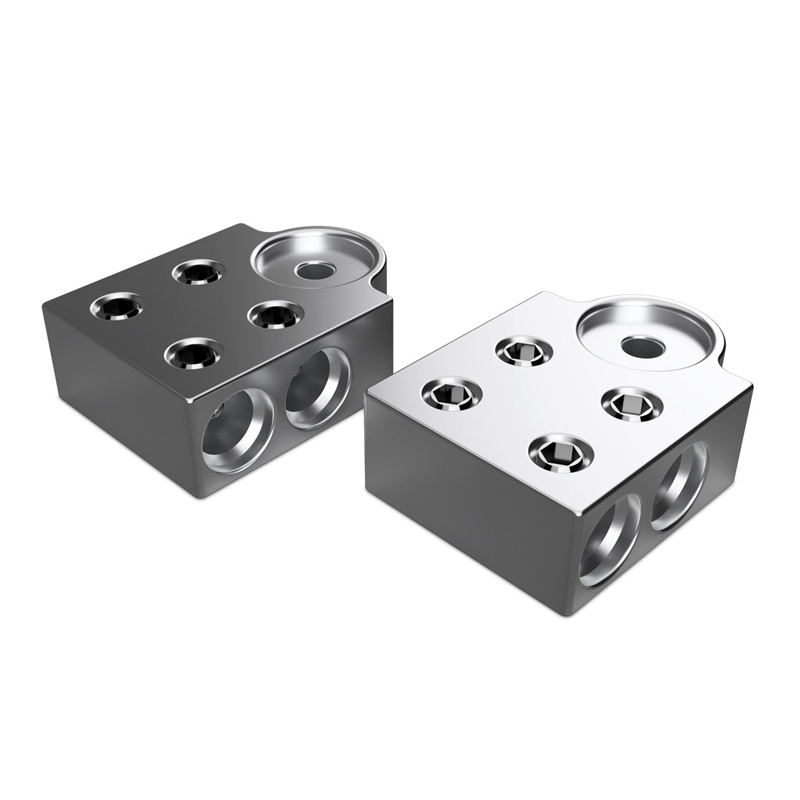

XS Power  TB-604v1

600 Series Aluminum Terminal Blocks, 1/0, 4 Spots, M6/M8 Bolts, Pair

Item #56715

Condition:   Brand New

Product Highlights

  • 600 Series Aluminum Terminal
  • 1/0 Gauge Power Blocks
  • 4 Connection Spots
  • M6 M8 Bolt Compatible
  • Durable Electrical Pair

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$62.99

Reg. Price $78.99  Save $16.00
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

XS Power Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Morel Banner

XS Power TB-604v1 600 Series Aluminum Terminal Blocks, 1/0, 4 Spots, M6/M8 Bolts, Pair


Morel Banner

We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Aluminum Terminal Blocks
  • • Owner's Manual
XS Power TB-604v1 600 Series Aluminum Terminal Blocks

Keep your power distribution clean and reliable with the XS Power TB-604v1 Terminal Blocks. Engineered for 1/0 gauge wiring, this aluminum pair delivers four secure connection points per block for organized, high-performance battery installations.




Frequently Asked Questions (FAQ)


  • • Why won't my 1/0 AWG cable sit securely on the TB-604v1?
    A cable can feel unstable if the lug is the wrong size or does not sit completely flat against the terminal. Check the lug opening, crimp, and contact surface before tightening the hardware.
  • • Why does the terminal block move when I tighten the cable?
    If the block itself shifts during installation, the mounting point may not be secure enough. Make sure the mounting hardware is properly supported and that tightening the cable does not put sideways pressure on the block.
  • • Can the TB-604v1 be used to split power to several amplifiers?
    Yes. Its four connection points make it useful for distributing power to multiple high-current accessories or amplifiers. Each connected circuit should still have the appropriate fuse and properly sized cable.
  • • Why is one connection point difficult to access after installation?
    Cable routing can make one of the four connection points harder to reach, especially when thick 1/0 AWG wiring is installed in a confined area. Plan the cable direction before permanently mounting the block.
  • • What causes a TB-604v1 connection to become hot?
    Unexpected heat usually deserves attention. A loose fastener, poor cable crimp, contaminated contact surface, or undersized wiring can create resistance and cause heat at the connection.
  • • Why does my amplifier still experience voltage drop after adding the TB-604v1?
    The terminal block only provides a connection point; it does not increase the battery's voltage or current capability. Check the entire power path, including cable length, wire gauge, fuse connections, crimps, and battery terminals.
  • • Can I attach different cable sizes to the four connection points?
    The TB-604v1 is intended around 1/0 AWG applications, so cable and lug compatibility should be checked carefully before mixing different wire sizes. A terminal should never be forced into a connection that does not properly accommodate it.
  • • Why won't the included M6 or M8 hardware match my mounting location?
    The TB-604v1 includes different hardware sizes for installation flexibility. Confirm the thread size of your intended mounting point before selecting the hardware rather than forcing an M6 connection into an M8 location or vice versa.
  • • Why does my connection loosen after driving on rough roads?
    Heavy-gauge cables can transmit vibration directly into the terminal block. Secure the block firmly and support the cables near the connection so movement and cable weight are not constantly stressing the fasteners.
  • • Is the TB-604v1 suitable for a high-powered audio electrical system?
    It can be used for high-current automotive audio wiring when the complete electrical system is correctly sized. The terminal block should be paired with appropriate 1/0 AWG wiring, fusing, battery capacity, and properly crimped cable lugs rather than treated as a solution for an undersized electrical system.

SPECIFICATIONS



FEATURES


Features:

  • 600 Series aluminum terminal blocks
  • 4 connection spots per block
  • Supports 1/0 gauge cable
  • M6/M8 bolt compatibility
  • Includes a pair of terminal blocks
  • Ideal for XS Power battery accessories
  • UPC: 692209053156
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
