Sony XAV-AX5500 1-DIN 6.95" Digital Multimedia Receiver with Wired Apple CarPlay™ & Android Auto™, Bluetooth®, WebLink™ Cast, Back-Up Camera Ready™, and SiriusXM Ready™
We are a Sony authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Digital media receiver w/ 6.95" touchscreen monitor (10A fuse)

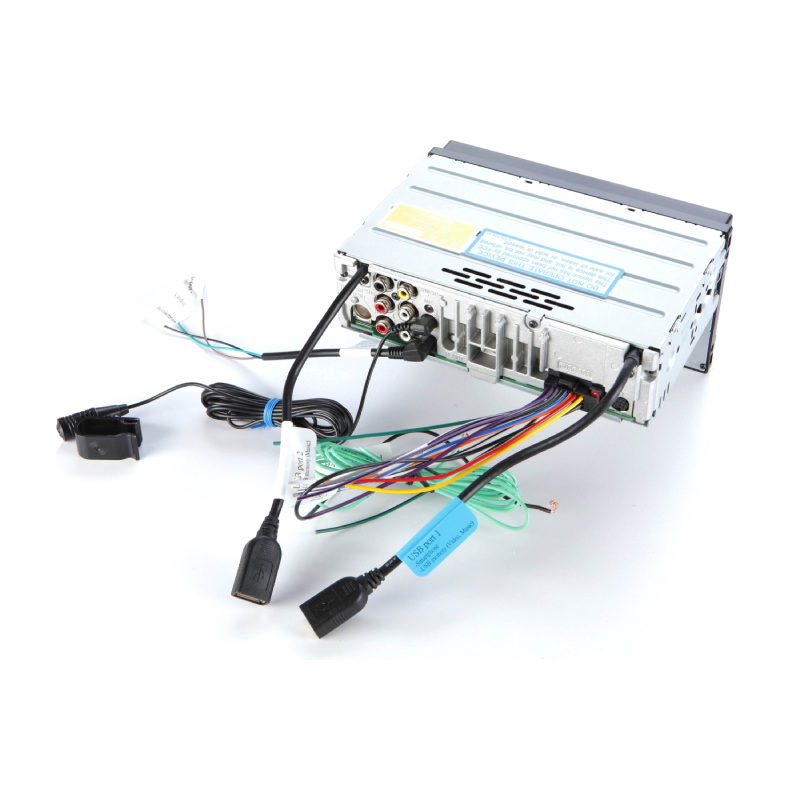

- • Wiring harness

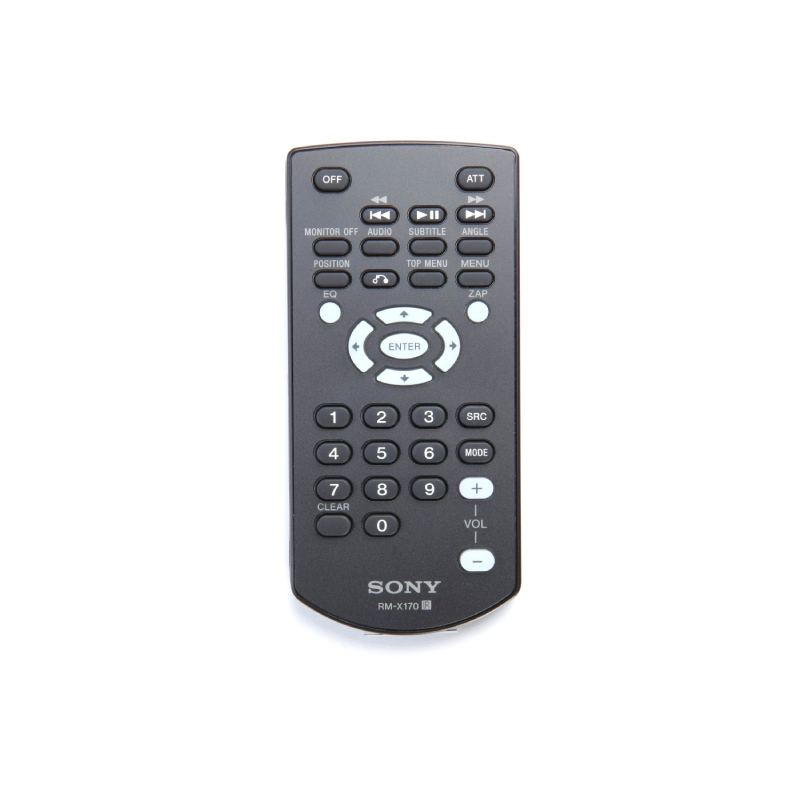

- • Remote control (RM-X170)
- • CR2025 3V battery (installed in remote)
- • Microphone w/ bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
- • 52" USB extension cable
- • Two-sided tape
- • Four M5x9mm ISO-screws
- • Operating Instructions
- • Warranty Sheet
Come With High-end Features
When you think of a Sony product, the first thing that comes to mind is its reliability. For Sony's multimedia receivers, not only are they very reliable, but they also come with high-end features that are perfect if you want a new and improved experience for car infotainment systems.
Very Easy to Install

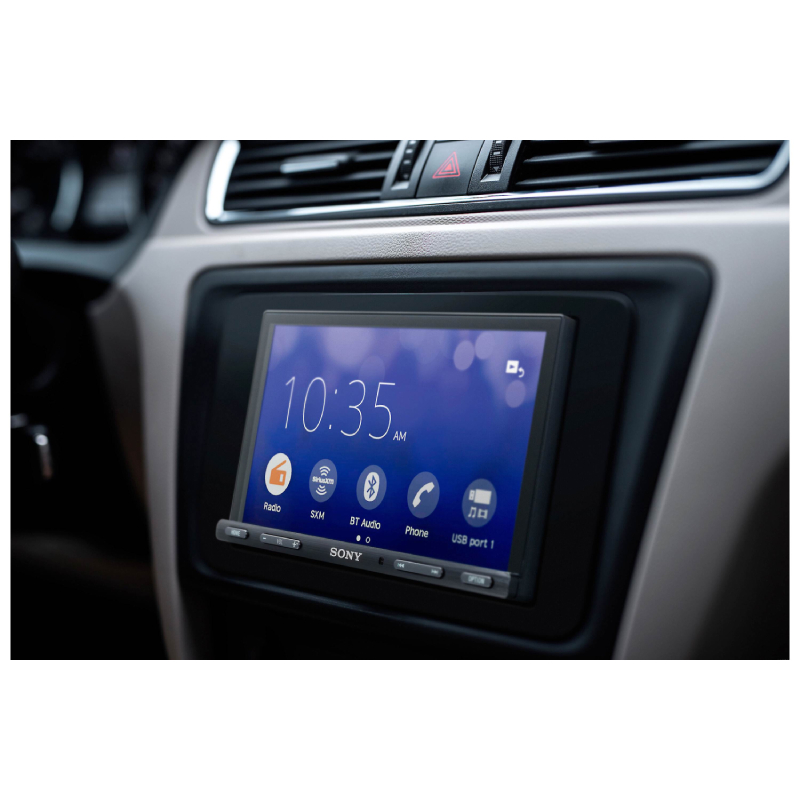

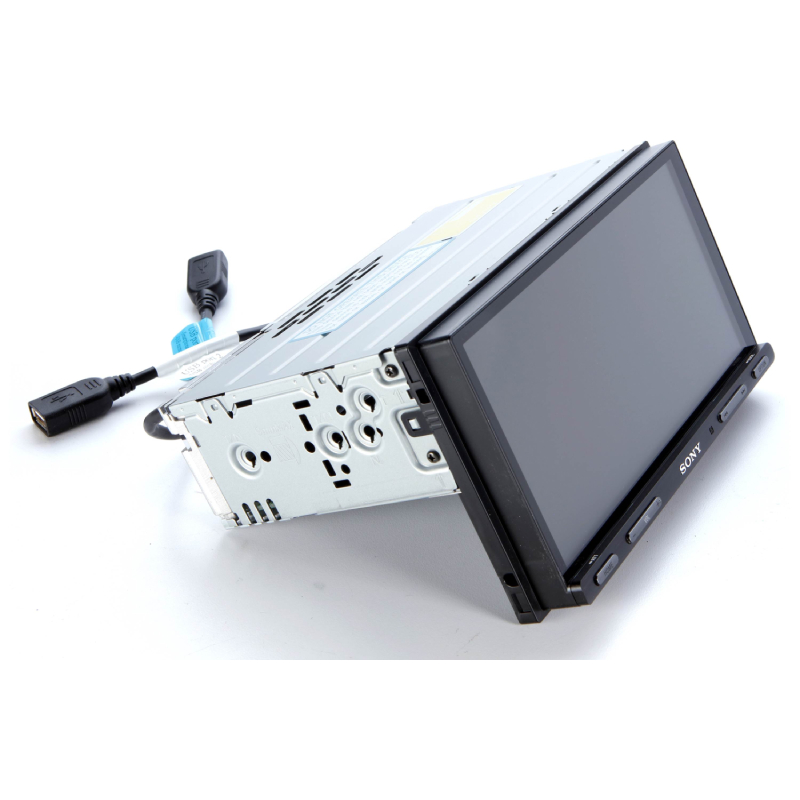

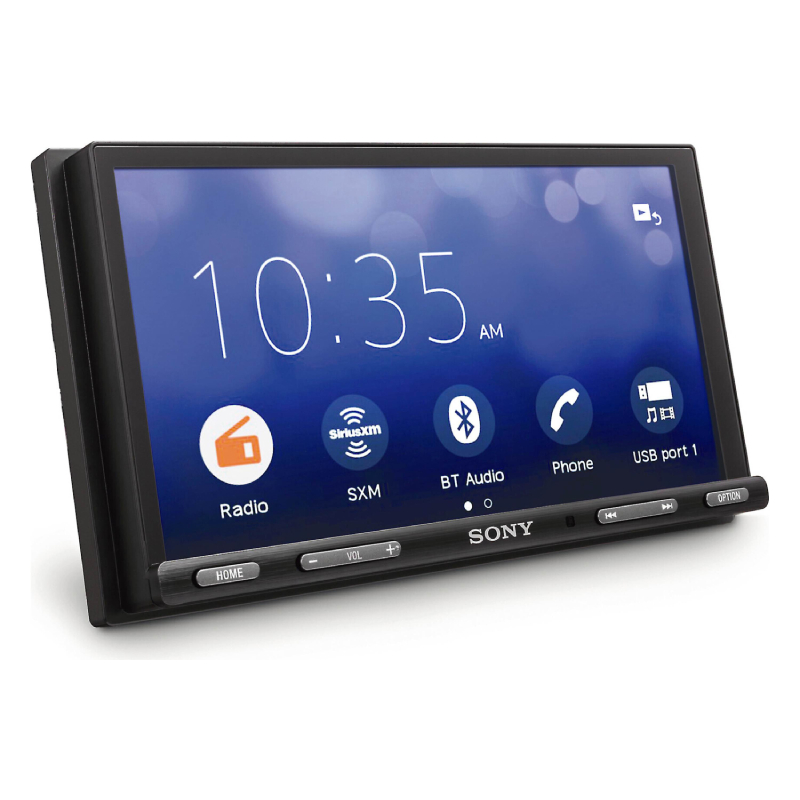

An excellent example of Sony's famous reputation for making high-quality electronic products is the XAV-AX5500. It is a digital multimedia receiver with a 6.95-inch display and a compact chassis, making it very easy to install on vehicles.

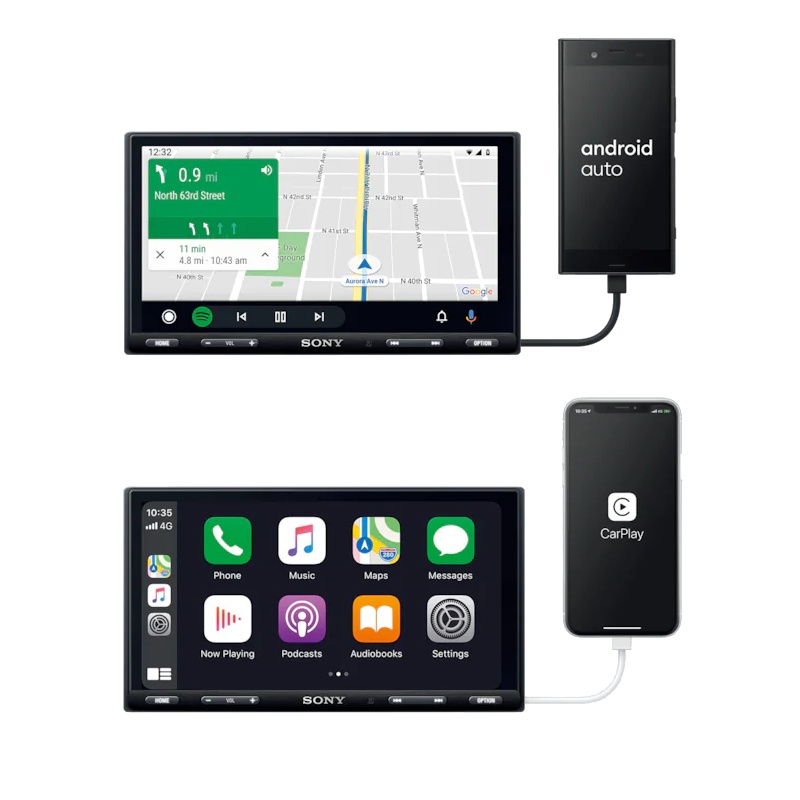

Apple CarPlay and Android Auto-ready

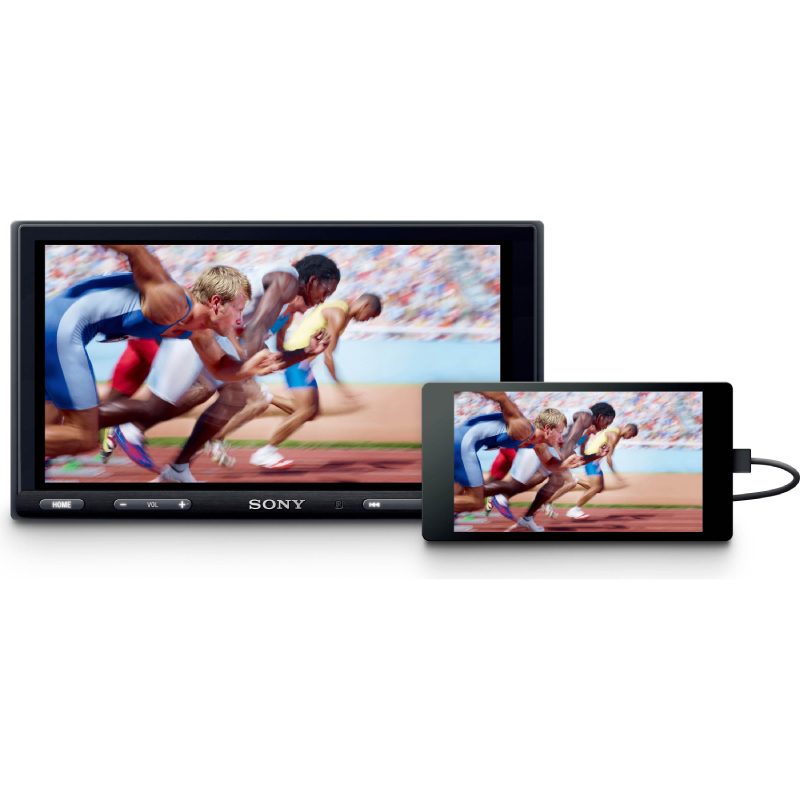

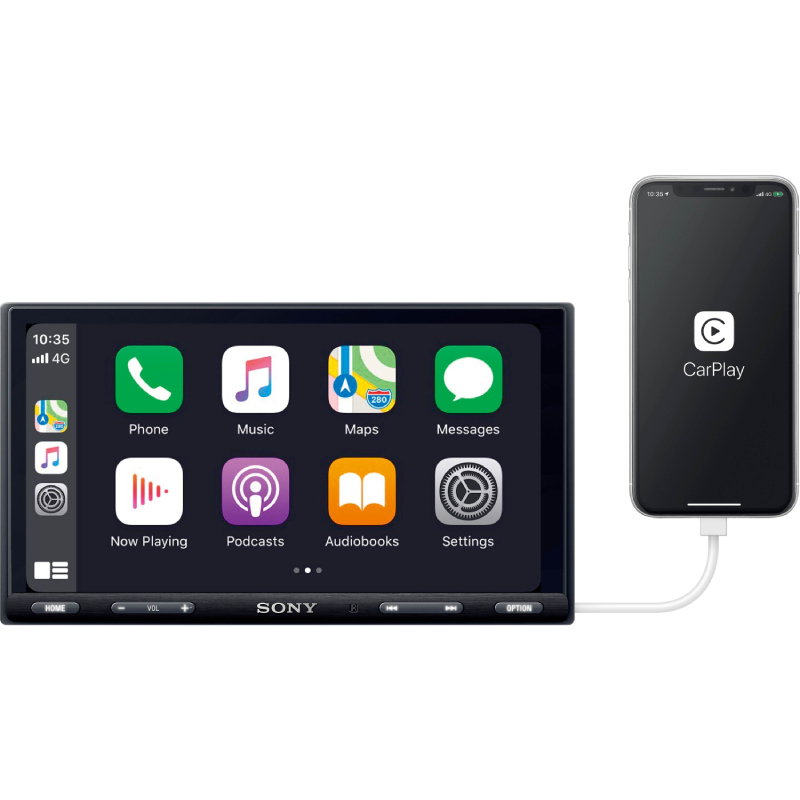

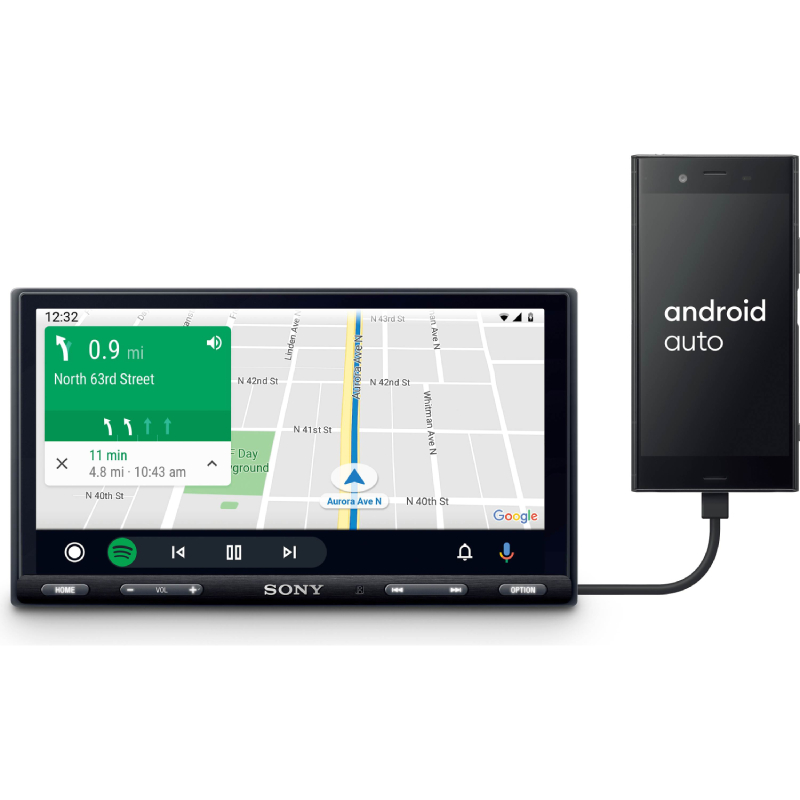

It is Apple CarPlay and Android Auto-ready, so you use voice commands if you want to play music, read and send text messages, make and take calls, listen to voicemails, or ask for directions. It is also WebLink compatible, so you can mirror your iPhone or Android phone's display to the receiver.
Bluetooth Connectivity Option for Hands-free Calling
It has a Bluetooth connectivity option for hands-free calling and wireless music streaming, and it is also SiriusXM-ready, so you can still follow and listen to your favorite shows and stations while you are driving on the road.
Comes With a Built-in Amplifier
It comes with a built-in amplifier that can handle a power output of 20 Watts RMS per channel and has a peak power of 50 Watts. It has a five-channel preamp output, which means that you can only have a mono subwoofer in your speaker setup. You can tweak the amplifier's frequency response using its 10-band EQ, and it also has Sony's Dynamic Stage Organizer to compensate for the audio quality if some of your speakers are positioned very low.
- Maximum Power : 4x55 Watts
- Satellite Radio Ready : Yes
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 5 volts
- Display Size : 6.95 Inch
- Bluetooth : Yes
- WMA Playback : Yes
- HD Radio : No
- Rear USB Input : 1
- Preamp Outputs : 3
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
- USB Mirroring : Yes
Features:

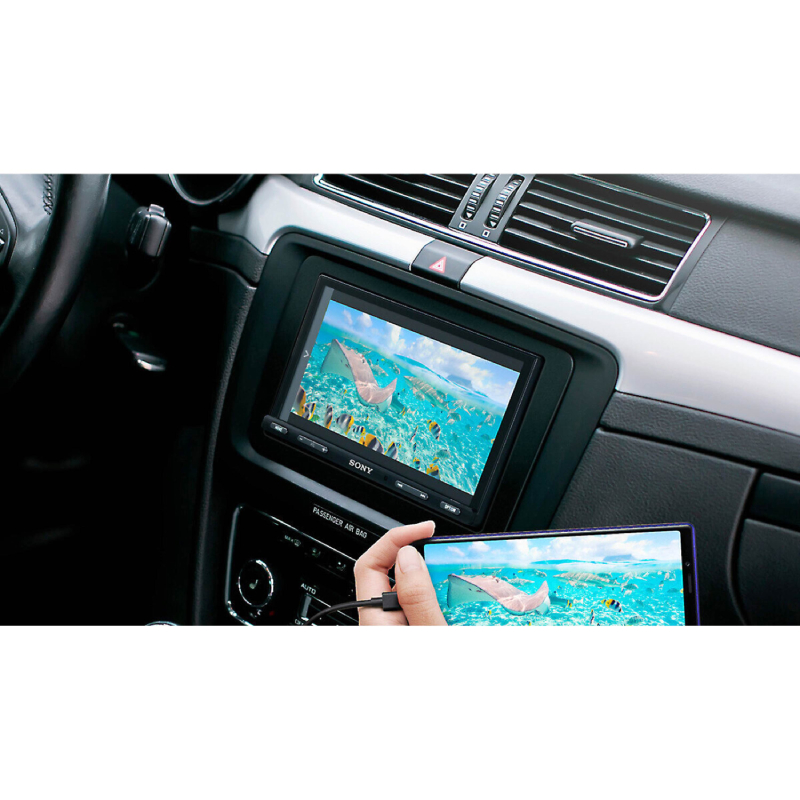

- Mirror and control selected smartphone apps with WebLink™ Cast5

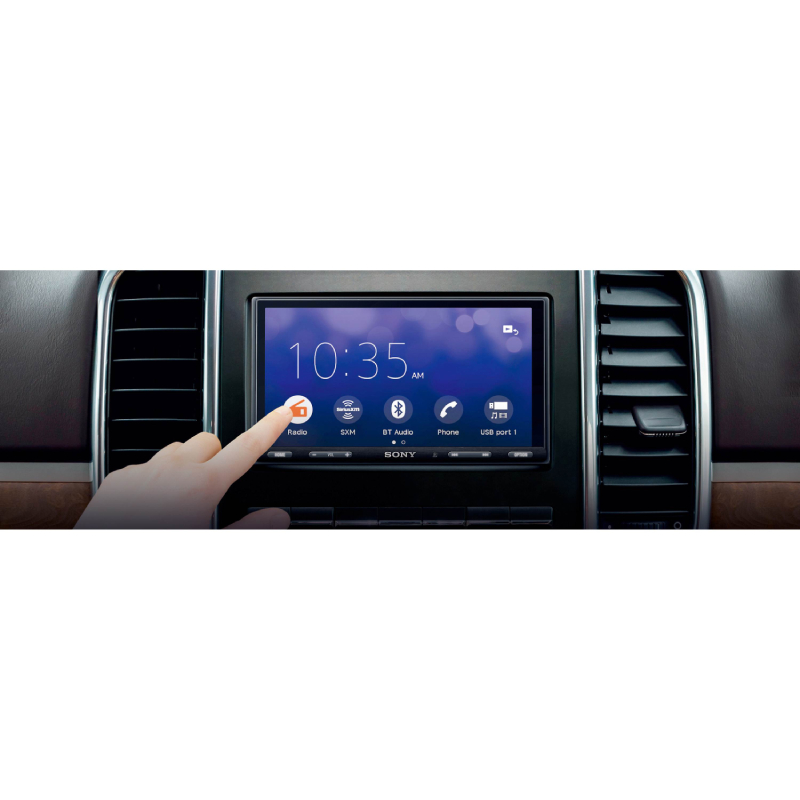

- Bezel-less capacitive touchscreen for a seamless display
- Dual USB ports let you connect a smartphone and USB device simultaneously
- Build your own system with 3 x 5-V pre-outs
- Ergonomic key terminal for easy operation
- digital multimedia receiver with AM/FM tuner
- 6.95" capacitive touchscreen display with brushed aluminum key terminal
- Bluetooth hands-free calling and audio streaming
- wireless remote
Smartphone Features:
- works with Apple CarPlay, Android Auto, and WebLink
- voice control with Siri and Google Assistant
Audio/Video Features:
- plays media from USB memory devices (see Details for full capabilities)
- 10-band equalizer

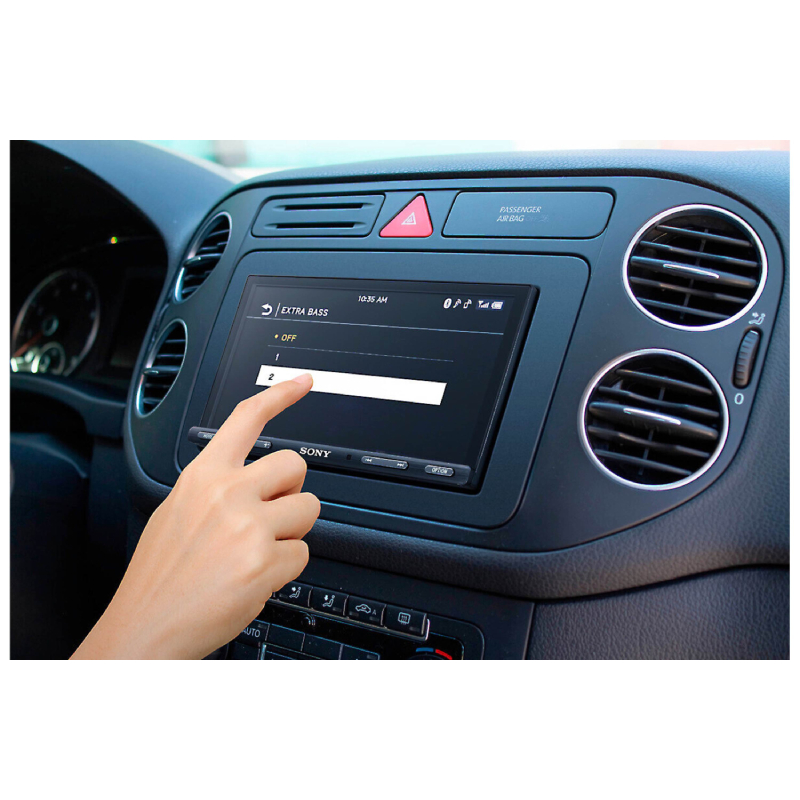

- EXTRA BASS™ for bass enhancement
- Dynamic Stage Organizer (DSO) compensates for low speaker positions
- subwoofer controls
Expandability:
- compatible with SiriusXM satellite radio tuner

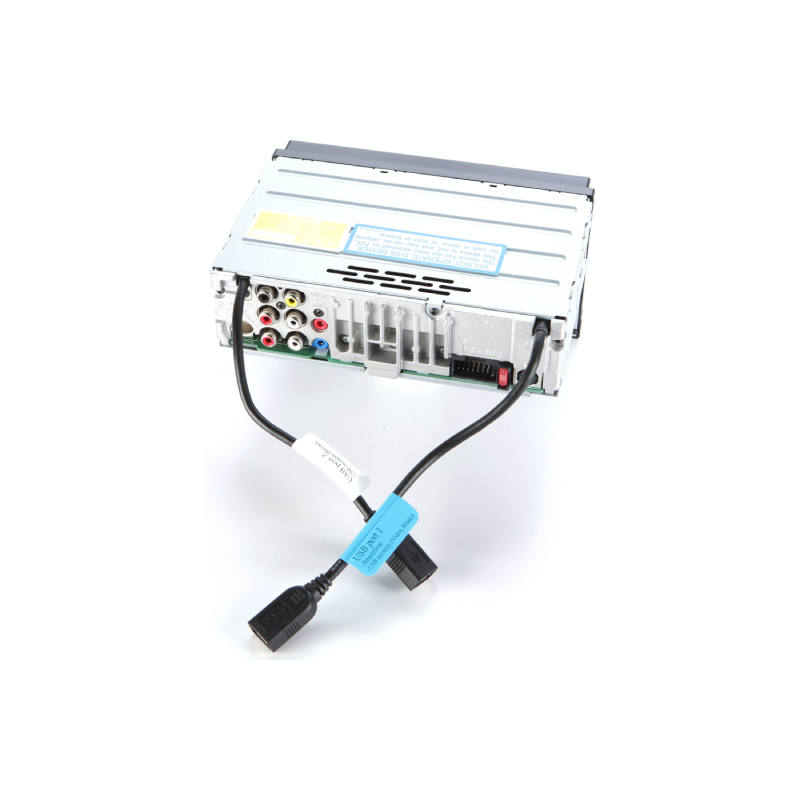

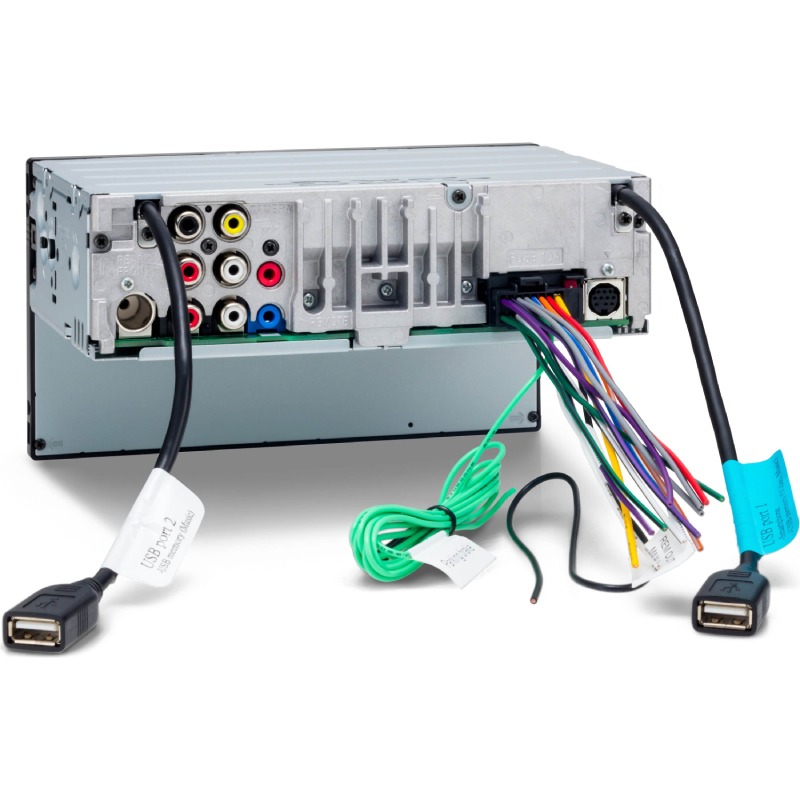

- inputs: dual rear USB inputs, rear-view camera input
- outputs: 5-channel preamp outputs (5-volt front, rear, mono sub)
Other Info:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in internal amp (20 watts RMS/55 peak x 4 channels)
- CTA-2006 compliant
- fits double-DIN dash openings
- compatible with most factory steering wheel audio controls (adapter required)
Product Details:
- Dimensions (W X H X D): 178 X 100 X 139 Mm
- Weight: 1.0 Kg
- Output Power: 55 W X4
- Pre Out: 3 Pre (Front / Rear / Sub X 1)
- Rear View Camera In: Yes
- USB: Yes (Rear X2)
- Firmware Upgradability: Yes
- DSO (Dynamic Stage Organizer): Yes
- Equalizer: 10-band Graphic Equaliser
- Extra Bass: Yes (Off / 1 / 2)
- Bluetooth: Yes
- Tuner Features
- Preset: Fm18/am12
- Auto Memory: Btm
- Rds / Eon: Yes (Rds)
- Bluetooth® Profile
- Hfp: Yes (1.6)
- A2dp: Yes (1.3)
- Avrcp: Yes (1.3)
- Pbap: Yes (1.1)
- Speed Dial: Yes (6 Memories)
- Recent Calls (# Of): Yes
- Last Dialled Call: Yes (Select From The Dialled Call History)
- Phonebook Access Via Pbap: Yes
- Alphabetical Phonebook Sorting: Yes
- Ring Volume Level Control: Yes
- Call Volume Level Control: Yes
- External Microphone: Supplied
- Battery Reminder: Yes
- Signal Strength Indication: Yes
- Bluetooth Audio Features
- Audio Codec (Bluetooth® Audio): Sbc / Aac
- Pause (Bluetooth® Audio): Yes
- Cue / Rev: Yes
- Track +/-: Yes
- Group (Folder) +/-: Yes
- Audio Level Adjustment: Yes (-6 Db To +6 Db)
- Repeat Control (Audio Device Side): Yes
- Shuffle Control (Audio Device Side): Yes
- Meta Data Indication: Yes
- Panel Surface Finish Colour: Black
- Key Illumination: Yes (White)
- Monitor (Avc)
- Lcd Type: Tft Active Matrix
- Screen Aspect: 17: 9
- Screen Diagonal (Mm): 17.65 Cm
- Screen Size (W X H Mm): 156.6 X 81.6 (Mm)
- Resolution (Dot): 800 X 480
- Dimmer: Yes
- Contrast Ratio: 400
- Brightness: 500 Cd / M2
- Display Panel
- Key Illumination Initial: Yes (White)
- Dimmer Adjust: Yes
- User Interface
- Touch Panel: Yes / Capacitive
- Gesture Command: Yes
- Remote Commander: Rm-x170
- Parking Control: Yes
- Parking Line Adjust: Yes
- Aspect Ratio Select: Yes
- Rear View Camera-in Marker Setting: Yes
- USB Mass Storage Device Control Feature
- USB Device Control (Repeat): Track / Folder / Drive
- USB Device Control (Shuffle): Off/folder/device
- USB Device Control (Pause): Yes
- USB Device Control (Resume Play): Yes
- USB Device Control (Audio Codec): Usb1: Pcm/mp3/wma/aac/flac, Usb2: Mp3/wma/flac
- USB Device Control (Audio Playable File Extension): Usb1: .wav/.mp3/.wma/.m4a/.flac, Usb2: .mp3/.wma/.flac
- USB Device Control (Video Codec): Only Usb1: Mpeg4-sp/avc (H.264 Baseline)/wmv/mkv/xvid
- USB Device Control (Video Playable File Extension): Only Usb1: .mp4/.wmv/.mkv
- Multi-language
- Menu: English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
- Caution: English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
- Id3 Tag: English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
- UPC: 027242918337
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
