Clarion XC2410

XC2410
Micro Size 50Wx4 RMS Class D 4-Channel Marine Amplifier
$169.99

FREE Shipping in US 48!

Save $30.00 | Reg. Price $199.99 In Stock
Add Extended Warranty

Clarion Banner for Onlinecarstereo

Clarion XC2410

Micro Size 50Wx4 RMS Class D 4-Channel Marine Amplifier

Clarion amplifiers feature uncompromising resistance to magnetic noise, thereby minimizing distortion, as well as high quality terminals to offer low electrical and contact resistance. Easy subwoofer system configuration is possible with the embedded low pass filters. The result is high quality sound you can enjoy in a variety of systems.

By utilizing corrosion resistant RCA and Connectors, XC series amplifiers offer improved durability and reliability in harsh environments. The XC series amplifiers are true marine amplifiers with efficient aluminum heatsinks and locking power terminals for the harsh marine conditions.

There’ s only one way for Clarion’ s main units to deliver unyielding power output and linearity: MOS-FET amplification, or Metal Oxide Semiconductor Field Effect Transistor amplification. Smaller and more efficient than conventional power supplies, a MOS-FET amplification circuit delivers power with less distortion and zero On/Off switching noise. This means you can crank up the volume or set it to easy listening. Either way, your sound will be crystal clear.

Clarion XC2410 Micro Size 50Wx4 RMS Class D 4-Channel Marine Amplifier

Clarion XC2410 Features:

  • 400W Max Power Output
  • Double Side Conformal Coated PCB Assembly
  • MOS-FET Power Supply
  • Variable Gain Control
  • Corrosion Resistant Nickel Plated RCA, Power, and Speaker Connections
  • RCA and High Level Speaker Inputs


Features:

Ultra-Compact and Ultra-Versatile!

  • Tiny footprint accommodates limited-space installations. XC2410: 1.54 x 7.17 x 3.23 in. (39 x 182 x 82 mm)
  • A range of useful output configurations:
    • 4-Channel Satellite Amplifier
    • 3-Channel System Amplifier*
    • 2-Channel, High-Power Satellite Amplifier
    • 2-Channel, High-Power Subwoofer Amplifier*
    • *Use the source unit’s low-pass filter when driving a subwoofer.

Salt & Sun Certified For Rugged Applications

  • Built to exceed industry standards for salt-fog/UV exposure and vibration resistance (ASTM B117/D4329/3.0G), ensuring durability in harsh marine environments.
  • Tough, hard-anodized aluminum chassis for exceptional heat dissipation and mechanical integrity.
  • Coated, corrosion-resistant, double-layer circuit board.

MOSFET Class D Amplifier Topology

  • Highly-efficient design reduces heat output and current draw.
  • Delivers impressive power and fidelity from a very compact chassis.
  • Battery-friendly design, draws very little current when turned off.

Onboard Signal Processing and Flexible Inputs

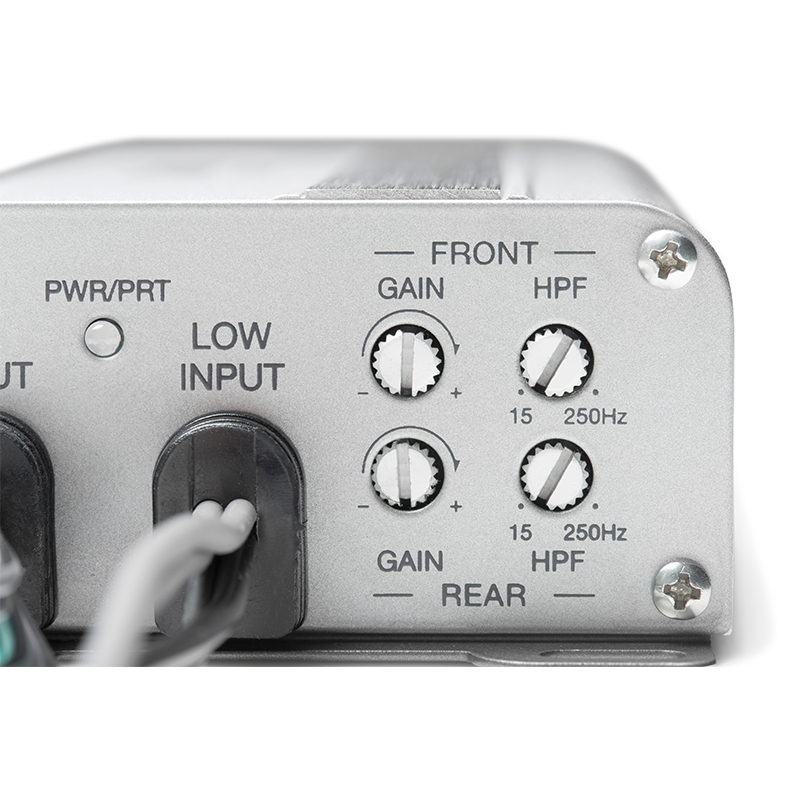

  • Variable High-Pass Filter (15-250 Hz, 12dB/octave, non-defeatable)
  • Dedicated inputs accept preamp level signals (200mV-8V) and high-power, speaker level signals (600mV-20V).

Specifications:

  • 400 Watts of Maximum Power Output
  • 50 Watts × 4 Continuous @ 4-Ohms
  • 75 Watts × 4 Continuous @ 2-Ohms
  • 150 Watts × 2 Continuous @ 4-Ohms Bridged
  • Double Side Conformal Coated PCB Assembly
  • MOS-FET Power Supply
  • 12dB/Oct. High Pass Electronic Crossover. Variable 15 - 250Hz (FR/RR)
  • Variable Gain Control
  • Turn-On/Off Muting Circuitry (Soft Mute)
  • Ground Loop Isolation Input Circuit
  • Corrosion Resistant Nickel Plated RCA, Power, and Speaker Connections
  • RCA and High Level Speaker Inputs
  • UPC: 729218020999
  • Weight: 5
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
