Clarion  XC2510

Micro Size 700W Max Power. 5-channel Marine Amplifier, Class-D

Item #76656

Condition:   Brand New

Product Highlights

  • Micro Size
  • 700W Max Power
  • 5-channel
  • Marine Amplifier
  • Class-D

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$379.99

Reg. Price $429.99  Save $50.00
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Clarion Authorized Dealer

Clarion Banner for OCS

Clarion XC2510 Micro Size 700W Max Power. 5-channel Marine Amplifier, Class-D


Authorized Dealer Stamp

We are a Clarion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Micro Size Class D 5-channel Marine Amplifier
  • Owner's Manual
Unleash the Power of Sound

The Clarion XC2510 is a versatile 5-channel amplifier designed to deliver powerful and high-quality sound for automotive audio systems. With its compact and efficient design, it offers flexibility in configuring your audio setup.

Elevate Your Car Audio Experience

The amplifier features a Class D design, which allows it to provide efficient power output while keeping heat generation to a minimum. It delivers up to 75 watts RMS per channel at 2 ohms for the four main channels and up to 300 watts RMS at 2 ohms for the subwoofer channel. This power output enables the amplifier to drive a combination of speakers and a subwoofer for a well-rounded audio experience.



The Clarion XC2510 is a versatile 5-channel amplifier that offers powerful performance, flexibility in configuration, and high-quality sound reproduction, making it an excellent choice for enhancing your automotive audio system.



Conquer the Waves with Unyielding Strength

The XC2510 includes adjustable electronic crossovers, allowing you to fine-tune the audio output to match your speaker setup. It also features speaker-level inputs, making it compatible with both aftermarket and factory head units. With its compact size, the XC2510 can be easily installed in various locations within your vehicle. Its sleek design and solid construction ensure durability and longevity.


SPECIFICATIONS


  • Maximum Power : 700 Watts
  • Number of Channels : 5
  • Built In Crossovers : Yes
  • Amplifier Class : D

FEATURES


Features:

  • 700 Watts Maximum Power Output: Delivers high-output performance for your audio system
  • Continuous Power @ 4 Ohms: 50 W × 4 + 200 W × 1 for reliable channel distribution
  • Continuous Power @ 2 Ohms: 75 W × 4 + 300 W × 1 for higher current demands
  • Bridged Continuous Power @ 4 Ohms: 150 W × 2 for powerful two-channel operation
  • 4-Layer Conformal Coated PCB: Protects circuitry and enhances reliability
  • Bass Boost Adjustment: Enhances low-frequency impact for deeper bass
  • MOSFET Power Supply: Provides efficient and stable power delivery

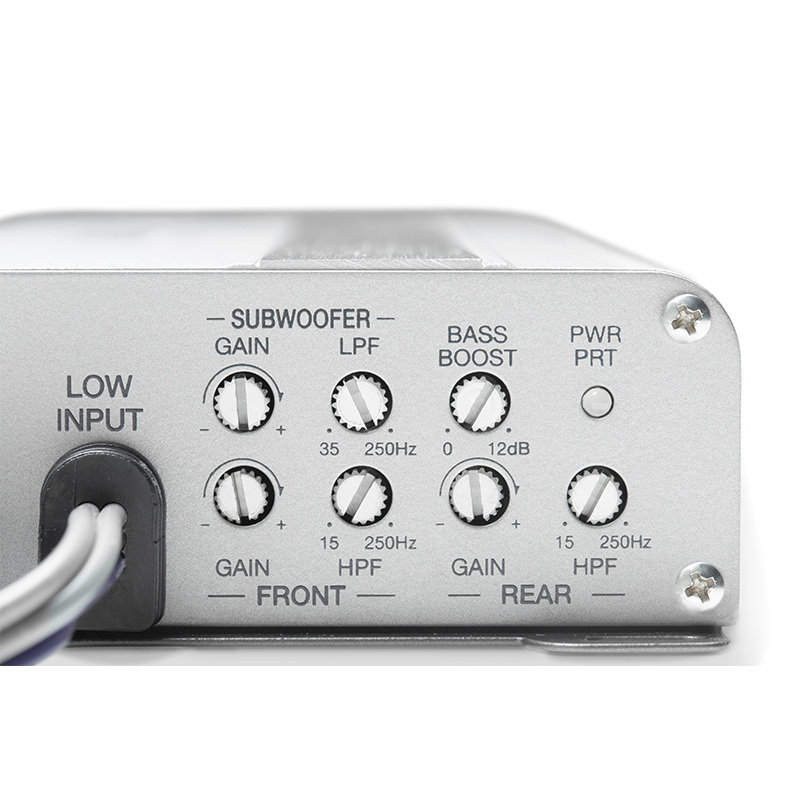

  • 12 dB/Oct Low/High Pass Electronic Crossovers: Variable 35–250 Hz (SUB) / 15–250 Hz (FR/RR) for precise tuning
  • Variable Gain Control: Allows fine adjustment of input sensitivity
  • Turn-On/Off Muting (Soft Mute): Eliminates power-up and shutdown noise
  • Ground Loop Isolation Input Circuit: Prevents hum and unwanted noise
  • Corrosion-Resistant Nickel-Plated Connections: Durable RCA, power, and speaker terminals
  • RCA & High-Level Speaker Inputs: Compatible with OEM and aftermarket systems



Specifications:

  • RMS Power Output: 50 W × 4 + 300 W × 1
  • Power at 2 Ohms: 75 W × 4
  • Bridged Power: 150 W × 2
  • Minimum Impedance (Bridged): 4 Ohm
  • Minimum Impedance (Unbridged): 2 Ohm
  • Frequency Response: 20–30 kHz
  • Total Harmonic Distortion (THD): 1% at rated RMS power
  • Signal-to-Noise Ratio: 70 dB for clear, noise-free playback
  • Input Voltage: 14.4 V
  • Amplifier Class: D
  • Built-in DSP: No
  • Remote Control: No
  • Low-Pass Crossover Frequency: 35–250 Hz, 12 dB/octave slope
  • High-Pass Crossover Frequency: 15–250 Hz, 12 dB/octave slope
  • Bass Boost: 0–12 dB @ 50 Hz
  • Fan Cooled: No
  • Fuse Rating: 80 A
  • Speaker Level Inputs: Yes
  • Preamp Outputs: No
  • Dimensions (W × H × D): 12-1/4″ × 1-5/8″ × 4-3/8″
  • Warranty: 1 Year Parts / 1 Year Labor
  • UPC: 729218021002
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • For a tiny tiny amp, it can really push two pair of marine speakers and sub. Good power, but not really up to that level that top amps I have used before. Easy to install too.

    Alton
    2/27/2024
