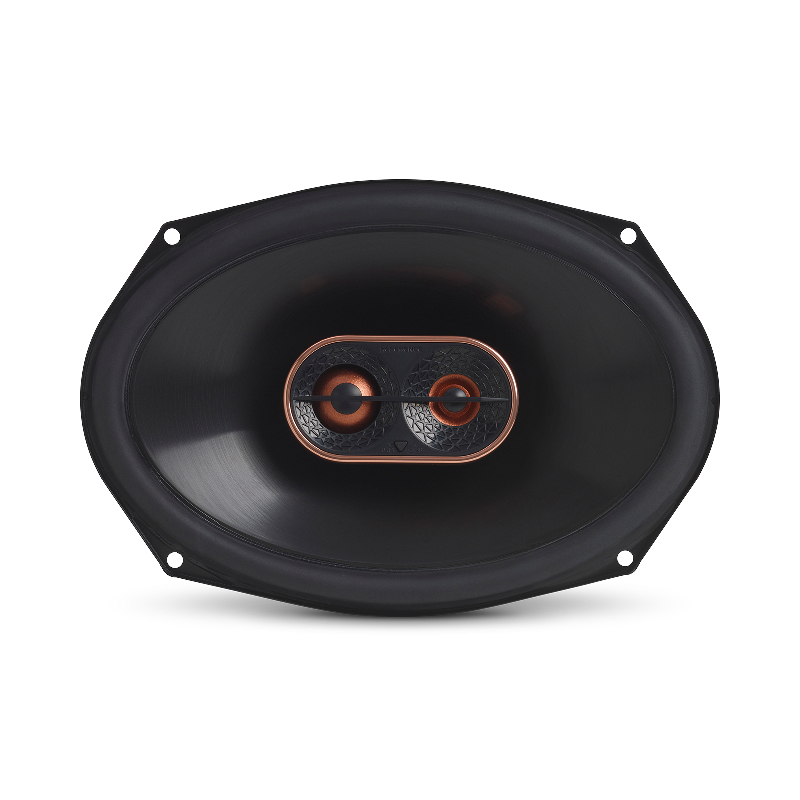

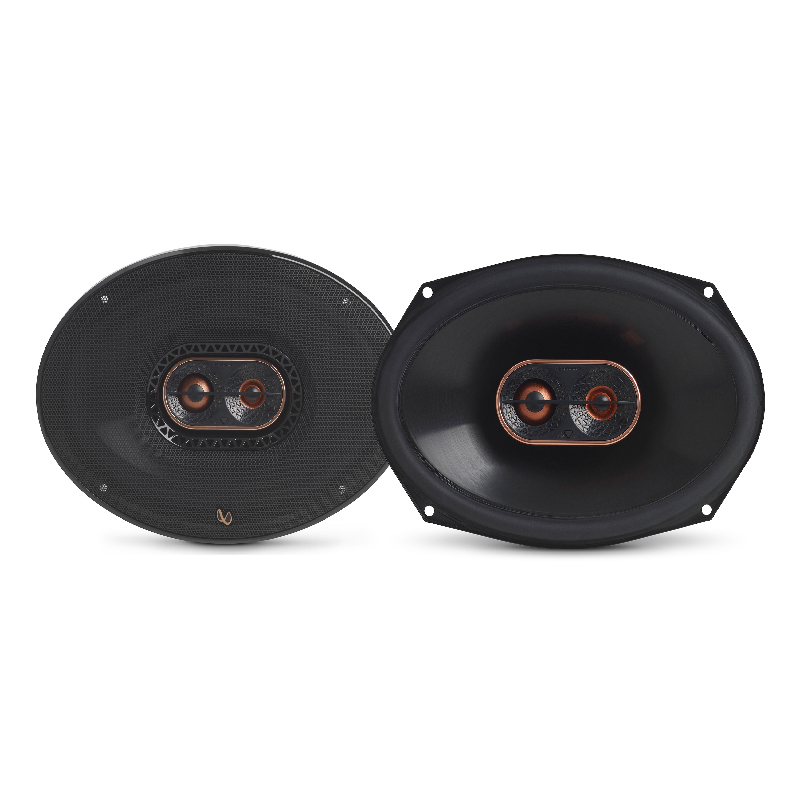

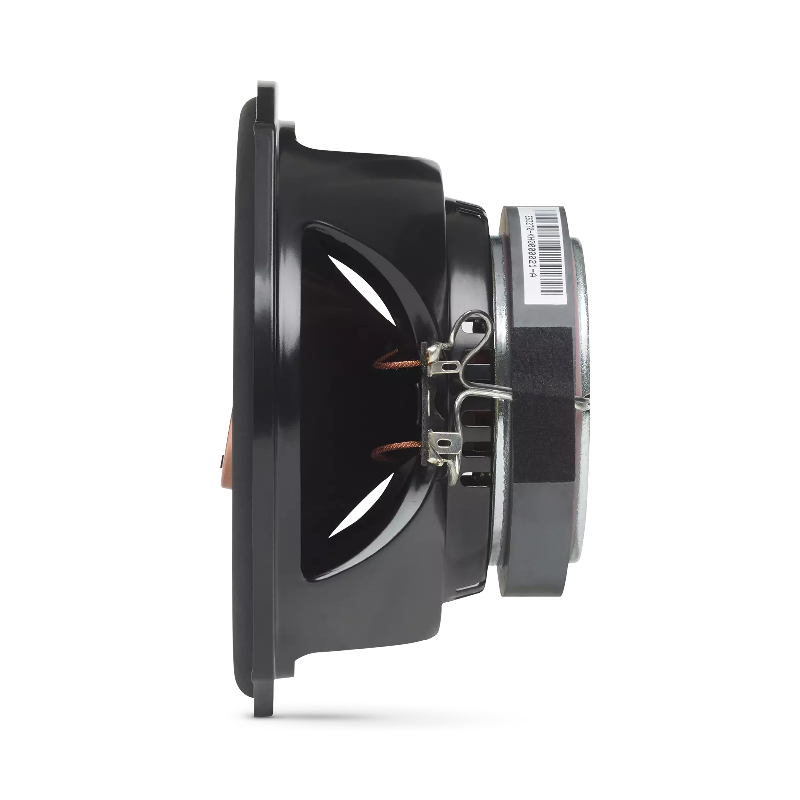

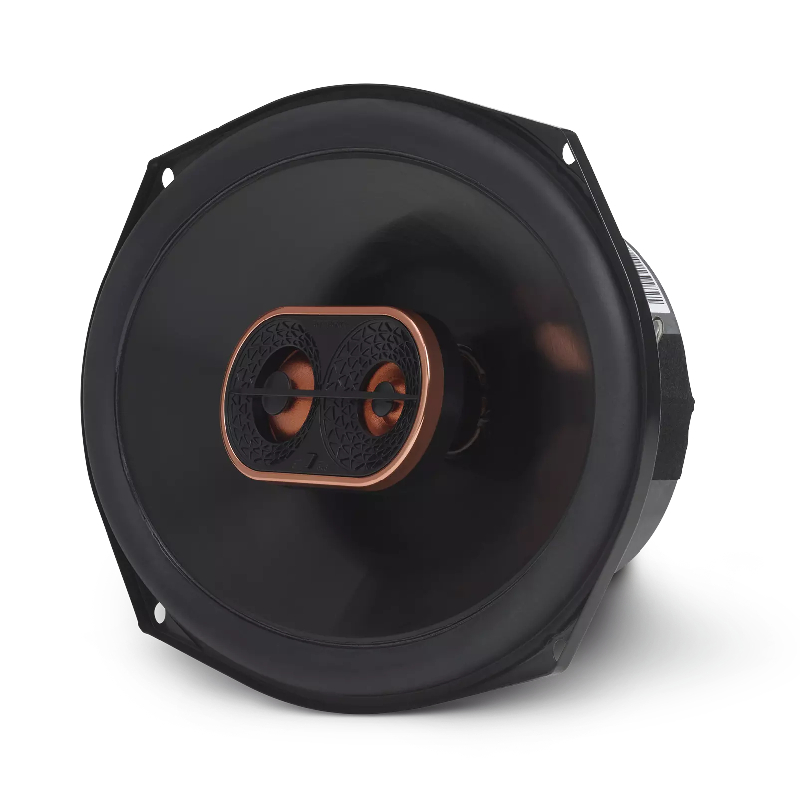

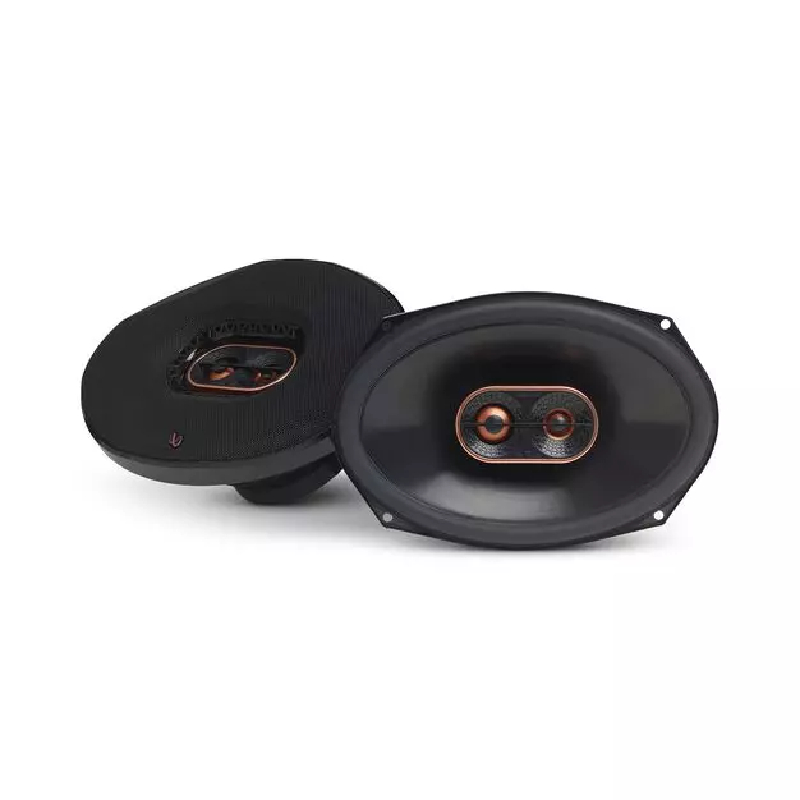

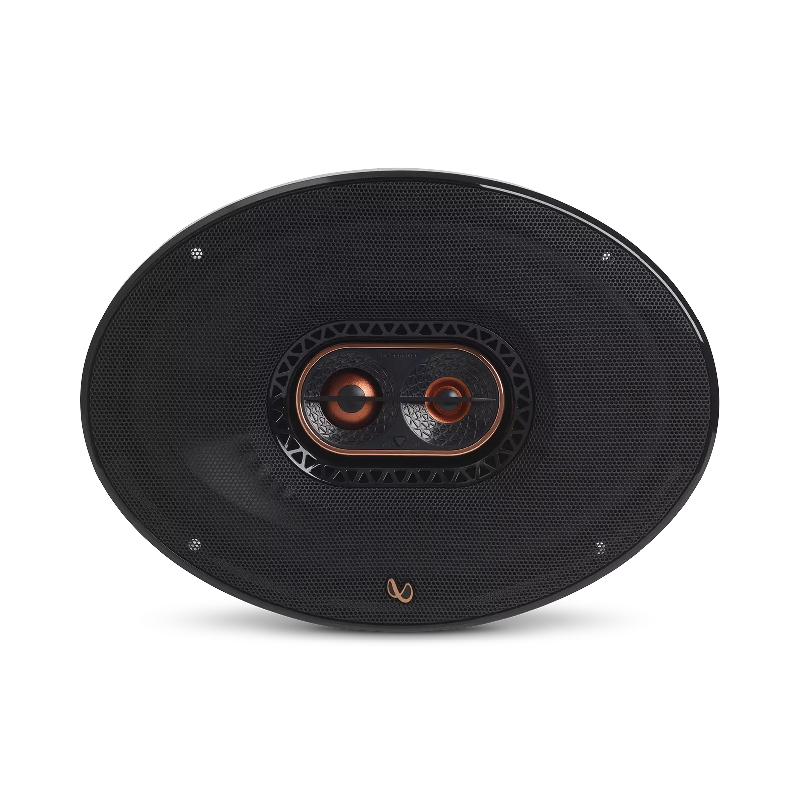

Infinity Reference REF-9633ix Reference Series 6x9" 100W RMS (300W Peak Power Handling) 3-Way Car Speaker
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Two 2-way speakers
- •2 Grilles
- •2 Grille frames
- •2 Bottom mount rings
- •Eight 2" Screws
- •8 Speed clips
- •2 Adhesive backed foam gaskets
- •Template on box
- •Installation instructions
Edge-driven, textile tweeters
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
Adjustable tweeter output level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
Optimized Frame Size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.
Competitive pricing
Reference speakers provide step-up Infinity sound at mainstream prices.
- Diameter : 6x9 Inch
- Sensitivity : 94 dB
- Impedance : 4 Ohm
- Frequency Response : 46-30000 Hz
- Peak Power Handling : 300 Watts
- Design : 3 Way
- RMS Power Handling : 100 Watts
Features:
- Plus One+ Woofer Cones: Each speaker uses a cone larger than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.
- Angled Tweeter: The tweeters and super-tweeters are mounted at an angle (fixed), so they can be directed toward the listeners to improve imaging.
- Tweeter Level Control: A switch on the front of the tweeter structure allows you to boost the tweeter output to +3dB, useful if the speakers are mounted low in a door where high frequencies are easily absorbed.
- High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers.
Specifications:
- Speaker Size: 6X9
- Design: 3-way
- Tweeter Design: Edge-Driven Dome
- Impedance (Ohms): 3
- Tweeter Composition: Textile
- Woofer Composition: Polypropylene
- Woofer Surround: Rubber
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Sensitivity (1W at 1 meter): N/A
- Sensitivity at 2.83 volts: 94
- Frequency Response: 46 - 30k Hz
- Minimum RMS Wattage: ---
- Maximum RMS Wattage: 100
- Peak Power Handling (Watts): 300
- Top-mount Depth (Inches): 3 1/8
- Bottom-mount Depth (Inches): 3 11/16
- Cutout Diameter or Length (inches): 0
- Mounting Height (Inches): 0.551
- UPC: 050667373368
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
