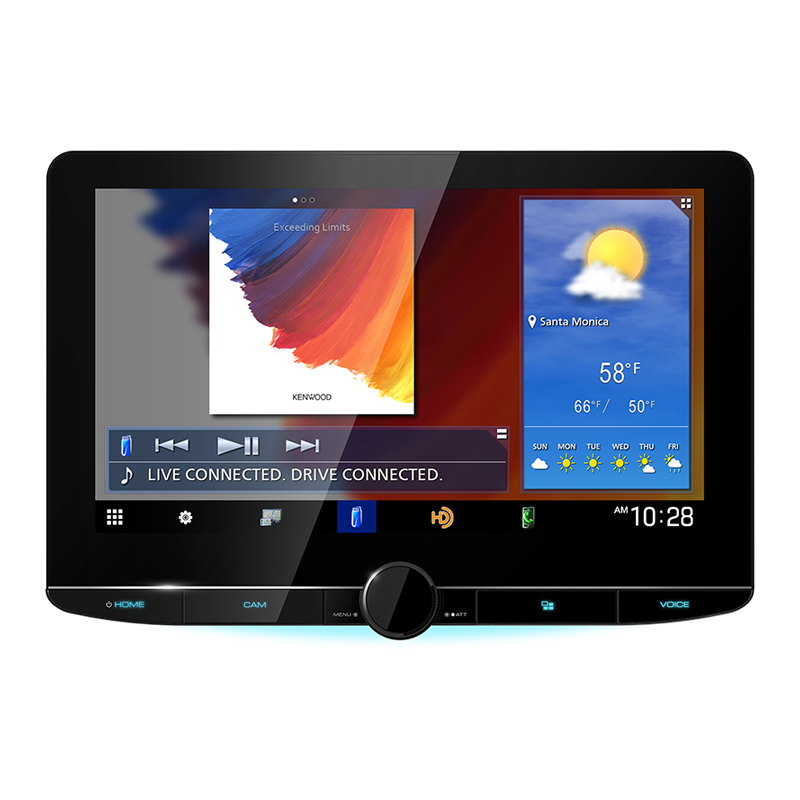

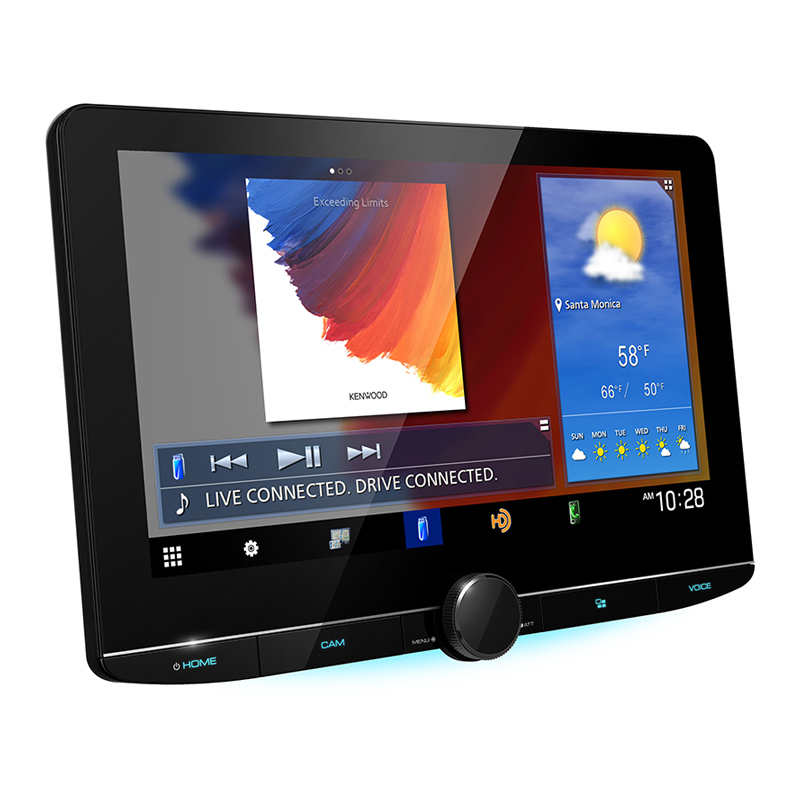

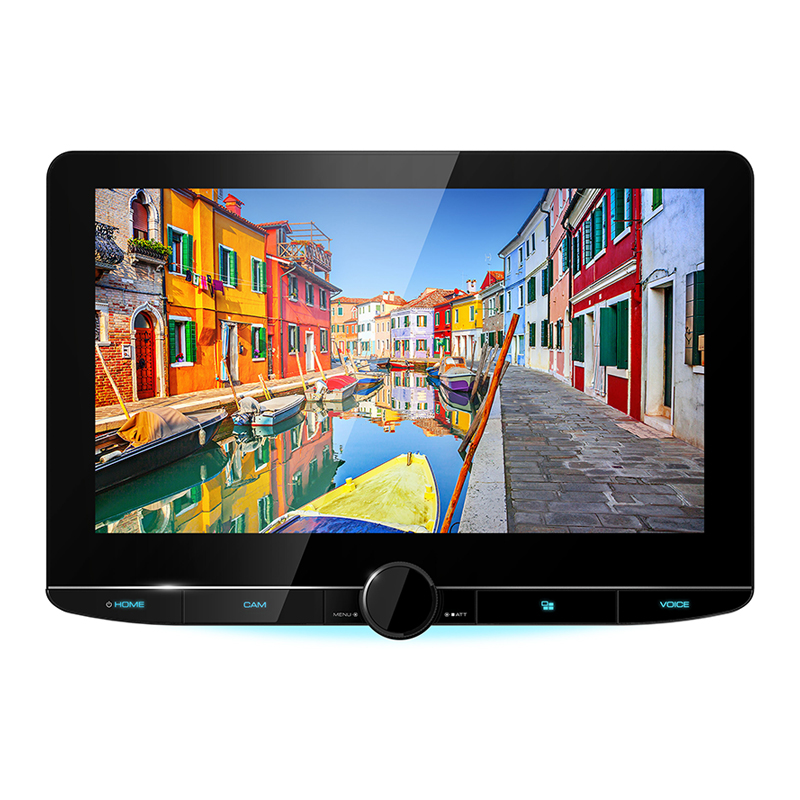

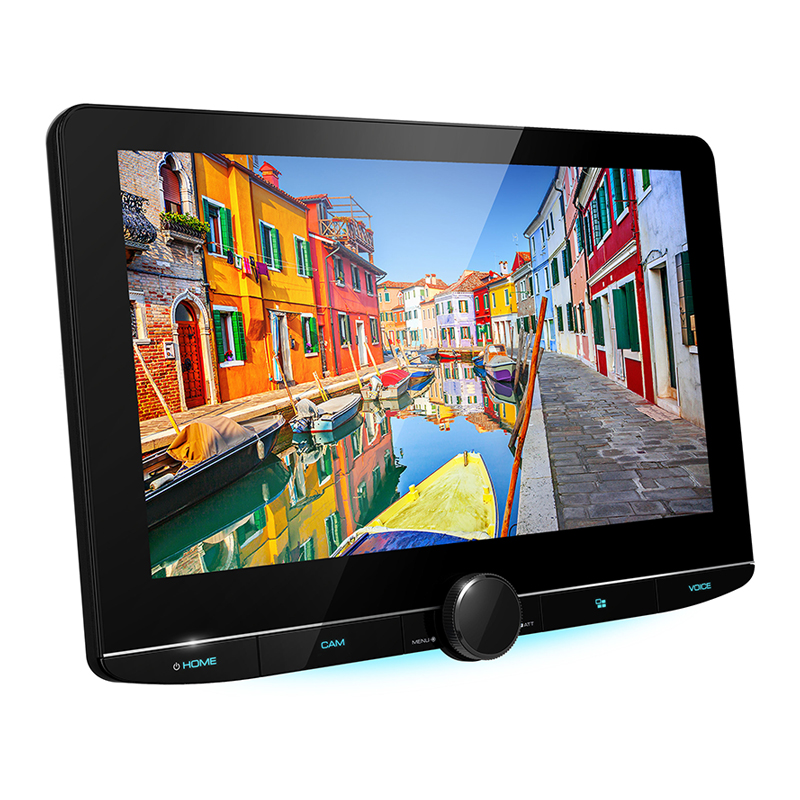

Kenwood Excelon DMX1057XR 2-DIN 10.1" Digital Navigation Receiver with HD Capacitive Touch Screen, Apple CarPlay, Android Auto, SiriusXM Ready, iDatalink Maestro RR
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

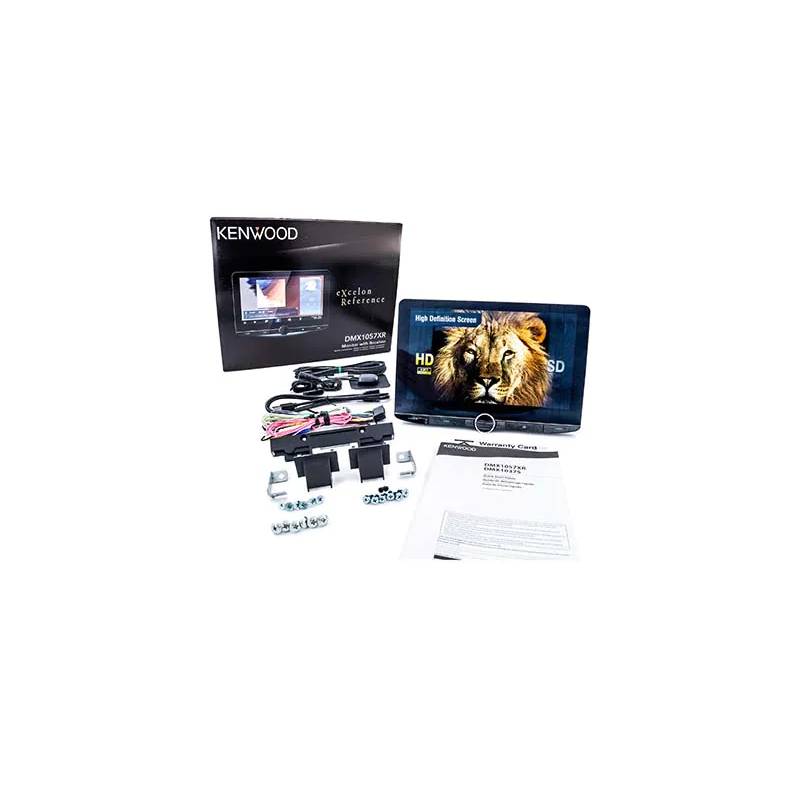

What's Inside?
- • 10.1" Touchscreen monitor

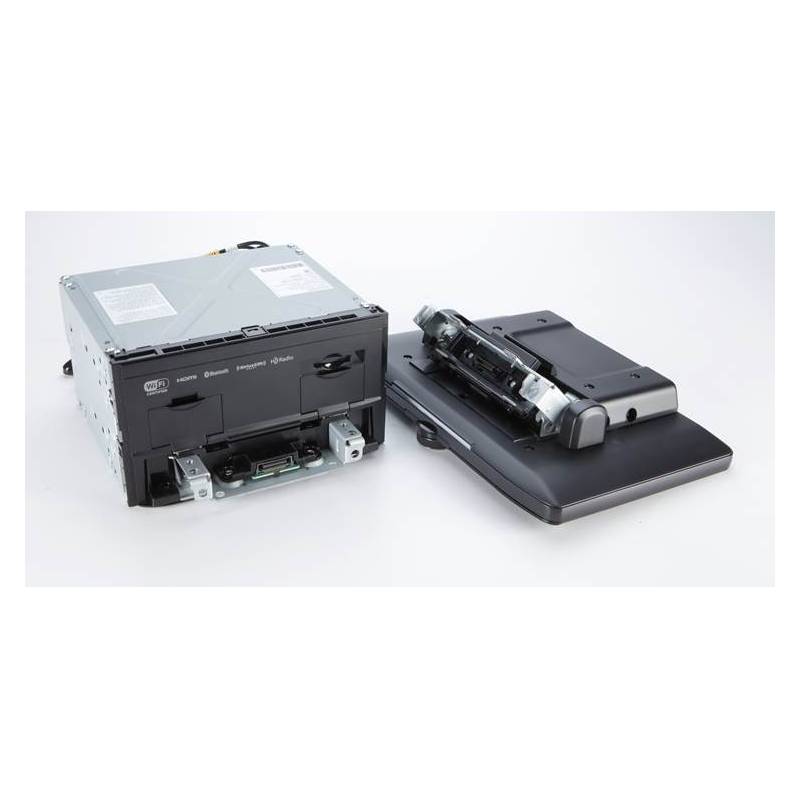

- • Source unit (15A fuse)
- • Wiring harness
- • 39" USB extension cable
- • GPS antenna (attached 11.5' cable terminated by a proprietary connector)
- •Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- • Self-adhesive mounting pad

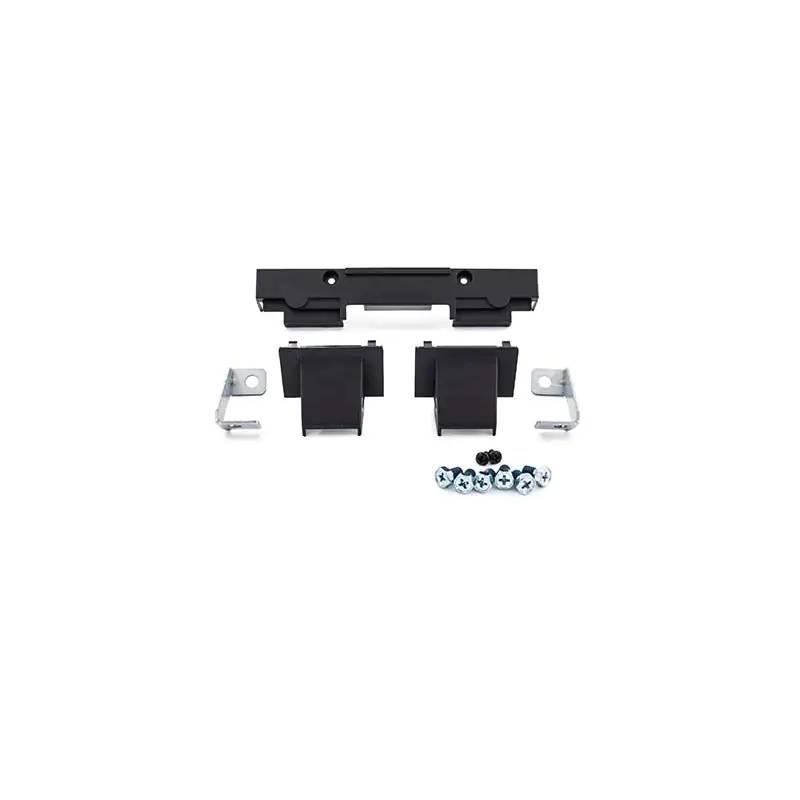

- • Large plastic bracket
- • 2 Small plastic brackets
- • 2 Metal brackets
- • 2 Machine screws
- • 6 Hex-head screws
- • 6 Pan-head ISO-mount screws
- • 6 Flat-head ISO-mount screws
- •Quick Start Guide
- • "CAUTION" note
- • Warranty Card
Premium Multimedia Receiver
When it comes to premium and flagship multimedia receivers, the Kenwood Excelon Reference DMX1057XR has always been a go-to option for those who are looking for the best technological features that receivers can offer these days and can produce high-quality audio without any regard to its hefty price tag.
Android Auto and Apple CarPlay Compatible
Compatible with Android Auto and Apple CarPlay, whether in wired or wireless mode, the Kenwood Excelon Reference DMX1057XR can let you comfortably read and send text messages, make and take phone calls, listen to voicemails, play music, and ask for directions using voice commands with the help of Google Assistant and Siri. Its Bluetooth feature also lets you answer your phone calls hands-free and stream music wirelessly.
Built-in HD Radio Tuner
If you are using an Android phone, you can mirror your phone's display to the Kenwood Excelon Reference DMX1057XR receiver's massive 10.1-inch touchscreen display using Miracast for wireless mode or an HDMI cable for wired mode. Aside from its built-in HD radio tuner, you can also connect a SiriusXM radio tuner so you can listen to your beloved stations and shows while on the road. Losing your car's factory features won't be an issue, thanks to its compatibility with iDatalink's Maestro module.
Built-in Amplifier
The DMX1057XR comes with a built-in amplifier with a six-channel preamp output that can handle a power output of 22 Watts RMS and a peak power of 50 Watts per channel. It has a 13-band parametric EQ feature that allows you to shape the amplifier's frequency response that would suit your preference.
3-Way Crossover
The Kenwood Excelon Reference DMX1057XR has a three-way crossover to filter out unnecessary frequencies that could damage your speakers. It also has a Stage EQ feature to compensate for speakers that are positioned very low inside your vehicle. Lastly, it comes with a Drive EQ feature as well, which boosts some frequencies to cancel out road noise.
- Satellite Radio Ready : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 5 volts
- Display Size : 10.1 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- HD Radio : Yes
- Rear USB Input : 1
- Preamp Outputs : 6
- Audio/Video Outputs : 1
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:
- digital multimedia receiver with AM/FM tuner

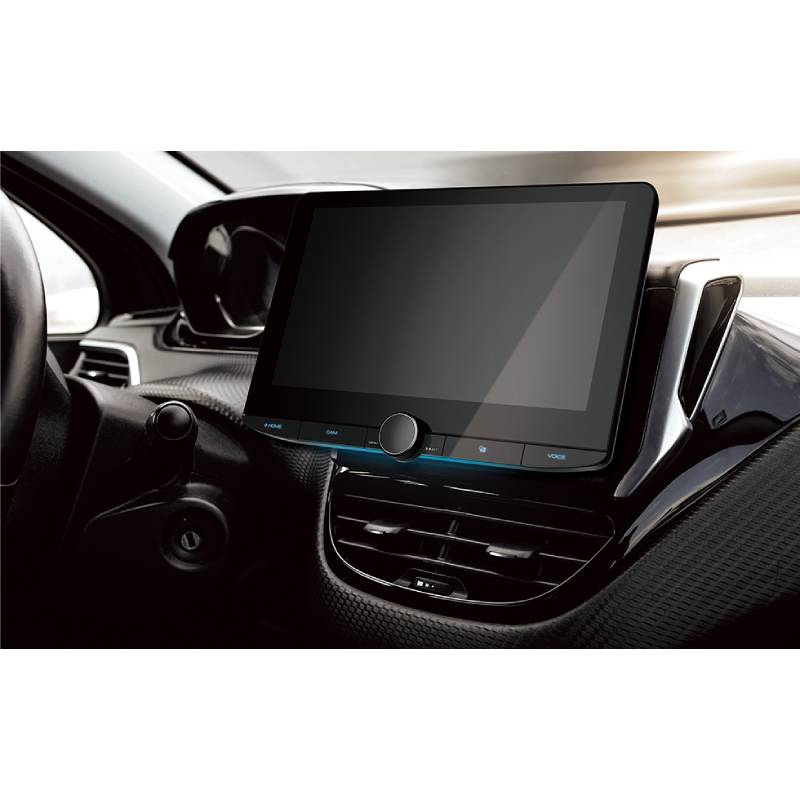

- 10.1" HD capacitive touchscreen display
- AAS display technology for wider viewing angle

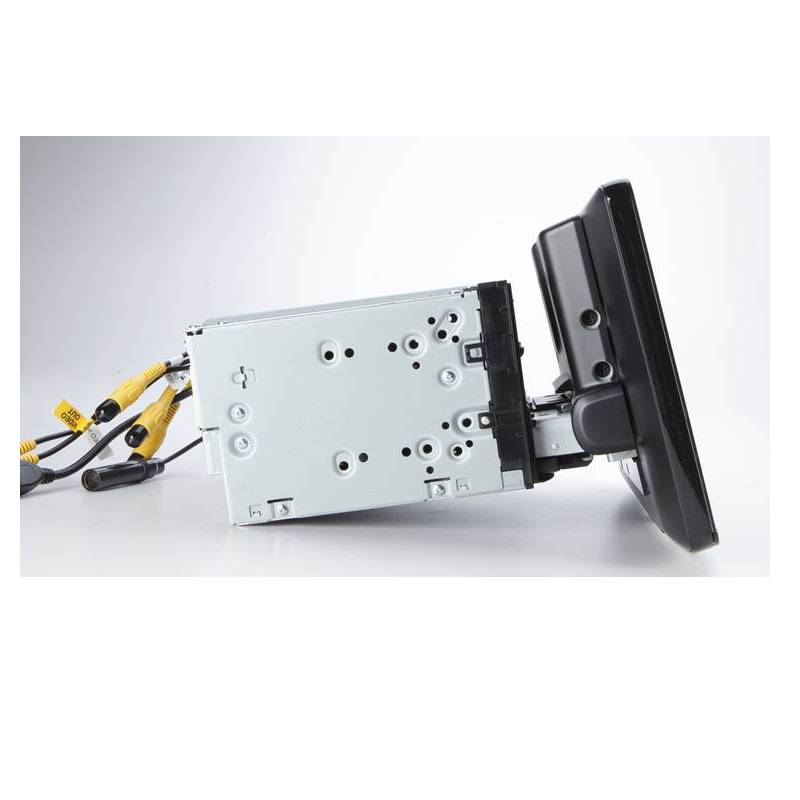

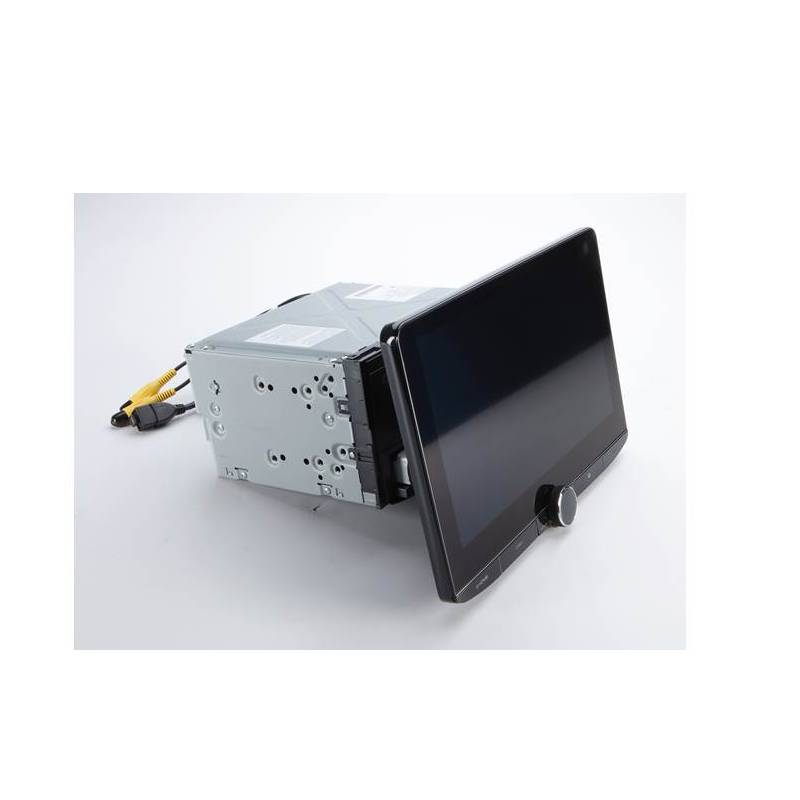

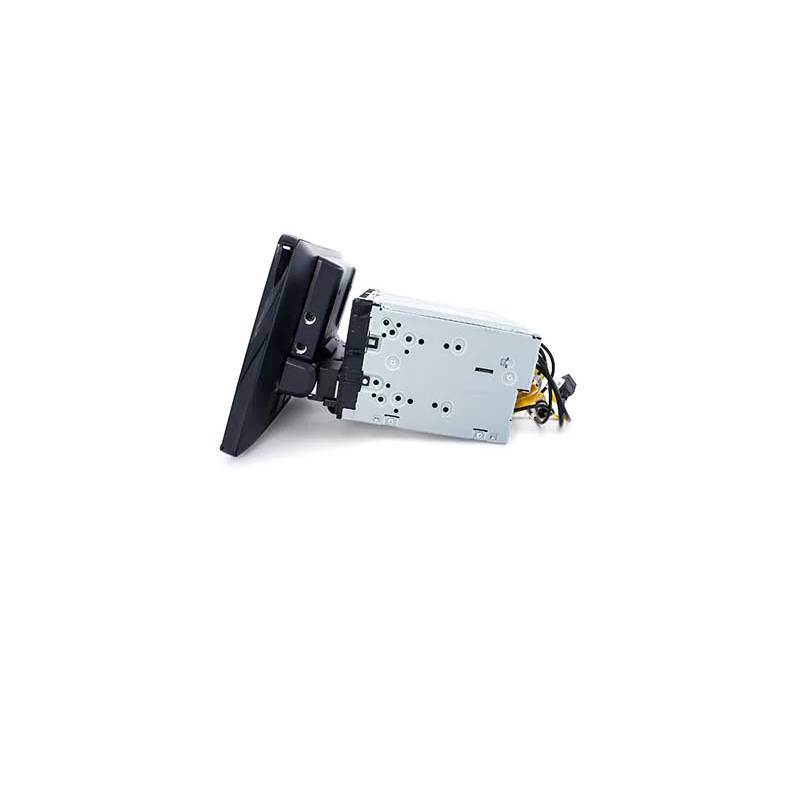

- before final installation, depth and height of the display can be adjusted to provide dash vent and control access
- Wi-Fi certified

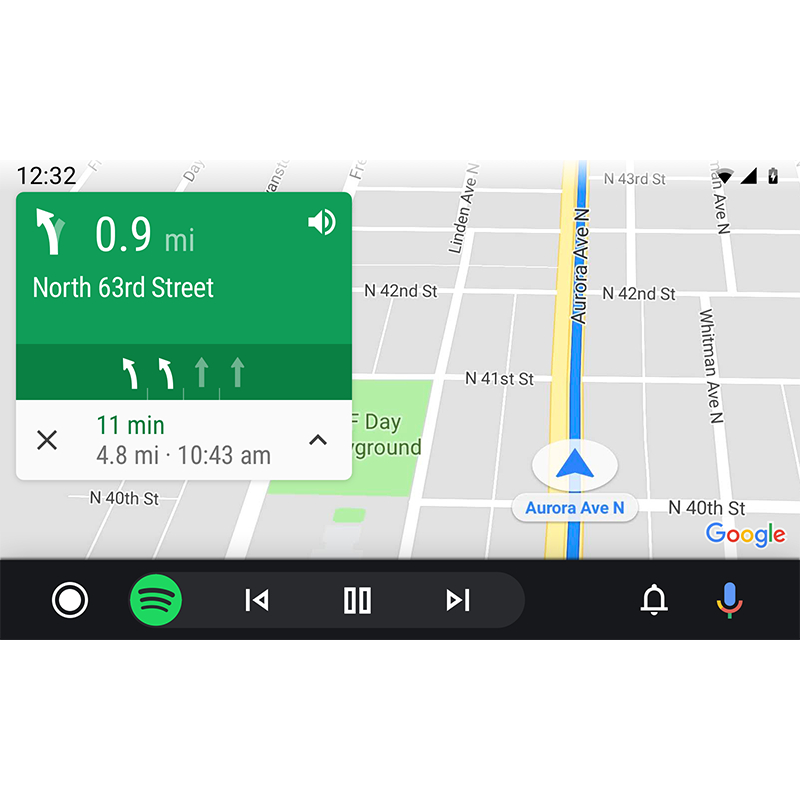

- Waze-ready with Apple CarPlay or Android Auto
- customizable display background and widget controls
- ambient lighting and multi-function volume knob controls
- plays high-res FLAC, WAV, and DSD files on USB drives
- built-in HD Radio tuner
- included INRIX weather app with free 5-year subscription
- fits double-DIN dash openings
- Bluetooth built-in for hands-free calling and audio streaming
- built-in LDAC for high-res wireless audio streaming with select Android phones
Smartphone Features:

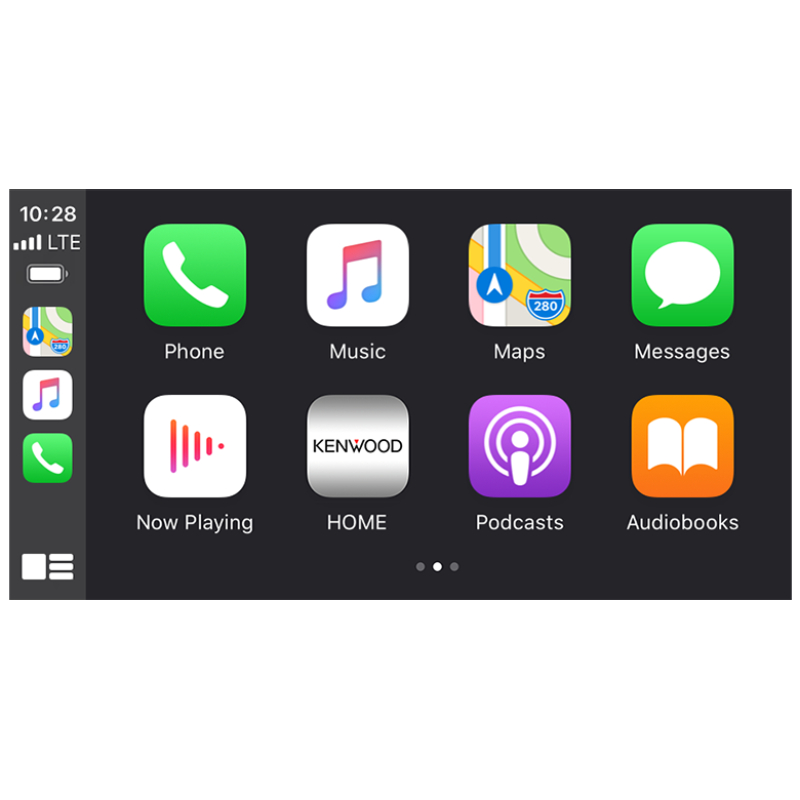

- compatible with wireless or wired Apple CarPlay or Android Auto
- wireless (Miracast) and wired (HDMI) mirroring for Android
- Audio/Video Features:
- plays USB memory devices
- 13-band parametric equalizer with digital time alignment
- 3-way crossover mode (runs highs, mids, and lows)
- Supreme setting improves the digital sound for all music sources
- Stage EQ compensates for low speaker positions
- DriveEQ boosts specific frequencies to compensate for road noise
- subwoofer level and phase controls
Expandability:
- compatible with SiriusXM satellite radio tuner
- direct connection and control with Kenwood's DRV-N520 Drive Recorder dash cam

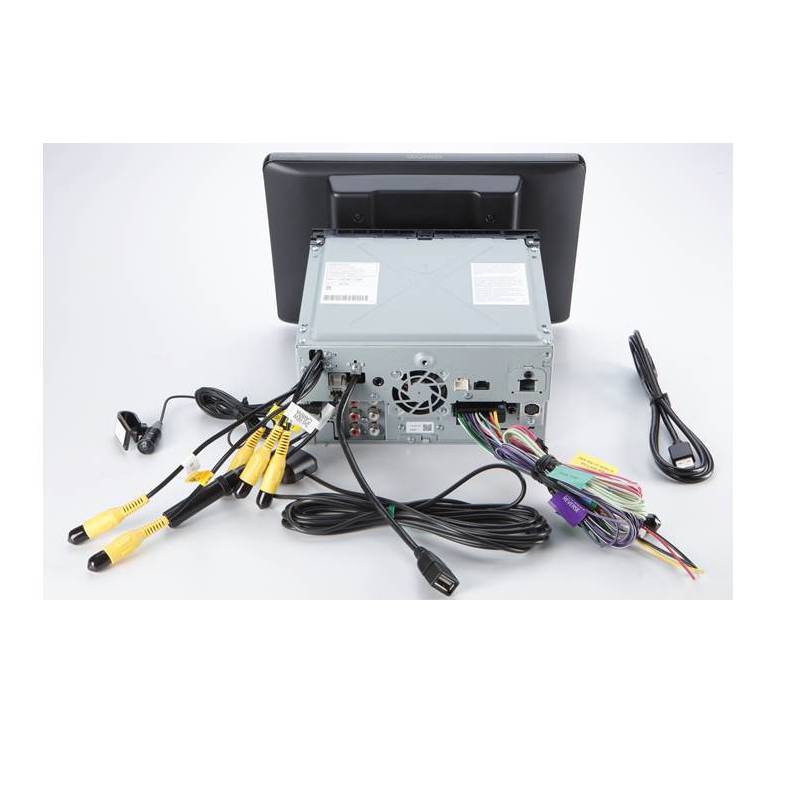

- inputs: rear USB input, HDMI input, rear A/V input (composite RCA video and 3.5mm audio), four camera inputs (including 2 high-def inputs and DRV-N520 input)
- outputs: rear A/V output, 6-channel preamp outputs (5-volt front, rear, subwoofer)
Other Info:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in internal amp (22 watts RMS/50 peak x 4 channels)
- works with iDataLink Maestro modules
- retains factory features in a wide selection of vehicles
- displays engine performance and other vehicle data on touchscreen
- K40/Escort radar detector-ready
- compatible with most factory steering wheel audio controls (adapter required)
- warranty: 2 years
- Our 60-day money-back guarantee
Specification:
- 10.1” HD Capacitive Touch Screen
- Bonded Optical Display
- 3-Way Adjustable Display
- New GUI w/Driving & Source Control Widgets
- Volume Knob/Multi-Controller
- Ambient Lighting
- Photo Slideshow via Smartphone
- Bluetooth Phone Book Photo Display
- 5 Years Free INRIX Weather Widget
- Wireless/Wired Apple CarPlay Ready
- Wireless/Wired Android Auto Ready
- Wireless Android Mirroring
- LDAC Hi-Res Audio Bluetooth
- Hi-Res Audio 192K/24bit FLAC/WAV/DSD
- Parametric Equalizer
- 3-Way Crossover
- X Cover (Cross-Shaped Panel Structure)
- Tuned Audiophile Grade Components
- HD Radio
- iDatalink Maestro ADAS Widget & Accessory/Custom Control Ready
- KENWOOD Remote App S Ready
- Source Setup ON/OFF Control
- 4 Camera Inputs
- HD Front/Rear Camera Compatible
- CMOS-320 Control
- Front Camera Interruption
- Front & 3rd Camera Mirroring
- HDMI Input
- 1 AV Input / 1 AV Output - Dual Zone
- Single USB Input - Includes 1M Extension
- DRV-N520 Dash Cam Ready
- 3 Pre-outs @ 5 Volt
- DSP - 13 Band EQ/Time Alignment
- UPC: 019048230881
- Weight: 13
