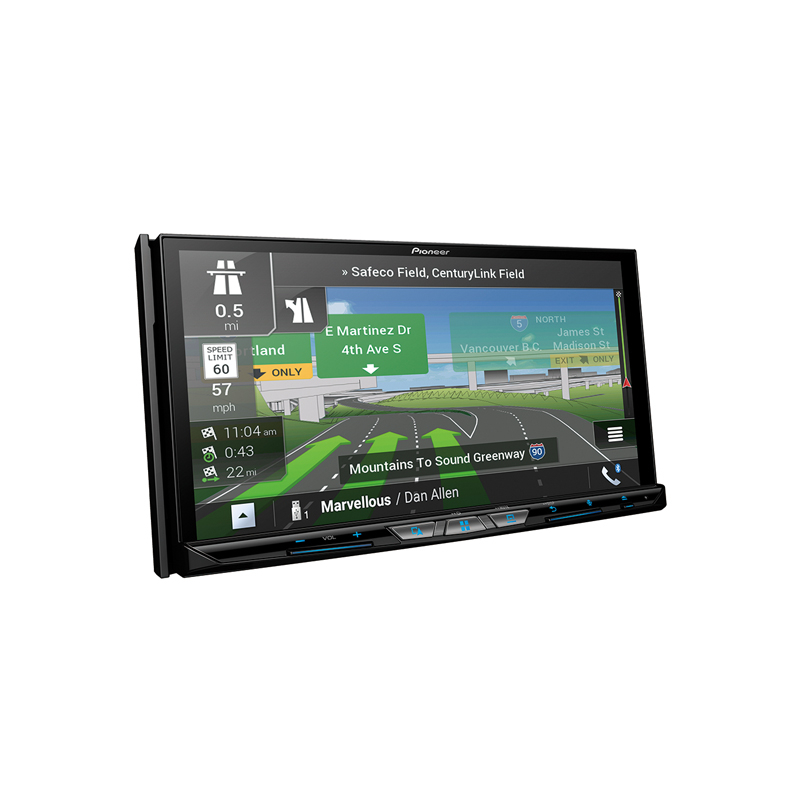

Pioneer AVIC-W8600NEX 2-DIN 7" Multimedia Navigation Receiver with Amazon Alexa, Android Auto™, Apple CarPlay® (wired/wireless), and Bluetooth®
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

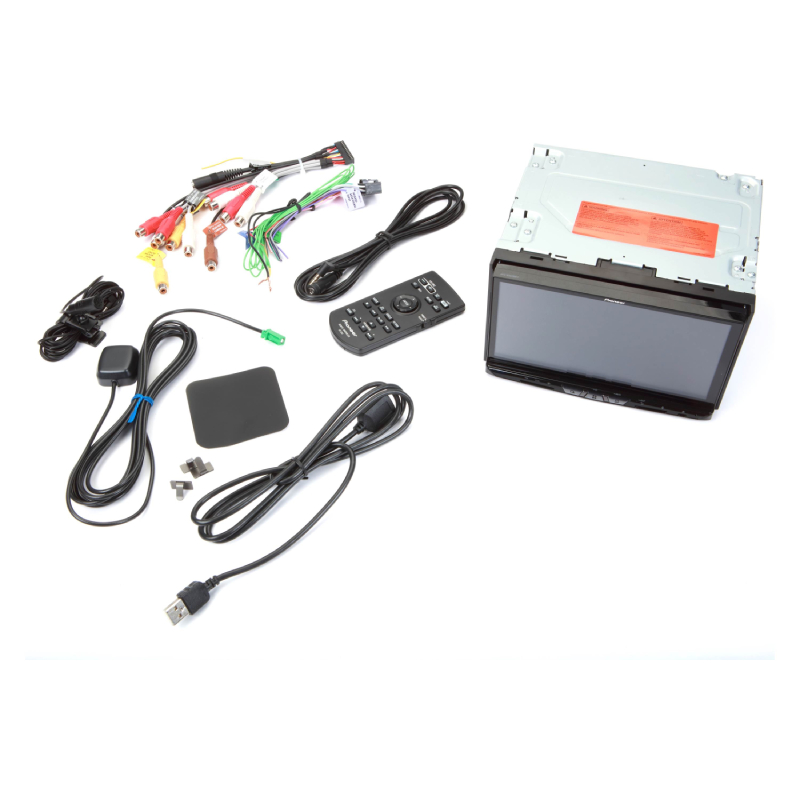

What's Inside?
- • Navigation receiver with motorized 6.94" monitor (10A fuse)
- • Wiring harness
- • AV/preout harness
- • Remote control (CD-R33)
- • CR2025 3V lithium battery (installed in remote)
- • GPS antenna (attached 11.5' cable)
- • 58" USB extension cable
- • 6.5' Stereo minijack extension cable
- • Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
- • Two-sided tape
- • (6) Pan-head ISO screws (M5 x 6mm)
- • (6) Flat-head ISO screws (M5 x 6mm)
- • Wire-tie
- • Self-adhesive square
- • (3) Self-adhesive clips
- • Sticker labels
- • Quick Start Guide
- • Important Information for the User
- • Online Product Registration
- • Warranty Sheet
- • Owner's Manual
Why Choose Pioneer AVIC-W8600NEX In-Dash Car Navigation System?

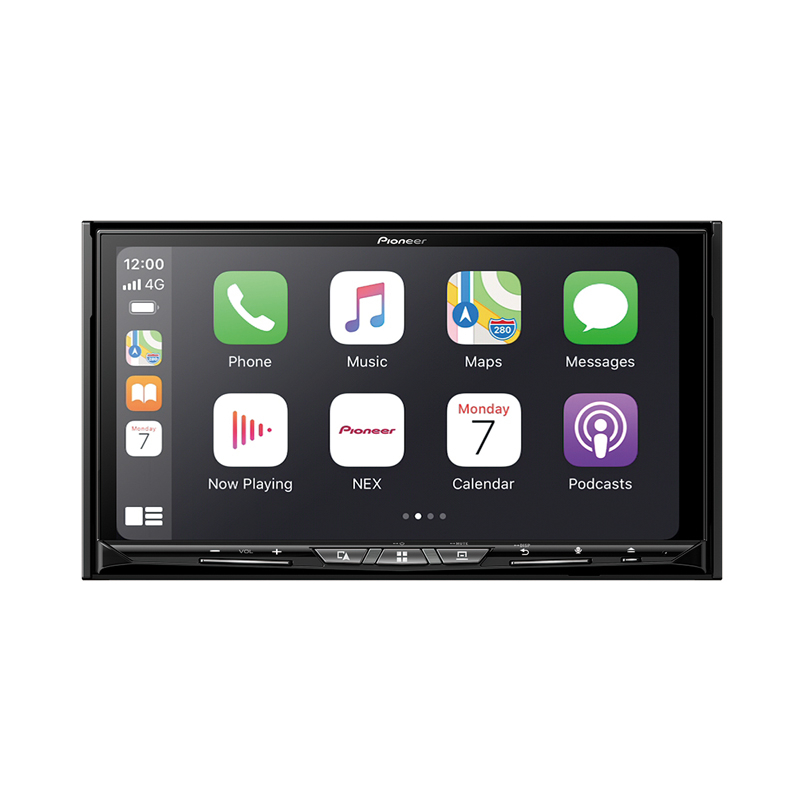

Apple CarPlay®
The AVIC-W8600NEX features Apple CarPlay®, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.

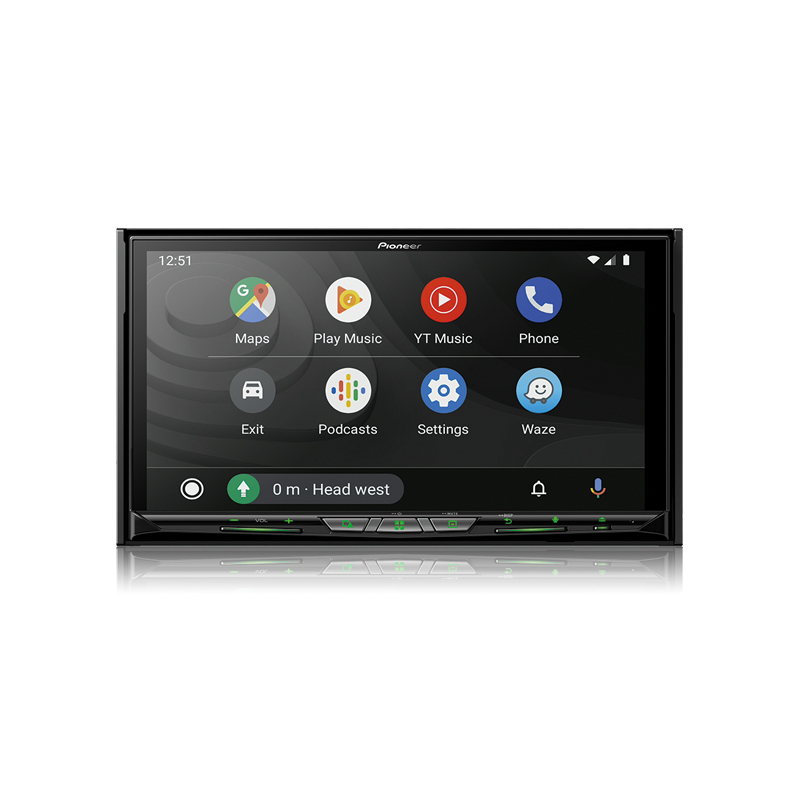

Android Auto
The AVIC-W8600NEX also features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead.
Pandora
Pandora is personalized internet radio that is designed to help you discover new music that you'll love mixed in with music that you already know. With the AVIC-W8600NEX, you can enjoy superior sound quality and full control of the Pandora experience in your car directly from the touchscreen display of the receiver. You are able to give tracks "thumbs up" or "thumbs down," bookmark a song so you can purchase it later, easily switch between your personalized radio stations, and view full track data and album art.
Frequently Asked Questions (FAQ)
- • Why is the GPS taking a long time to find my location?
The receiver may need a clear view of the sky to acquire satellite signals after installation or a long period without use. Make sure the GPS antenna is mounted correctly and not blocked by metal objects.
- • How do I update the navigation maps?
Map updates are performed using Pioneer-approved update methods and compatible storage devices. Keeping the maps current helps improve routing accuracy and adds newly constructed roads.
- • Why does the navigation route keep changing while I'm driving?
Automatic rerouting occurs whenever you leave the suggested route or traffic conditions affect your trip. Review the navigation settings if you prefer fewer route recalculations.
- • Can I save frequently visited destinations?
Yes. You can store favorite locations for quicker access without entering the address every time you travel.
- • Why doesn't voice guidance play through my speakers?
The navigation voice may be muted or the guidance volume may be set too low. Check the navigation audio settings and verify that voice guidance is enabled.
- • Why can't the receiver find a specific address?
Some newly developed roads or businesses may not yet appear in the installed map database. Updating the maps or entering a nearby street can often resolve the issue.
- • Why is the vehicle icon showing on the wrong road?
Temporary GPS signal loss or poor satellite reception can cause inaccurate positioning. The system typically corrects itself once it regains a stronger GPS signal.
- • Can I search for restaurants, gas stations, and other points of interest?
Yes. The navigation system includes a database of points of interest that allows you to search for nearby services and popular destinations.
- • Why does the receiver freeze while calculating a route?
Large route calculations, outdated firmware, or temporary software glitches can occasionally slow the system. Restarting the receiver and installing the latest firmware often improves stability.
- • Can I use the built-in navigation without a cellular signal?
Yes. The onboard navigation system stores map data locally, allowing route guidance even in areas without mobile network coverage.
- Satellite Radio Ready : Yes
- Remote Control : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Display Size : 7 Inch
- Audio/Video Inputs : 3
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Preamp Outputs : Front, Rear & Sub
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:
- 7" WVGA (Capacitive)
- Apple CarPlay® (Wired, Wireless)
- Android Auto™ (Wired, Wireless)
- Amazon Alexa Built-in when Paired with Pioneer Vozsis App
Specifications:
STANDARDS
PERFORMANCE
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
- RCA Preamp Outputs: 6-ch
- RCA Pre-out: 4V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
DISPLAY
- Back Light: LED
- Brightness Control: Yes
- Color Customization: 5 display colors, 112 key colors
- Device (Non-DIN/Modular Unit): 2-DIN
- Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
- Display Off Mode: Yes
- Home Screen Customization: Yes
- Monitor Mechanism: Motorized
- Resolution: WVGA (800 x 480)
- Screen Size/Aspect Ratio: 7"/16:9
- Touch Screen: Capacitive
NAVIGATION
- 3D City Maps: Included
- 3D Landmarks: Included
- Coverage Area: Alaska, Canada, Contiguous 48 States, Hawaii, Puerto Rico
- Display Modes: 2D Heading-Up, 2D North-Up, 3D View
- Enhanced Junction View & Realistic Road Signs: Yes
- External GPS Antenna: Yes
- Free Lifetime Traffic by Total Traffic: Yes
- Lane Formation: Yes
- Map Data: 16gb Flash Memory
- Map Provider: HERE
- Navi Menu Language: English, French, Spanish
- Point of Interest: Approx 12 Million
- RDS-TMS Traffic Tuner: Yes
- Speed Limit & Warnings: Yes
- Text to Speech (TTS) Voice Guidance with Street Names: English, French, Spanish
BLUETOOTH
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- Hands-Free: Yes
- Microphone Included: Yes
- Phone Registration: 5-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
- Sound Retriever Air: Mode 1/Mode 2/Off
TUNER
- Best Station Memory: Yes
- HD Radio™: Built In / Artist Experience / Multicasting
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- RDS: Yes
- SiriusXM-Ready™ (Tuner Sold Separately): Yes
INTEGRATION
- Amazon Alexa: Paired with Pioneer Vozsis
- Android Auto™: Wireless Connection or Wired USB Connection
- Apple® CarPlay: Wireless Connection or Wired USB Connection
- Mirroring: Miracast-Android Phones Only
- Mobile Operating System: Android / Apple iOS
- Pandora®: With Apple CarPlay or Android Auto
- Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: With Apple CarPlay or Android Auto
- Voice Control: Yes
- WiFi: Yes
DIGITAL MEDIA PLAYBACK
- Audio Playback via CD: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / CD Audio Playback
- Audio Playback via DVD: AAC Audio Playback / MP3 Audio Playback / WMA Audio Playback
- Audio Playback via SD: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
- Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
- Audio Video Playback via CD-R/CD-RW: AVI Audio Video Playback / DivX Audio Video Playback / DVD Audio Video Playback
- Audio Video Playback via DVD-R/RSL/-RDL/DVD-RW: AVI Audio Video Playback / DivX Audio Video Playback / DVD Audio Video Playback
- Audio Video Playback via SD: .f4V / .3gp / .avi / .flv / .mkv / .mov / .mp4 / .mpg/mpeg / .vob / .wmv/.asf / H.263 / H.264
- Audio Video Playback via USB: .f4V / .3gp / .avi / .flv / .mkv / .mov / .mp4 / .mpg/mpeg / .vob / .wmv/.asf / H.263 / H.264
- Image Display via SD: JPEG
- Image Display via USB: JPEG
AUDIO
- Advanced Sound Retriever: Mode-1/Mode-2/Off
- Bass Boost: Yes
- Auto EQ (CD-MC20 Microphone sold separately): Yes
- Automatic Level Control: Mode-1/Mode-2/Off
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Network Mode: HPF/Band Pass/LPF
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Dynamic Bass Enhancer: Yes
- Easy EQ (EEQ) Preset Equalizer: Yes
- Loudness: High/Mid/Low/Off
- Speaker Output: 4-ch
- Spectrum Analyzer: Yes
- Subwoofer Control: Yes
EXPANDABILITY
- Dual Zone Rear-Seat Entertainment: Yes
- OEM Integration: iDatalink® Maestro™ - RR (DATA)
- Parking Assist Lines: Yes
- RCA Video Output: Yes
- SD/SDHC Memory Card Slot: SD
- USB: Dual Rear Type-A (5 V, 1.5 A)
- USB Direct Control for iPhone®: 5s and newer
INPUTS
- Input 1: Backup Camera Dedicated
- Input 2: AUX (Minijack)
- Input 3: A/V or 2nd Camera
- Input 4: HDMI Standard (Type A)
GENERAL
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- Music Browser: USB
- Remote Control: Included
- Steering Wheel Control Ready (Adapter Sold Separately): Yes
- UPC: 884938462389
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
