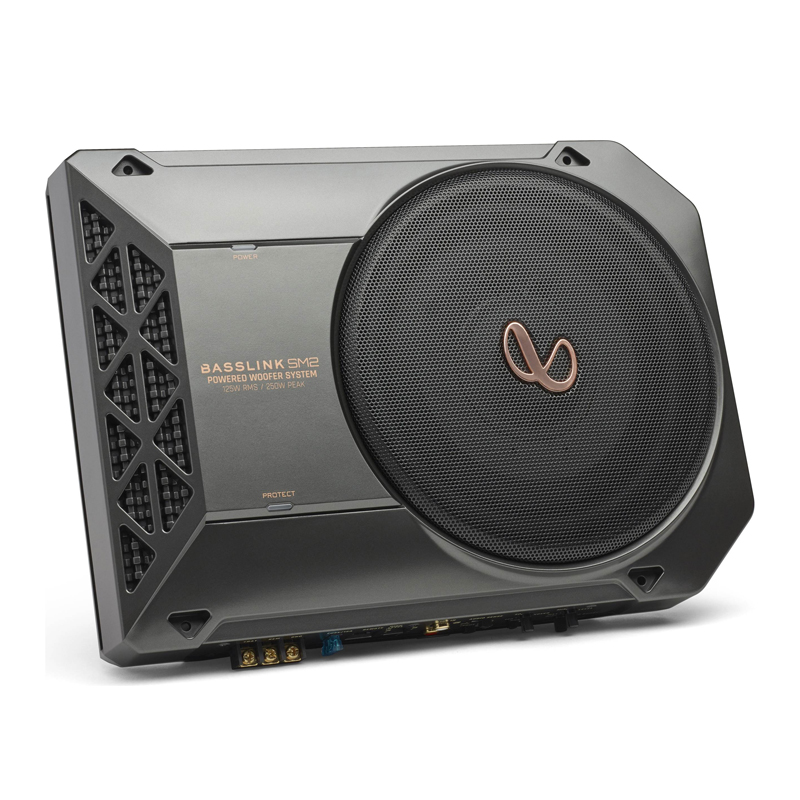

Infinity BassLink 8" Class D Amplifier Compact Powered Under-Seat Subwoofer
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Amplified 8" subwoofer
- •15A ATC fuse (installed)
- •7.5" Speaker level input harness
- •RBC Remote bass control
- •16.5' Remote level cable (RJ-25)
- •(4) 2-1/2" hex-socket screws
- •(2)1/2" Philips-head screws
- •1/8" Hex-head bit
- •Installation instructions
Proprietary, shallow-profile woofer
The 8" (200mm) subwoofer in the BassLink SM2 is designed specifically to provide low distortion and great bass performance in its custom tuned ABS enclosure with a remarkably compact footprint.
Efficient Class D amplifier
The amp that powers the BassLink SM2 produces minimal heat, and it doesn’t require a lot of current from the car’s electrical system.
Intelligent electronic design
The BassLink SM2 employs high-pass filters and limiters that deliver exceptional at-the-limits performance.
Crossover control
A variable crossover control (50Hz – 120Hz) lets you adjust how much upper bass and mid-bass the BassLink SM2 produces. Fine-tune the crossover to achieve a smooth transition from the BassLink SM2 to the rest of the system’s speakers.
Flexible EQ adjustments
Level control adjusts the BassLink SM2’s volume to the other speakers in your system, while Bass Boost control lets you minimize peaks or dips in bass frequencies in your car’s acoustic environment.
Line- and high-level inputs
For added installation flexibility, the BassLink SM2 features both line- and high-level inputs. If you use the high-level inputs to connect the BassLink SM2 to the head unit, an input load switch lets you switch from “Low” to “High” to achieve optimum results.
Wired, remote level control capability
The BassLink SM2 is compatible with the JBL GTO-RBC included, which enables you to control the bass level remotely.
- Diameter : 8 Inch
- Maximum Power : 250 Watts
- Frequency Response : 35-120 Hz
- RMS Power Range : 125 Watts
Features:

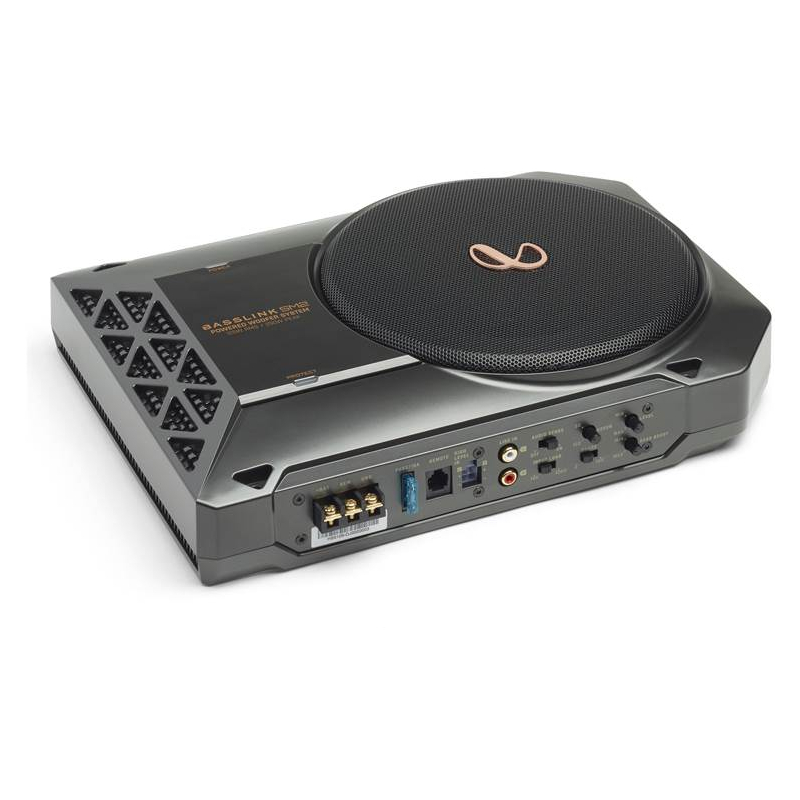

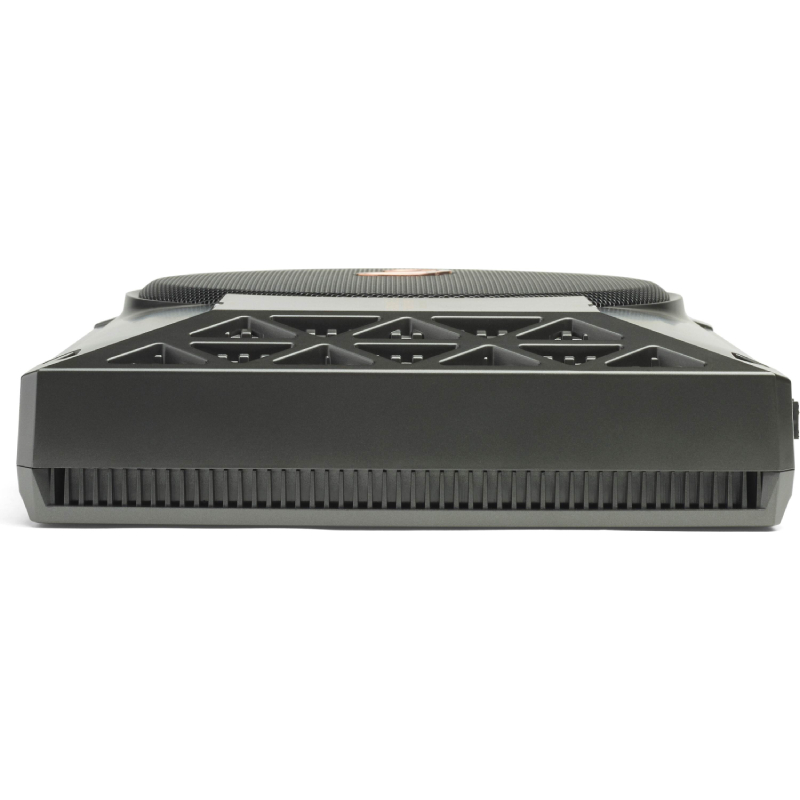

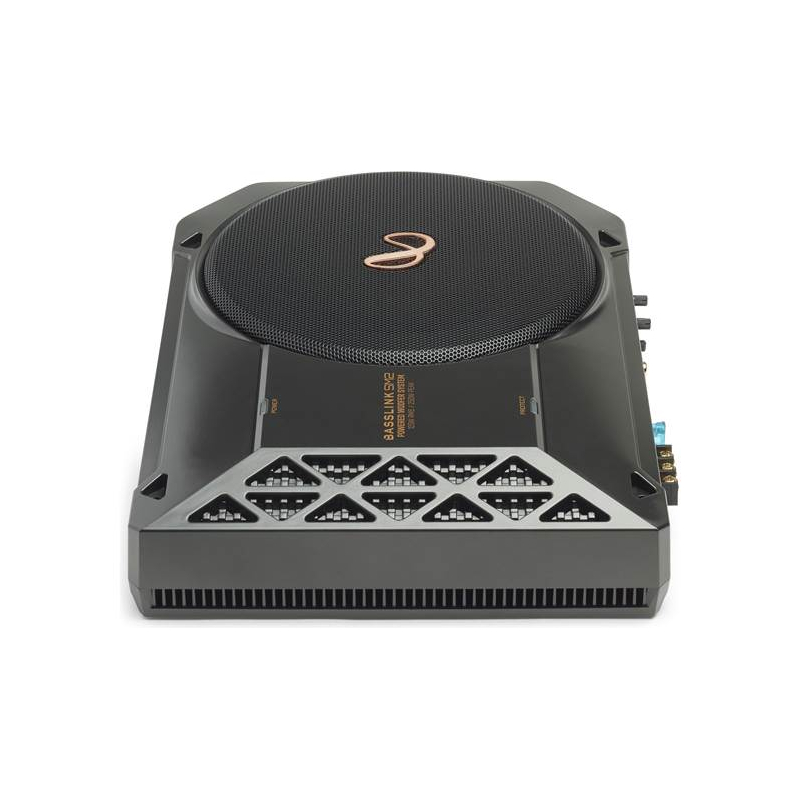

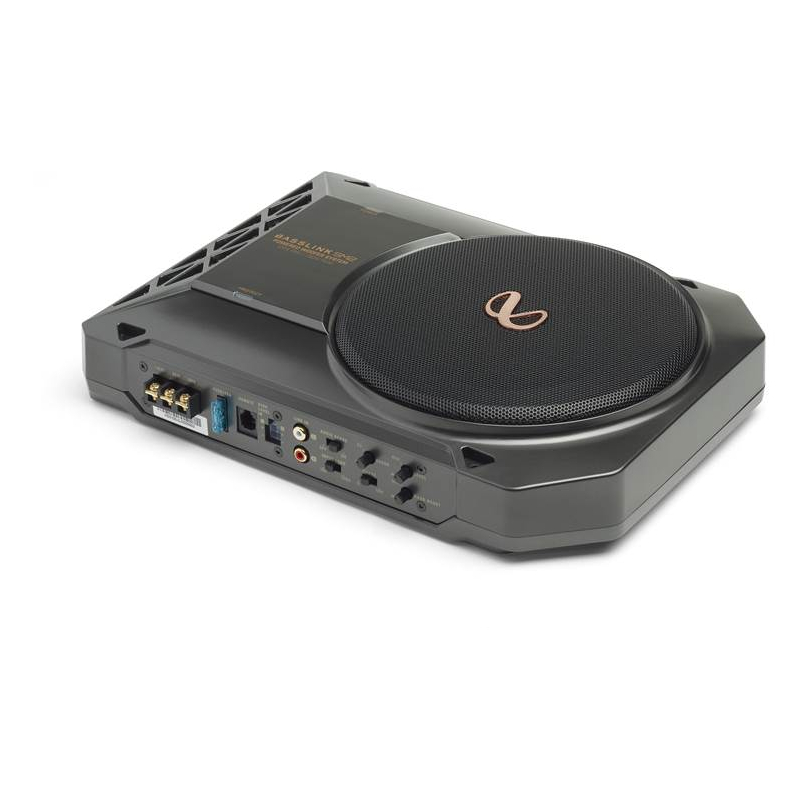

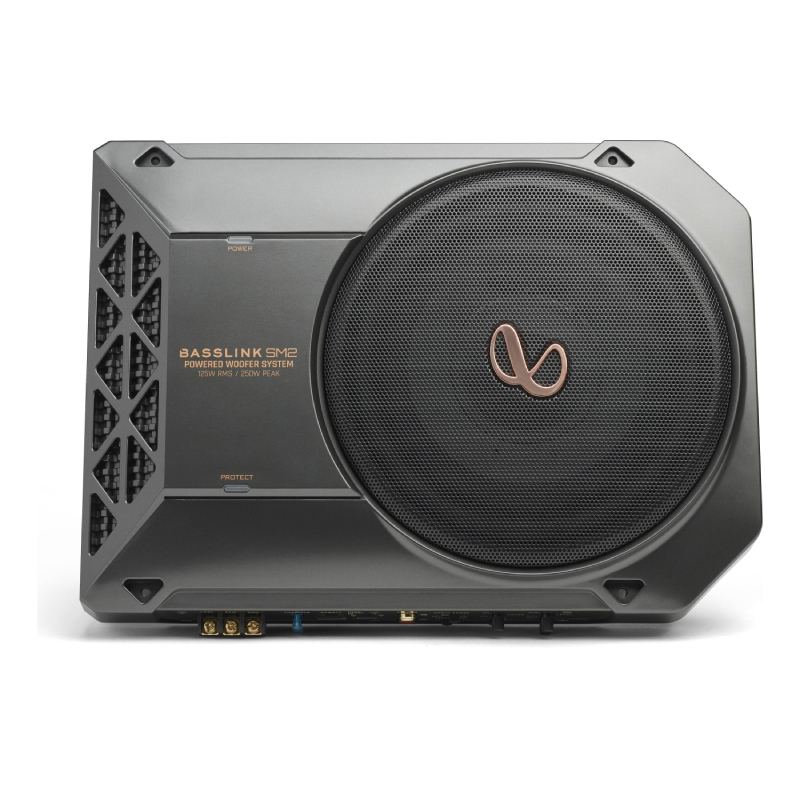

- Overview: The Infinity BassLink SM2 compact powered subwoofer features a single 8" driver powered by a 125W RMS (250W Peak) built-in amplifier, and housed in a compact sealed enclosure that's designed to fit under seats and in tight spaces.
- Enclosure Type and Materials: The enclosure is made of an acoustically inert polymer which is rigid enough to resist flexing and dampens any resonance.
- Class D Amplifier: This unit has a built-in 125 watt Class D amplifier which is highly efficient and designed specifically for use with the included 8" subwoofer driver.
- Audio Inputs: The Infinity BassLink SM2 features both low-level RCA inputs as well as speaker-level inputs via a 7.5" 4-pin harness. If using speaker-level inputs, a corresponding Audio Sense switch can be set to ON, allowing the amp to automatically power on with an incoming audio signal, and eliminating the need for running a remote turn-on wire from the headunit. If using the RCA inputs, a remote turn-on wire will need to be run from the headunit.
- Input Load: This 2-way switch determines the impedance load the amp will place on the speaker-level inputs, either10k? or 120?, based on the amount of noise produced by the radio. For most factory systems, the higher setting will be the most common choice, but some factory systems may produce less noise if set to the lower selection. Selection is based off of noise level. If using RCA low-level inputs, the Input Load switch has no effect.
- Low-Pass Crossover: The low-pass crossover frequency can be varied from 50Hz to 120Hz for a seamless transition between the output of this unit and that of the other speakers in the vehicle. The crossover has a slope of 12dB per octave.
- Bass Boost: The amplifier includes a continuously adjustable bass boost from 0dB to +9dB centered at 70Hz.
- Phase Switch: Allows you to select normal or reverse for best bass.

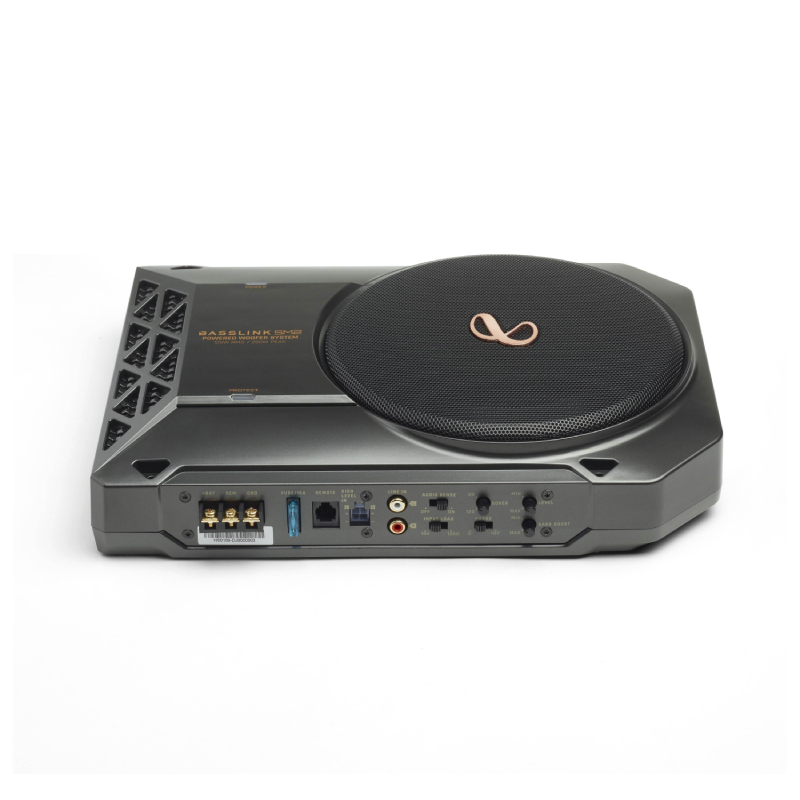

- Power: The power (+12V), ground, and remote turn-on connections are on a terminal strip; each screw terminal is approximately 0.34" wide. Infinity recommends 12-gauge (minimum) power and ground wires. The amp is protected by a 15A ATC fuse that's pre-installed.

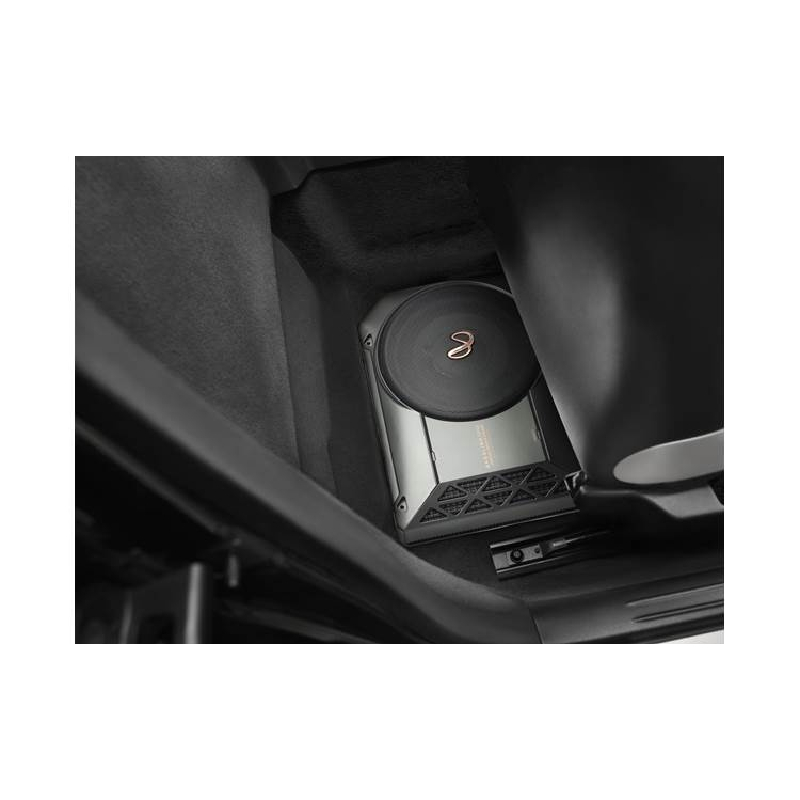

- Mounting: With a height of 2-7/8", the BassLink SM2 can be mounted flat under a wide variety of vehicle seats, as well as in the trunks of most vehicles. Mounting hardware is provided.
- Remote Bass Control (RBC): The included Remote Bass Control (RBC) is a wired remote bass knob which allows you control the bass level of your Infinity BassLink SM2 remotely from the front of the vehicle. The Remote Bass Control (RBC) comes with a 16.5' cable, terminated in RJ-25 connectors, and features integrated mounting flanges for mounting it under your dash with the provided hardware.
Specifications:
- Enclosure Type: Sealed
- Finish Material: ABS
- Grille: Metal mesh
- Connector Type: RCA/4-pin Harness
- Quick-disconnect Plug: No
- Bi-amp Inputs: No
- Woofer Size (inches): 8
- Woofer Material: Poly
- Passive Radiator: None
- Width: 13-3/8"
- Height: 2-7/8"
- Depth: 10"
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Frequency Response: 35-120
- Amplifier Power (RMS): 125 watts
- Maximum Wattage: 250 watts
- Sensitivity: N/A
- Impedance: N/A
- Second Voice Coil Impedance: N/A
- Crossover Point: 50-120Hz
- UPC: 050667374716
- Weight: 13
