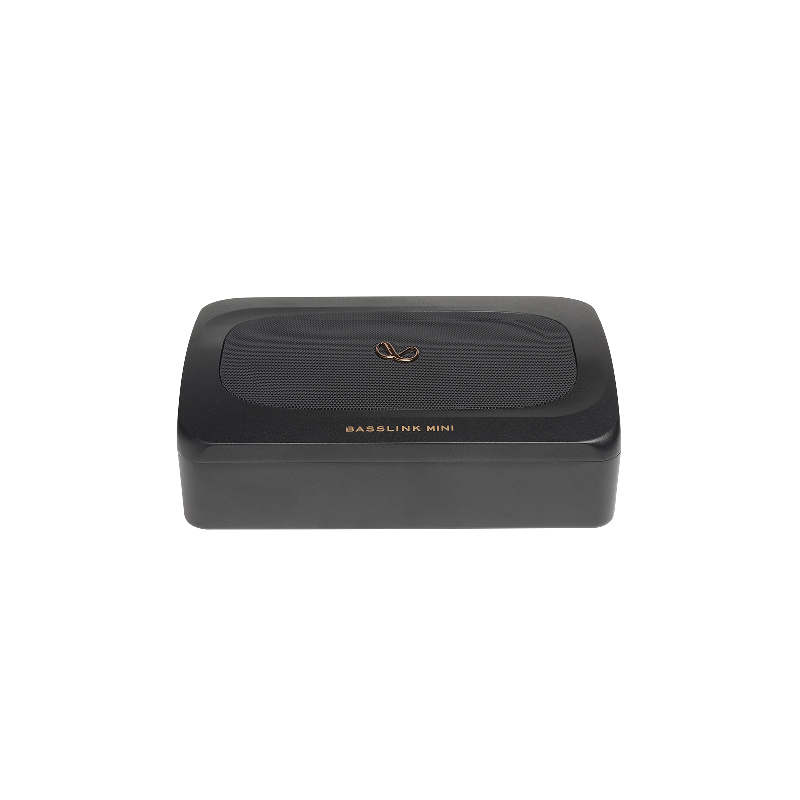

Infinity BassLink 6x8" Amplifier - Compact Under Seat Powered Subwoofer System
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Amplified 6x8" subwoofer
- •(2) 15A ATC fuses (1 installed/1 spare)
- •12" Speaker and power input harness
- •RBC Remote bass control
- •16.5' Remote bass control cable (RJ-25)
- •(4) Mounting brackets
- •(4)1" Philip-head screws
- •(2) 1/2" Philips-head screws
- •(4) 1/4" machine screws
- •Installation instructions
Deep Bass and Takes Up Minimal Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.
All-die-cast Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.Bass Volume Remote control is included to let you adjust the sound from the driver's seat.Infinity believes that everyone deserves great bass, even if your vehicle isn't exactly "roomy". That's why they designed the Infinity BassLink Mini — a shallow 6"x8" woofer in a compact enclosure that packs in a whopping 100 watts of RMS power.
Die-cast Anodized Aluminum Enclosure And Metal Grille
it under just about any seat and you'll be adding a whole lotta punch to your system. Plus, Infinity knows that a car floor isn't the tenderest of settings, so they employ a die-cast anodized aluminum enclosure and metal grille to protect the speaker from accidental damage. The low-pass filter, adjustable bass boost, and phase switch help you dial in your sound.
Wired Remote Control
The included wiring harness simplifies installation, and a wired remote control lets you adjust the sub's volume from the driver's seat. When you need to bring modern bass response to the cramped spaces of today's vehicles, the BassLink Mini delivers great sound in an easy-to-fit package. Line- and speaker-level inputs with switchable load give you multiple options for wiring your system.
- Diameter : 6x8 Inch
- Maximum Power : 200 Watts
- Frequency Response : 30-150 Hz
- RMS Power Range : 100 Watts
Features:

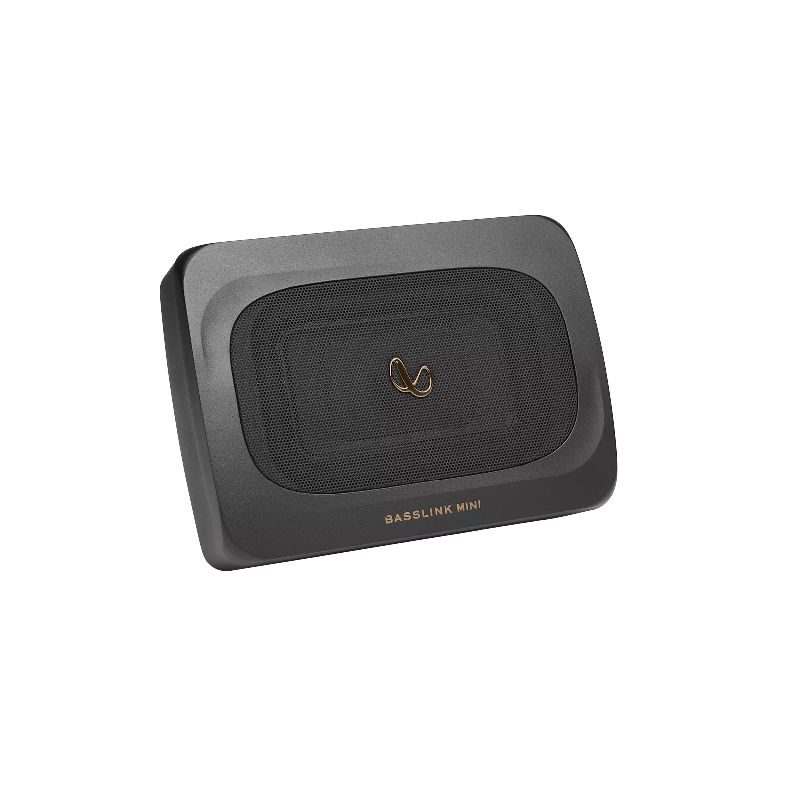

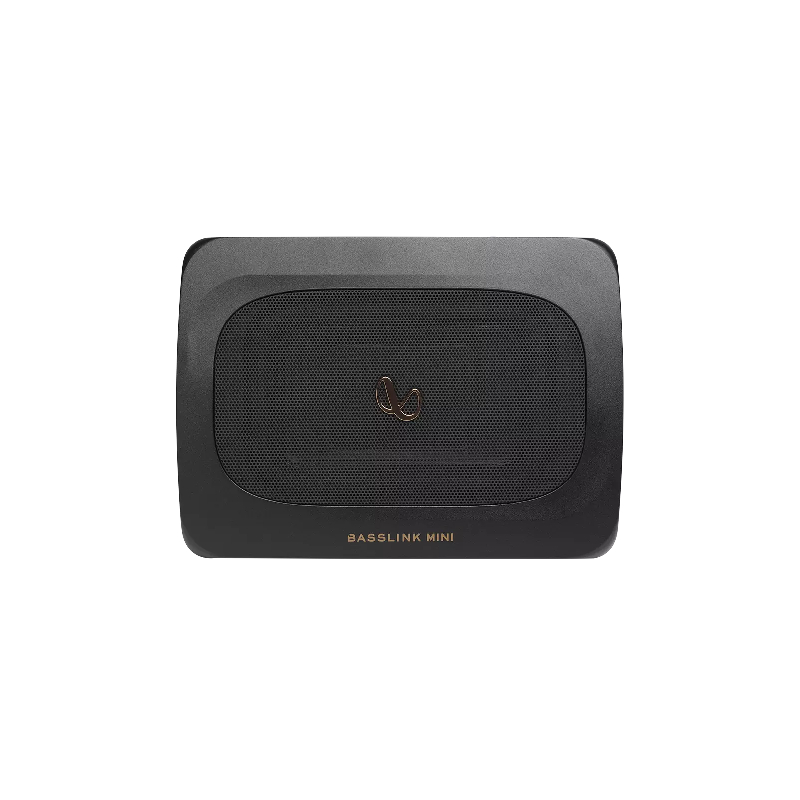

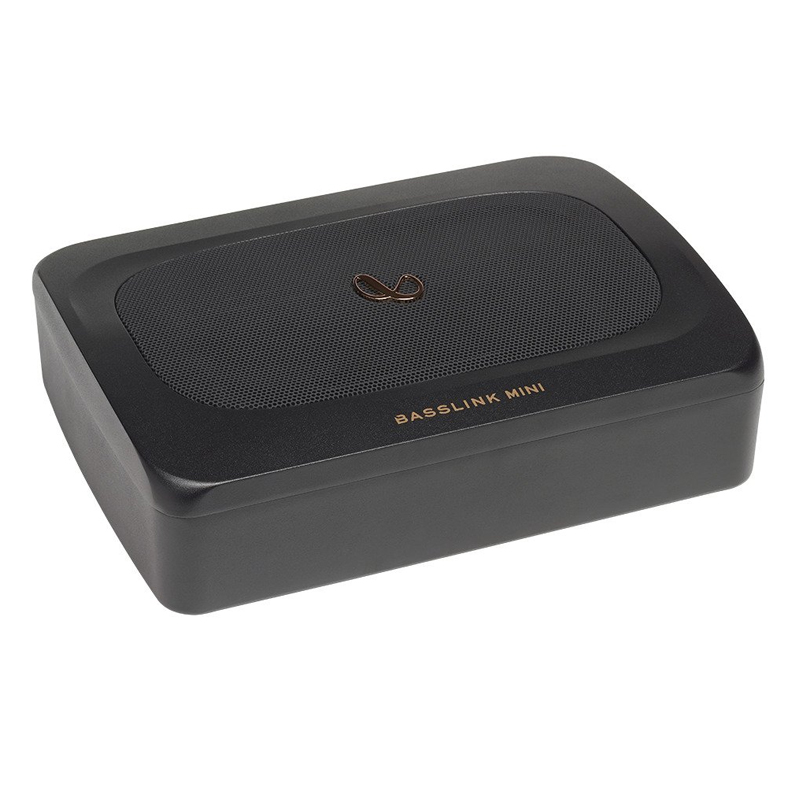

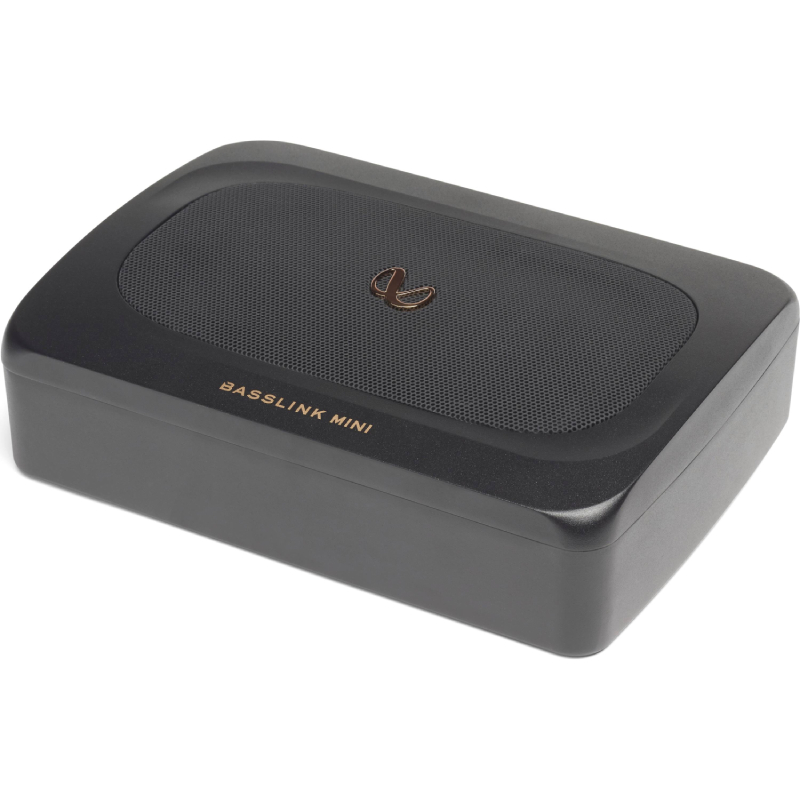

- Overview: The Infinity BassLink Mini compact powered subwoofer features a single 6" x 8" driver powered by a 100W RMS (200W Peak) built-in amplifier, and housed in a compact sealed enclosure that's designed to fit under seats and in tight spaces.

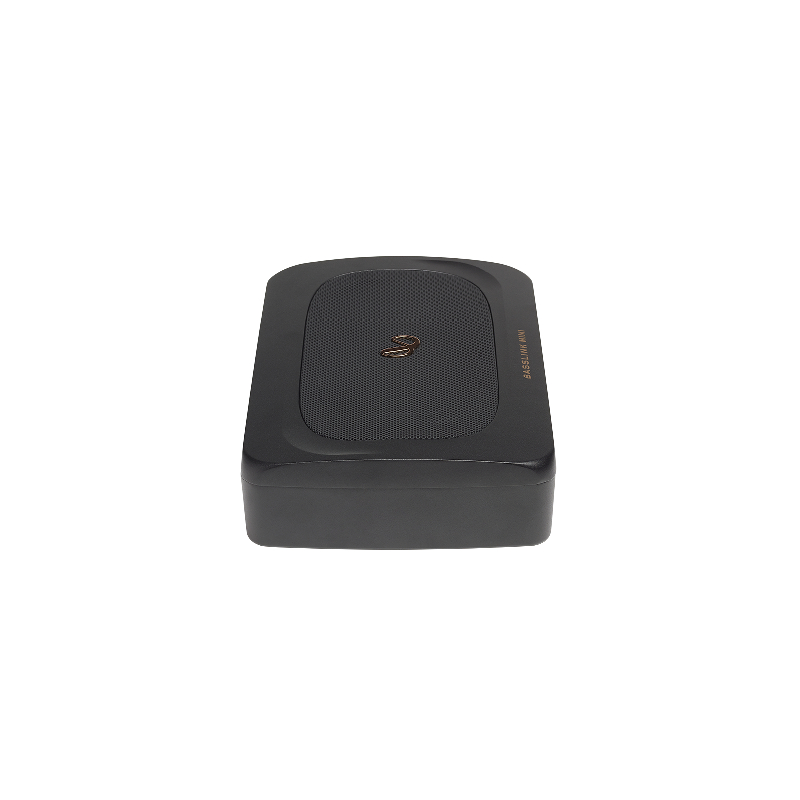

- Enclosure Type and Materials: The sealed enclosure is made of all-die-cast aluminum that allows it to be compact while eliminating rattles and vibrations.
- Class D Amplifier: This unit has a built-in 100 watt Class D amplifier which is highly efficient and designed specifically for use with the included 6" x 8" subwoofer driver.

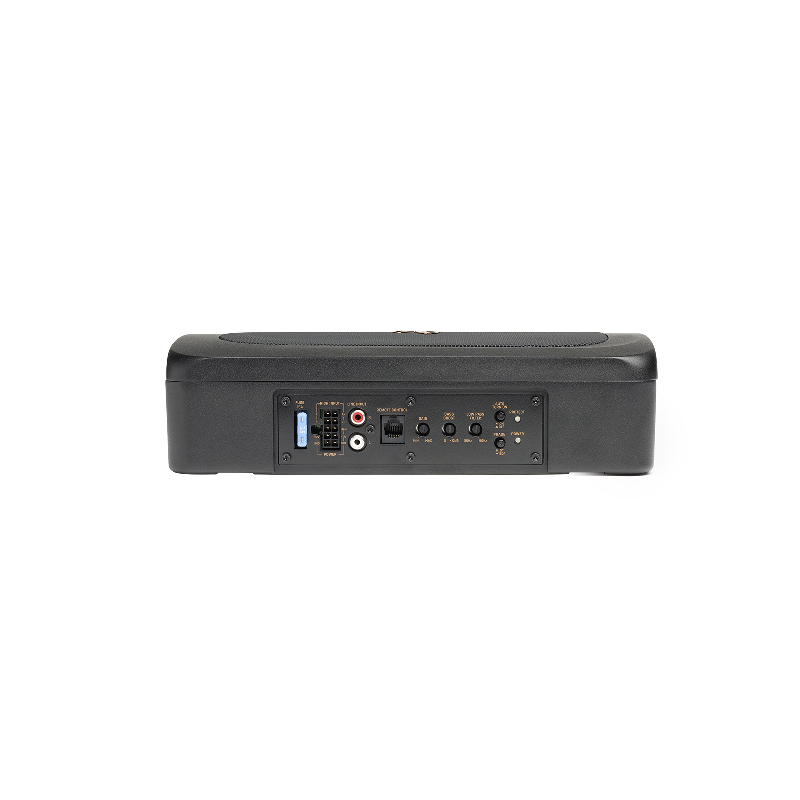

- Audio Inputs: The Infinity BassLink Mini features both low-level RCA inputs as well as speaker-level inputs on a 12" 10-pin harness. If using speaker-level inputs, a corresponding Audio Sense switch can be set to ON, allowing the amp to automatically power on with an incoming audio signal, and eliminating the need for running a remote turn-on wire from the headunit. If using the RCA inputs, a remote turn-on wire will need to be run from the headunit.
- Low-Pass Crossover: The low-pass crossover frequency can be varied from 50Hz to 150Hz for a seamless transition between the output of this unit and that of the other speakers in the vehicle. The crossover has a slope of 12dB per octave.
- Bass Boost: The amplifier includes a continuously adjustable bass boost from 0dB to +12dB centered at 50Hz.
- Phase Switch: Allows you to select normal or reverse for best bass.
- Level: This rotary control determines the amount of input signal, with either high- or low-level inputs.
- Power: The power (+12V), ground, and remote turn-on connections are provided on the 12" 10-pin input harness. The amp is protected by a 15A ATO fuse that's pre-installed, and includes a spare 15A fuse.

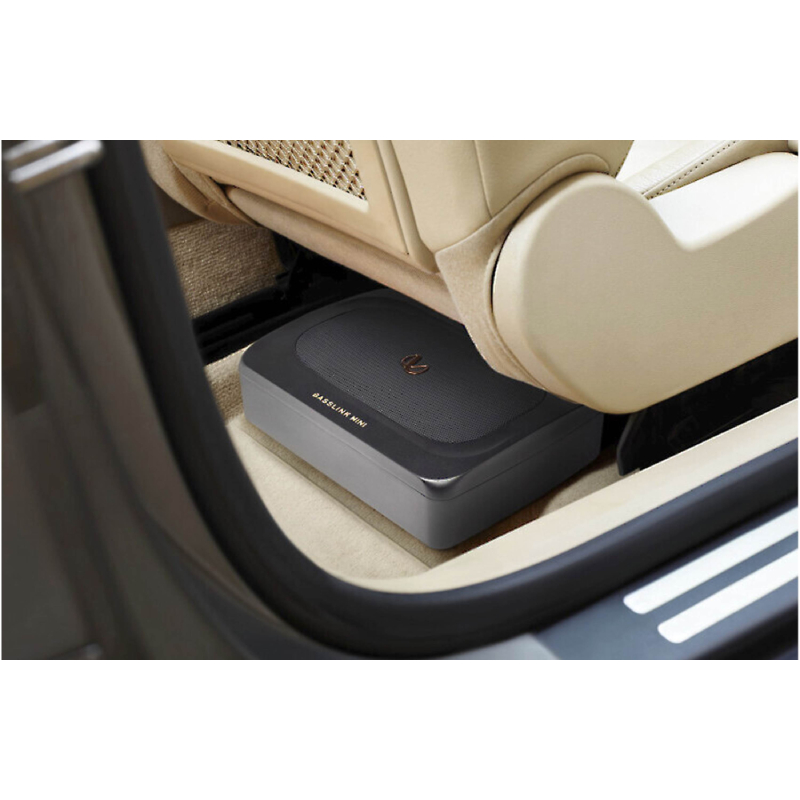

- Mounting: With a height of 2-7/8", the BassLink Mini can be mounted flat under a wide variety of vehicle seats, as well as in the trunks of most vehicles. Mounting brackets and hardware are provided.

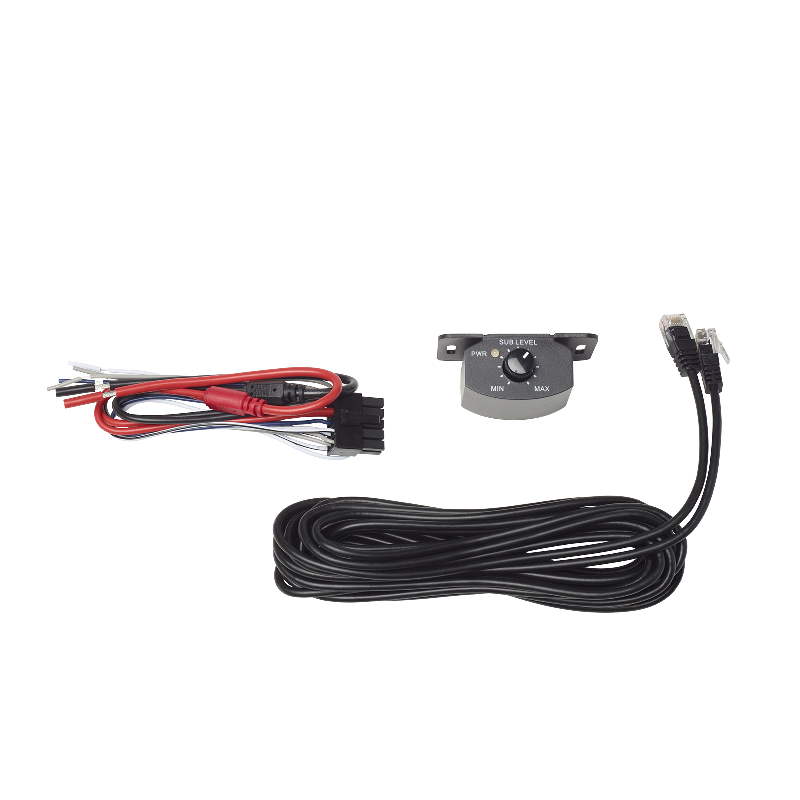

- Remote Bass Control (RBC): The included Remote Bass Control (RBC) is a wired remote bass knob which allows you control the bass level of your Infinity BassLink Mini remotely from the front of the vehicle. The Remote Bass Control (RBC) comes with a 16.5' cable, terminated in RJ-25 connectors, and features integrated mounting flanges for mounting it under your dash with the provided hardware.
Specifications:
- Enclosure Type: Sealed
- Finish Material: Aluminum
- Grille Metal: mesh
- Connector Type RCA: 10-pin harness
- Quick-disconnect Plug: Yes
- Bi-amp Inputs: No
- Woofer Size (inches): 6x8
- Woofer Material Poly
- Passive Radiator : ---
- Width: 11-3/8"
- Height: 2-7/8"
- Depth: 8-1/4"
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Frequency Response: ---
- Amplifier Power (RMS): 100 watts
- Maximum Wattage: 200 watts
- Sensitivity: ---
- Impedance: ---
- Second Voice Coil Impedance: ---
- Crossover Point: 50-150Hz
- UPC: 050036368285
- Weight: 13
