JL Audio  MV700/5i

MVi Series 5-Channel 100W RMS x 4 + 300W RMS x 1 at 2 Ohms, Class-D Marine Amplifier with Integrated DSP

Item #76860

Condition:   Brand New

Product Highlights

  • MVi Series 5-Channel Amplifier
  • 100W RMS x 4 + 300W RMS x 1 at 2 Ohms
  • Class-D Marine Amplifier
  • Integrated DSP

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Special offer:

$1,299.99

Reg. Price $1,349.99  Save $50.00
In Stock
In Stock

Limited Stocks left!
Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

JL Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

JL Audio MV700/5i MVi Series 5-Channel 100W RMS x 4 + 300W RMS x 1 at 2 Ohms, Class-D Marine Amplifier with Integrated DSP


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • MVi Series 5-Channel Class-D Marine Amplifier
  • • MVi amplifier
  • • Power connector
  • • Speaker output harnesses
  • • 6-foot USB A/B cable
  • • RCA Terminal covers (installed)
  • • (4) stainless steel mounting screws
  • • 2.5 mm Allen wrench
  • • 3 mm Allen wrench
  • Owner's Manual




Why Choose JL Audio MV700/5i Marine Amplifier?

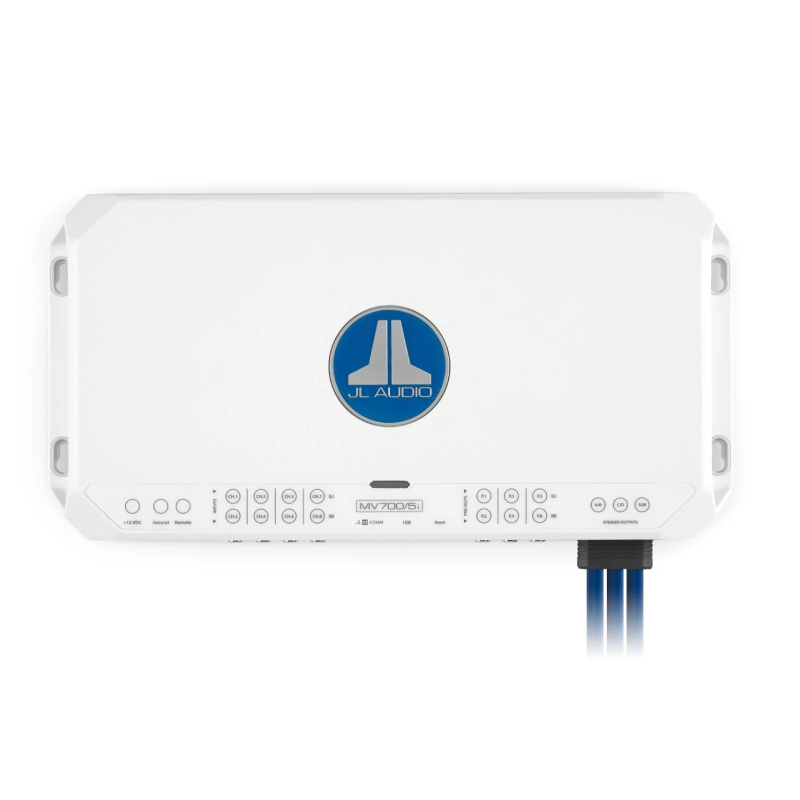

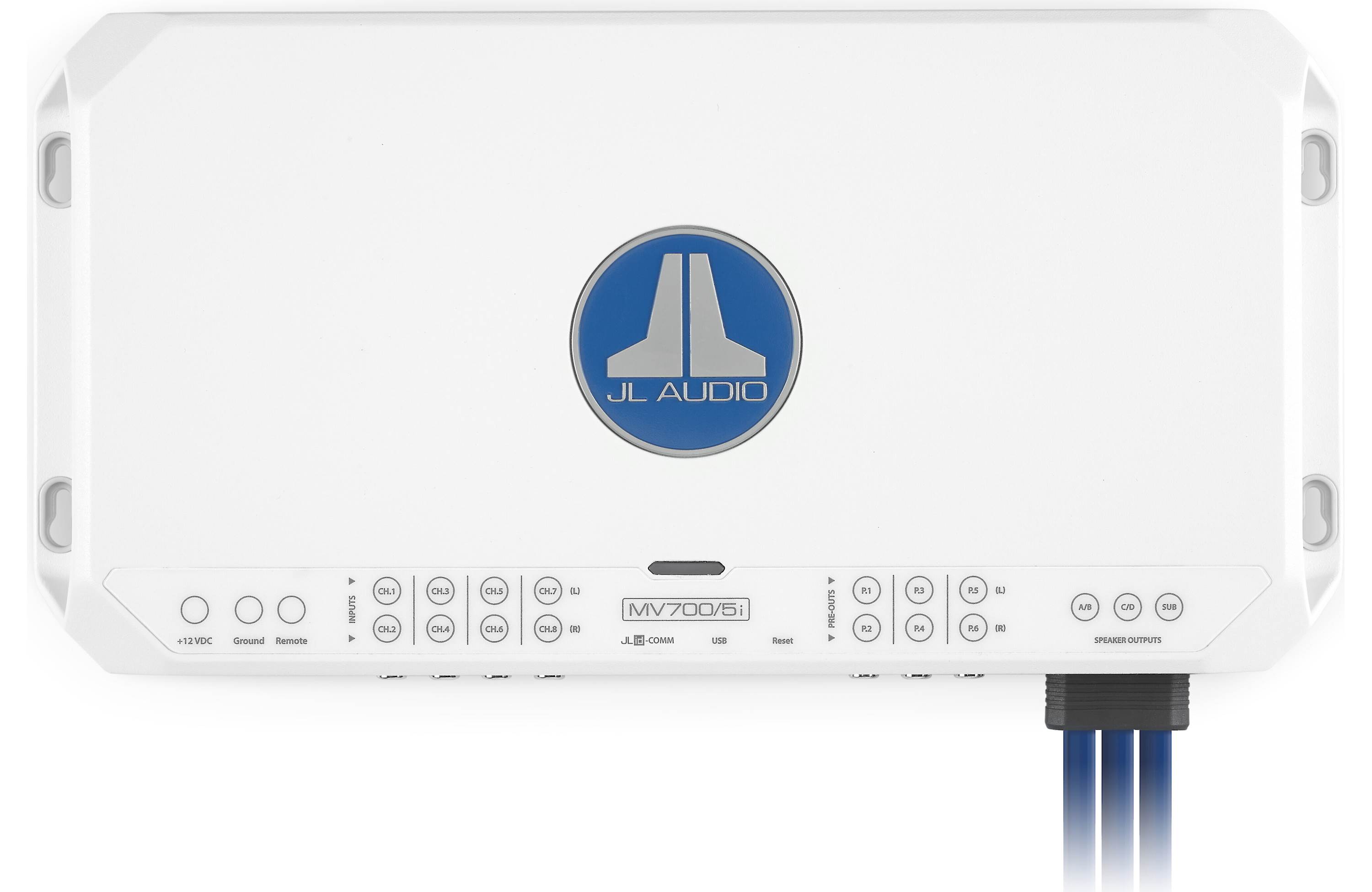

JL Audio MV700/5i Marine Amplifier Top Down View
Superior Performance in an Ultra-Compact Marine Amplifier

Experience superior performance with our ultra-compact amplifier, featuring a sleek cast alloy chassis, marine-grade powder coat finish, and corrosion-resistant hardware, all configurable via your PC, tablet, or smartphone using the JL Audio TüN® Software for effortless adjustments!

Complete Accessories and Exceptional Fidelity with DirectFET™ Technology

Enhance your audio experience with included accessories like a power connector for 4 AWG wire, speaker output harnesses, a subwoofer output harness, and a 6 ft A/B USB cable, all backed by outstanding fidelity, ultra-low noise, and exceptional efficiency thanks to our advanced DirectFET™ output design!

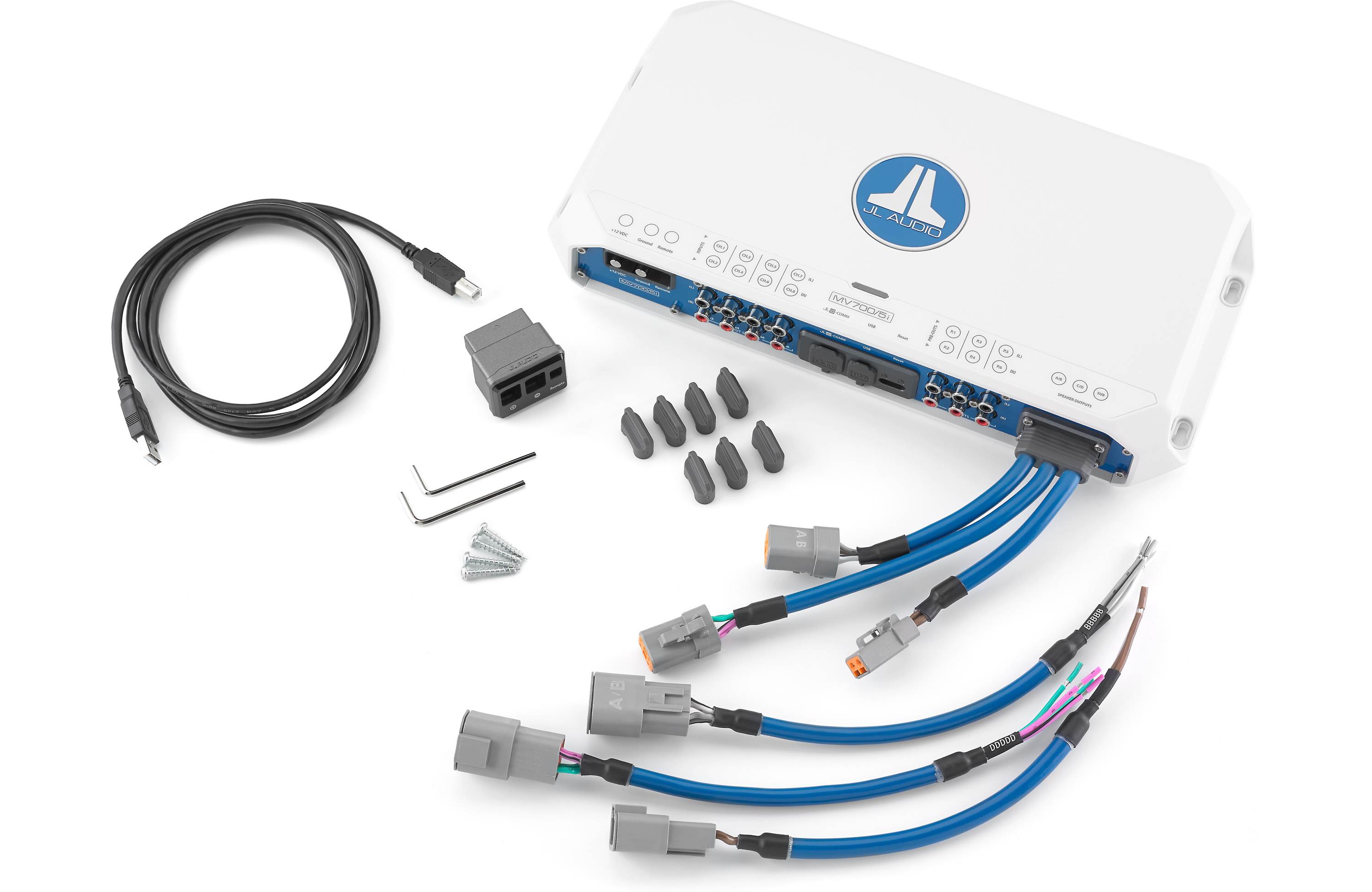

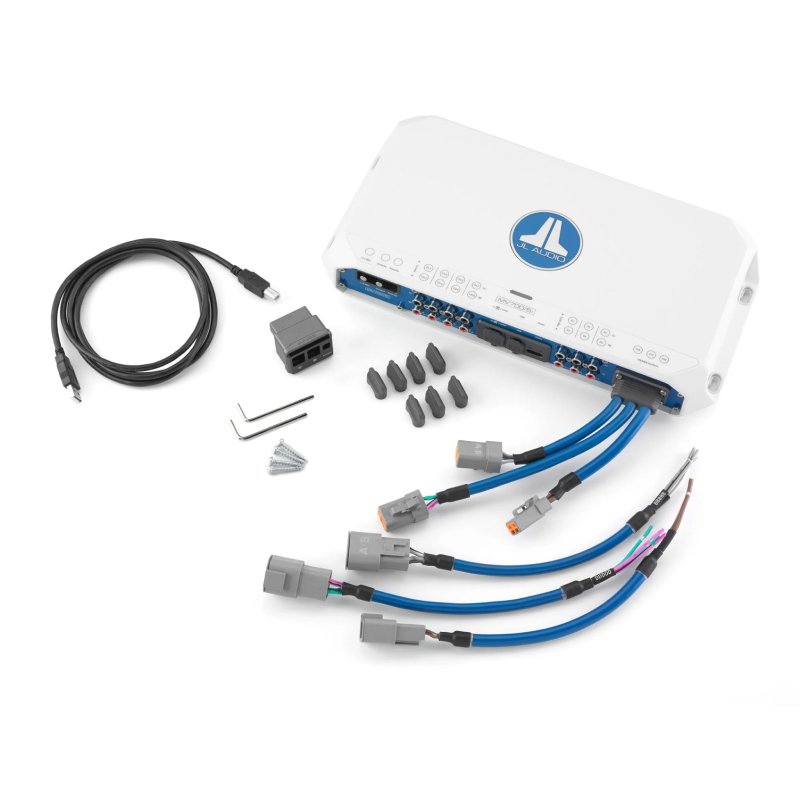

JL Audio MV700/5i Marine Amplifier Complete Set View

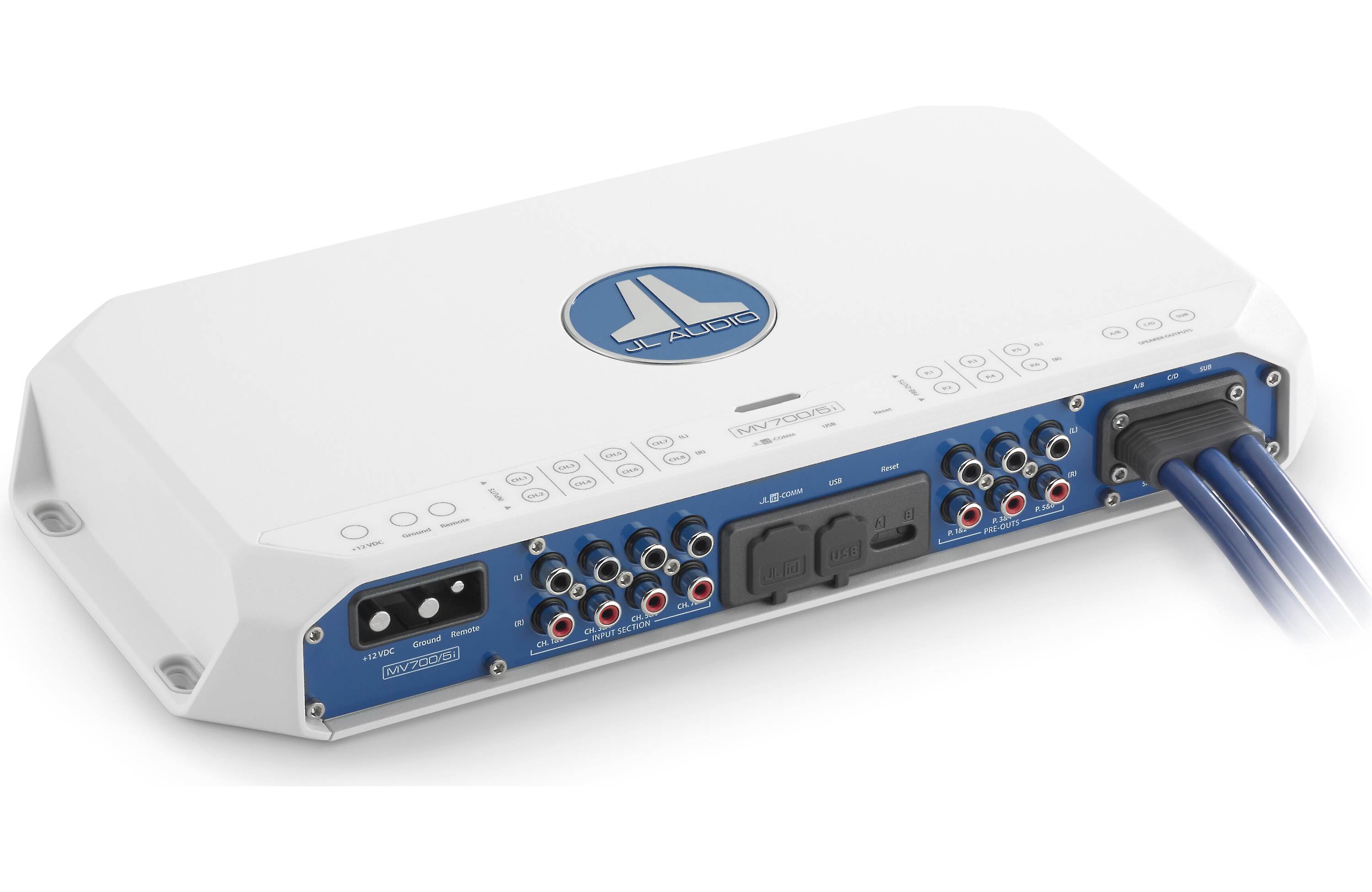

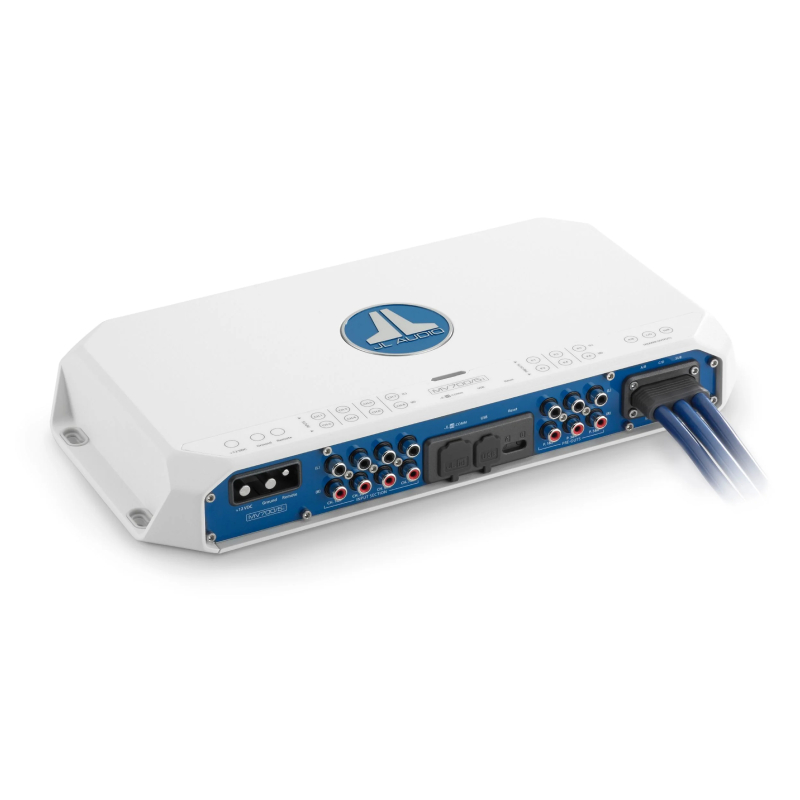

JL Audio MV700/5i Marine Amplifier Rear Angle View
Unlock Superior Sound with NexD2™ Switching Technology

Experience unparalleled audio quality with the JL Audio MV700/5i, featuring our advanced NexD2™ Switching Technology that enhances fidelity and efficiency. This innovative amplifier utilizes cutting-edge components and a unique circuit layout, minimizing distortion and radiated noise for crystal-clear sound. With on-board DSP synchronization, the MV1000/5i delivers precise audio performance, making it the perfect choice for discerning listeners who demand the best in their marine audio experience.


Frequently Asked Questions (FAQ)


  • • Why are my cabin speakers playing but the subwoofer connected to the JL Audio MV700/5i isn't working?
    Check the mono channel routing, crossover settings, and subwoofer wiring. Incorrect DSP configuration is a common cause.
  • • Can I connect the MV700/5i to my factory radio without RCA outputs?
    Yes. The amplifier accepts high-level speaker inputs for easy integration with most factory audio systems.
  • • Why won't JL Audio TüN software communicate with my amplifier?
    Make sure the amplifier is powered on, use a compatible USB cable, and install the latest version of the TüN software.
  • • Can the MV700/5i run four speakers and one subwoofer from a single amplifier?
    Yes. It is designed specifically as a five-channel amplifier for complete audio systems.
  • • Why does my subwoofer overpower the rest of the speakers after DSP tuning?
    The subwoofer output level or crossover settings may be too aggressive. Rebalancing the DSP profile usually fixes the issue.
  • • Why does the amplifier enter protection mode during extended listening sessions?
    This is commonly caused by overheating, a speaker wiring fault, or an impedance below the recommended specification.
  • • Can I create different DSP presets for towing and daily driving?
    Yes. Multiple tuning profiles can be saved and switched using JL Audio's TüN software.
  • • Why do vocals sound off-center after adjusting time alignment?
    One or more speaker delay values may be incorrect. Fine-tuning the DSP timing will restore a centered soundstage.
  • • Can I bridge two channels while still using the dedicated subwoofer output?
    Yes. The full-range channels support bridging within JL Audio's recommended impedance limits while the mono sub channel remains available.
  • • Why does the amplifier briefly mute when I start the engine?
    This is normal behavior caused by the amplifier's startup protection and temporary voltage drop during engine cranking.

SPECIFICATIONS


  • Number of Channels : 5
  • Frequency Response : 12-24000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 4x100 Watts
  • Amplifier Class : D
  • Fuse Rating : 1x60 A

FEATURES


Features:

  • Power Output: 75 W x 4 @ 4 Ω for main speakers; 300 W x 1 @ 2 Ω for subwoofer; optional bridging: 200 W x 2 @ 4 Ω on main channels.
  • Amplifier Technology: Equipped with second-generation NexD2™ switching amplifier technology; DSP-controlled full-range technology for main channels; optimized low-frequency variant for subwoofer channel.
  • Design: Ultra-compact cast alloy chassis with marine-grade powder coat finish and corrosion-resistant hardware.
  • Control: Configurable via compatible external devices (PC, Tablet, Smartphone); requires JL Audio TüN® Software application for adjustments.
  • Included Accessories: Power connector for 4 AWG wire; speaker output harnesses (2); subwoofer output harness; 6 ft A/B USB cable.
  • Performance: Outstanding fidelity with very low noise and exceptional efficiency; reduced loop area design utilizing DirectFET™ outputs.



Specifications:

  • RMS Power Output: 75 W x 4
  • Frequency Response at Rated RMS Power: 12-24 kHz
  • Total Harmonic Distortion (THD) at Rated RMS Power: 1%
  • Signal to Noise Ratio: 99 dB
  • Input Voltage: 14.4 V
  • Peak Power Output: N/A
  • Power at 2 Ohms: 100 W x 4
  • Bridged Power: 200 W x 2
  • Minimum Impedance (Bridged): 4 Ω
  • Minimum Impedance (Unbridged): 2 Ω
  • Amplifier Class: D
  • Low-Pass Crossover Frequency: Via TüN Software
  • Low-Pass Slope (dB/octave): Via TüN Software
  • High-Pass Crossover Frequency: Via TüN Software
  • High-Pass Slope (dB/octave): Via TüN Software
  • Bass Boost: Via TüN Software
  • Bass Boost Frequency: Via TüN Software
  • Fan Cooled: No
  • Fuse Rating: 60 A
  • Speaker Level Inputs: Yes
  • Preamp Outputs: 6
  • Height: 2-1/8 inches
  • Width: 14 inches
  • Depth: 8-3/8 inches
  • UPC: 699440986502
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
