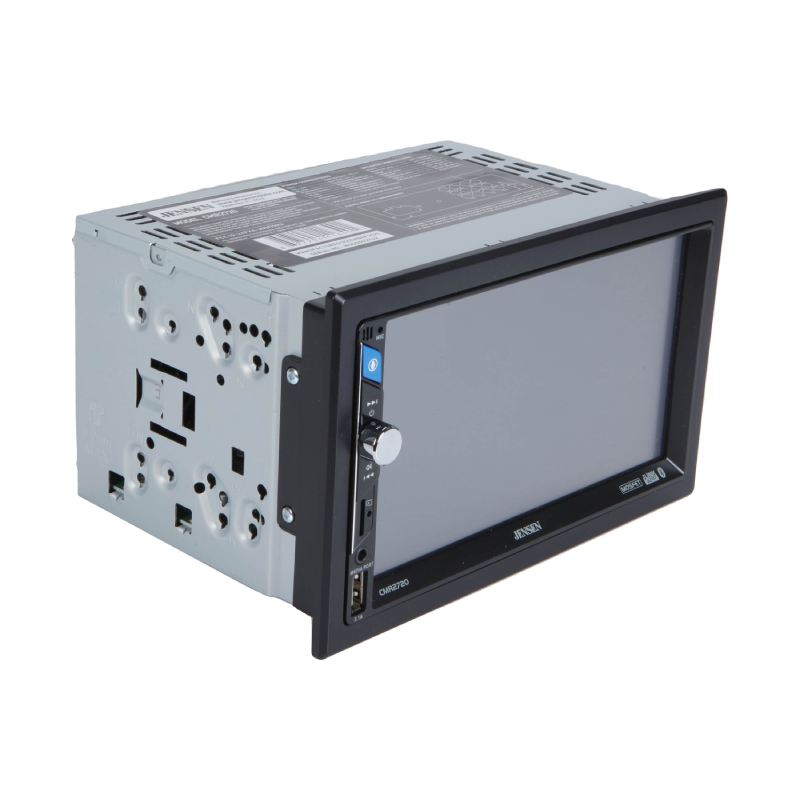

Jensen CMR2720 7" Digital Media Receiver with Built-In Bluetooth
We are a Jensen authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•Digital multimedia receiver (10A fuse)
•(8) Pan-head ISO-screws
•(8) Counter-sunk ISO screws
•Quick Start Guide
Bluetooth Hands-Free Calling
Safely answer and make calls from your receiver using touchscreen icons and the included microphone. Communicates via your phone's bluetooth connection to the radio. Interact with your smartphone's assistant while you drive with only a push of a button.
j-Link Smart Remote App
Use the Jensen j-Link Smart Remote app on an Apple or Android smartphone to control the receiver via bluetooth. Change the mode, station, song, and volume directly from your smartphone without being in the receiver's line-of-sight.
7 Preset EQ Curves
The 7 preset EQ curves lets you tweak the audio settings to suit your listening preferences. Switch between Pop, Jazz, Rock, Flat, Classic, Beat and Usser.
DIN : 2
Display Size : 7 Inch
Audio/Video Inputs : 1
Bluetooth : Yes
Aux Input : Yes
MP3 Playback : Yes
Front USB Input : 1
Preamp Outputs : 3
Audio/Video Outputs : 1
Rear View Camera Input : Yes
Apple CarPlay : No
Android Auto : No

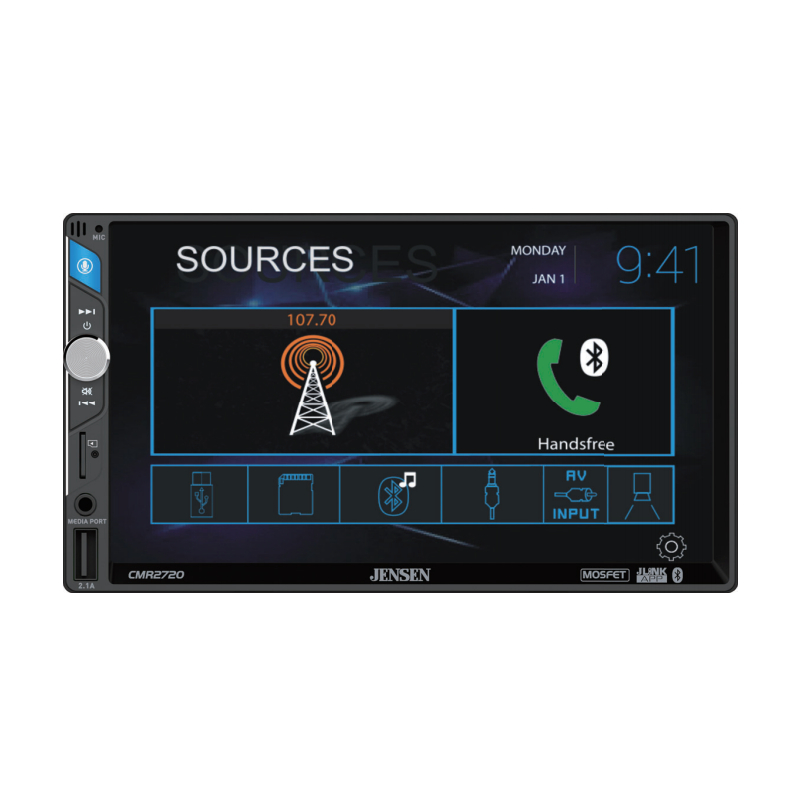

7" Touchsreen Monitor: The Jensen CMR2720 features a 7" touchscreen LCD monitor with LED backlit and a resolution of 1024x600 (614,400 total pixels). The 7" touchscreen monitor makes it is easy to see and navigate the in-dash receiver. You can select between 3 different preset wallpapers (backgrounds). You can also adjust the screen brightness, contrast, hue, saturation, and sharpness.
Push-To-Talk Voice Assistant: When connected via Bluetooth to an iPhone with Siri or Android smartphone with Google Assistant or Bixby, you can access the mobile device's digital voice assistant through the Jensen receiver by pressing the "Push-to-Talk" button on the front-panel. You'll speak your command into the head unit's front-panel microphone and the digital voice assistant will be heard through your vehicle's speakers (music playback will be attenuated). Compatible digital voice assistant functions include hands-free calling, music search, setting reminders, text-messaging, audible navigation, and more. You'll be able to ask your digital voice assistant get directions to a destination and the turn-by-turn instructions will heard through your vehicle's speakers, while the on-screen map still displays on your compatible smartphone. The head unit's audio is attenuated while the digital voice assistant provides voice prompts.
J-Link Smart Remote App: The J-Link Smart Remote app (for Apple iOS 9.1+ and Android OS 5.0+) lets you use your compatible smartphone or tablet device like a wireless remote control for the Jensen CMR2720. Your compatible Apple iOS or Android device will need to be wirelessly connected to the digital multimedia receiver via Bluetooth.
Optional Steering Wheel Controls: The head unit features a SWC (steering wheel control) input which lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel control adapter from PAC or Metra (see Accessories tab).
Key Beep: The in-dash head unit provides an audible beep to confirm button operation (this can be turned On or Off).
Bluetooth Technology: The Jensen CMR2720 is equipped with built-in Bluetooth 4.1+EDR, allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles.
Hands-Free Communication (w/ integrated mic): The CMR2720 supports Bluetooth hands-free communication from your Bluetooth enabled mobile phone. You can answer an incoming call from the head unit's touchscreen and carry on a phone conversation hands-free. The unit's front-panel integrated microphone carries on your side of the conversation while your car's speakers are used to hear the other person. You can increase or decrease the volume level of a call, using the head unit's rotary knob on the front panel. You can also transfer calls between the receiver and your Bluetooth enabled phone.
Wireless Audio Streaming: The Jensen CMR2720 allows you to play back stored music and music apps from your Bluetooth enabled smartphone, tablet, or audio player. You can control basic music playback functions (Play/Pause, Previous/Next Track) from the CMR2720. Advanced music navigation will still need to be done through your Bluetooth mobile device. This unit will also display song/artist information (no album art) from a connected Bluetooth audio device. When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.
AV Inputs: The Jensen CMR2720 is equipped with an Aux input (on side of touchscreen monitor) that consists of a 3.5mm jack for connection of an external portable audio device with a headphone jack or analog output. The Aux input only supports audio playback (not video compatible). There is also a rear-panel AV input that consists of a composite video and stereo RCA jacks for connecting an external audio/video source (Parking Brake must be applied to view video on-screen).
Video Output: A single RCA composite video-output jack allows you to an add external monitor, such as rear headrest or overhead monitor (sold separately). The video output will display whatever image is being displayed on the head unit's touchscreen monitor. This includes the warning "Video Is Disabled For Your Safety" when trying to watch video from a USB device, microSD card, or AV input without the vehicle's parking brake engaged. You will need to engage the vehicle's parking brake to see video from these sources through the head units' video output.
AUX Input: Mini (front), RCA (rear)
Audio/video Input: RCA (rear)
USB Input: Front
USB Port Power: 2.1A
Backup Camera Input: Yes
Second Camera Input: Yes
Android Auto: No
Siri Control: Yes
Alexa Voice Control: N
Android Control: Yes
Memory Card Slot: USB, microSD
Bluetooth Compatible: Built-in
Satellite Radio Ready: No
HD Radio: No
Full size: N/A
RMS Power (CTA-2006): 16 watts
RMS Power (Manufacturer): 16 watts
Peak Output: 50 watts
RMS Power Bandwidth: 20-20kHz
Preamp Outputs: 6-channel
Sub Preamp Outputs: Yes
Switchable Rear Preamp Outputs: No
Video Screen: Yes
Navigation App Compatible (iOS): N
Navigation App Compatible (Android): N
Preamp Voltage: 2 volts
Screen Size: 7
Screen Type: Basic (Resistive)
Key Button Color: Blue
EQ Bands: 7
Wireless Remote: No
Steering Wheel Control Compatible: Adapter required
Parts Warranty: 3 Years
Labor Warranty: 3 Years
FM Sensitivity: 8.5 dBf
European Tuning: Yes
Radio Data System: No
Music File Playback: MP3
High-res Playback: N
7" Capacitive touchscreen LCD (1024x600)
Built-in Bluetooth technology with hands-free calling
music streaming with ID3 tags and phonebook support
AM/FM tuner with 30 station presets (18FM/12AM)
Push-totalk button to access smartphone voice assistant
J-Link Smart Remote app via Bluetooth
Front panel USB inpu1t with 2.1A charging
Backup camera RCA input
Front camera RCA input
Front panel 3.5mm Aux input and micro SD card input

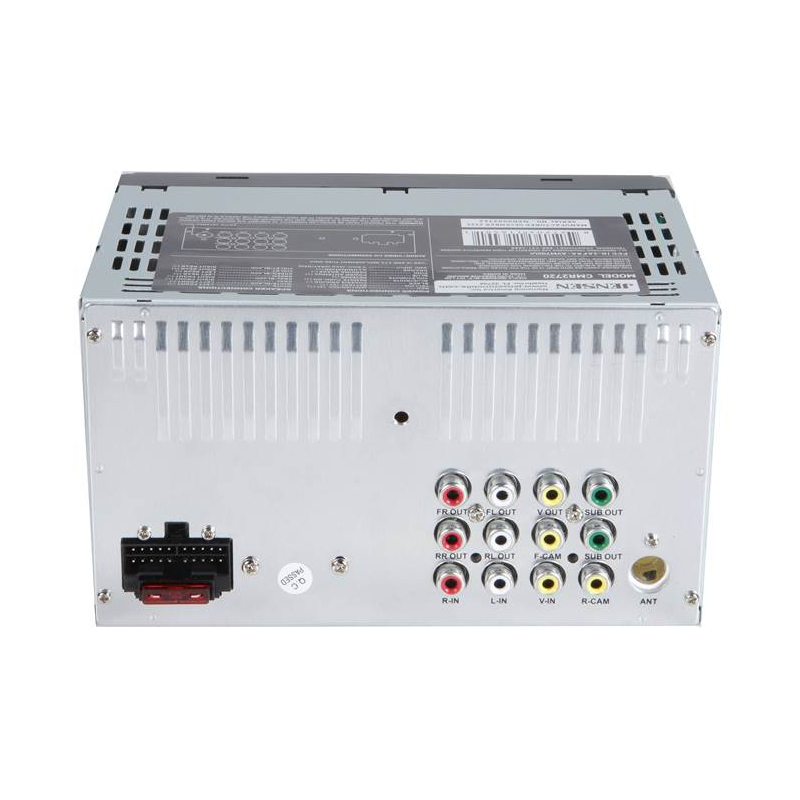

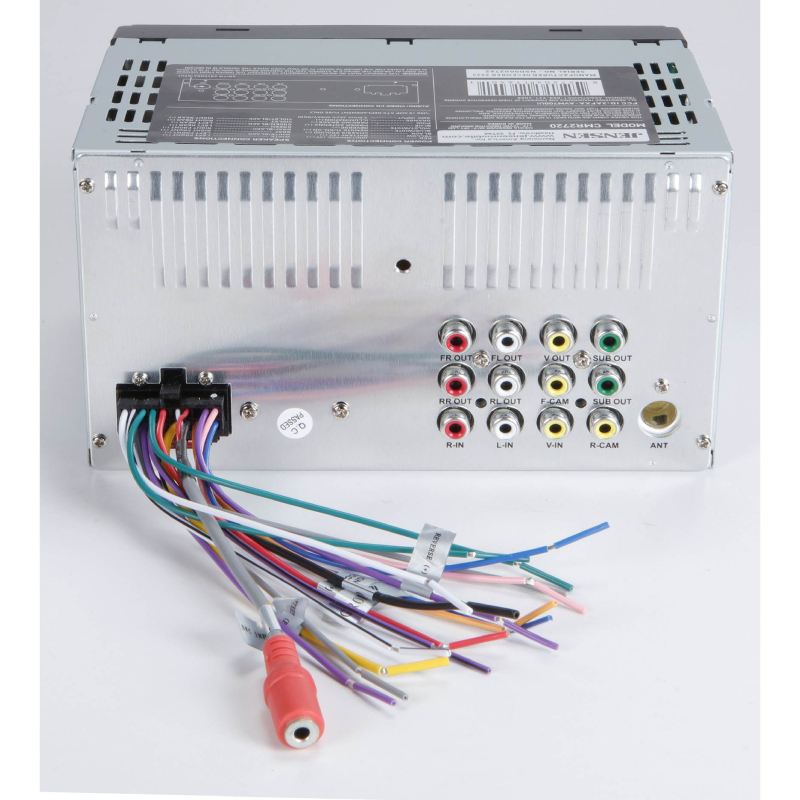

Rear A/V input / video output RCA, 3 Pair of RCA 4V preamp output (F/R/S)
File formats: MP4, MP3, FLAC, 7 Preset EQ Curves
200 Watts max power (50W x 4)
Steering Wheel Control (SWC) Input
