Pioneer MVH-S322BT In-dash Audio Digital Media Receiver with Amazon Alexa, Pioneer Smart Sync, Bluetooth®, Android™, iPhone®
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Touchscreen monitor (rear cover pre-installed)
- •Digital media receiver (10A fuse)
- •Face (attached)
- •Trim-ring (installed)
- •Sleeve (installed)
- •Wiring harness
- •Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- •6 Installation screws
- •2 Removal tools
- •Bracket
- •1 Year Warranty Sheet
- •Owner's Manual
Digital Media Receiver
If you want to have a straightforward audio component with lots of entertainment features and wireless connectivity options for a more comfortable driving experience, then the Pioneer MVH-S322BT might be the one you are looking for. Whether you are using an iPhone or an Android phone, you can still have all the fun without breaking the bank.
Wireless Control

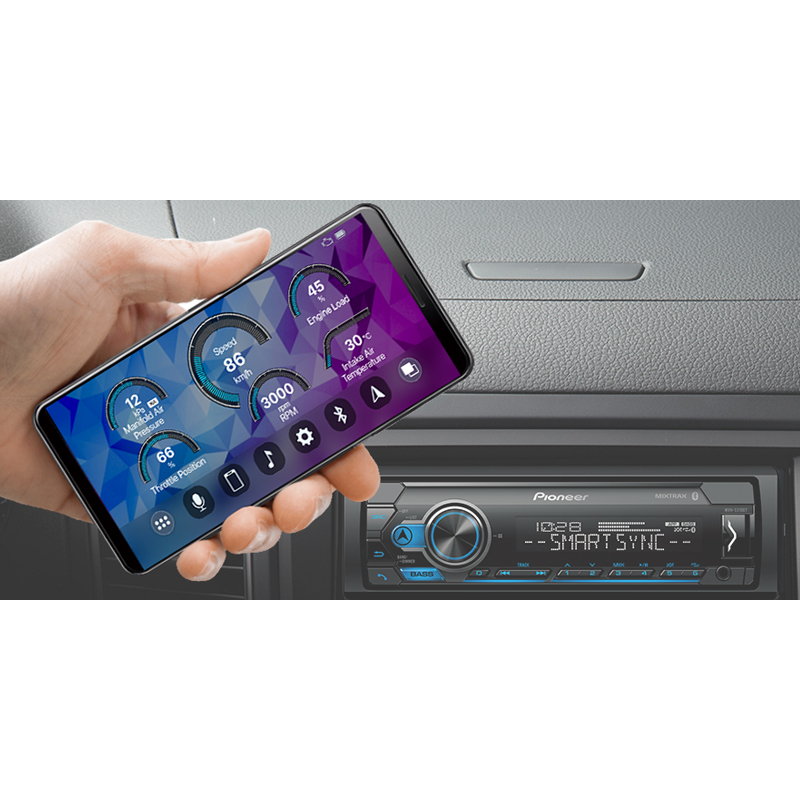

With the help of Pioneer's Smart Sync application, you can control the receiver using your smartphone, giving you lots of options, whether playing music, asking for directions, making phone calls, adjusting EQ, and many more. Its Bluetooth connectivity feature allows you to stream music wirelessly and answer phone calls hands-free. It is also compatible with Pandora for music playback options. Compatible with Siri and Amazon Alexa, you can do some tasks without having to take your eyes off the road, thanks to voice command control.
Built-In Amplifier
The Pioneer MVH-S322BT has a built-in amplifier that comes with four preamp outputs, and it can handle a power output of 14 Watts RMS and can go up to 50 Watts of peak power per channel.
13-Band Graphic EQ
The receiver comes with a 13-band graphic EQ, though with the Smart Sync, you can tune the amp's frequency response using its 31-band EQ feature. It has low and high-pass filters, allowing you to filter out unwanted frequencies for a more defined audio performance. Enabling its time alignment feature allows you to hear all your speakers simultaneously.
- Maximum Power : 50x4 Watts
- Detachable Face : Yes
- RMS Power Output : 14x4 Watts
- Built-in EQ : Yes
- Preamp Voltage : 2 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Preamp Outputs : 4
Features:
- Alexa Built-in When Paired with Pioneer Smart Sync App
- Android™ Compatibility
- iPhone® Compatibility
- Works with Pandora® and Spotify®
- Built-in Bluetooth®
Specifications:
STANDARDS
PERFORMANCE
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm + 70 W X 1-ch (subwoofer) 2 Ohm
- RCA Preamp Outputs: 4-ch
- RCA Pre-out: 4V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
Display
- Display with LED Backlight: VA LCD (2-Line)
- Dimmer Setting (On/Off)
- Brightness Control: 10-Level
- Illumination Timer
Bluetooth
- Built-in Bluetooth®
- Hands-Free Profile (HFP): HFP 1.6
- Audio/Video Remote Control Profile (AVRCP): AVRCP 1.5
- Advanced Audio Distribution Profile (A2DP)
- Secure Simple Profile (SSP)
- Serial Port Profile (SPP)
- 5-Phone CONNECTION (A2DP)
- Dual Phone Connection(HFP)
Tuner
- Presets: 18 FM, 6 AM
- Best Station Memory (BSM)
- Local Seek Tuning
- RDS
- Supertuner® IIID
Pioneer Smart Sync App
- iPhone: Yes (USB/BT)
- Android: Yes (USB/BT)
Android Connectivity
- Android™ music playback (MTP)
- Pandora® control: Yes (via Bluetooth®)
- Voice Control: Yes (via Bluetooth®)
- Spotify® control: Yes (via Bluetooth®)
iPhone Connectivvity
- iPhone music playback
- Pandora® control: Yes (via Bluetooth® and USB)
- Voice Control: Yes (via Bluetooth® and USB)
- Spotify® control: Yes (via Bluetooth® and USB)
Digital Media Playback
- MP3 Audio Playback
- WMA Audio Playback
- AAC Audio Playback
- WAV Audio Playback
- FLAC Audio Playback
Audio
- RCA Preouts: 2-4v
- Built-in Amplifier: Yes
- MIXTRAX®
- Equalizer: 13 Band EQ+ 31 Band with Pioneer Smart Sync
- D/A Converter: 24-bit
- DSP
- Time Alignment: Manual
- Crossover Network: HPF/LPF
- Subwoofer Control
- Loudness: 3-Mode
- Listening Position Selector
- Advanced Sound Retriever
- Dynamic Bass Enhancer: Yes (Direct Access Key)
- Super Todoroki Sound: Yes with Pioneer Smart Sync
Expandability
- USB
- AUX Input
- Wired Remote Input
General
- Detachable Face Security
- Remote Control: Optional
- Multi-Language Display: English, French, Spanish
- UPC: 884938434393
- Weight: 2
