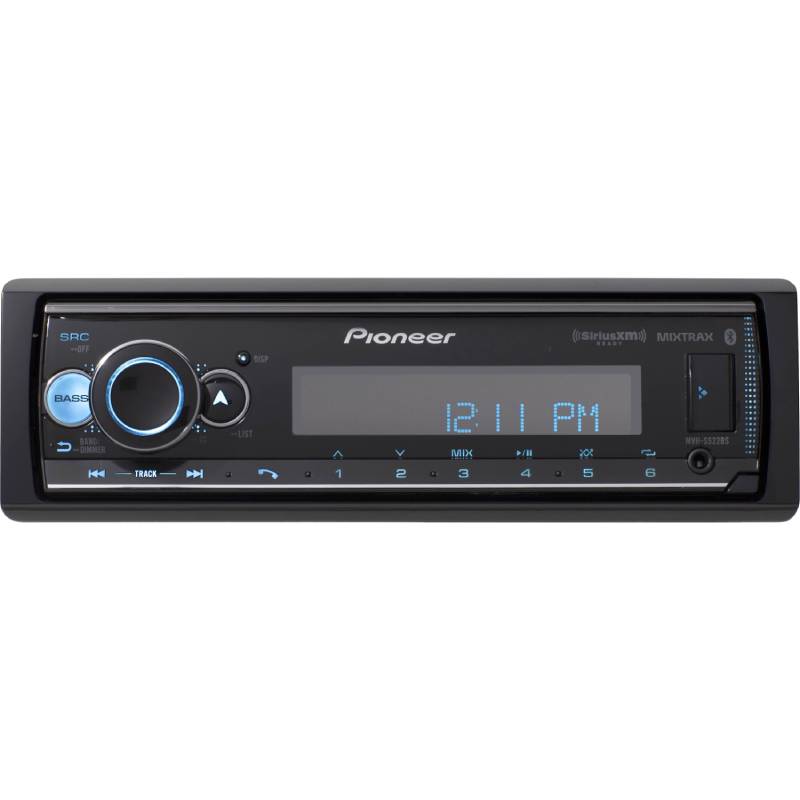

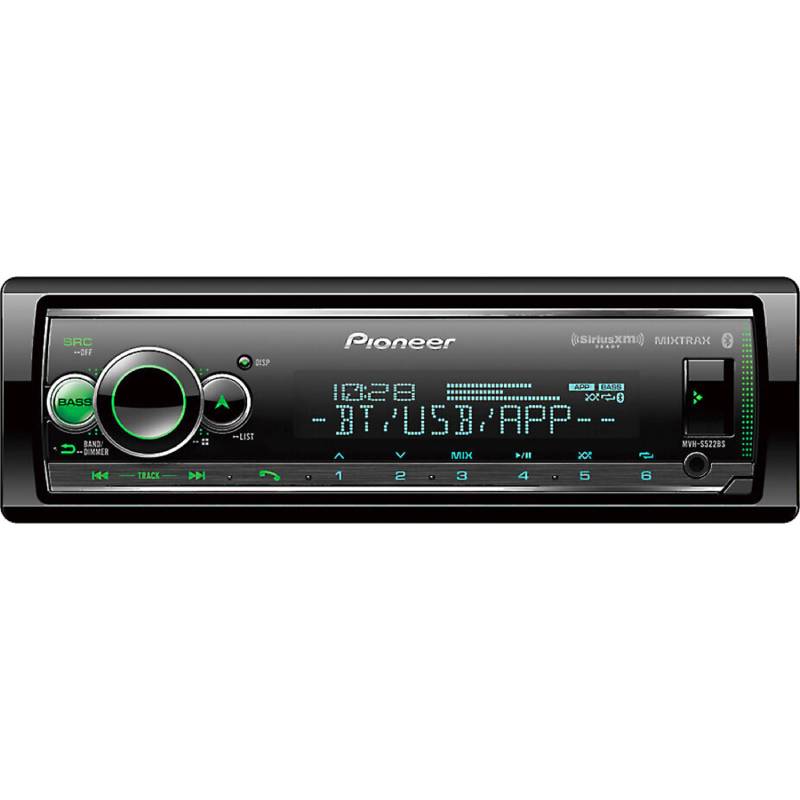

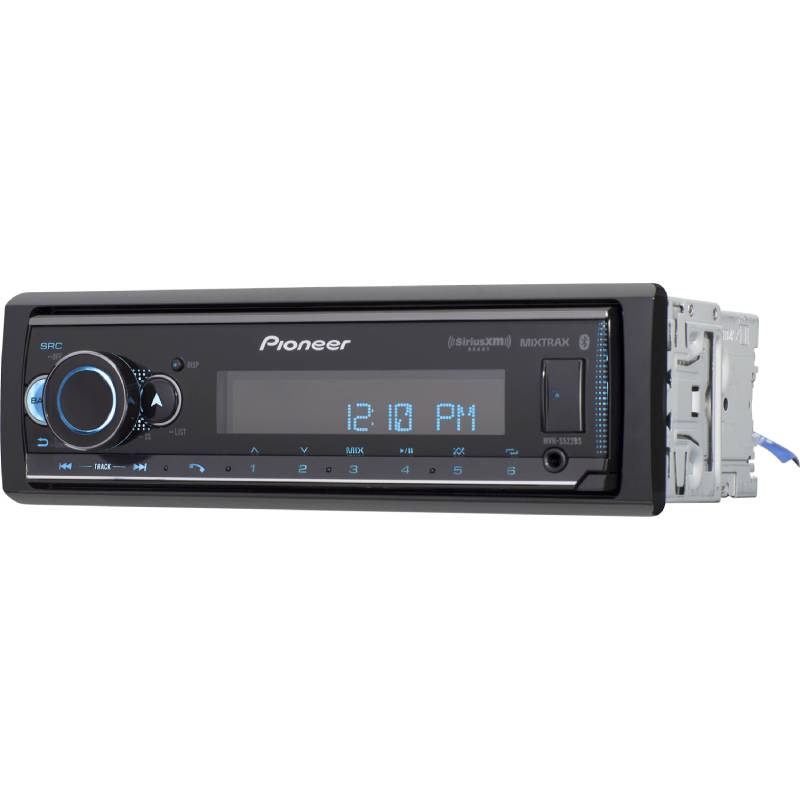

Pioneer  MVH-S522BS

1-DIN In-dash Audio Digital Media Receiver with Amazon Alexa, Pioneer Smart Sync, Bluetooth®, Android™, iPhone®

Item #55929

Condition:   Brand New

Product Highlights

  • In-dash Audio Digital Media Receiver
  • 1-DIN
  • Amazon Alexa
  • Pioneer Smart Sync
  • Bluetooth®

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$169.99

Reg. Price $260.00  Save $90.01
In Stock
In Stock

Add Extended Warranty
Getting Delivery Estimate...
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Pioneer Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Pioneer MVH-S522BS 1-DIN In-dash Audio Digital Media Receiver with Amazon Alexa, Pioneer Smart Sync, Bluetooth®, Android™, iPhone®


We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

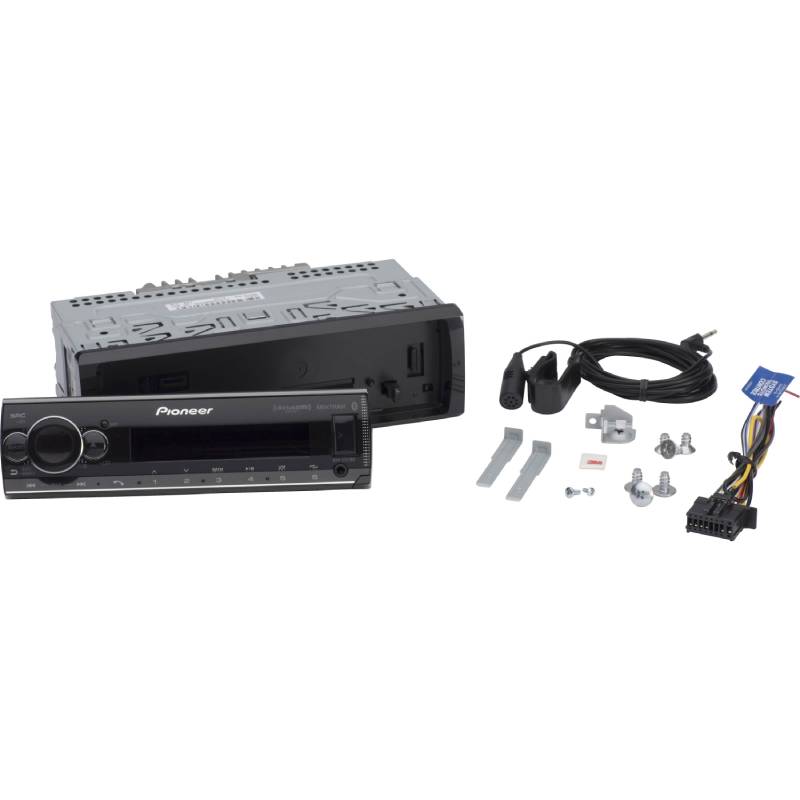

What's Inside?
  • • Digital media receiver (10A fuse)

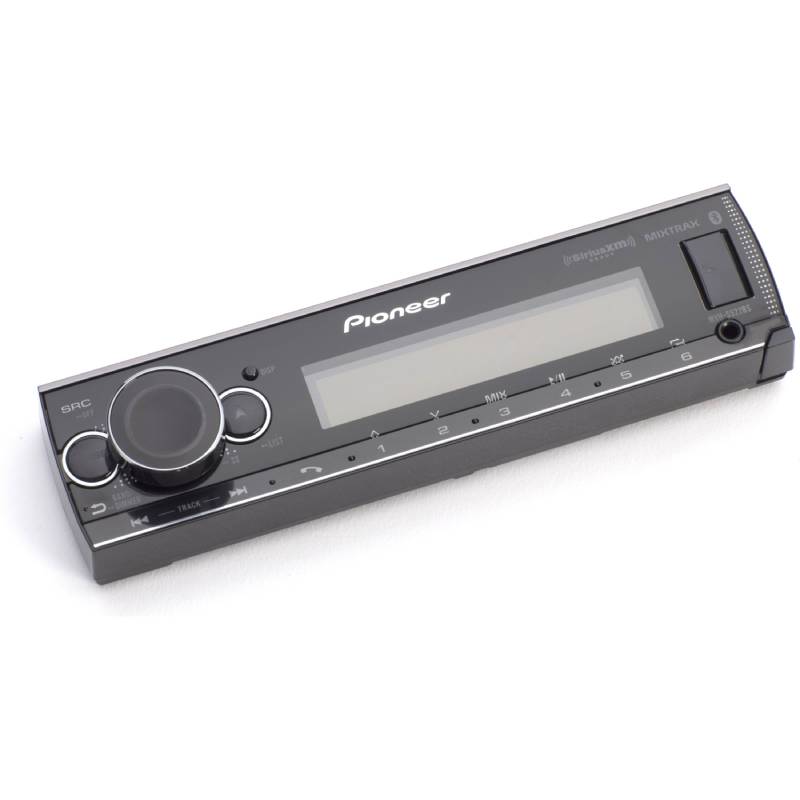

  • • Face (attached)
  • • Trim-ring (installed)
  • • Sleeve (installed)

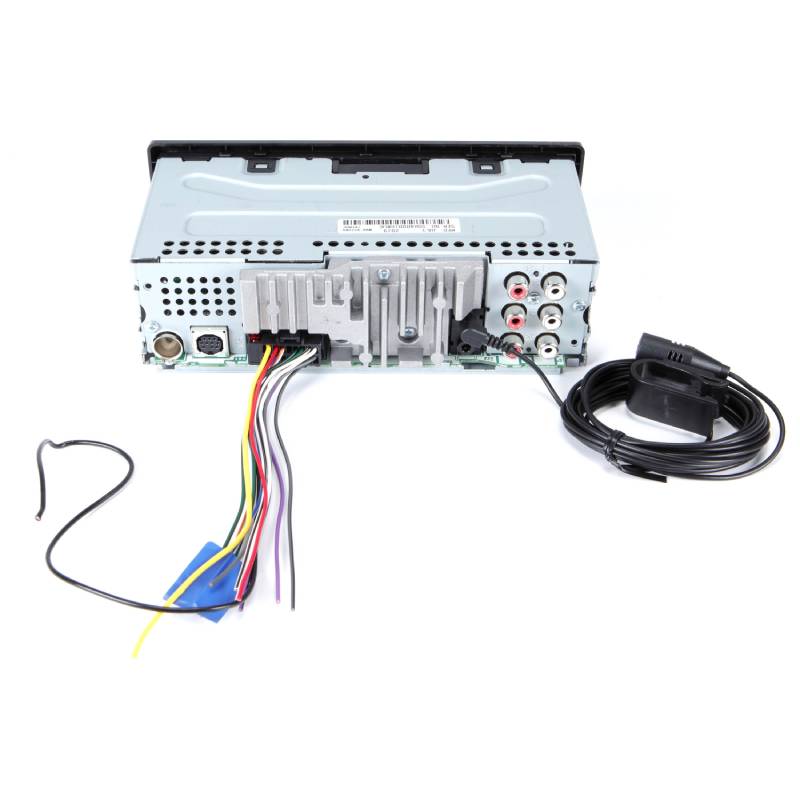

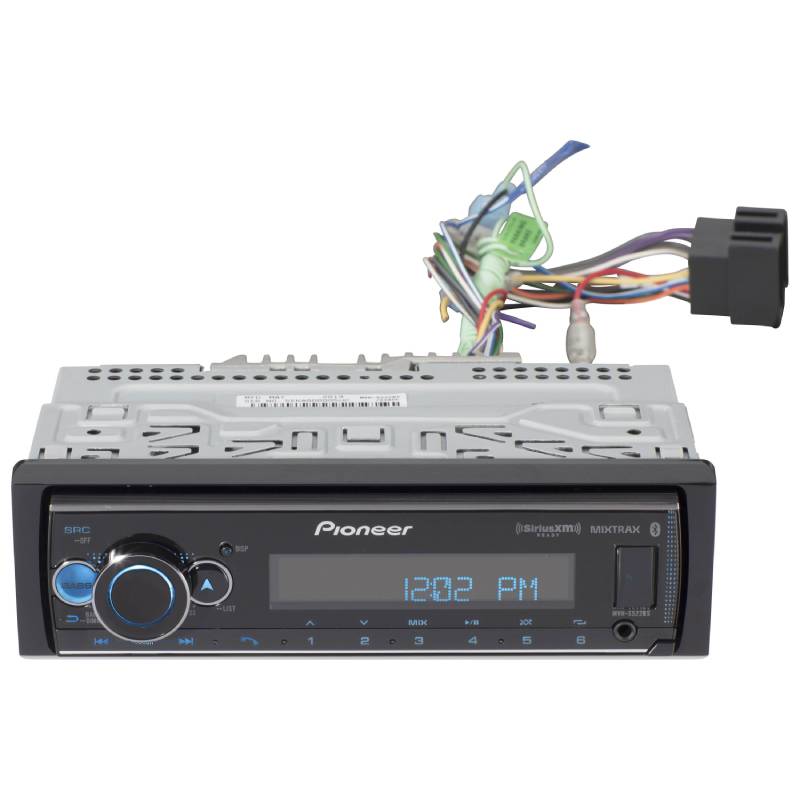

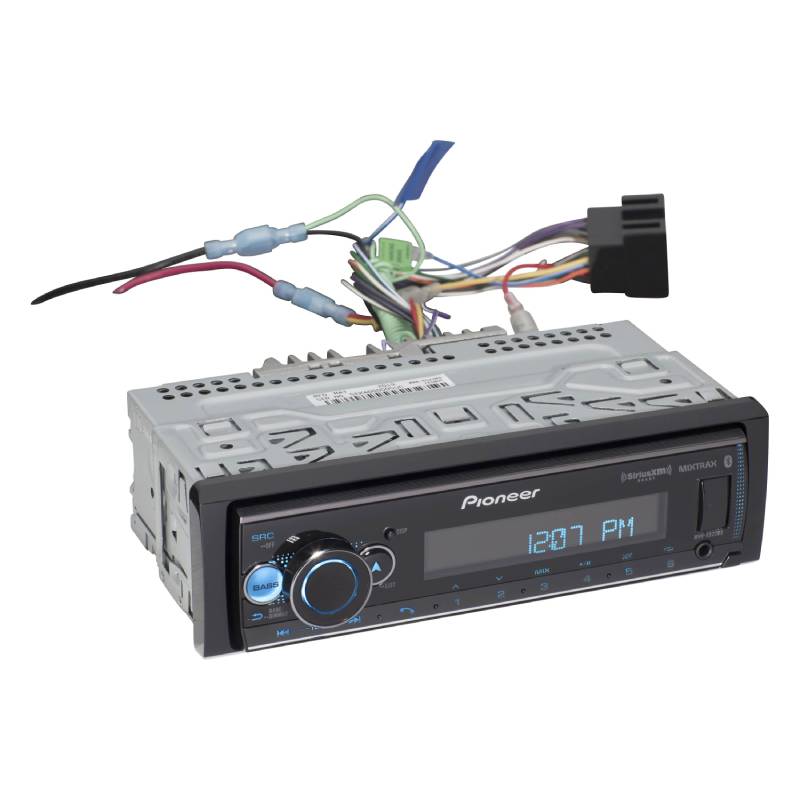

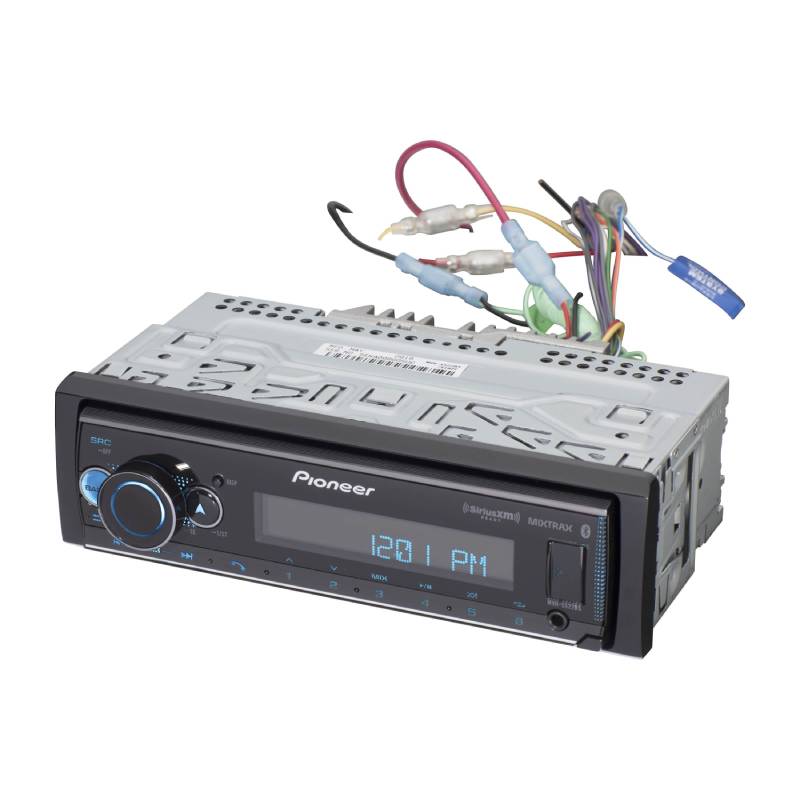

  • • Wiring harness
  • • Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
  • • (4) Pan head ISO-mount screws (M5 x 8mm)
  • • (4) Flat-head ISO-mount screws (M5 x 9mm)
  • • (2) Removal tools
  • • Face-fixing screw
  • • Bracket
  • • Quick Start Guide
  • • Warranty Information
  • Owner's Manual





Sound That Can Be Tuned Your Way

This receiver gives you plenty of control over how your music sounds. The 13-band EQ lets you fine tune frequencies to match your preference, while bass boost and loudness settings help improve depth and clarity. Advanced Sound Retriever helps bring back detail in compressed music files, making tracks sound fuller and more natural. Digital time alignment and speaker adjustment also help balance sound inside the cabin.

Smart Drive Control Made Simple

Pioneer MVH-S522BS works with Pioneer Smart Sync to bring your phone and car system together in one easy setup. You can access maps, messages, and music through a single interface that feels familiar and simple to use. Connection is done through USB or Bluetooth, so your most used apps are always within reach while you drive.

Wireless Connection That Keeps You Moving

Built-in Bluetooth 4.0 gives you stable hands-free calling and wireless music streaming without interruptions. You can pair up to five devices and switch between them when needed, which is useful when different people are sharing the system. With Alexa Built-in and voice command support for Siri or Android, you can control music, calls, and navigation without touching your phone.

Built for Music and System Expansion

You get wide music support including Spotify, Pandora, Tidal, YouTube Music, and more, plus USB playback for formats like MP3, FLAC, WAV, and AAC. The USB port also supports charging while you play music. With 4V RCA preouts, subwoofer control, crossover settings, and MIXTRAX lighting effects, the unit is ready for full audio upgrades. Optional OBD-II support also lets you view vehicle data and performance information through the same system.


SPECIFICATIONS


  • Satellite Radio Ready : Yes
  • Built-in EQ : Yes
  • DIN : 1
  • Preamp Voltage : 4 volts
  • Bluetooth : Yes
  • Aux Input : Yes
  • MP3 Playback : Yes
  • WMA Playback : Yes
  • HD Radio : No

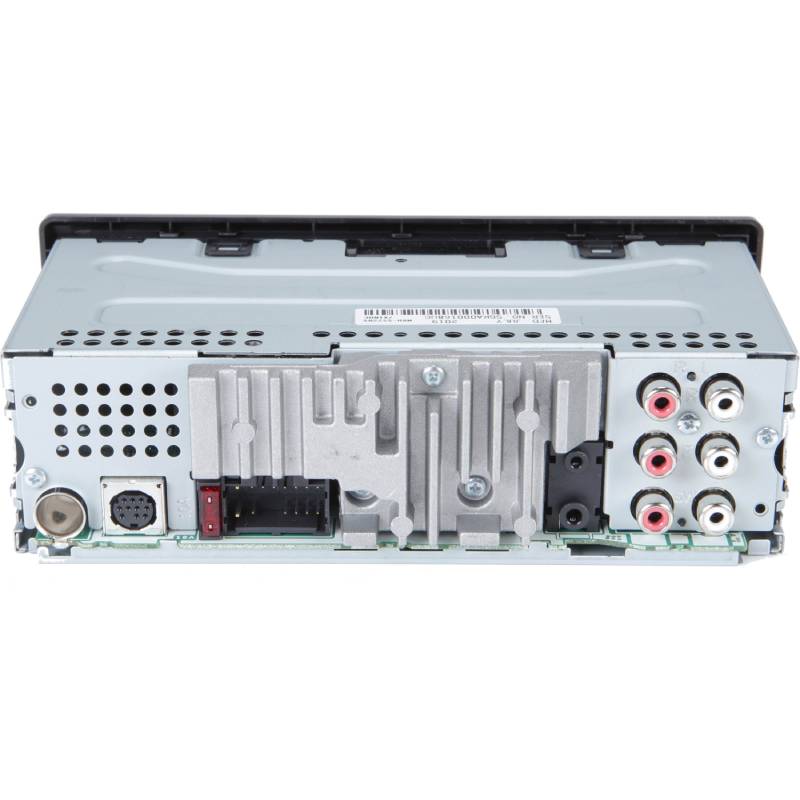

  • Preamp Outputs : Front, Rear & Sub
  • Apple CarPlay : No
  • Android Auto : No

FEATURES


Features:

  • Pioneer Smart Sync Smartphone Integration: Seamlessly connects iOS and Android devices via USB or Bluetooth, unifying maps, music, and messages into a single intuitive interface for safer and more convenient in-car control.
  • Built-in Bluetooth 4.0 Connectivity: Enables wireless hands-free calling and audio streaming with support for up to five paired devices and dual-phone connection for flexible switching between users.
  • Alexa Built-in Voice Control: Provides tap-to-activate voice access to music, news, navigation, smart home controls, and more through the Pioneer Smart Sync app for a truly connected driving experience.
  • USB & iPhone Direct Connect Support: Delivers stable playback of stored music and app-based audio from Android (MTP) and iPhone devices, with fast charging support up to 1.5A.
  • Extensive Music & App Compatibility: Works with major streaming platforms including Spotify, Pandora, Tidal, YouTube Music, SoundCloud, and more, with full browsing and playback control.
  • Advanced Audio Tuning System: Features a 13-band graphic EQ, preset sound profiles, bass boost, loudness control, and Advanced Sound Retriever for clearer, richer audio from compressed files.
  • Precision DSP Sound Control: Offers digital time alignment, listening position adjustment, and independent speaker level tuning to optimize sound staging inside the vehicle cabin.
  • Flexible Crossover Network: Provides adjustable high-pass and low-pass filters with selectable slopes for precise tuning of speakers, midrange, and subwoofer systems.
  • 4V 3-Pair RCA Preouts with Subwoofer Control: Supports front, rear, and subwoofer outputs with adjustable sub level and phase control for easy system expansion and fine-tuning.
  • MIXTRAX Lighting & Illumination Control: Delivers dynamic, club-style lighting effects with over 210,000 color options synchronized to music playback for enhanced in-car atmosphere.
  • Siri Eyes-Free & Voice Command Support: Allows hands-free control for calls, navigation, messaging, and music using Siri or Android voice recognition for safer driving.
  • Comprehensive Media Format Support: Plays MP3, WMA, AAC, FLAC, and WAV files via USB with support for large libraries and full metadata display.

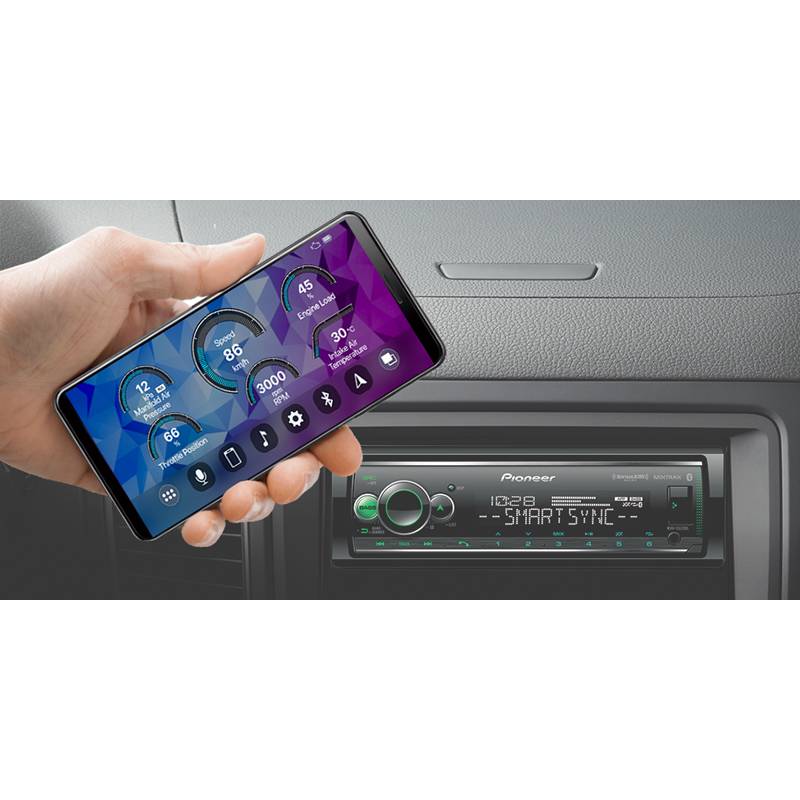

  • Optional Vehicle Monitoring via OBD-II: Enables real-time access to vehicle diagnostics, performance data, and driving statistics through compatible Bluetooth OBD-II adapters and the Smart Sync app.



Specifications:

  • CTA-2006: Yes
  • Continuous Power Output: 22 W x 4-Channel
  • Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
  • Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm + 70 W X 1-ch (subwoofer) 2 Ohm
  • RCA Preamp Outputs: 6-ch
  • RCA Pre-out: 4V
  • RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
  • Display with LED Backlight: VA LCD (2-Line)
  • Dimmer Setting (On/Off): Yes
  • Brightness Control: 10-Level
  • Color Customization: 210,000 Colors, Dual-Zone
  • Illumination Timer: Yes
  • Built-in Bluetooth®: Yes
  • Hands-Free Profile (HFP): HFP 1.6
  • Audio/Video Remote Control Profile (AVRCP): AVRCP 1.5
  • Advanced Audio Distribution Profile (A2DP): Yes
  • Secure Simple Profile (SSP): Yes
  • Serial Port Profile (SPP): Yes
  • 5-Phone CONNECTION (A2DP): Yes
  • Dual Phone Connection(HFP): Yes
  • Presets: 18 FM, 6 AM
  • Best Station Memory (BSM): Yes
  • Local Seek Tuning: Yes
  • RDS: Yes
  • Supertuner® IIID: Yes
  • iPhone: Yes (USB/BT)
  • Android: Yes (USB/BT)
  • Android™ music playback (MTP): Yes
  • Pandora® control: Yes (via Bluetooth®)
  • Voice Control: Yes (via Bluetooth®)
  • Spotify® control: Yes (via Bluetooth®)
  • iPhone music playback: Yes
  • Pandora® control: Yes (via Bluetooth® and USB)
  • Voice Control: Yes (via Bluetooth® and USB)
  • Spotify® control: Yes (via Bluetooth® and USB)
  • MP3 Audio Playback: Yes
  • WMA Audio Playback: Yes
  • AAC Audio Playback: Yes
  • WAV Audio Playback: Yes
  • FLAC Audio Playback: Yes
  • RCA Preouts: 3-4v
  • Built-in Amplifier: Yes
  • MIXTRAX®: Yes
  • Equalizer: 13 Band EQ+ 31 Band with Pioneer Smart Sync
  • Time Alignment: Manual
  • Crossover Network: 3-Way Network Mode
  • Subwoofer Control: Yes
  • Loudness: 3-Mode
  • Listening Position Selector: Yes
  • Advanced Sound Retriever: Yes

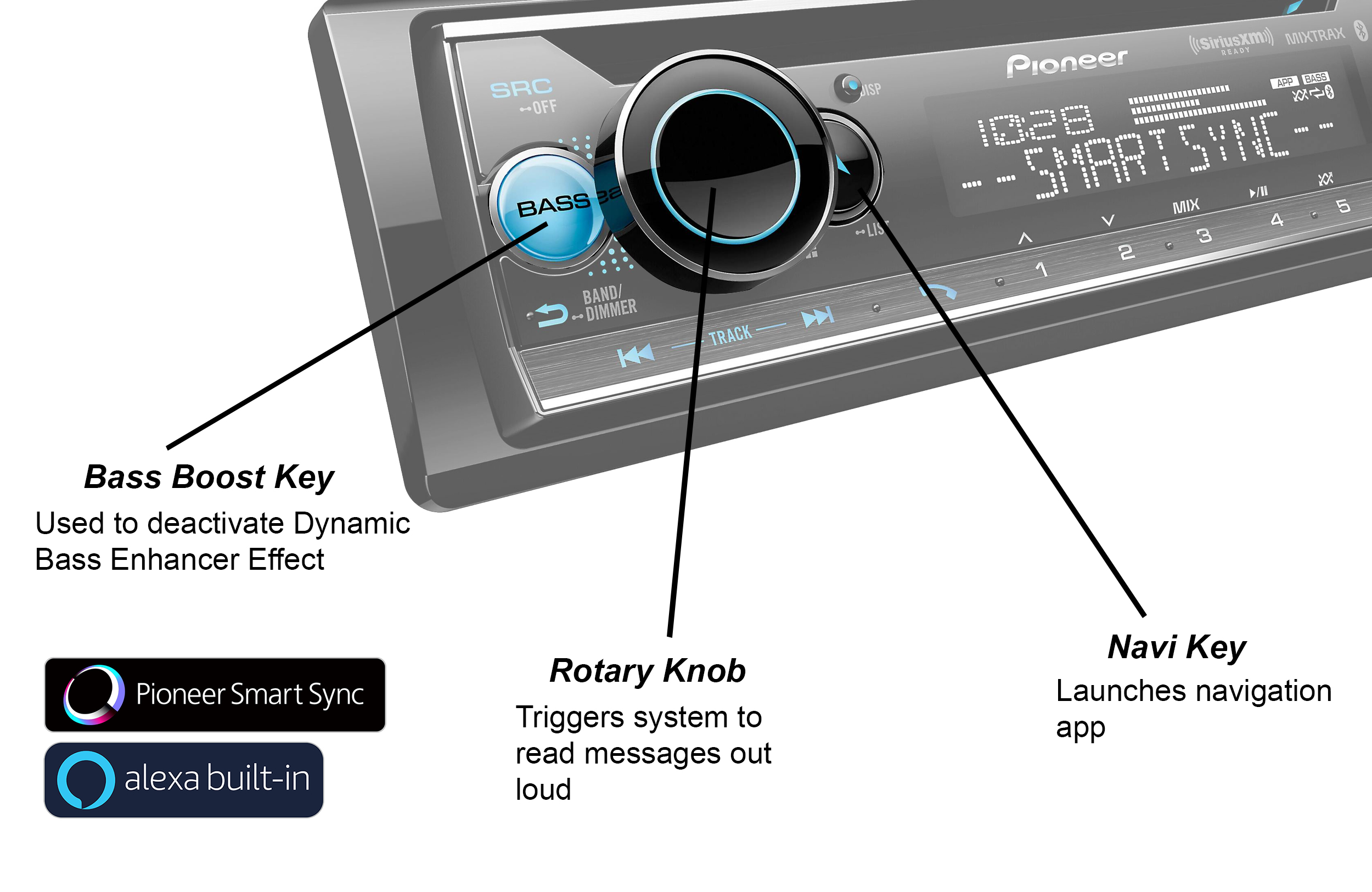

  • Dynamic Bass Enhancer: Yes (Direct Access Key)
  • Super Todoroki Sound: Yes with Pioneer Smart Sync
  • USB: Yes
  • AUX Input: Yes
  • Wired Remote Input: Yes
  • SiriusXM-Ready™ (tuner sold separately): Yes
  • SiriusXM Tune Start & Tune Scan: Yes

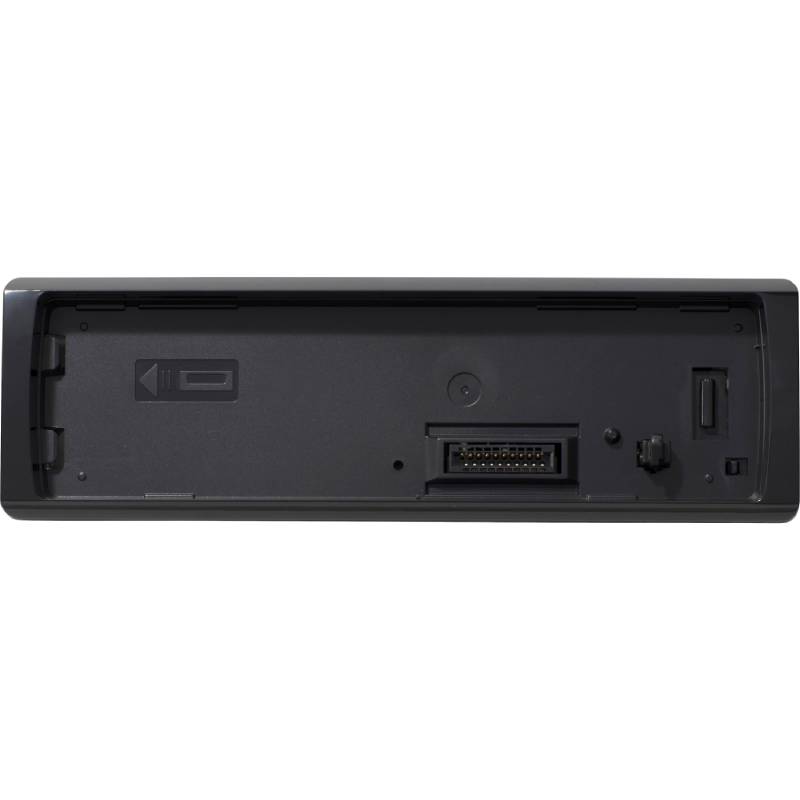

  • Detachable Face Security: Yes
  • Remote Control: Optional
  • Multi-Language Display: English, French, Spanish
  • Warranty (must be purchased from a Authorized Pioneer Dealer): 1 year
  • UPC: 884938434515
  • Weight: 2
  • Authorized Internet Dealer
