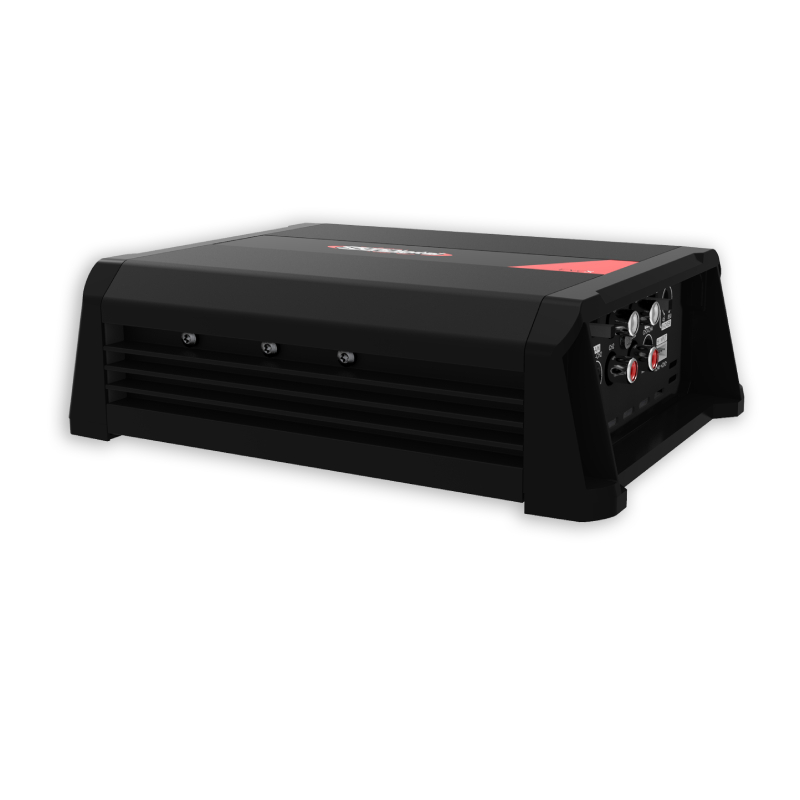

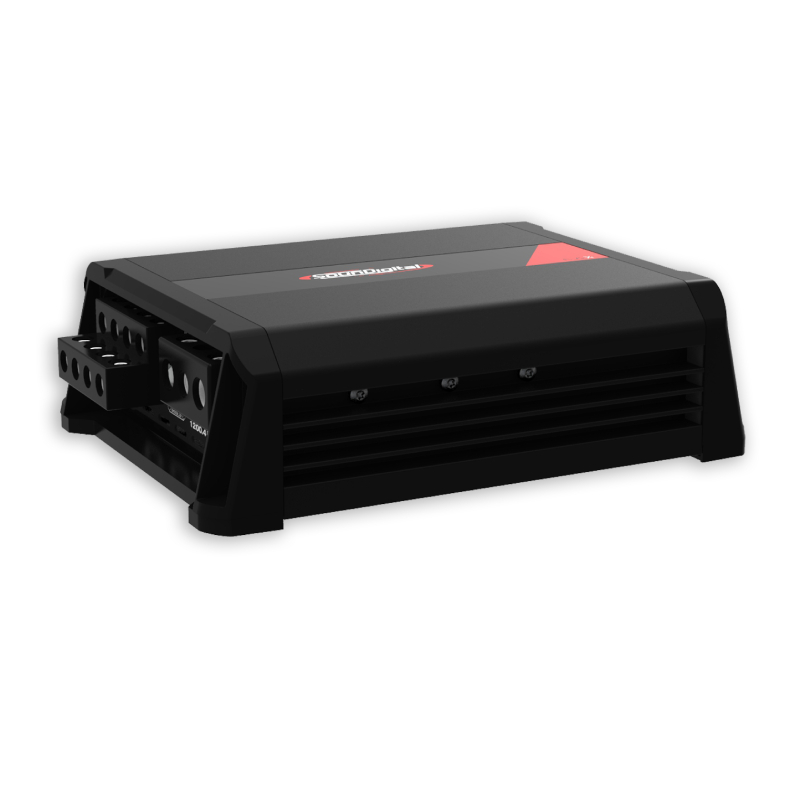

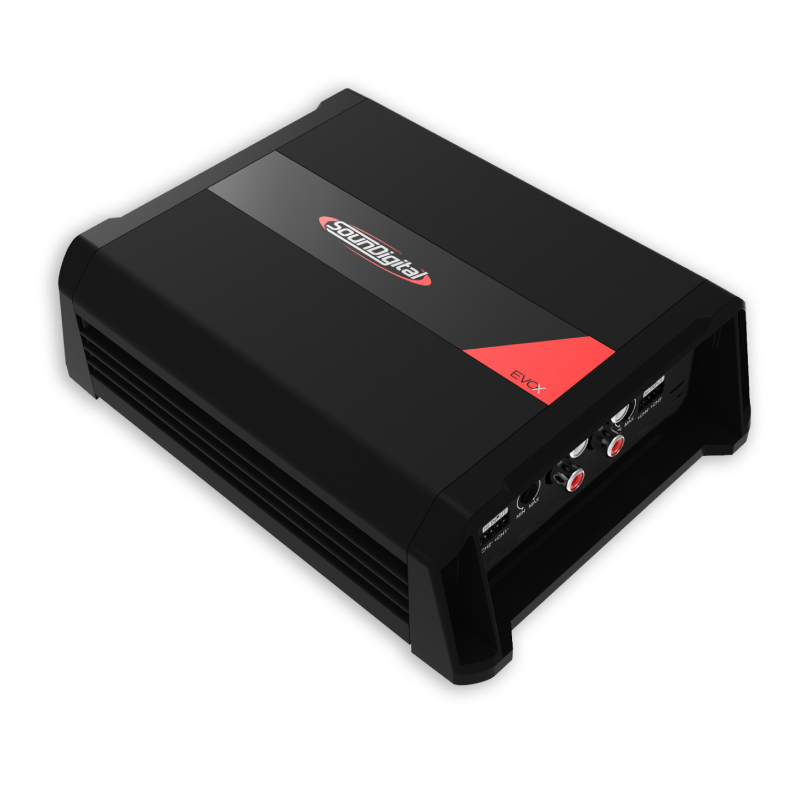

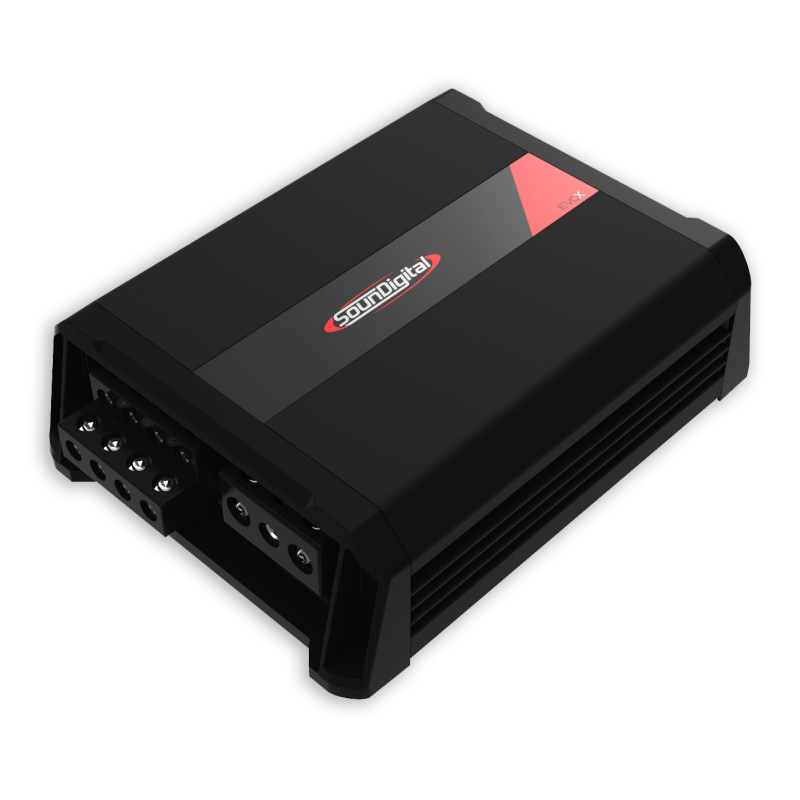

The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.
The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.
- Number of Channels : 4
- Frequency Response : 5-22000 Hz
- Fuse Rating : 60 A
Specifications:
- Power @ 12.6V @ 4 ohms: 4 X 198 WRMS
- Power @ 12.6V @ 2 ohms: 4 X 300 WRMS
- Power @ 12.6V @ 1 ohms: N/A
- Bridge Power @ 12.6V @ 4 ohms: 2 X 600 WRMS
- Bridge Power @ 12.6V @ 2 ohms: N/A
- Power @ 14.4V @ 4 ohms: 4 X 221 WRMS
- Power @ 14.4V @ 2 ohms: 4 X 335 WRMS
- Power @ 14.4V @ 1 ohms: N/A
- Bridge Power @ 14.4V @ 4 ohms: 2 X 669 WRMS
- Bridge Power @ 14.4V @ 2 ohms: N/A
- Operating Voltage: 8V – 16V
- Current Draw (Music): 58 A
- Current Draw (Max): 116 A
- Recommended Fuse (Music): 70 A
- Total Efficiency: 82%
- Damping Factor: 200
- Frequency Response (-3dB): 5Hz – 22kHz
- SNR: 91dB
- Crossover HPF: 45Hz – 850Hz
- Crossover LPF: 45Hz – 850Hz
- THD + N (10% Rated Power): 0.1%
- Product Dimensions: 7.1 x 5.4 x 2.2 in
- Product Dimensions: 18.1 x 13.6 x 5.5 cm
- UPC: 7898644522506
- Weight: 4.01
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
