AudioControl High-power Multi-channel Amplifier with AccuBASS®
We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • LC-4.800
- • Speaker connectors
- • Fuses
- • Manual
- • Warranty
Delivers Exceptional Performance
The AudioControl LC-4.800 amplifier is a game-changer for car audio enthusiasts looking to take their sound system to the next level. Designed with precision engineering and packed with innovative features, this amplifier delivers exceptional performance, versatility, and control.
Ensure Optimal Performance
With its powerful 4-channel design, the LC-4.800 provides a maximum power output of 800 watts, allowing you to drive your speakers with clarity and precision. The amplifier's advanced features, such as AccuBASS and GTO Signal Sense, ensure optimal performance and compatibility with various audio systems.
Features High-level Inputs
The LC-4.800 also features high-level inputs, making it compatible with factory head units and low-level inputs for aftermarket systems. Its configurable crossovers allow for precise sound tuning, giving you full control over the audio output. AudioControl is renowned for its commitment to sound quality, and the LC-4.800 is no exception. It utilizes high-quality components and advanced circuitry to deliver clean, distortion-free audio across the entire frequency spectrum.
Straightforward Setup Process
Installation is made easy with the compact design and user-friendly controls of the LC-4.800. Whether you're a DIY enthusiast or working with a professional installer, you'll appreciate the straightforward setup process.
- Maximum Power : 1600 Watts
- Low Frequency Response : 30-400 Hz
- High Frequency Response : 30-400 Hz
- Number of Channels : 4
- Frequency Response : 10-30000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 125x4 Watts
- Channel Separation : Yes
- Amplifier Class : D
- Fuse Rating : 80 A
- XP750-SE OFFER : Yes
Features:

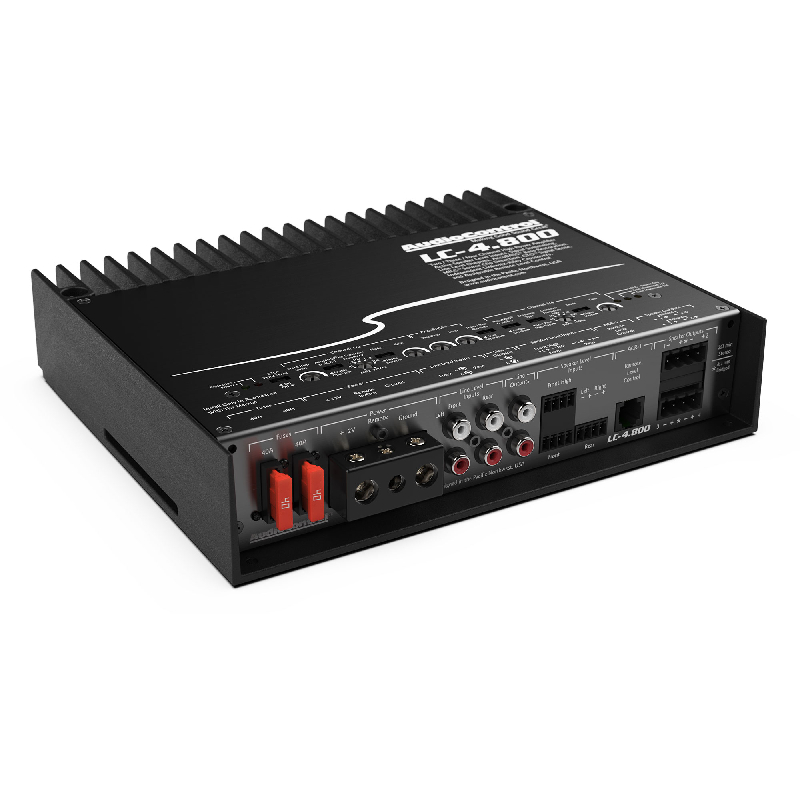

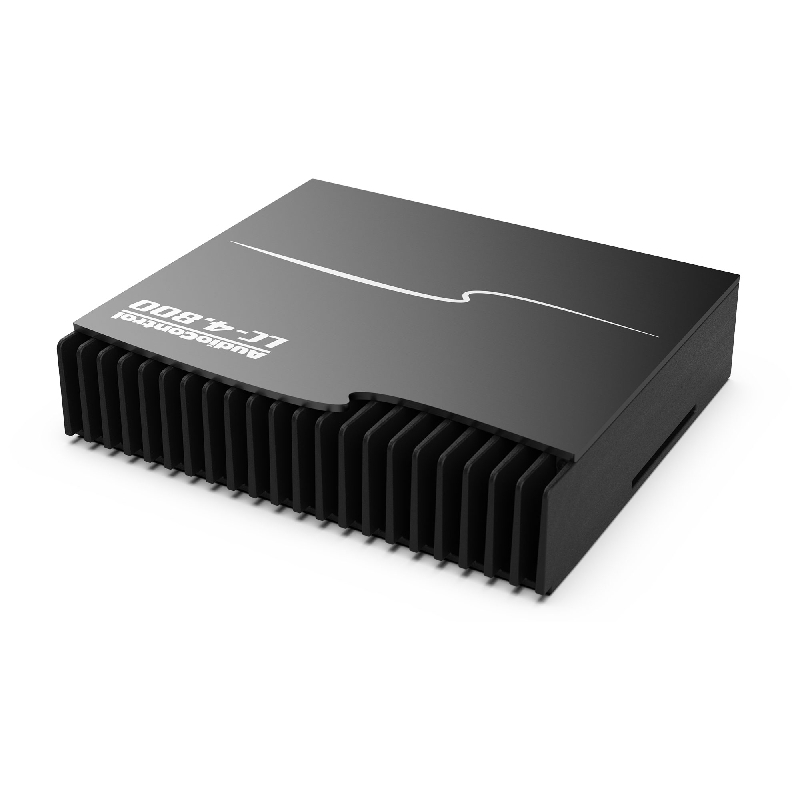

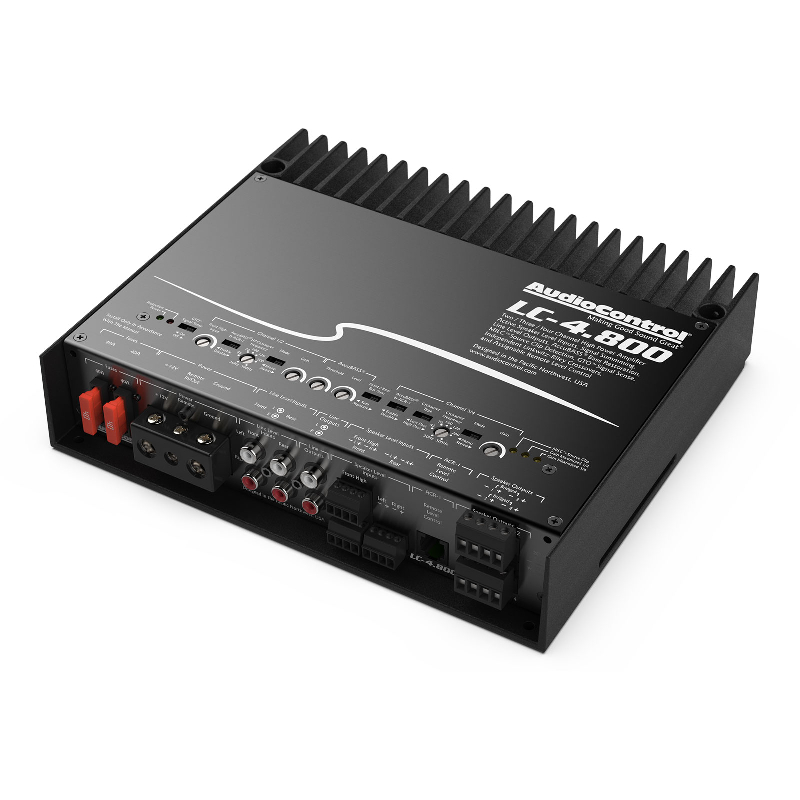

- Overview: This AudioControl LC-4.800 multi-channel amplifier can enhance the sound of your car stereo system, whether it's a factory system or an aftermarket one. The amp will accept speaker-level or line-level inputs, and can be configured for 4-channel, 3-channel, or 2-channel operation. The LC-4.800 features a black brushed aluminum chassis, with black powder-coated cast alloy heat sinks and bottom panel in one piece. A black brushed aluminum cover is provided to protect the amp controls from tampering. A 2.5mm Allen wrench (supplied) is needed to remove the cover.
- Maximum Input Level Control (MILC): The amplifier analyzes the input signal to detect any clipping. If the signal reaches the level of clipping, the MILC Source Clip LED glows red, prompting you to turn down the gain level. When the gain level is maximized, a green LED will glow to indicate the gain is set to the optimum level.
- AccuBASS: The patented AccuBASS processing circuit compensates for factory bass rolloff to improve bass performance, especially with most factory installed sound systems. The circuit has two rotary controls: the Threshold lets you dial in the level at which the AccuBASS will begin to work, while the Level control raise or lower the level of AccuBASS compensation.
- ACR-1 Remote: The optional AudioControl ACR-1 wired remote, when enabled, lets you adjust the level of the main outputs, and the line outputs, from the driver's seat. A switch, located on the top of the amp under the removable cover, lets you enable or disable AccuBASS and the ACR-1. If disabled, the ACR-1 only controls the level of the line outputs. The ACR-1 comes with a 20' cable.

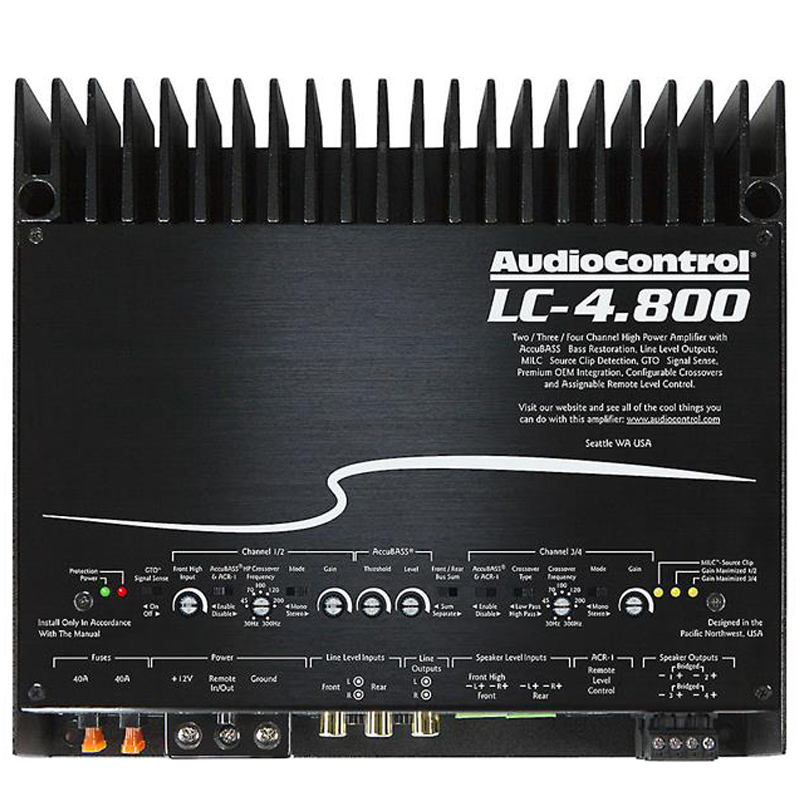

- Controls: The LC-4.800's controls are located under a removable protective panel. The included 2.5mm Allen wrench is needed for removing the panel during setup. A flat-head screwdriver (not included) is needed to adjust the rotary controls. The amp's controls are as follows:
- GTO Signal Sense: If you are connecting the amplifier to a factory stereo, or an aftermarket unit without preamp outputs and a remote turn-on lead, you can set the GTO Signal Sense to "On" and the amplifier will turn on when an audio signal is detected on the line-level or speaker-level inputs. After a period of time with no signal input, the amp will turn itself off.
- Fuses: Two 40A ATO blade-type fuses are installed in the amplifier.

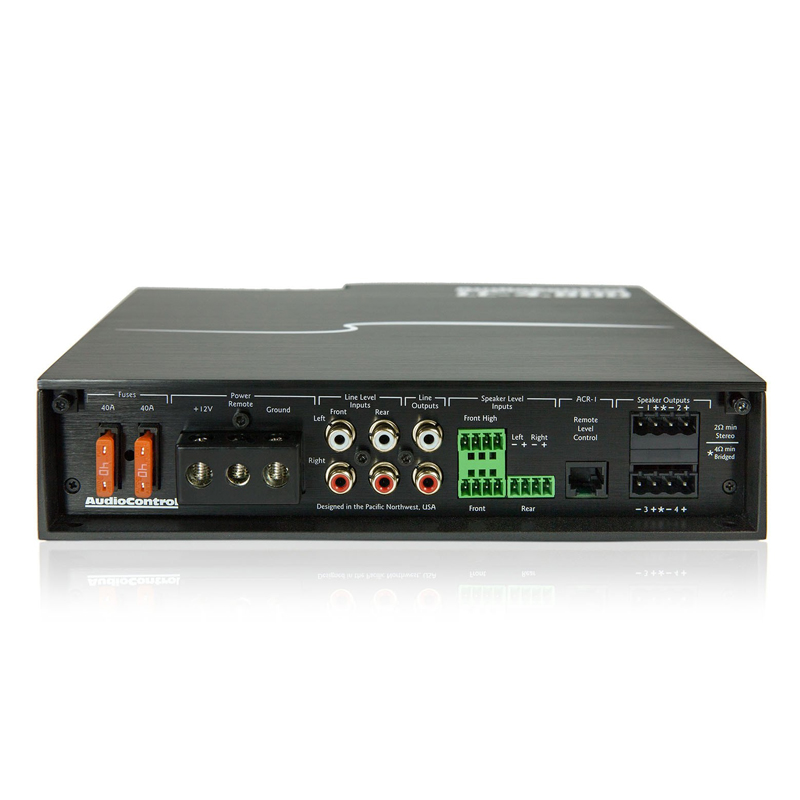

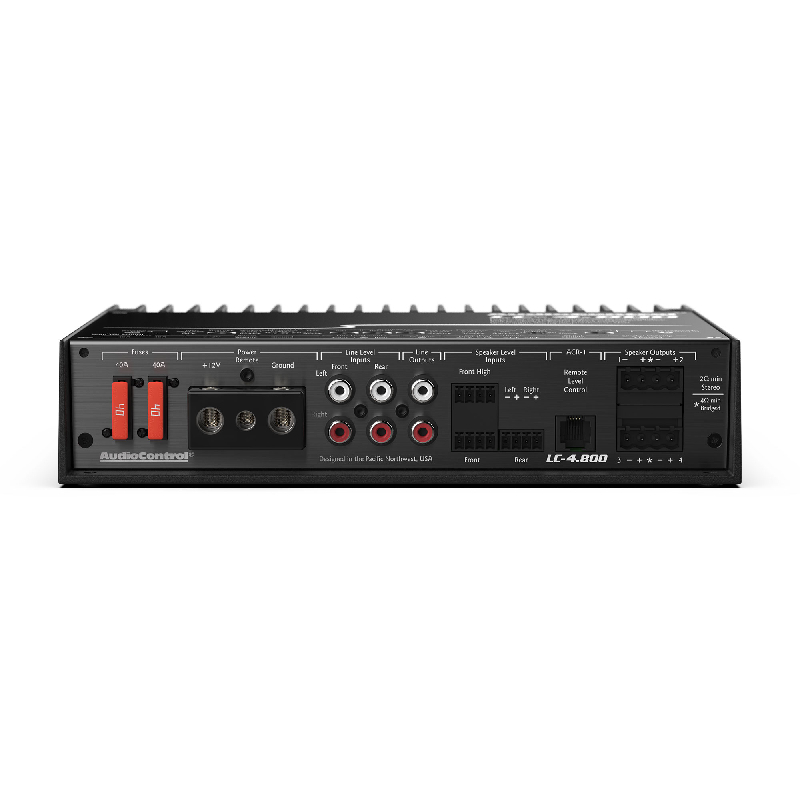

- Power: Set-screw terminals are provided for connecting +12V Power, Ground, and Remote In. The set screws can be tightened/loosened with a Phillips-head screwdriver (not included). The Power and Ground terminals will accept up to 3-gauge wire, while the Remote In terminal accepts up to 6-gauge. An 80A fuse should be placed in-line on the power wire, no more than 18" from the battery.
- Line Level Inputs: Two pairs of RCA jacks are provided for connecting the amp to the source unit via RCA cables.
- Line Level Output: One pair of RCA jacks for feeding the signal to another amplifier.
- Speaker Level Input: Three sets of removable Phoenix (or Euroblock) connectors are provided for connecting the source unit via speaker-level input. The speaker wires are inserted into the connector and tightened with a screwdriver (5/64" Precision Phillips-head, not supplied). The connectors are labeled Front High (for tweeters), Front, and Rear.
- ACR-1 Remote Level Control: This RJ-14 telephone-type connection allows you to plug in the optional ACR-1 Remote. The ACR-1 controls the output level of the amplifier and line outputs.
- Speaker Output: Removable Phoenix connectors are provided for connecting speaker wire up to 12 gauge. The amplifier will accept a load impedance of 2Ω or higher in stereo (4Ω or higher when bridged). The speaker wires are inserted into the connector and tightened with a screwdriver (9/64" Precision Phillips-head, not supplied).
Specifications:
- Rated Continuous (RMS) Power at 14.4V: 4 OHM – 125 W x 4 RMS
- Weight: 5.0lbs (2.0kg)
- Input Voltage Range: 250 mV – 8 V RMS
- Crossover: Linkwitz-Riley, Adjustable From 30 Hz – 300 Hz
- Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
- Preamp Outputs: 2
- Dimensions: 9W x 7.95D x 2.1H
- Fuse Rating: 2 x 40 A
- PFM Subsonic Filter: 32 Hz
- Frequency Response: 10 Hz – 30 kHz
- Preamp Inputs: 4 balanced
- 2 OHM – 200 W x 4 RMS Bridged 4 OHM – 400 W RMS
- Maximum Preamp Output: 8.5 V RMS
- Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
- THD+N: < 0.1%
- Minimum Power / Ground Wire Gauge: 3 AWG wire
- AccuBASS
- Premium OEM Integration
- Configurable crossovers
- 4 x 125 watts @ 4 ohms
- 4/3/2 channel high power amplifier
- Line level outputs
- GTOTM Signal Sense
- 4 x 200 watts @ 2 ohms
- Bridgeable
- MILCTM Source Clip Detection
- Signal summing
- Optional ACR-3 Assignable Remote Level & Preset Control
- UPC: 855814005785
- Weight: 5
