Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

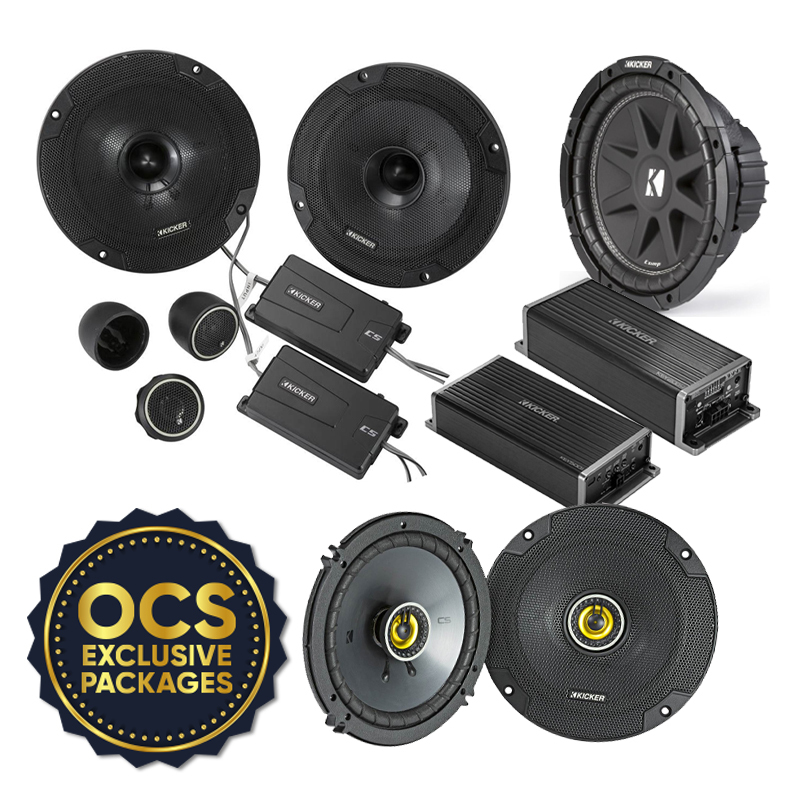

Kicker 47KEY2004 + Kicker 47KEY5001 + Kicker 43C104 + Kicker 46CSC654 + Kicker 46CSS654 Exclusive Stage System
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 47KEY2004 4-Channel amplifier
- • 47KEY2004 12" Power/ground/speaker output harness
- • 47KEY2004 12" Input harness
- • 47KEY2004 Loop wire w/ inline fuse holder
- • 47KEY2004 20-amp ATO fuse (installed)
- • 47KEY2004 Calibration microphone w/ attached 11.5' cable and inline Activation button (cable terminated in a 3.5mm TRS plug)
- • 47KEY2004 16" Rubber microphone strap
- • 47KEY2004 (2) 12" wire ties
- • 47KEY2004 (4) 1" screws
- • 47KEY5001 Monoblock amplifier
- • 47KEY5001 12" Input harness (4-pin Molex to female RCA)
- • 47KEY5001 (4) 1" screws
- • 47KEY5001 (2) 12" wire ties
- • 47KEY5001 3mm Allen key
- • 43C104 10" Subwoofer
- • 43C104 Rubber magnet boot (installed)
- • 43C104 (2) Kicker decals
- • 46CSC654 (2) 2-way speakers
- • 46CSC654 (2) Grilles
- • 46CSC654 (2) 12" Lengths of speaker wire (tinned wire on one end and female quick slides on the other)
- • 46CSC654 (4) Red plastic wire caps
- • 46CSC654 (8) 1-1/8" Screws
- • 46CSC654 (8) Speed clips
- • 46CSS654 (2) woofers
- • 46CSS654 (2) Woofer grilles

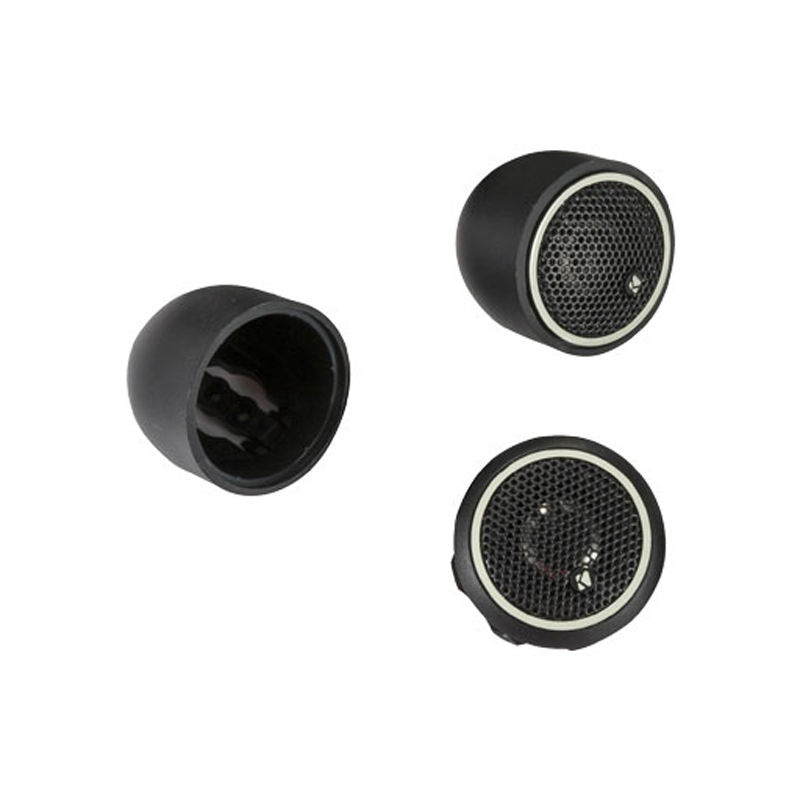

- • 46CSS654 (2) tweeters (each with 36" Wire attached)

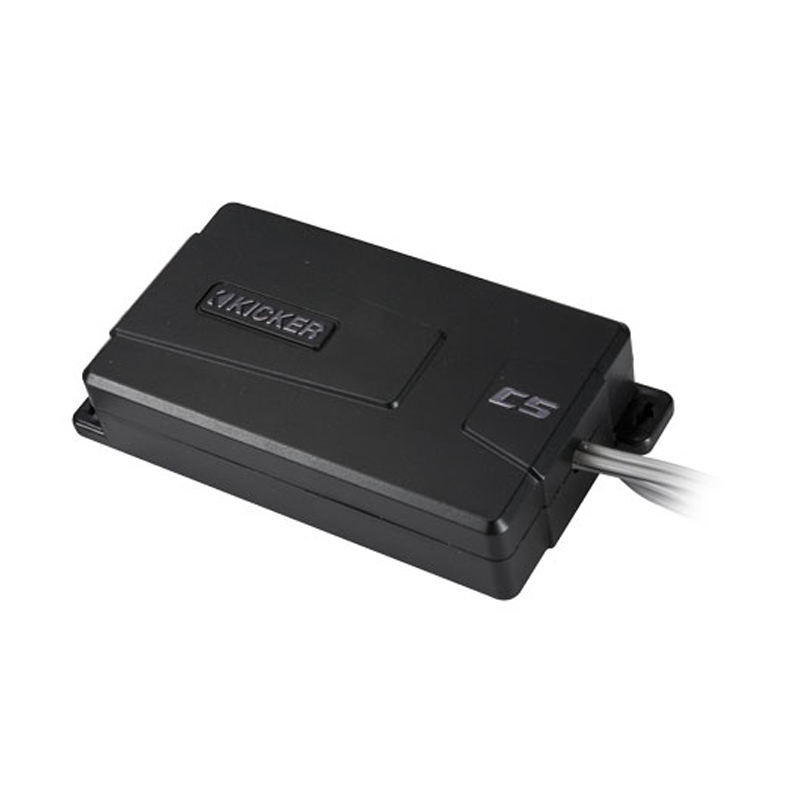

- • 46CSS654 (2) Crossovers (each with 35" Input wire/ 35" Tweeter output wire/ 35" Woofer output wire attached)
- • 46CSS654 (2) Flush mount tweeter rings
- • 46CSS654 (2) Short tweeter mounting nuts
- • 46CSS654 (2) Long tweeter mounting nuts
- • 46CSS654 (2) Back angled tweeter rings
- • 46CSS654 (2) Front angled tweeter rings
- • 46CSS654 (2) Angled surface mount tweeter housings
- • 46CSS654 (12) 1" Screws
- • 46CSS654 (4) 5/8" Screws
- • 46CSS654 (8) Speed clips
- • 46CSS654 (4) 7" Zip-ties
- • 46CSS654 (4) Red plastic wire caps
- • Owner's Manual

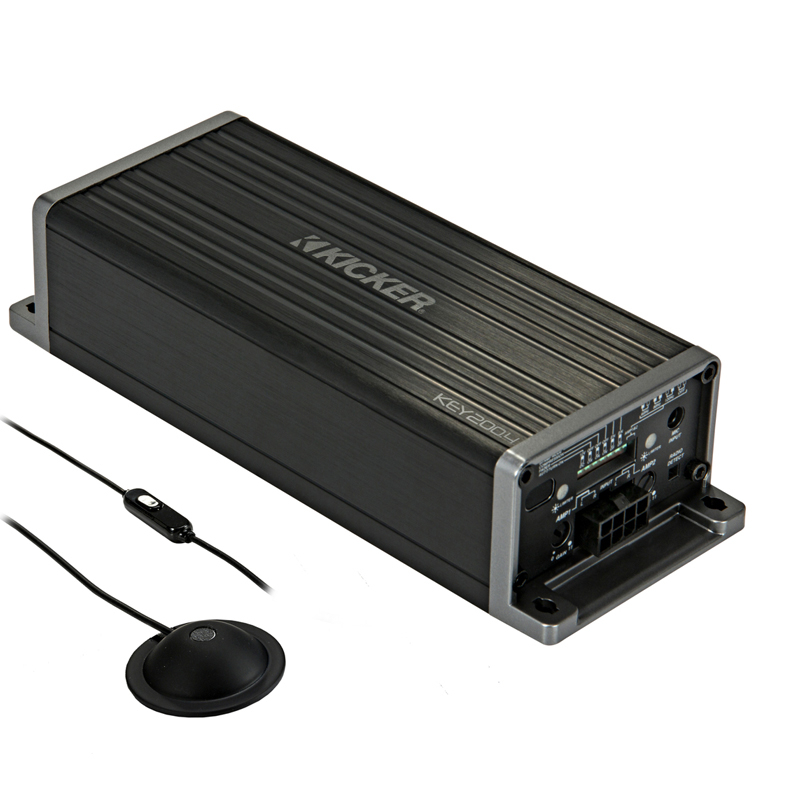

Kicker 47KEY2004
In the pursuit to get the best sound possible from your stereo system that features both factory and aftermarket gear, KEYLOC’s patent-pending KEY™ algorithm automatically detects and analyzes crossovers, EQ, time delay, and all-pass filters present, and then it will level-match the left and right audio channels. Once analyzed, it corrects these various filters to give you the smoothest frequency response possible, giving you a clean, uncolored audio signal for your aftermarket gear.

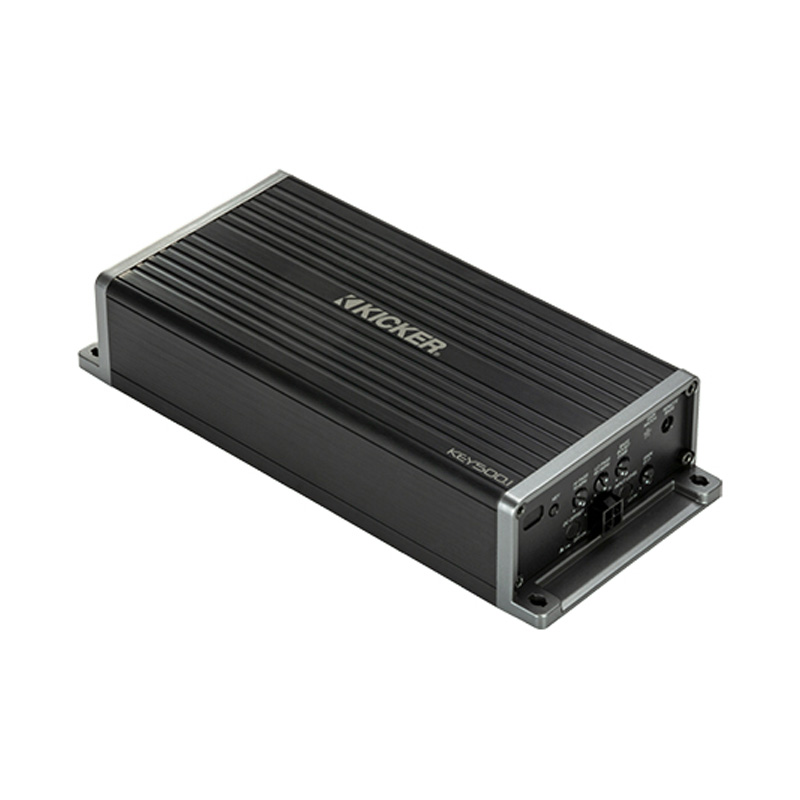

Kicker 47KEY5001
To hear what you’ve done, cycle the EQ correction on and off with a single push of the KEYLOC’s “KEY” button – hear the before and after! Additionally, if KEYLOC detects any all-pass filters or factory time delay, you can choose to defeat the correction (from the menu) and keep the imaging of the factory source unit. By keeping the correction filter active, KEYLOC will counteract either of these factory effects so you can use an external audio processor to dial in a one-seat tune for the ultimate sound experience.

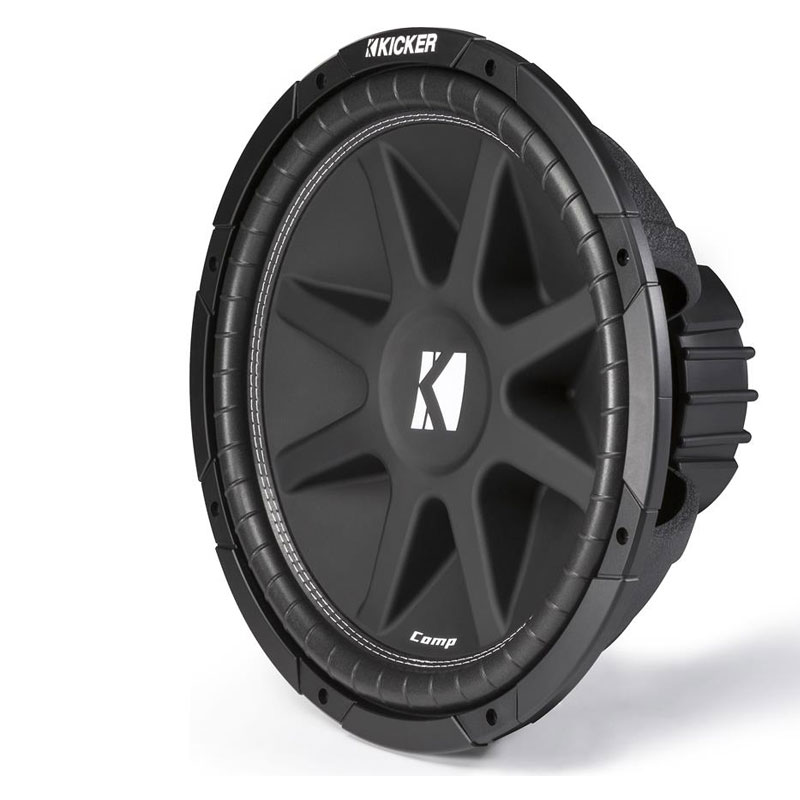

Kicker 43C104
KICKER® 2016 Comp Subwoofers are all about that KICKER bass! A ribbed, UV-treated surround with white double stitching binds the suspension to a thick polypropylene cone for excellent reliability. High-quality stamped steel is used for the basket for outstanding stability under extreme stress. The bumped back plate allows the high-temp voice coil to move even more, so you get deeper bass without distortion. Perimeter venting allows air to move freely around the motor for excellent heat management.

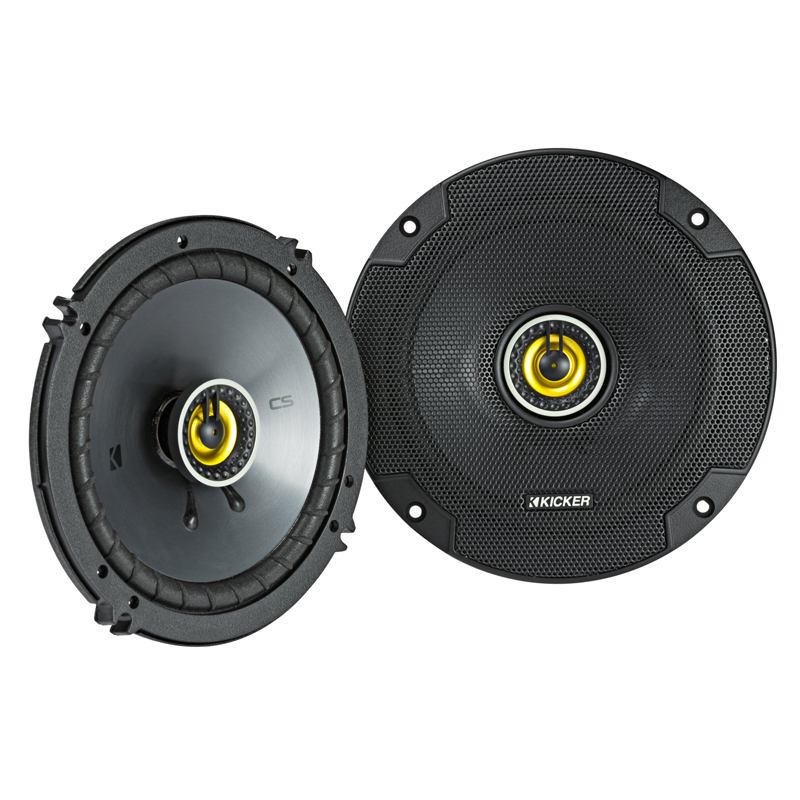

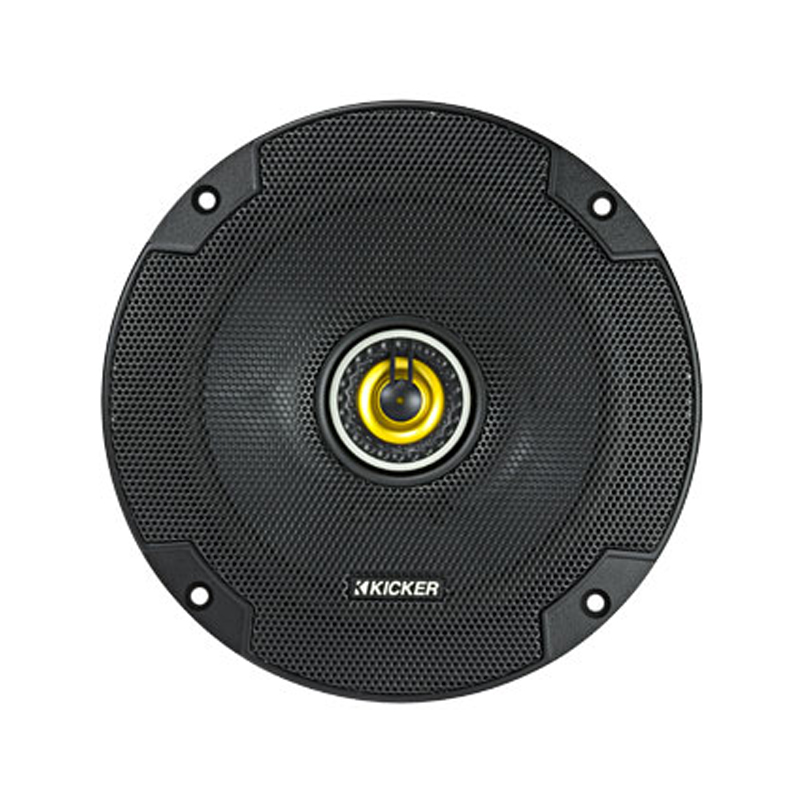

Kicker 46CSC654
The CS-Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure with EVC™ (Extended Voice Coil) for even deeper lows. Polypropylene cones and ribbed, UV-treated surrounds work together for excellent reliability and precise acoustic control.

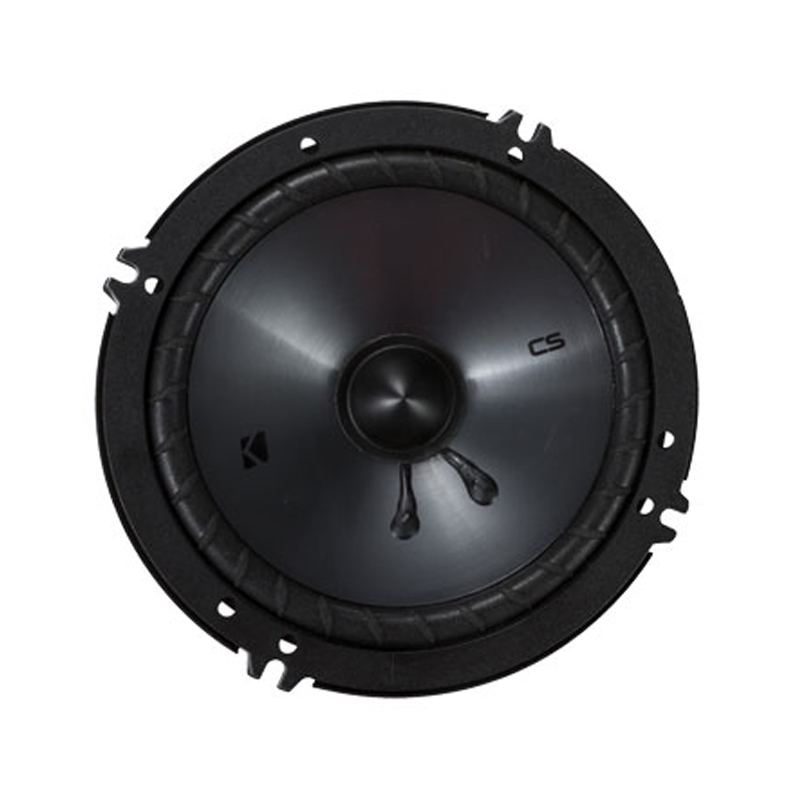

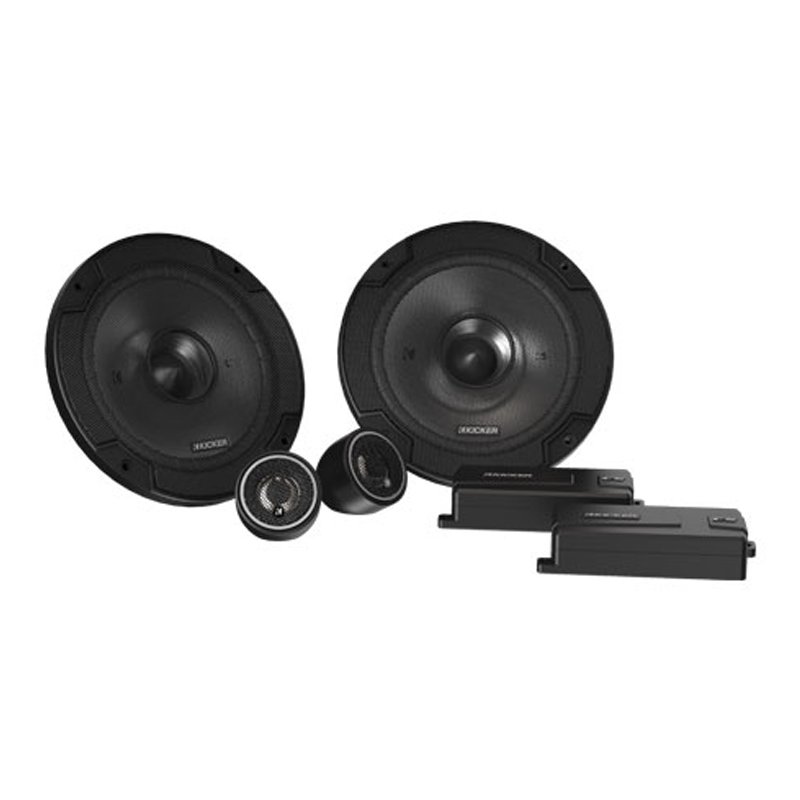

Kicker 46CSS654
The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.
47KEY2004 4-channel amp delivering 200 watts (RMS) of full-range power
Specifications:
- Power (watts/ch), 4 Ohm stereo: 50x 4
- Microphone/Kicker EQ button: included
- Standard dimensions(H x W x L): 1-11/16 x 2-3/4 x 7-3/8
- Metric dimensions(H x W x L): 4.3 x 7 x18.7
- Frequency Response (Hz): 20-20k, +0/-1dB
- Input Sensitivity: high level 250mV-10V
- Signal-to-Noise Ratio: >90dB, a-weighted, re: rated power
- Active Crossover: 24dB/octave, selective high pass or all pass @60,80, or 120Hz
47KEY5001 500-Watt Mono Channel Amp with Start/Stop capability, RoHS Compliant
Specifications:
- Power (watts/ch), 1 Ohm stereo: 500
- Power (watts/ch), 2 Ohm stereo: 300
- Power (watts/ch), 4 Ohm stereo: 150
- Microphone/Kicker EQ button: included
- Standard dimensions(H x W x L)(in, cm): 1-11/16, 4.3 x 2-3/4, 7 x 7-3/8, 18.7
- Frequency Response (Hz): 10-160
- Input Sensitivity: high level: 1V-40V / low level: 125mV-5V
- Signal-to-Noise Ratio: >90dB, a-weighted, re: rated power
- Selectable Electronic Crossover: Variable Low Pass 40-160 Hz, Variable High Pass 10-40 Hz
43C104 10" Comp Series 500 Watts Peak Power 4-ohm Car Subwoofer
- Size: 10 -inch
- Dual Voice Coil: No
- Ideal Ported Box Volume (cubic feet): N/A
- RMS Power Range (Watts): 70-125
- Cutout Diameter or Length (inches): 9 3/16
- Peak Power Handling (Watts): 500
- Impedance: 4 ohms
- Cone Material: Polypropylene
- Fs (Hz): 33
- Qts: 0.585
- Bottom Mount Depth (inches): N/A
- Xmax (millimeters): 10.3
- Surround Material: Foam
- Ideal Sealed Box Volume (cubic feet): N/A
- Port diameter (inches): N/A
- Port length (inches): N/A
- Free-Air: No
- Sensitivity: 86.2 dB at 1 watt
- Frequency Response: 30 - 500 Hz
- Top Mount Depth (inches): 5
- Vas (liters): 46.94
46CSC654 CS Series 6-1/2" 300 Watts Peak Power 2-way Coaxial Speakers 4-ohm Impedance
- Speaker Design: 2-Way
- Woofer Size | in [mm]: 6 1/2 [160]
- Tweeter Size | in [mm]: 1/2 [13]
- DC Resistance | ohm: 3.3
- Peak Power | Watts: 300
- Continuous Power | Watts, RMS: 100
- Sensitivity [SPLo] | dB @ 1W, 1m: 90
- Effective Frequency Range | Hz: 40-20k
- Mounting Hole Diameter | in [mm]: 4 13/16 [123]
- Top Mount Depth | in [mm]: 3/8 [9]
- Bottom Mount Depth | in [mm]: 1 11/16 [43]
- Tweeter Protrusion | in [mm]: 0
- Grilles: Yes
- Tweeter Magnet Material: Neodymium
- Tweeter Dome Material: PEI
- Tweeter Design: Balanced dome
- Woofer Cone Material: Polypropylene
- Woofer Surround Material: Polyester foam
46CSS654 CS Series 6-1/2" 300 Watts Peak Power Component Speaker System 4-ohm Impedance
- Woofer Size | in [mm]: 6 1/2 [160]
- Tweeter Size | in [mm]: 3/4 [20]
- Dome Material: Titanium
- Peak Power | [watts]: 300
- Continuous Power | [watts RMS]: 100
- Effective Frequency Range | Hz: 35-21k
- Woofer Mounting Hole Diameter | in [mm]: 4 13/16 [123]
- Woofer Bottom Mount Depth | in [mm]: 1 11/16 [43]
- Flush Mounting Tweeter Hole Diameter | in [mm]: 1 9/16 [40]
- Flush Mount Tweeter Depth | in [mm]: 9/16 [14.5]
- High Pass | dB, at Frequency | Hz: 12, 4000
- Low Pass | dB, at Frequency | Hz: 12, 4000
- High Frequency Output Attenuation | dB: 0, 3, & 6
- Bolt-Thru Grilles: Yes
- UPC: 798418843509
- Weight: 25
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
