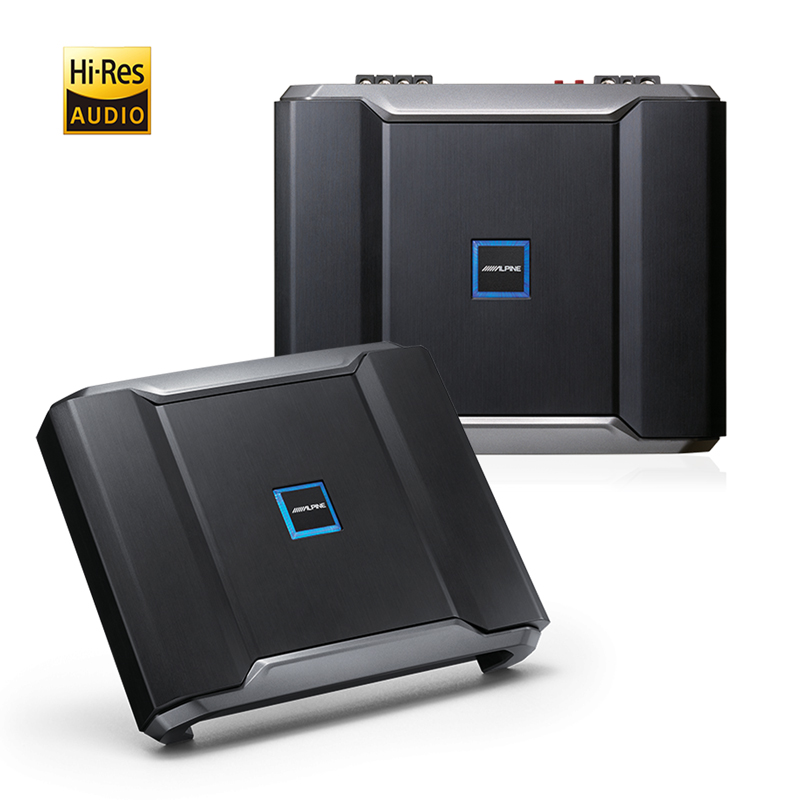

Alpine R-A75M-Bundle5 includes Alpine R-A75M 750 x 1 @2Ohms Class D Monoblock Subwoofer Amplifier + Alpine R-A60F 100W x 4 @2Ohms Class D 4-Channel Subwoofer Amplifier
We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Alpine R-A75M
- • Alpine R-A60F

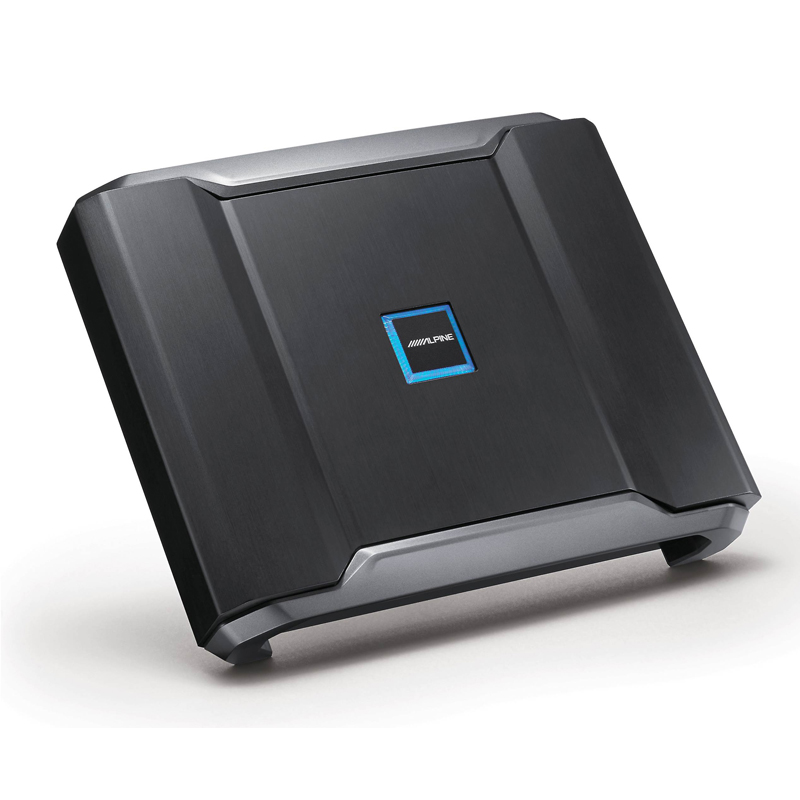

Alpine R-A60F
R-Series amplifiers have a built-in bandpass filter which lets you design an active speaker set-up without a separate processor. Improve the sound quality of component speakers by ditching your passive network. Avoid added phase shifts and power losses by individually powering each component and assigning your own frequency bands for the incredible sound you’re looking for.

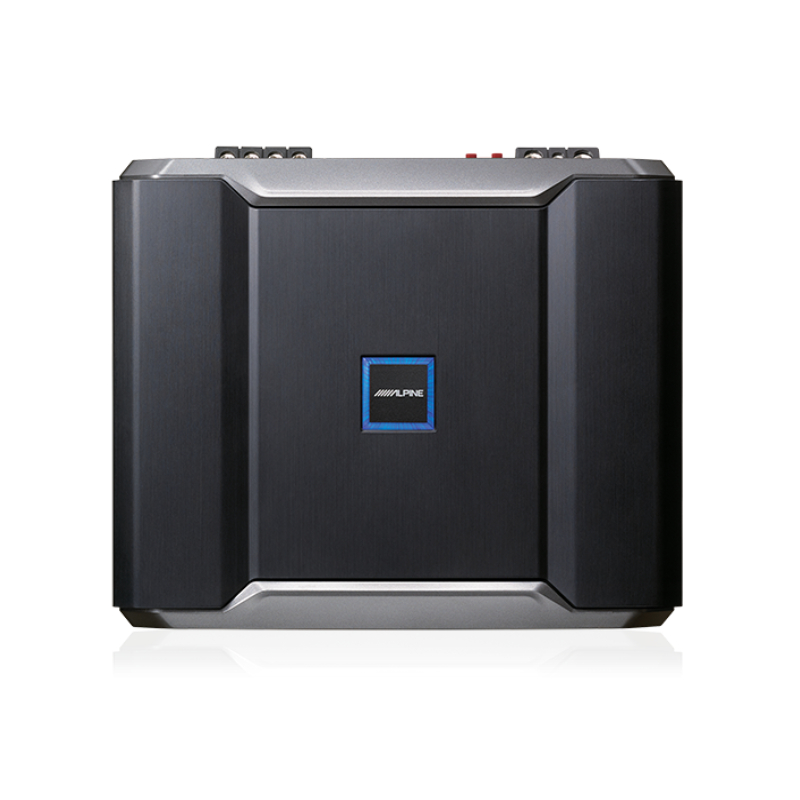

Alpine R-A75M
The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), which is a high-strength, lightweight material. CFRP can be custom-formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers’ mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback.
R-A75M R-Series
Features:
- Amplifier Class D
- RMS Power Output: 500 x 1
- Peak Power Output: N/A
- Power at 2 Ohms: 750 x 1
- Minimum Impedance Unbridged: 2
- Low-Pass Crossover Frequency: 50-400 Hz
- Low-Pass Slope (dB/octave): 24 dB/octave
- Bass Boost: 0-12 dB
- Bass Boost Frequency: 50 Hz
- Fuse Rating: 80
- Speaker Level Inputs: RCA
- Preamp Outputs: 1 pair
- Width: 9"
- Height: 2-1/16"
- Depth: 7-1/8"
R-A60F R-Series 100W x 4 @2Ohms Class D 4-Channel Subwoofer Amplifier
Features:
- Alpine’s Class D Amplifier Circuit with Dual Post-Filter Feedback Loops
- CTA-2006-B Power Rating: 100W RMS x 4 (4ohm, 14.4V ≤ 1% THD+N); 150W RMS x 4 (2ohm, 14.4V≤ 1% THD+N)
- Bridged: 300W x 2 (4ohm, 14.4V, ≤1% THD+N)
- S/N ratio: >85dB (ref: 1W into 4 ohm), 106dB (at rated power)
- THD+N ≤0.03% (ref: 1W into 4 ohm)
- Frequency Response: 10Hz-45kHz (+/- 3dB)
- Damping Factor >500
Specifications:
- RMS Power Output (Watts x Channels): 100 x 4
- Power at 2 Ohms (Watts x Channels): 150 x 4
- Bridged Power (Watts x Channels): 300 x 2
- Minimum Impedance Bridged: 4
- Minimum Impedance Unbridged: 2
- Minimum Impedance: 2
- Best Frequency Response: 10-45k Hz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: 85 dB
- Input Voltage: 14.4v
- Amplifier Class: D
- Low-Pass Crossover Frequency: 50-400 Hz
- Low-Pass Slope (dB/octave): 12 dB/octave
- High-Pass Crossover Frequency: 50 Hz - 6 kHz
- High-Pass Slope (dB/octave): 12 dB/octave
- Bass Boost: No
- Fan Cooled: No
- Fuse Rating: 60
- Speaker Level Inputs: Yes
- Preamp Outputs: No
- Width (inches): 10-3/4
- Height (inches): 2-1/8
- Depth (inches): 10
- Parts Warranty: 1 Year
- UPC: 798418841680
- Weight: 19
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
