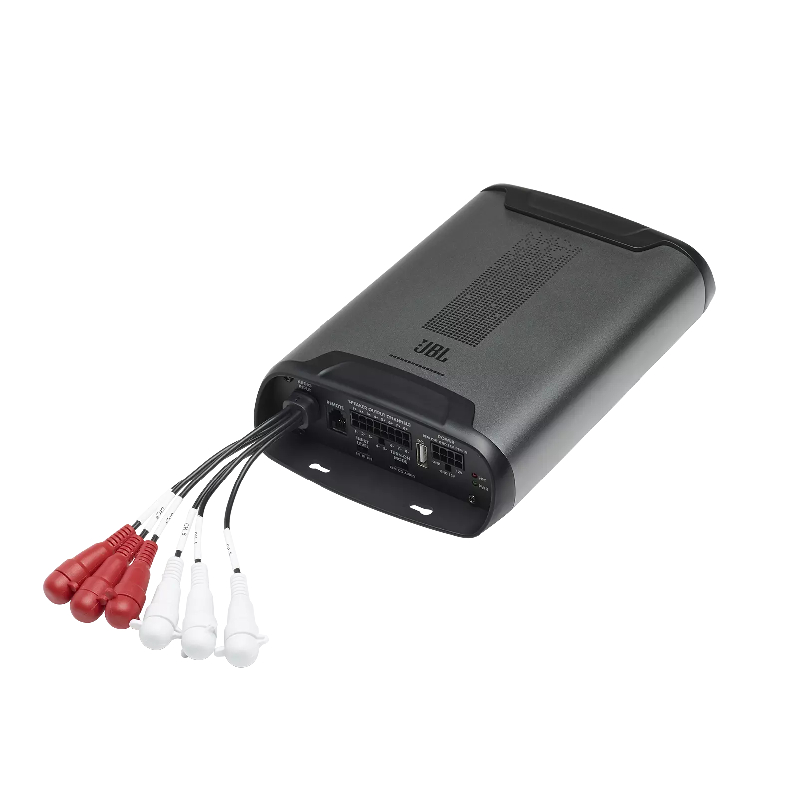

JBL DSP AMP Class D 8-channel Amplifier Design with Digital Signal Processing
Small footprint, All-in-One Class D Amplifier with DSP Control
JBL DSP Amplifier has everything you need to create a professional sound quality audio system with the ability to mount your amplifier in tight spaces.
Everything You Need to Get Started
JBL DSP Amplifier has everything you need to create an audio system, or expand your existing one, plus the ability to add more power by using it as a line driver when you are ready for your next power upgrade.
Simple Tuning Interface with Complex Features
Easy-to-use tuning interface anyone can understand, learn and control with enough horsepower to satisfy experienced installers. The Windows PC user interface includes variable crossover control, 0-to-48dB selectable slopes, 31-band parametric or graphic EQ adjustment, time delay in 0.2ms, output clipping indicator, assignable input to output mixer with input channel summing, output channel gain, master volume control, clipping indicator and ability to save up to 10 presets.

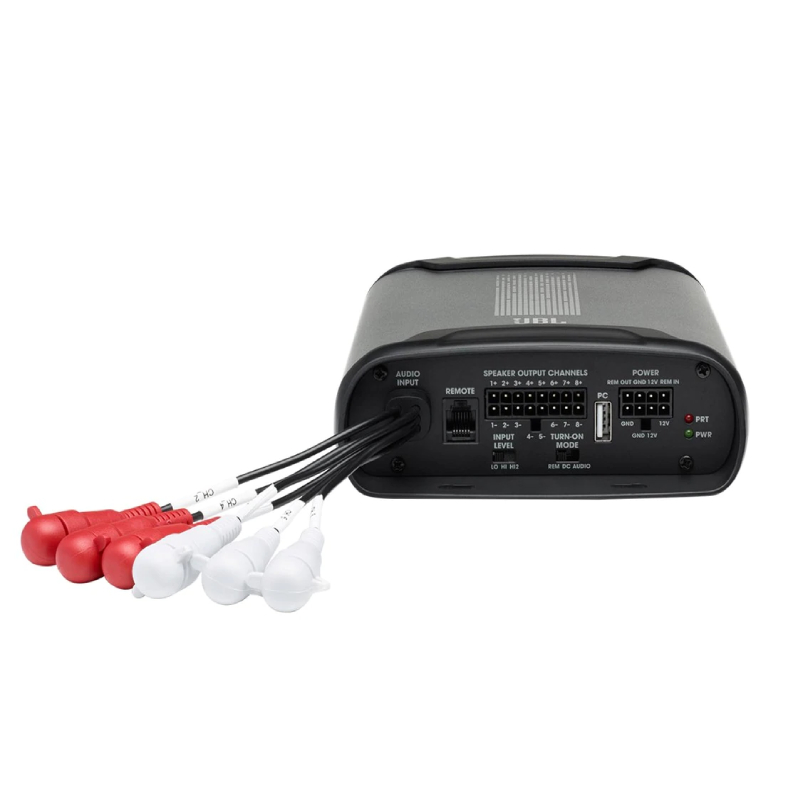

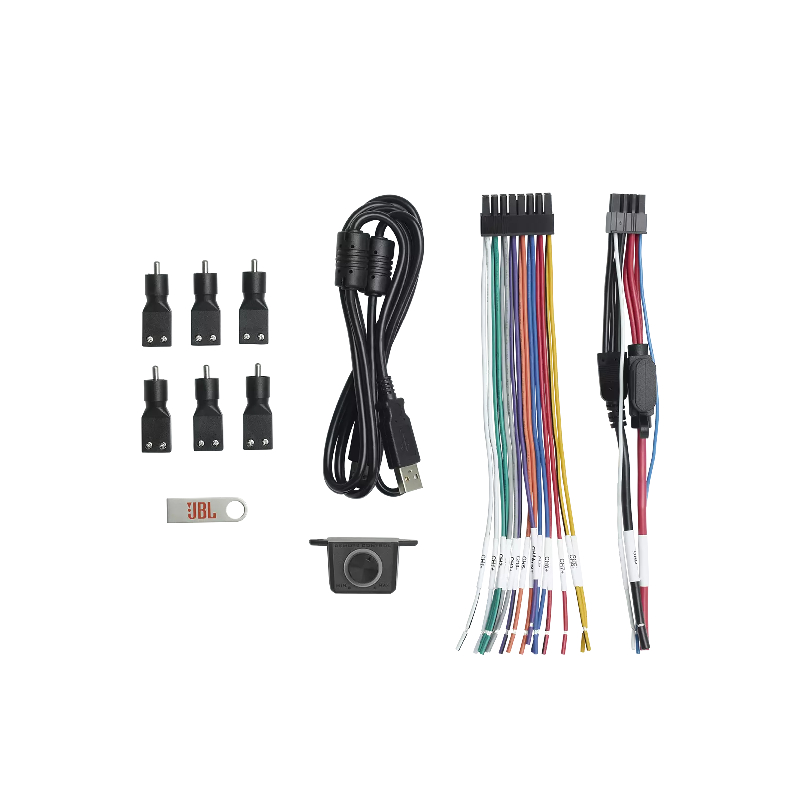

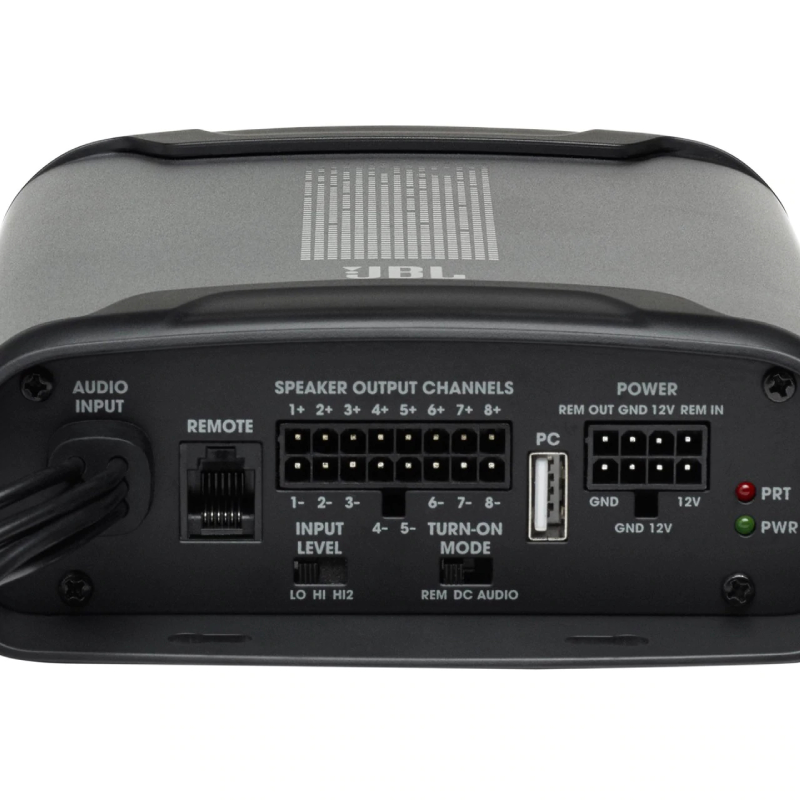

This amplifier has balanced differential inputs to provide you with the best sound quality & noise rejection, can accept RCA or speaker-level inputs so it’ll work in almost any system, and the package includes screw-on RCA-to-bare wire adapters for the speaker-level signal. Plus, all wire connections are conveniently labeled to make installation a cinch.
Convenient Bass Control
Wired remote control allows for quick adjustment of low frequency output with -30 to +6dB adjustment directly from the driver’s seat.
Conformal Coated PCB
Your JBL DSP Amplifier is engineered to withstand harsh conditions present in a wide variety of applications, using conformal coated circuit boards to ensure flawless power delivery, year after year
Harman Standard Reliability Testing
JBL is one of the greatest audio brands in the world. This is not a coincidence given the arduous testing and quality control. We take our craft seriously and want every consumer to have a world class experience that lasts and lasts.
JBL Industrial Design

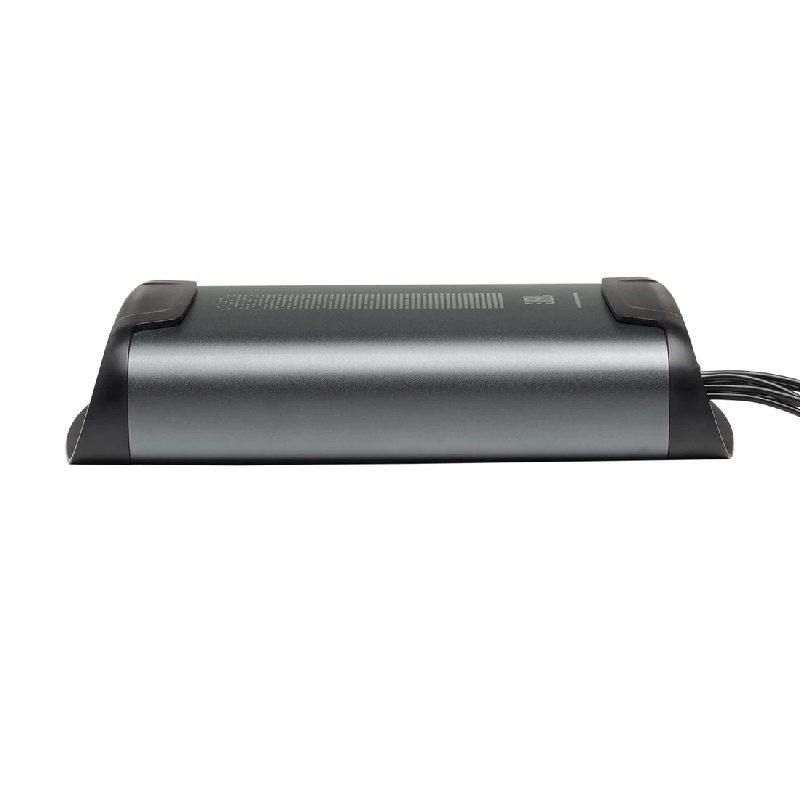

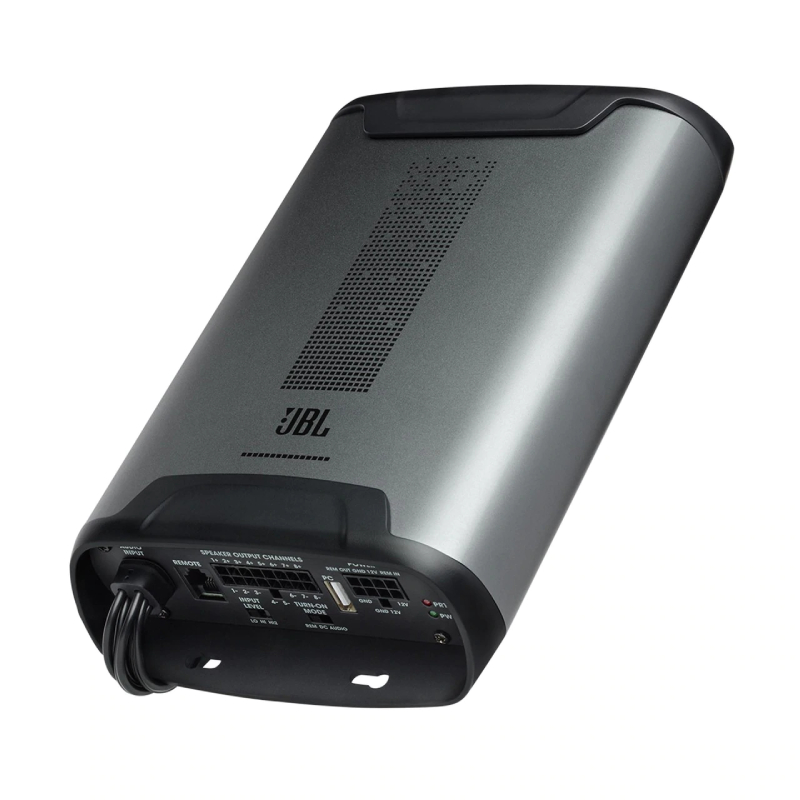

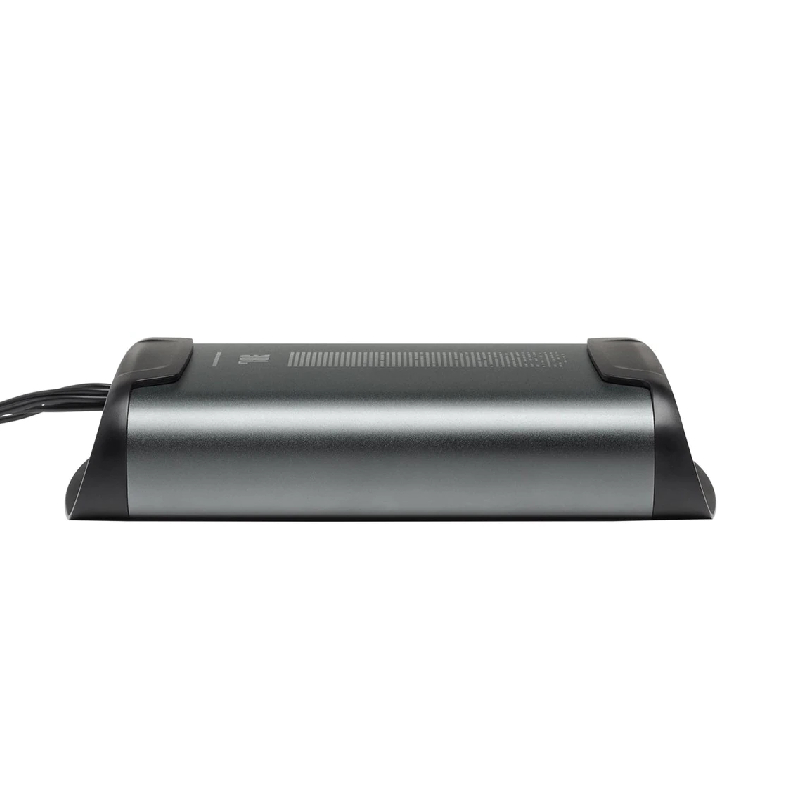

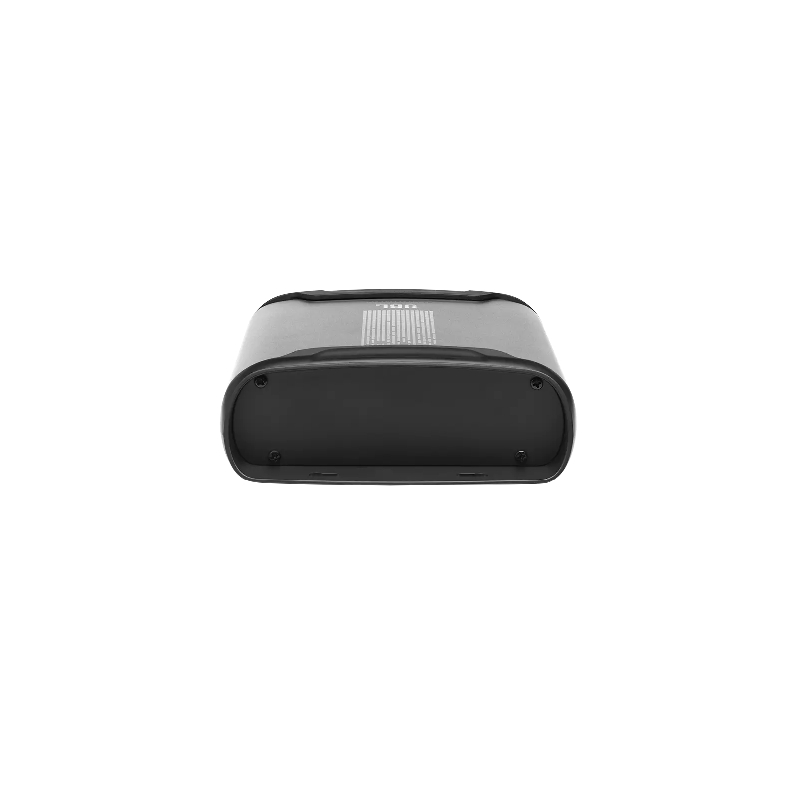

At JBL, we take pride in our iconic design heritage. Our design team took great care to ensure that your JBL DSP Amplifier will look amazing mounted wherever your music takes you. The smooth curve of the amplifier body, angular end cap design, and digitized JBL logo all tie together with our classic, current and future design language while concentrating on the design of your lifestyle.
- Maximum Power : 1000 Watts
- Low Frequency Response : 20-20000 Hz
- High Frequency Response : 20-20000 Hz
- Number of Channels : 8
- Frequency Response : 10-22000 Hz
- RMS Power Output : 40x8 Watts
- Amplifier Class : D
- Fuse Rating : 40 A
- Max Power: 1000W peak
- RMS Power Output @ 2Ω: 60W x 8, <1% THD+N
- RMS Power Output @ 4Ω: 40W x 8, <1% THD+N
- Variable crossovers with hi-pass, lo-pass, band-pass capability & adjustable 0–to–48dB slopes
- Selectable EQ adjustment: Parametric or Graphic
- Selectable 12V/Signal Sense/DC Offset turn-on modes, with 12V remote output
- Frequency Response: 10Hz to 22kHz @ -3dB
- Signal-to-Noise Ratio: >90dB @ 4Ω
- Subwoofer Level Control: -30dB to +6dB
- Fuse Rating: 40A
- Operating Voltage: 8V to 16V
- UPC: 050036373517
- Weight: 8
