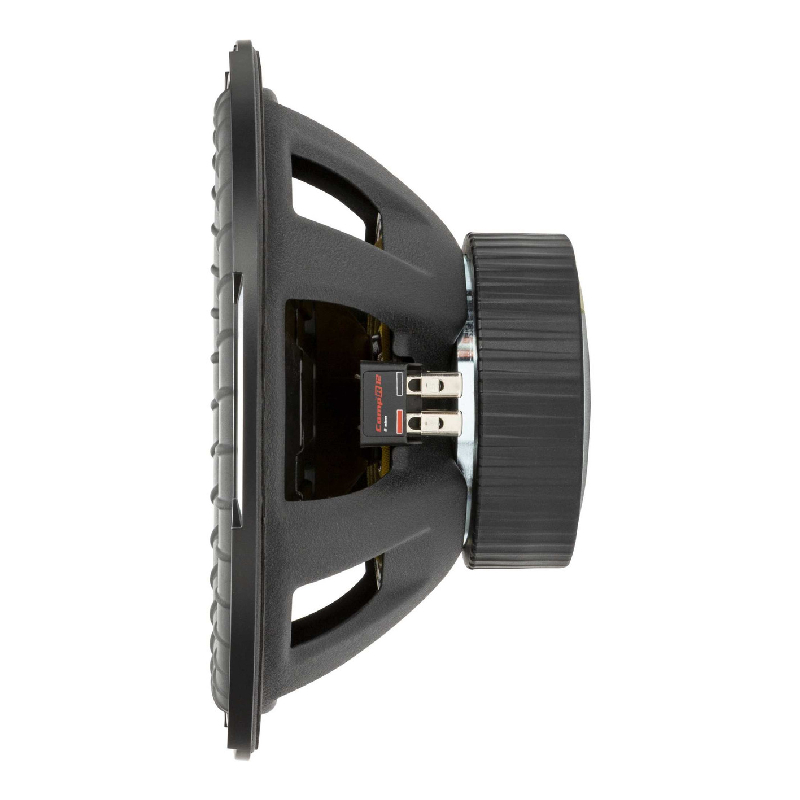

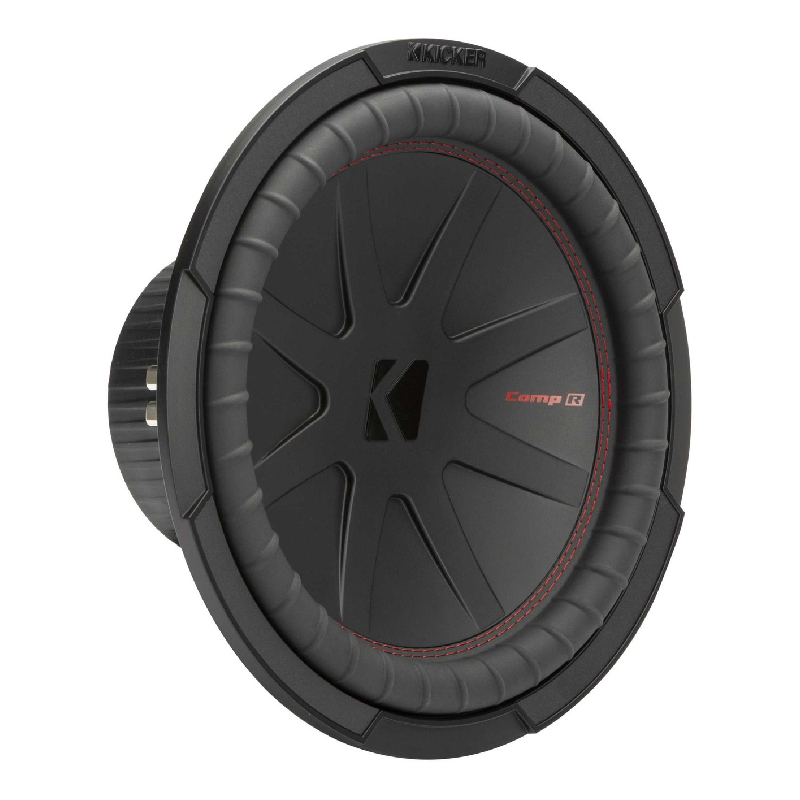

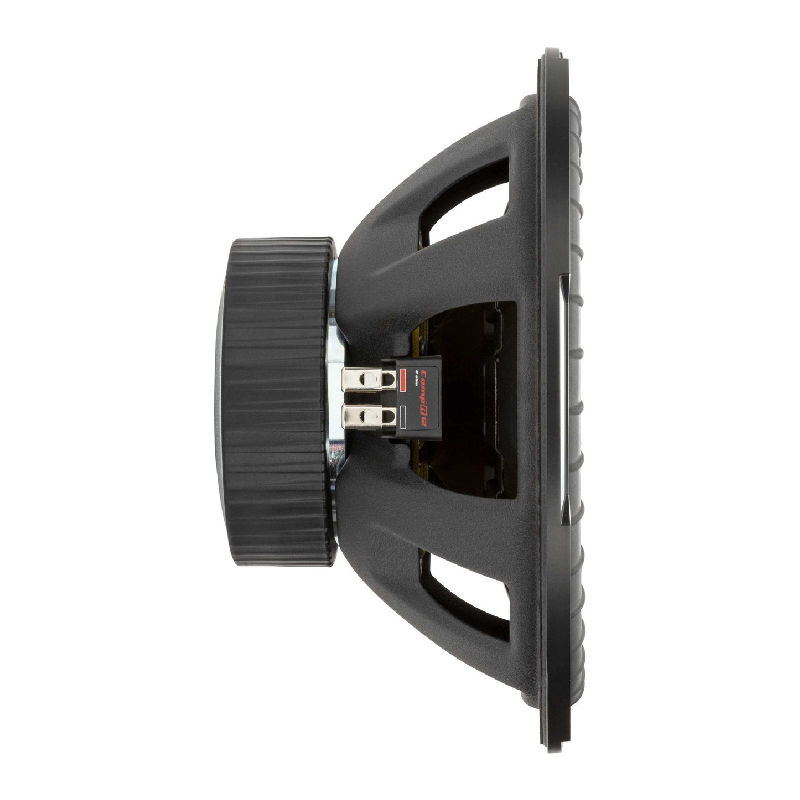

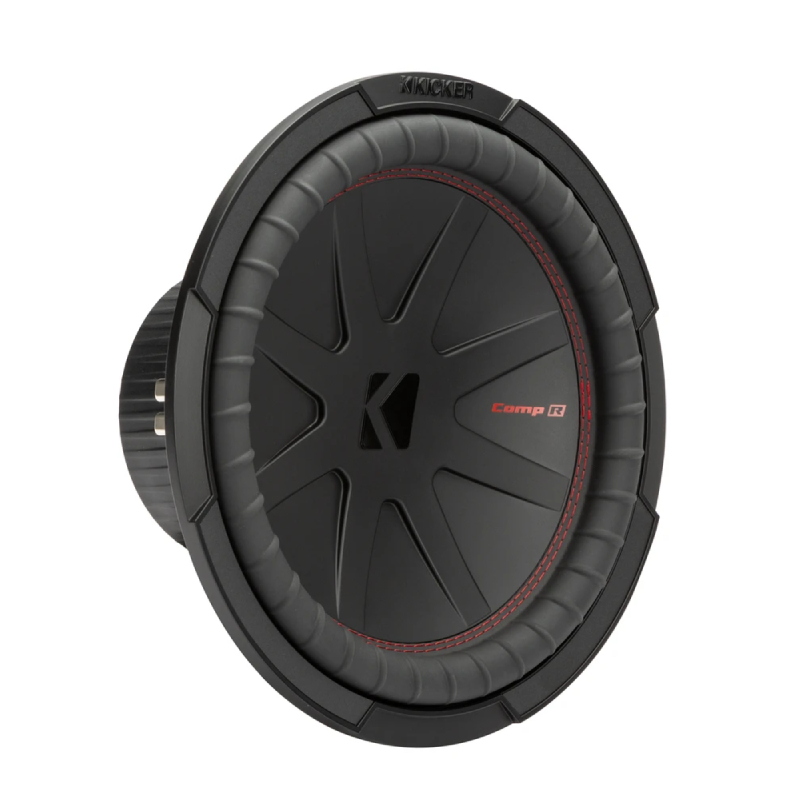

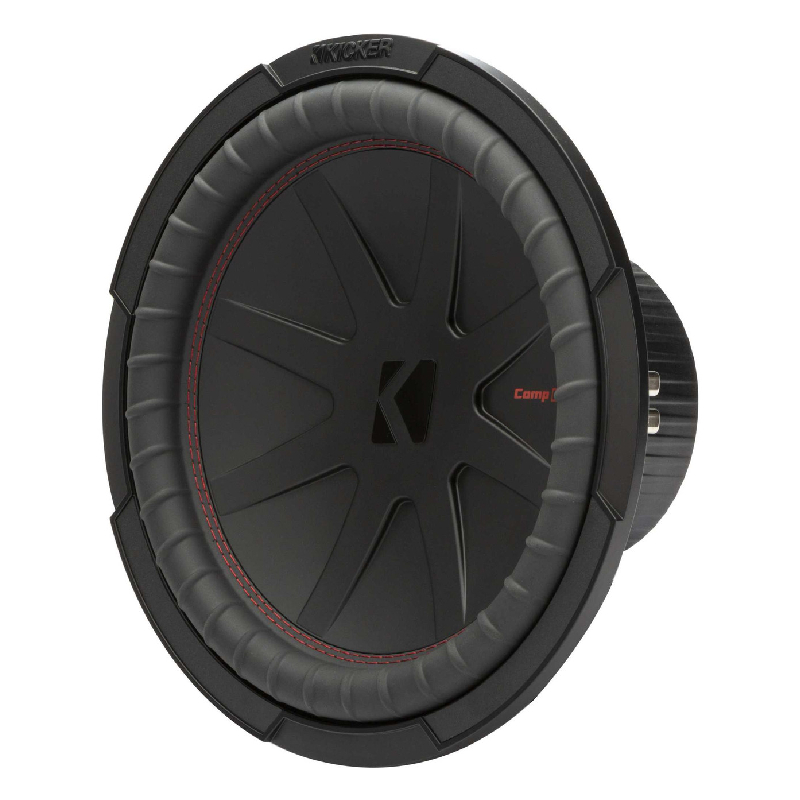

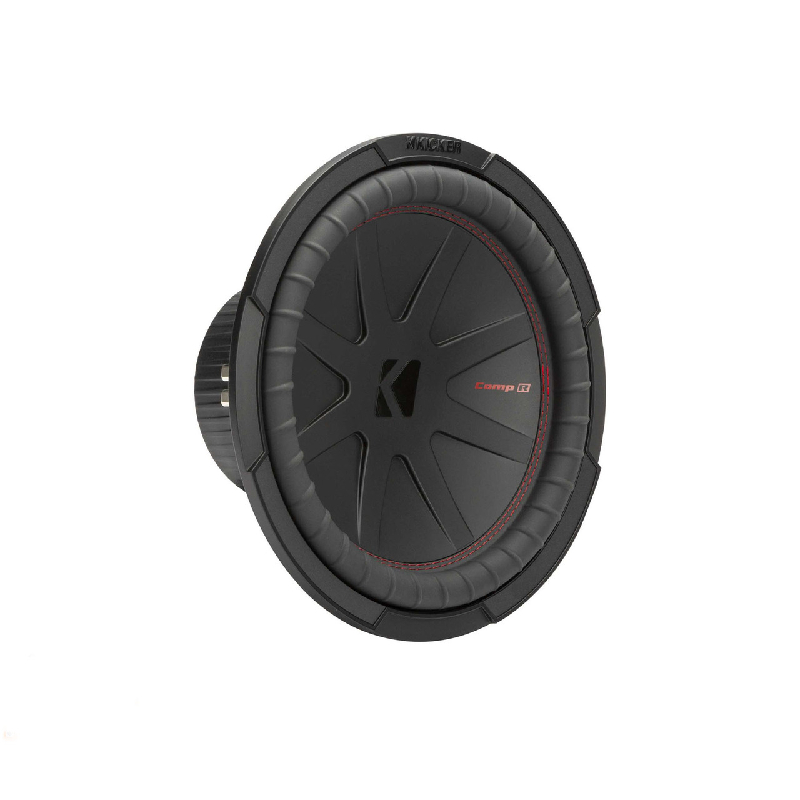

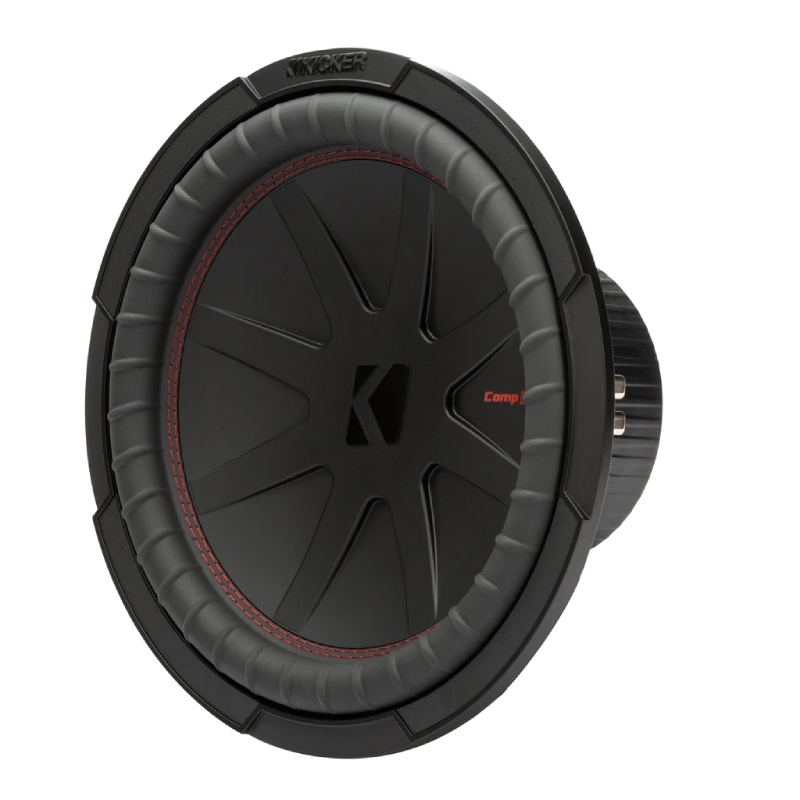

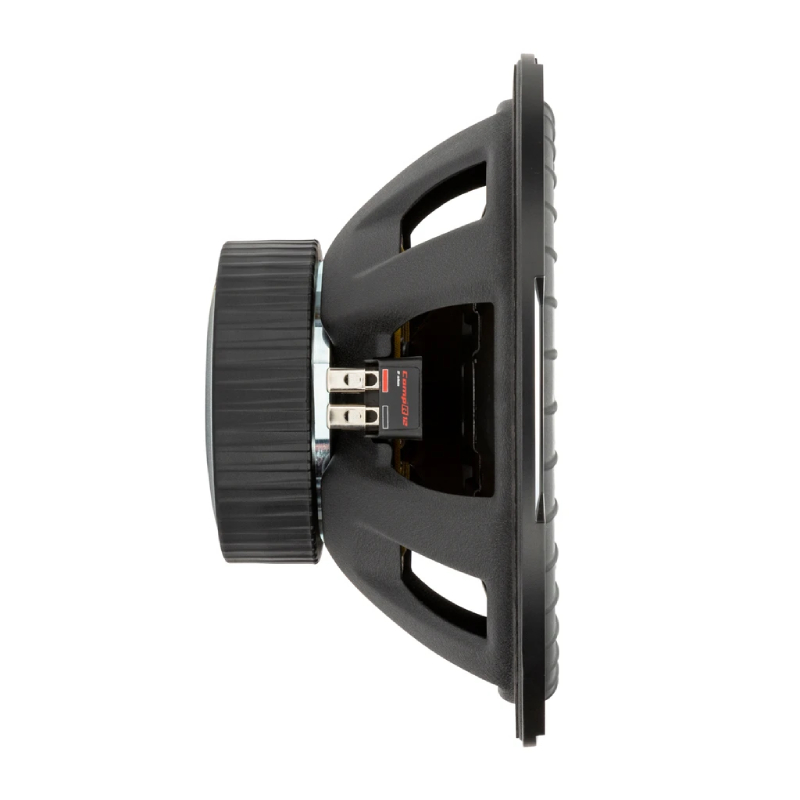

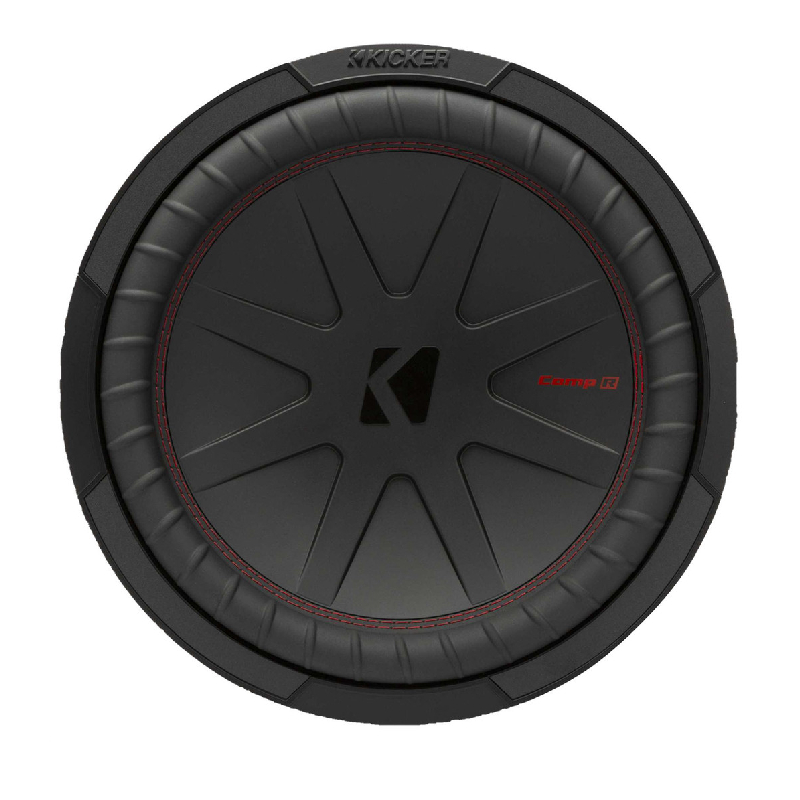

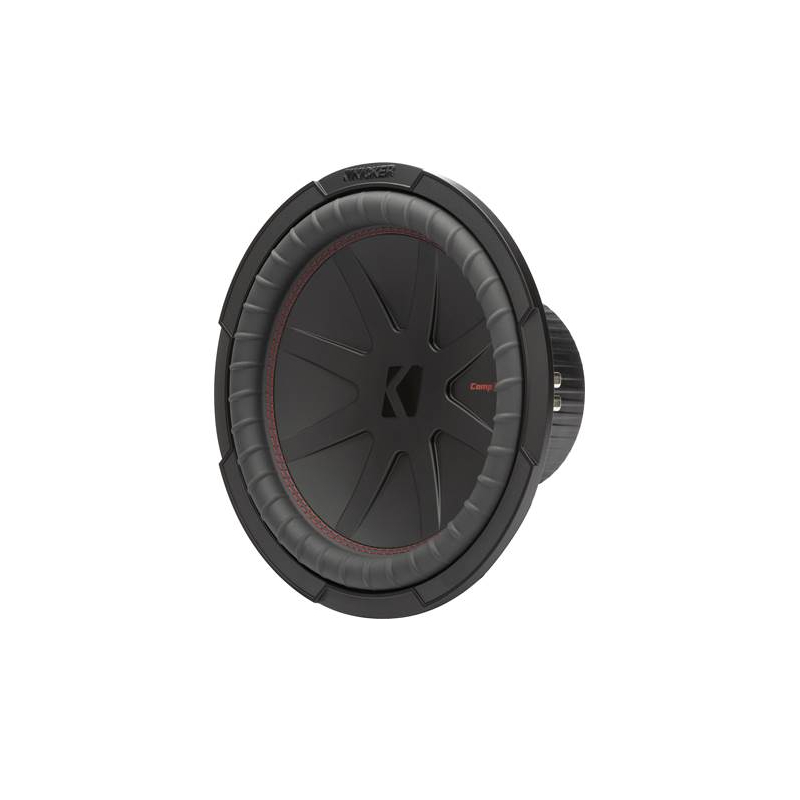

Kicker 48CWR122 CompR Series 12" 500W RMS (1000W Peak Power Handling) 2 Ohms, Dual Voice Coil Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" CompR Series Dual Voice Coil Component Car Subwoofer
- • Kicker logo sticker
- • (4) Adhesive backed screw covers
- • Screw cover installation instructions
- • Template on box
- • Owner's Manual
Why Choose Kicker 48CWR122 Component Car Subwoofer?
Loud Bass With Excellent Audio Quality
A symbol of being robust and reliable, the Kicker 48CWR122 under the CompR Subwoofer series is a perfect example of that. Whether placed in a sealed or ported enclosure, you can always trust that this subwoofer will do its job correctly; produce a loud bass with excellent audio quality and minimal distortion.
Produce Deep Bass at Elevated Volume Levels With Ease
The Kicker 48CWR122 comes with a steel basket with a Forced-Air Cooling design, making your subwoofer 25 percent cooler than other subwoofers on the market. Stitched together, its polypropylene cone and Santoprene surround allow the subwoofer to produce deep bass at elevated volume levels with ease, while its large spider aids the subwoofer in reducing distortion.
High-temperature Voice Coils
With the help of its high-temperature voice coils and double-stacked Ferrite magnet design, the subwoofer can sound very low with a wide frequency range while getting loud with minimal distortion.
Frequently Asked Questions (FAQ)
- • What amplifier should I use with this subwoofer?
Choose a mono amplifier with an RMS output close to the subwoofer's continuous power rating. Proper amplifier matching delivers cleaner bass and improves reliability.
- • Is a sealed or ported enclosure the better option?
Both enclosure types work well when built to the recommended specifications. Sealed boxes provide tighter bass, while ported enclosures produce greater output and deeper low frequencies.
- • Why doesn't my subwoofer produce enough bass?
Weak bass is commonly caused by incorrect enclosure volume, poor amplifier tuning, or reversed polarity. Verifying these settings usually results in a noticeable improvement.
- • Can I connect two subwoofers to one amplifier?
Yes, as long as the final impedance matches the amplifier's supported load. Always follow the recommended wiring configuration for safe operation.
- • Why does the bass distort at high volume?
Distortion is typically caused by amplifier clipping or excessive gain settings. Proper tuning helps maintain clean bass while protecting the subwoofer.
- • Does this subwoofer require a break-in period?
Many owners recommend several hours of moderate playback before using full power. This allows the suspension to loosen naturally for more consistent bass response.
- •Why is my subwoofer vibrating the enclosure?
Loose mounting screws, insufficient enclosure bracing, or air leaks are common causes of unwanted vibrations. Tightening the hardware and sealing the enclosure usually eliminates the noise.
- • Can this subwoofer be installed in a compact enclosure?
Yes, if the enclosure follows the recommended internal volume and mounting specifications. Building the correct enclosure is essential for achieving the best bass performance.
- • Why does the subwoofer get hot after long listening sessions?
Some heat is normal when the speaker is handling continuous power. Excessive heat may indicate overpowering or improper amplifier gain adjustment.
- • Can this subwoofer handle different music genres?
Yes, it performs well with everything from rock and country to hip-hop and electronic music. Proper enclosure design and amplifier tuning help deliver balanced, powerful bass across all genres.
- Diameter : 12 Inch
- Sensitivity : 86.9 dB
- Impedance : 2 Ohm
- Frequency Response : 25-500 Hz
- Peak Power Handling : 1000 Watts
- Design : 1 Way
- Number of Voice Coils : Dual
- RMS Power Handling : 500 Watts
Features:
- Dual 2-Ohm Voice Coils: Allows flexible wiring to maximize amplifier performance.
- Advanced Suspension & Heat Management: Maintains consistent, deep bass while protecting the sub during high-power use.
- SoloKon Cone Technology: Integrates the cone with the back brace for reduced distortion and improved motor cooling.
- Forced-Air Cooling System: Keeps the sub running up to 25% cooler for enhanced reliability under heavy use.
- Sealed or Ported Enclosure Compatibility: Delivers optimal performance in both sealed and vented box designs.
Specifications:
- Size: 12" (30 cm)
- Impedance: 2 Ohm (Dual Voice Coil)
- Recommended Amplifier Power (RMS): 500 watts
- Peak Power (ANSI/CTA-2031-A): 1000 watts
- Sensitivity (1w/1m): 86.9 dB
- Mounting Depth: 5-3/4" (14.6 cm)
- Mounting Diameter: 11" (27.9 cm)
- Minimum Sealed Box Volume: 1.0 cu. ft (28.3 L)
- Maximum Sealed Box Volume: 2.0 cu. ft (56.64 L)
- Minimum Vented Box Volume: 1.75 cu. ft (49.6 L)
- Maximum Vented Box Volume: 2.25 cu. ft (63.7 L)
- UPC: 713034019107
- Weight: 13.6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Been running a pair of it with a JL Audio amp in my XLT for more than two months now, and I'm really happy with its performance. these subs are pretty affordable
-

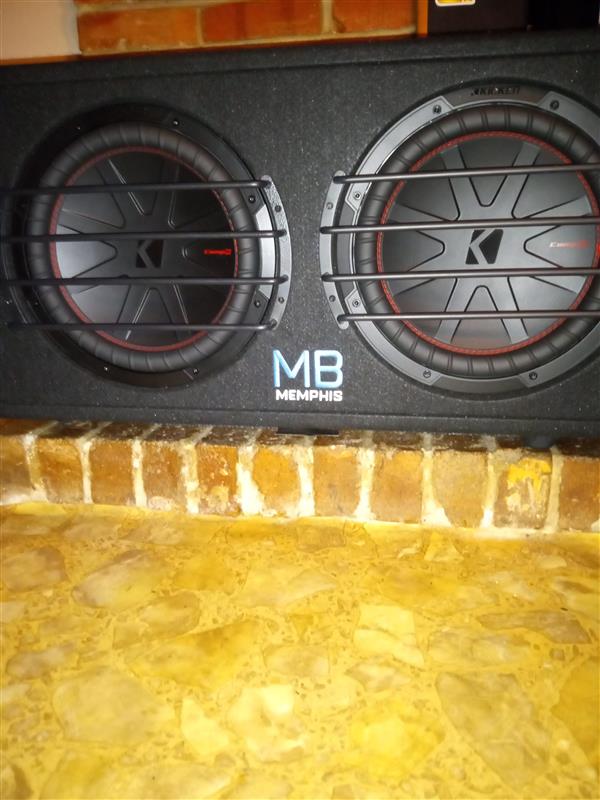

I bought these at two ohm for replacing the ones out of the Memphis Audio sub box,they fit very well and flush,they are performing very good,to get deep bass u have to wire it at two or one ohms whatever your amplifier is capable of.
