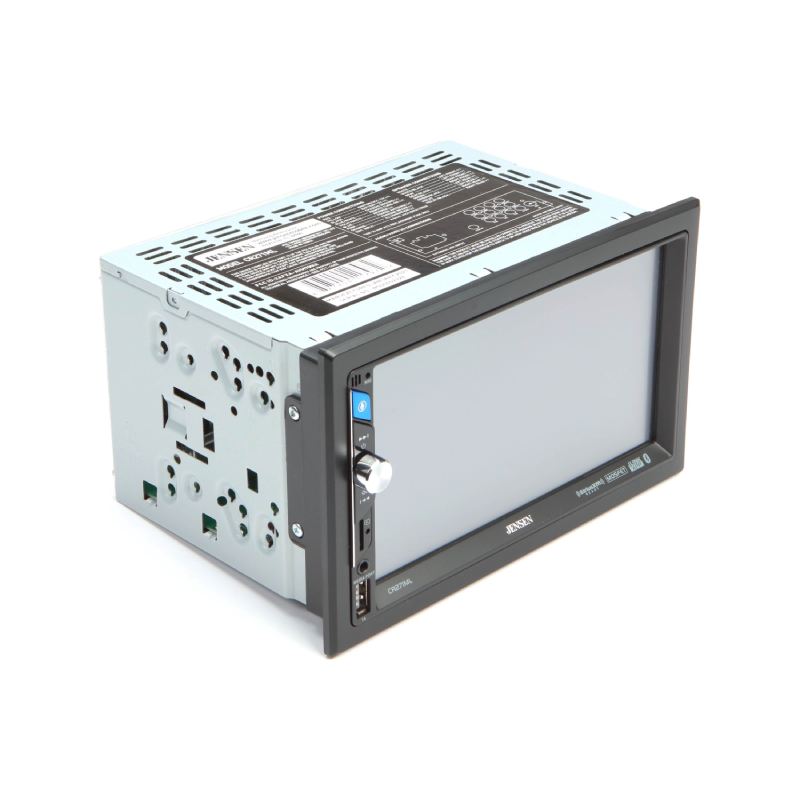

Jensen CR271ML Media Receiver with Bluetooth and SiriusXM-Ready
We are a Jensen authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Digital multimedia receiver (10A fuse)
- •Trim-ring (pre-installed)

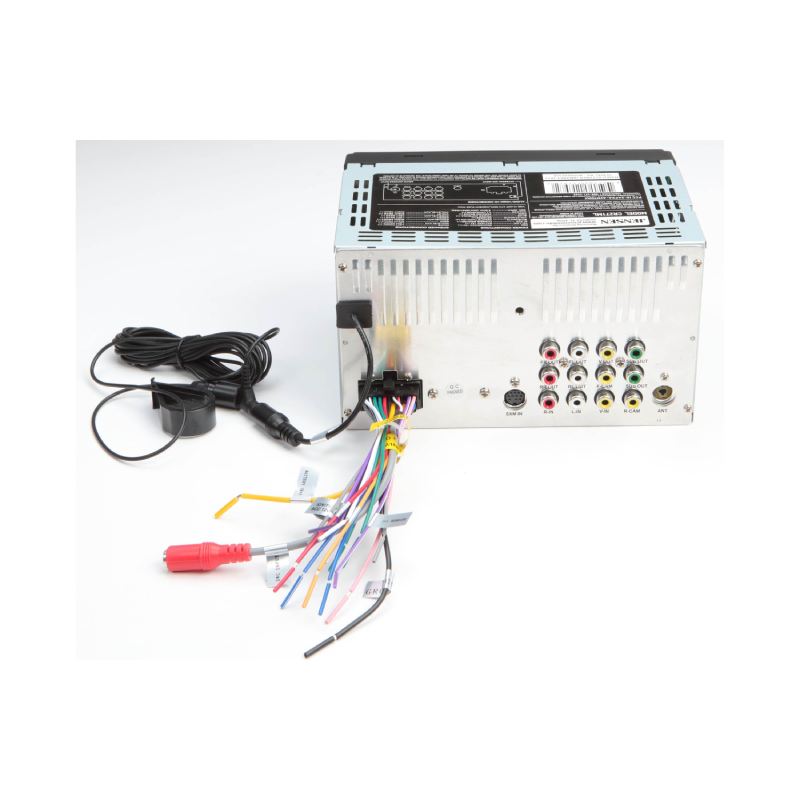

- •Wiring harness

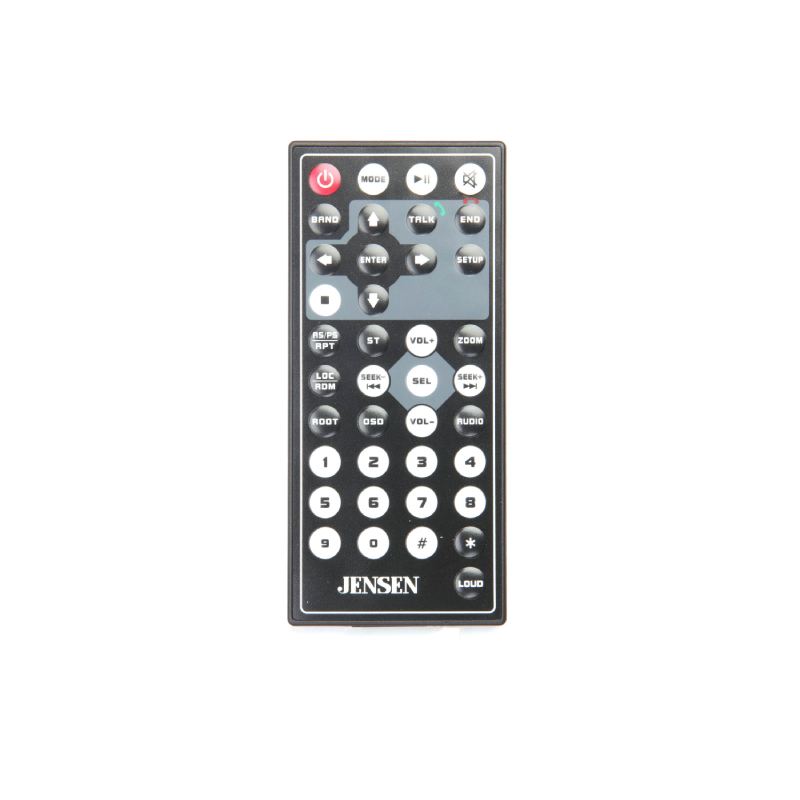

- •Remote control (CR2025 battery installed)
- •Microphone w/ bracket (attached 9.75' cable terminated by a mono-3.5mm connector
- •8 Pan-head ISO-screws
- •8 Counter-sunk ISO screws
- •Quick Start Guide
Bluetooth Hands-Free Calling
Safely answer and make calls from your receiver using touchscreen icons and the included microphone. Communicates via your phone's bluetooth connection to the radio. Interact with your smartphone's assistant while you drive with only a push of a button.
Communicates via your phone's bluetooth connection to the radio. Interact with your smartphone's assistant while you drive with only a push of a button.
j-Link Smart Remote App
Use the Jensen j-Link Smart Remote app on an Apple or Android smartphone to control the receiver via bluetooth. Change the mode, station, song, and volume directly from your smartphone without being in the receiver's line-of-sight.
7 Preset EQ Curves
The 7 preset EQ curves lets you tweak the audio settings to suit your listening preferences. Switch between Pop, Jazz, Rock, Flat, Classic, Beat and Usser.
Backup Camera
You have the option to install a backup camera to your car receiver so you are always aware of your surroundings as you reverse.
- DIN : 2
- Preamp Voltage : 4 volts
- Display Size : 7 Inch
- Bluetooth : Yes
- Aux Input : Yes
- Front USB Input : 1
- Preamp Outputs : 3
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:

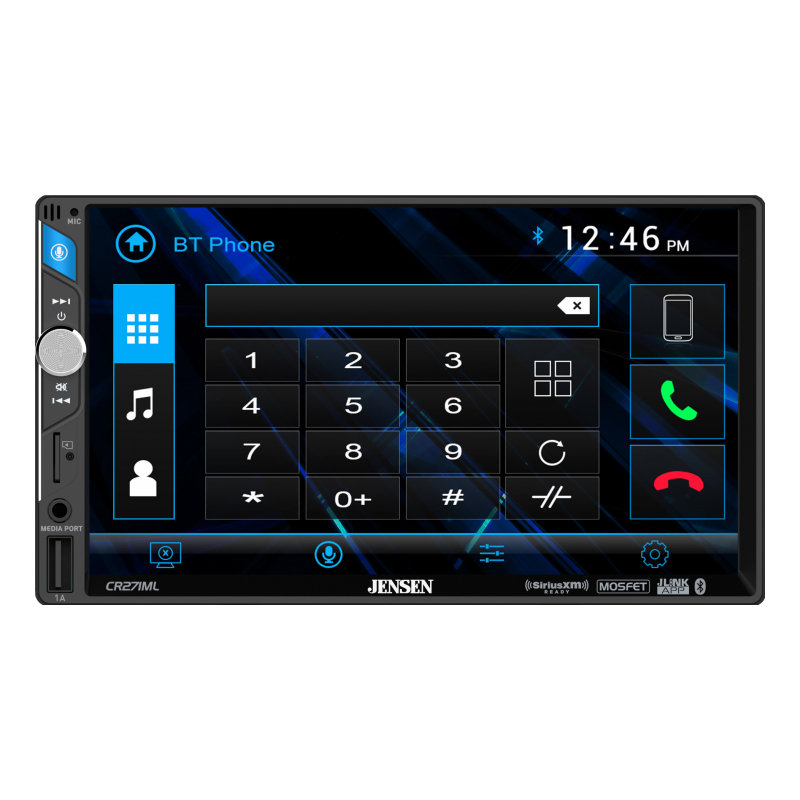

- 7" Touchscreen Monitor: The Jensen CR271ML features a 7" touchscreen LCD monitor with LED backlit and a resolution of 1024x600 (614,400 total pixels). The 7" touchscreen monitor makes it is easy to see and navigate the in-dash receiver. You can select between 3 different preset wallpapers (backgrounds). You can also adjust the screen brightness, contrast, hue, saturation, and sharpness.
- Push-To-Talk Voice Assistant: When connected via Bluetooth to an iPhone with Siri or Android smartphone with Google Assistant or Bixby, you can access the mobile device's digital voice assistant through the Jensen receiver by pressing the "Push-to-Talk" button on the front-panel. You'll speak your command into the head unit's front-panel or external microphone and the digital voice assistant will be heard through your vehicle's speakers (music playback will be attenuated). Compatible digital voice assistant functions include hands-free calling, music search, setting reminders, text-messaging, audible navigation, and more. You'll be able to ask your digital voice assistant get directions to a destination and the turn-by-turn instructions will heard through your vehicle's speakers, while the on-screen map still displays on your compatible smartphone. The head unit's audio is attenuated while the digital voice assistant provides voice prompts.
- Push-To-Talk Voice Assistant: When connected via Bluetooth to an iPhone with Siri or Android smartphone with Google Assistant or Bixby, you can access the mobile device's digital voice assistant through the Jensen receiver by pressing the "Push-to-Talk" button on the front-panel. You'll speak your command into the head unit's front-panel or external microphone and the digital voice assistant will be heard through your vehicle's speakers (music playback will be attenuated). Compatible digital voice assistant functions include hands-free calling, music search, setting reminders, text-messaging, audible navigation, and more. You'll be able to ask your digital voice assistant get directions to a destination and the turn-by-turn instructions will heard through your vehicle's speakers, while the on-screen map still displays on your compatible smartphone. The head unit's audio is attenuated while the digital voice assistant provides voice prompts.
- Push-To-Talk Voice Assistant: When connected via Bluetooth to an iPhone with Siri or Android smartphone with Google Assistant or Bixby, you can access the mobile device's digital voice assistant through the Jensen receiver by pressing the "Push-to-Talk" button on the front-panel. You'll speak your command into the head unit's front-panel or external microphone and the digital voice assistant will be heard through your vehicle's speakers (music playback will be attenuated). Compatible digital voice assistant functions include hands-free calling, music search, setting reminders, text-messaging, audible navigation, and more. You'll be able to ask your digital voice assistant get directions to a destination and the turn-by-turn instructions will heard through your vehicle's speakers, while the on-screen map still displays on your compatible smartphone. The head unit's audio is attenuated while the digital voice assistant provides voice prompts.
- Hands-Free Communication: The CR271ML supports Bluetooth hands-free communication from your Bluetooth enabled mobile phone. You can answer an incoming call from the head unit's touchscreen and carry on a phone conversation hands-free. The unit's front-panel integrated microphone or the included external microphone carries on your side of the conversation while your car's speakers are used to hear the other person. You can increase or decrease the volume level of a call, using the head unit's rotary knob on the front panel. You can also transfer calls between the receiver and your Bluetooth enabled phone.
- Wireless Audio Streaming: The Jensen CR271ML allows you to play back stored music and music apps from your Bluetooth enabled smartphone, tablet, or audio player. You can control basic music playback functions (Play/Pause, Previous/Next Track) from the CR271ML. Advanced music navigation will still need to be done through your Bluetooth mobile device. This unit will also display song/artist information (no album art) from a connected Bluetooth audio device. When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.
- USB Port: The Jensen CR271ML is equipped with a front-panel USB (type-A) port for connection of a USB MSC (mass storage class) device, such as a USB thumb drive. The unit supports playback of MP3 and FLAC music files, as well as MP4 video and JPEG photo files loaded onto a USB MSC device. You'll be able to control your music tracks and view song/artist/album display from the head unit's touchscreen. The USB port (5V/2.1A) will also charge USB enabled devices, such as your smartphone.
- microSD Card Slot: The Jensen CR271ML is also equipped with a front-panel microSD card slot for connection of a microSD card (up to 64GB). The unit supports playback of MP3 and FLAC music files, as well as MP4 video and JPEG photo files loaded onto a microSD card. You'll be able to control your music tracks and view song/artist/album display from the head unit's touchscreen.
- Compatible File Type: The head unit supports MP3 music files (up to 320kbps), FLAC music files (up to 48kHz), MP4 video files, and JPEG photo files stored on a USB MSC device or microSD memory card formatted in FAT16 or FAT32. The unit can recognize up to 2000 files, 200 folders, and 2000 files per folder.
- Playback Control: The CR271ML provides various playback & search functions to find and enjoy your MP3/FLAC music files on your USB MSC device or microSD card. Playback functions include Play/Pause & Random/Repeat. Search functions include Folder/File List & Previous/Next Track.
- Song/Artist/Album Display: The Jensen CR271ML will even display artist name, song title and album title (including album art). It also displays the elapsed playing time of a song or track of your music stored on a USB MSC device or microSD card.
- CTA2006 Compliant: The power specifications for the CR271ML are compliant with the CTA2006 Mobile Amplifier Power Testing and Measurement standards from the Consumer Technology Association (CTA). These standards were developed as a way to equitably compare power specs from model to model and between manufacturers.
- 2V/6Ch Pre-Outs + Sub Control: The Jensen CR271ML is equipped with six 2.0-volt pre-outs (Front/Rear/Sub). The front and rear channels are fading, while the subwoofer output is non-fading. The CR271ML also offers Subwoofer Control with an adjustable low-pass crossover filter (Off/80/120/160Hz) and separate level control (0-15) for the unit's mono-Sub pre-out.
- Equalizer: The Jensen head unit offers 7 EQ presets (Pop, Rock, Jazz, Classic, Beat, Flat, & User) that can be easily selected to tailor the sound to your genre of music. The User preset allows you to manually adjust the receiver's 7-band EQ (60, 160, 400, 1k, 3k, 7k, 15k Hz), so you can further fine-tune the sound to match your music content and preference. EQ settings are saved globally.
- Loudness: The Loudness feature compensates for deficiencies in the low and high sound ranges at lower volume.
- AM/FM Tuner: The head unit features a built-in AM/FM tuner with manual, seek, and preset tuning. The unit features 3 FM bands and 2 AM bands with the capability of storing 6 presets for each band giving you a total of 18 FM presets and 12 AM presets (30 total). You can also automatically store the six strongest stations in your area inside the current selected band. The unit's tuner also is equipped with a Seek mode that when used with the Local function, only allows radio stations with a strong local radio signals to be played.

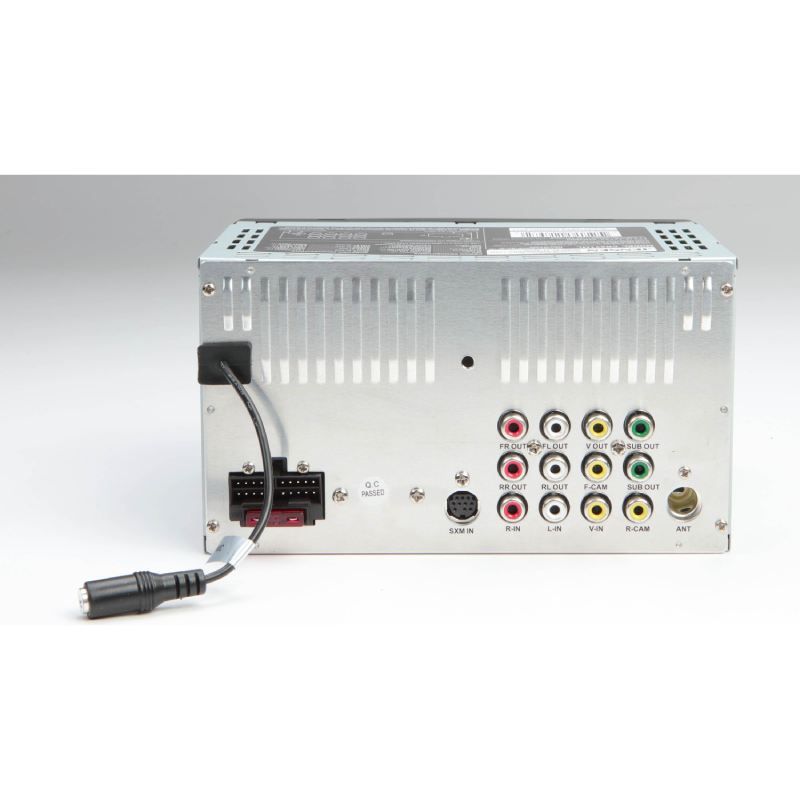

- AV Inputs: The Jensen CR271ML is equipped with an Aux input (on side of touchscreen monitor) that consists of a 3.5mm jack for connection of an external portable audio device with a headphone jack or analog output. The Aux input only supports audio playback (not video compatible). There is also a rear-panel AV input that consists of a composite video and stereo RCA jacks for connecting an external audio/video source (Parking Brake must be applied to view video on-screen).
- Video Output: A single RCA composite video-output jack allows you to an add external monitor, such as rear headrest or overhead monitor (sold separately). The video outputs will display whatever image is being displayed on the head unit's touchscreen monitor. This includes the warning "Video Is Disabled For Your Safety" when trying to watch video from a USB device, microSD card, or AV input without the vehicle's parking brake engaged. You will need to engage the vehicle's parking brake to see video from these sources through the head units' video output. However, you can view USB Mirrored content from a mobile device through the video output without the parking brake engaged.
- Dual Camera Inputs: The Jensen CR271ML is outfitted with two camera inputs; one backup camera input and one front camera input.
Specifications:
- 7" Touchscreen LCD (1024x600),
- Built-in Bluetooth technology with hands-free calling,
- music streaming with ID3 tags and phonebook support - internal + external mics,
- SiriusXM-Ready® (SiriusXM Connect Vehicle Tuner and Subscription sold separately),
- AM/FM tuner with 30 station presets (18FM / 12AM),
- Push-to-talk button to access smartphone voice assistant,
- J-Link Smart Remote app via Bluetooth (Apple®/Android™),
- Front panel USB input with 1A charging and playback,
- Back-up camera input,
- Front RCA camera input, Rear A/V input (RCA),
- Front panel 3.5mm aux input, Rear RCA video output,
- 3 Pairs of 4V RCA preamp outputs (F/R/S),
- 7 Preset EQ curves (Pop, Jazz, Rock, Flat, Classic, Beat, & User),
- File formats: MP4, MP3 and FLAC,
- Shallow mount design for easy installation,
- 200 Watts max power (50W x 4) MOSFET,
- Steering Wheel Control (SWC) Input)
- UPC: 827204117972
- Weight: 8
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
