PowerBass  3XL-1220D

3XL Series 12" 2000W Peak Power Handling, 2-Ohms Dual Voice Coil Subwoofer

Item #78371

Product Highlights

  • 3XL Series
  • 12" Subwoofer
  • 2000W Peak Power Handling
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Metra Banner for OCS

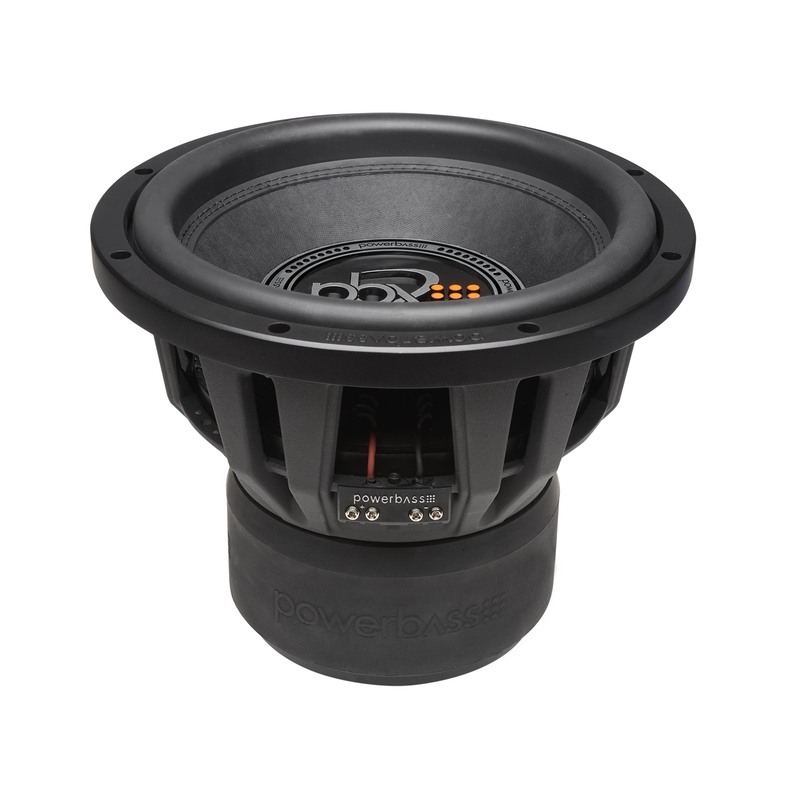

PowerBass 3XL-1220D - 3XL Series 12" 2000W Peak Power Handling, 2-Ohms Dual Voice Coil Subwoofer


Authorized Dealer Stamp

We are a Powerbass authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" 2-Ohms Dual Voice Coil Subwoofer
  • • Owner's Manual
Impactful Bass in-car Audio Systems

The PowerBass 3XL-1220D subwoofer is a high-quality audio component that delivers deep and impactful bass in-car audio systems. This subwoofer is built with precision and power in mind, offering outstanding performance and reliability. Featuring a rugged cast aluminum basket, the 3XL-1220D ensures structural integrity and minimizes vibrations for clean and accurate bass reproduction

Wiring Configurations and Efficient Power Handling

. It incorporates dual 2-ohm voice coils, allowing for flexible wiring configurations and efficient power handling. With a remarkable RMS power rating of 1000 watts and a peak power handling of 2000 watts, this subwoofer can easily handle the most demanding bass passages. Its large foam surround allows for an extended excursion, producing powerful low-frequency sound reproduction.

Advanced Cooling Technologies

The 3XL-1220D utilizes advanced cooling technologies, including a vented pole piece and a high-temperature BASV voice coil former, to dissipate heat efficiently and maintain optimal performance during prolonged usage.

Delivers Exceptional Performance

Whether you're a car audio enthusiast or a music lover who craves deep bass, the PowerBass 3XL-1220D subwoofer delivers exceptional performance, durability, and precise low-frequency response, ensuring an immersive and thrilling audio experience on the road.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 88 dB
  • Impedance : 2 Ohm
  • Frequency Response : 25-450 Hz
  • Peak Power Handling : 2000 Watts
  • Number of Voice Coils : Dual
  • RMS Power Handling : 1000 Watts

FEATURES


Features:

  • New PBX logo dust cap
  • 12" Dual 2-Ohm Subwoofer
  • 1000 watt RMS/2000 Watts Max
  • DDC Pressed Paper Cone
  • High Roll Nitrile Butadine Rubber (NBR) Surrond
  • 3” Vented HD BASV Voice Coil Former
  • Perimeter Aero-Vent Voice Coil Cooling Vents
  • Non Resonance DDC Coated Cast Aluminum Basket
  • XTRA XTRA XTRA Large Triple Stacked Motor Structure
  • Square Spring Loaded Nickel Plated Push Terminals
  • Optimally Designed for Ported Enclosures



Specifications
  • Nominal Impedance: Dual 2-ohm
  • BL: 18.99
  • Voice Coil Size: 3 in
  • Material: Pressed and Treated Paper Cone
  • Magnet Size: 228.46 oz
  • Sensitivity (1W / 1M): 88 dB
  • Motor Structure: 228.46 oz
  • Cutout Diameter: 11.06 in (282mm)
  • Mounting Depth: 9 in
  • Xmax: 19 mm
  • Spl: 84.32 dB
  • No: 0.163%
  • Qts: 0.599
  • Qes: 0.716
  • Qms: 5.533
  • Mms: 292.92 g
  • Cms: 70 uM/N
  • Vas: 27.96 Ltr
  • SD: 530.9 sqCM
  • Fs: 35.1 Hz
  • Test Impedance: 4-ohms
  • VC Impedance: 2-ohm +2-ohm
  • Size: 12 in
  • Sensitivity: 88 dB
  • Frequency Response: 25 Hz - 450 Hz
  • Voice Coil Size: 3 in
  • Power Handling (RMS/Peak): 1000 / 2000 watts
  • UPC: 823871007783
  • Weight: 51
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
