JBL Stadium 5.25" 2-way Car Speakers
We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) Woofers
- •(2) Phase plugs (installed)
- •(2) Woofer grilles
- •(2) Woofer trim rings
- •(2) 1-3/16" Tweeters (each with 6" Wire attached)
- •(2) Tweeter mounting posts (installed)
- •(2) Crossover
- •(2) Flush mount rings (tweeter)
- •(2) Front angle rings (tweeter)
- •(2) Back angle rings (tweeter)
- •(2) Mounting nuts (tweeter)
- •(2) Crossover input jumpers (installed)
- •(2)+0 dB Tweeter output jumpers
- •(2)+3 dB Tweeter output jumpers
- •(2) +6 dB Tweeter output jumpers (installed)
- •(20) 1" Flat head screws
- •(12 )Speed clips
- •Owner's Manual
Enthusiasts Seeking Superior Sound Reproduction
Experience powerful and immersive sound in your car with the JBL STADIUM52CF speakers. Designed to deliver exceptional performance, these premium car speakers are the perfect upgrade for music enthusiasts seeking superior sound reproduction.
Improved Bass Response
Featuring a 5-1/4-inch woofer cone and a pair of tweeters, the JBL STADIUM52CF speakers deliver crystal-clear highs, detailed midrange, and punchy bass. Equipped with JBL's patented Plus One™ woofer cone technology, the STADIUM52CF speakers provide a larger cone area than standard speakers, resulting in improved bass response and enhanced overall sound quality. The edge-driven textile dome tweeters ensure smooth and accurate high-frequency reproduction.
High Sensitivity and Power Handling Capability
With their high sensitivity and power handling capability, the JBL STADIUM52CF speakers can handle high power levels while maintaining exceptional clarity and fidelity. These speakers are also designed to be compatible with a wide range of car audio systems, making them an easy and versatile upgrade option.
Enjoy Every Nuance of Your Favorite Tracks
Upgrade your car audio system today with the JBL STADIUM52CF speakers and elevate your in-car listening experience to new heights. Immerse yourself in high-performance sound, enjoy every nuance of your favorite tracks, and rediscover the joy of music on the road.
- Diameter : 5.25 Inch
- Sensitivity : 93 dB
- Impedance : 3 Ohm
- Frequency Response : 55-40000 Hz
- Peak Power Handling : 180 Watts
- Design : 2 Way
- Top Mount Depth : 2-1/4 Inches
- Bottom Mount Depth : 2-7/16 Inches
- RMS Power Handling : 60 Watts
Features:
- Plus One Woofer Cones: The Plus One speaker cones offer more surface area than other speakers that fit in the same size opening. This is accomplished by using a new basket design and hi-roll surround. The result is greater bass output and an increase in efficiency.
- Edge Driven Dome Tweeters: Each speaker has an edge-driven aluminum dome tweeter. Edge-driven tweeters have better dispersion characteristics and allow for a lower crossover frequency than typical tweeters of the same size, which improves imaging. The result is improved vocals and musical clarity. The tweeter also has an output level switch; choose +0 dB (flat) or -3 dB.

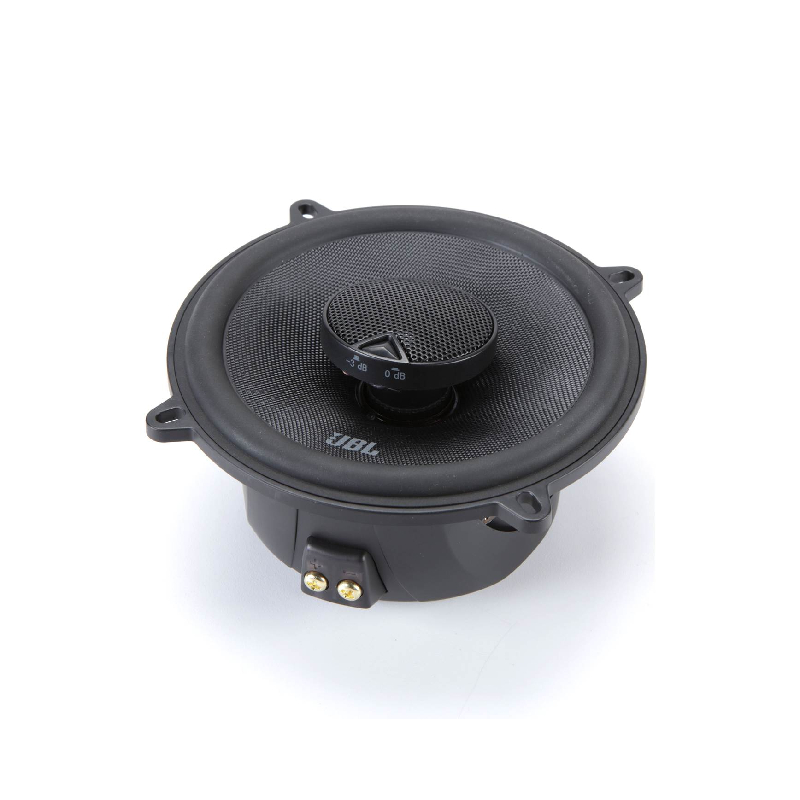

- UniPivot Tweeter: The tweeter is angled and can be rotated about 315° after installation. This allows you to direct the tweeters toward the listeners, very useful for speakers mounted low in a door.
- High-Output Design: The high output 3? voice coil design compensates for the high in-line resistance of small gauge factory wiring and extracts every watt from factory receivers, increasing overall system output and efficiency (relative to 4? speakers). The speakers also benefit from increased power when you upgrade the wire and add aftermarket amplifiers, designed to power a 3? load.

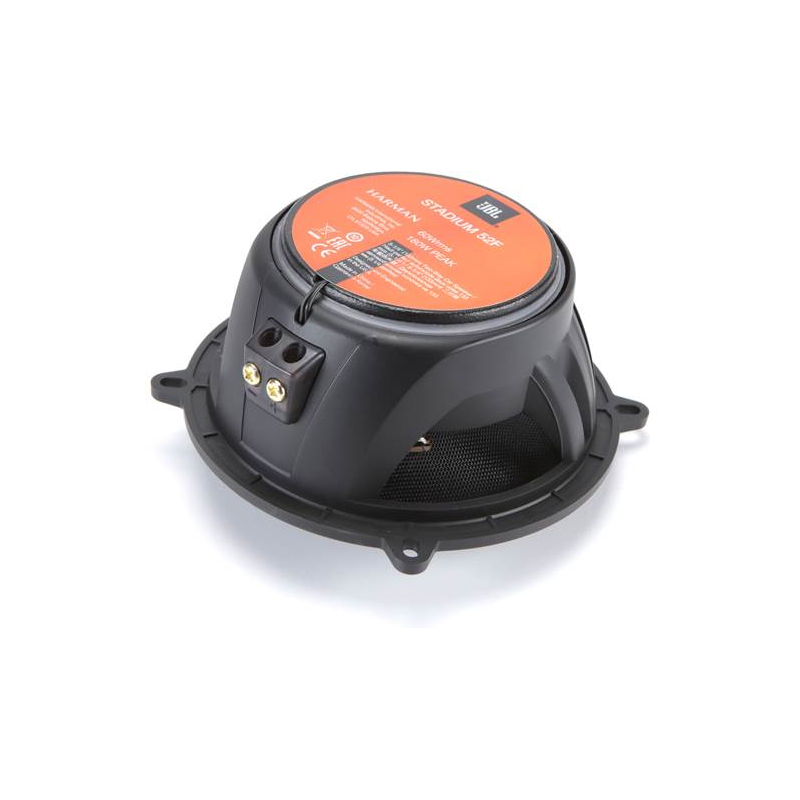

- Terminals: The input terminals are set screws that will accept up to 12 gauge bare wire.
Specifications:
- Speaker Size: 6 3/4
- Design: 2-way
- Tweeter Design: 1-3/16" Dome
- Impedance (Ohms): 4
- Tweeter Composition: Teteron
- Woofer Composition: Tri-Tech
- Woofer Surround: Rubber
- Parts Warranty: 3 Years
- Labor Warranty: 3 Years
- Sensitivity (1W at 1 meter): 87
- Sensitivity at 2.83 volts: N/A
- Frequency Response: 40 - 22k Hz
- Minimum RMS Wattage: ---
- Maximum RMS Wattage: 100
- Peak Power Handling (Watts): 200
- Top-mount Depth (Inches): 2 9/16
- Bottom-mount Depth (Inches): 2 3/4
- Cutout Diameter or Length (inches): 5 7/16
- Mounting Height (Inches): 0.419
- UPC: 050036381437
- Weight: 8
