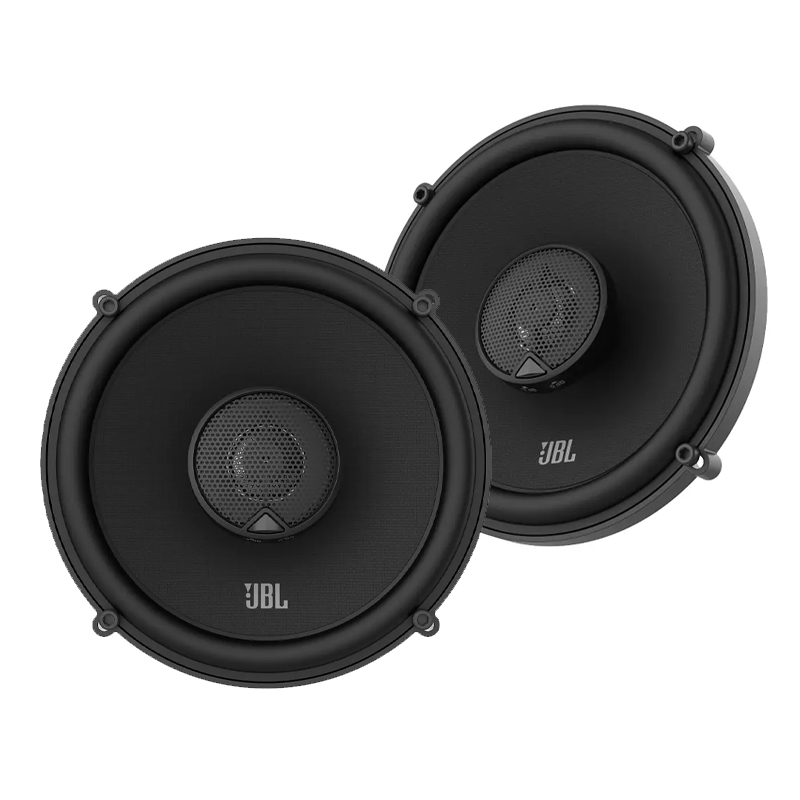

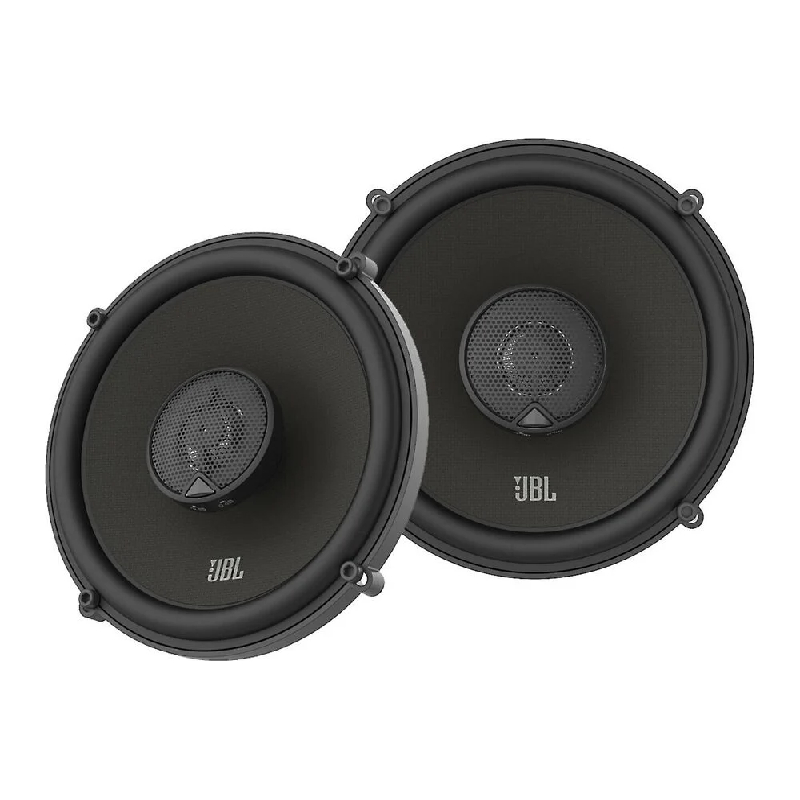

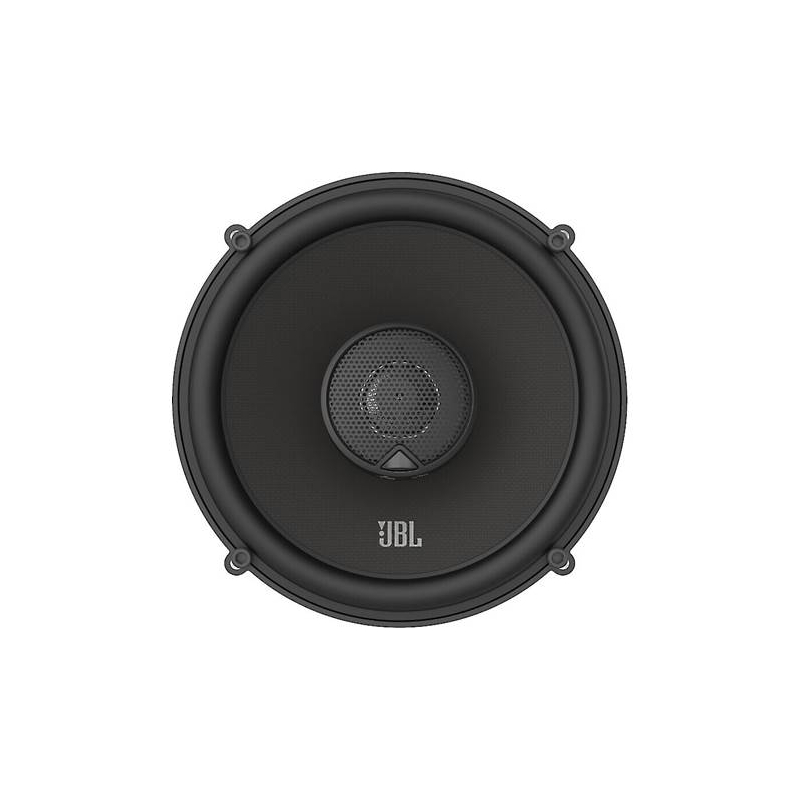

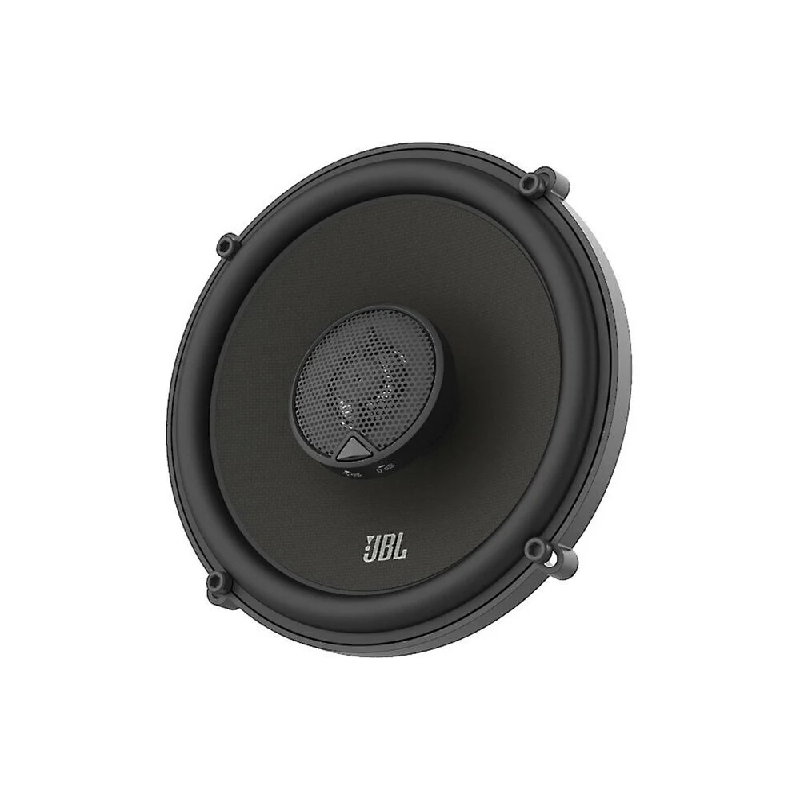

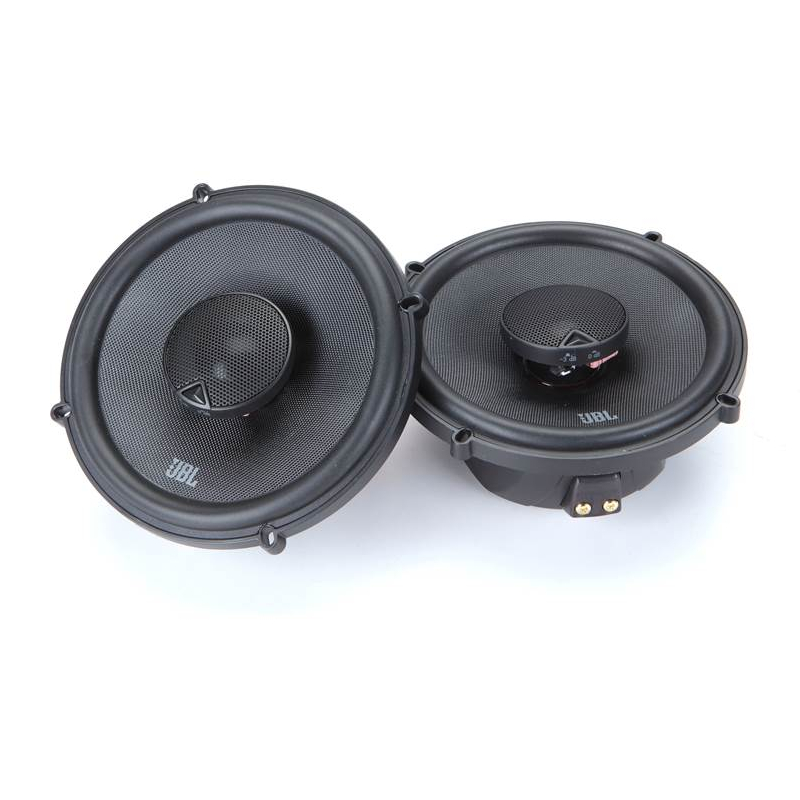

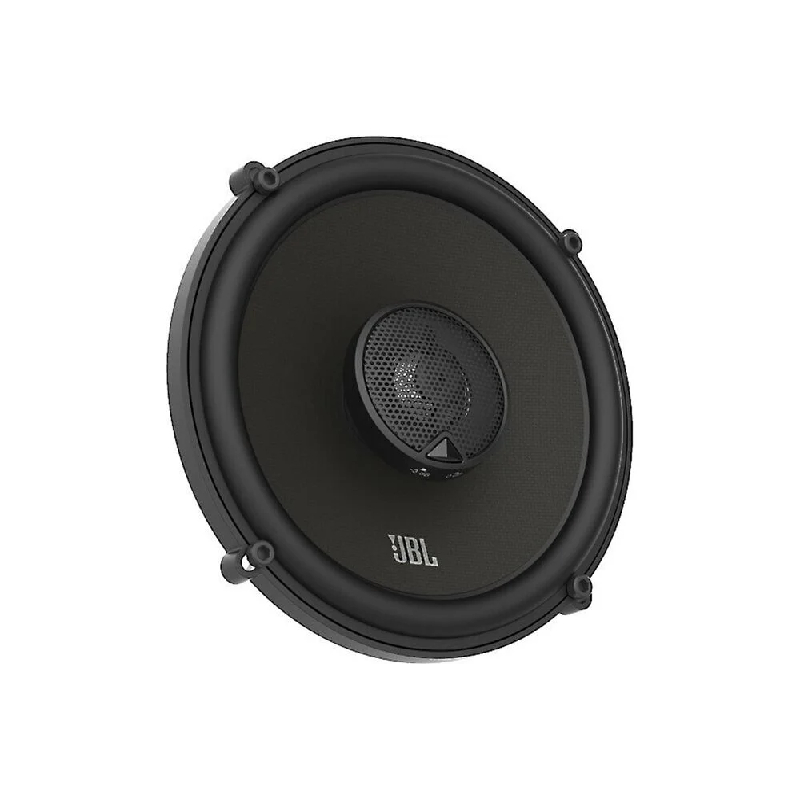

JBL STADIUM62F Stadium Series 6.5" 85W RMS (255W Peak Power Handling) 3 ohms 2-way Car Speakers
We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) 2-way speakers
- •(2) Plastic adapter brackets
- •(8) 1-3/8" Screws
- •(8) 1/2" Screws
- •(8) Speed clips
- •(2) Adhesive backed foam gaskets
- •(2) Adhesive backed JBL logo badges
- •Template on box
- •Installation manual
40kHz High-resolution Aluminum Dome Tweeter
The JBL STADIUM62F is a pair of high-performance two-way speakers that promises to elevate your car audio experience. With its advanced technology and premium construction, this speaker system delivers powerful, detailed sound reproduction that impresses even the most discerning audiophiles.
Patented Plus One™ Glass Fiber Woofers
The STADIUM62F features two 6.5-inch woofers and two 1-inch edge-driven tweeters, providing a full and balanced soundstage. The woofers utilize Plus One cone technology, allowing for increased cone surface area and improved low-frequency response. On the other hand, the tweeters ensure accurate and crisp vocal and high-frequency reproduction.
0dB or -3dB Tweeter Output Level Control
Equipped with JBL's UniPivot tweeter design, the STADIUM62F allows you to adjust the tweeter's angle, directing the sound toward your listening position for optimal imaging and staging. This feature ensures that every detail of your music is delivered with precision and clarity.
UniPivot and Angled Tweeter
With power handling of up to 85 watts RMS and a peak power output of 255 Watts, the STADIUM62F can handle high power levels, allowing you to enjoy your music at high volumes without distortion.
3-way Upgradability
With its exceptional sound performance, adjustable tweeters, and durable construction, the JBL STADIUM62F component speaker system is an excellent choice for car audio enthusiasts who seek premium sound quality. Upgrade your car audio system with the STADIUM62F and immerse yourself in a captivating and immersive listening experience.
- Diameter : 6.5 Inch
- Sensitivity : 93 dB
- Impedance : 3 Ohm
- Frequency Response : 45-40000 Hz
- Peak Power Handling : 255 Watts
- Design : 2 Way
- Top Mount Depth : 2-1/2 Inches
- Bottom Mount Depth : 2-1/8 Inches
- RMS Power Handling : 85 Watts
Features:
- Plus One Woofer Cones: The Plus One speaker cones offer more surface area than other speakers that fit in the same size opening. This is accomplished by using a new basket design and hi-roll surround. The result is greater bass output and an increase in efficiency.

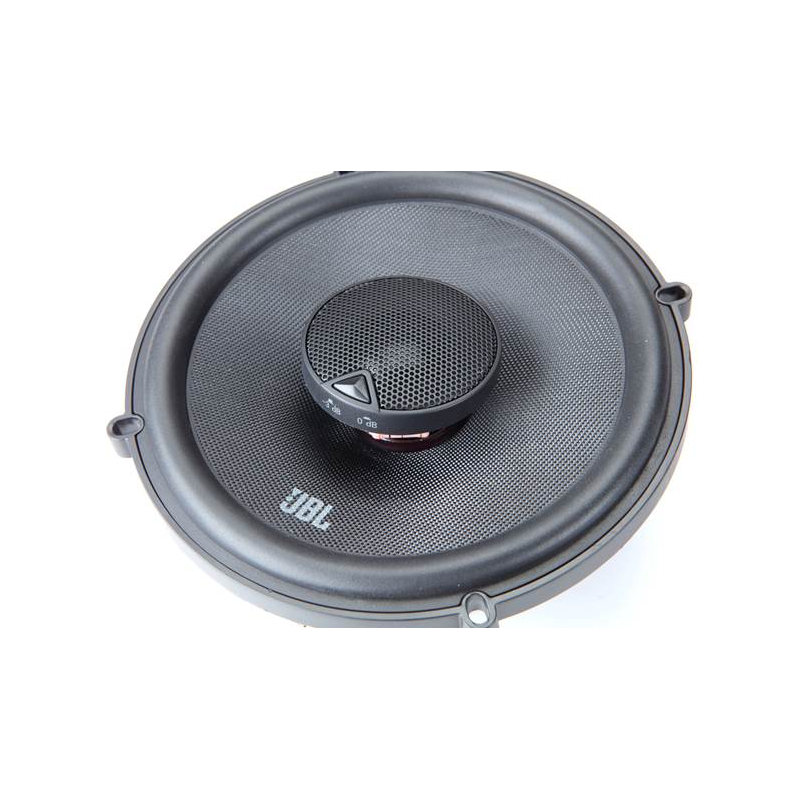

- Edge Driven Dome Tweeters: Each speaker has an edge-driven aluminum dome tweeter. Edge-driven tweeters have better dispersion characteristics and allow for a lower crossover frequency than typical tweeters of the same size, which improves imaging. The result is improved vocals and musical clarity. The tweeter also has an output level switch; choose +0 dB (flat) or -3 dB.
- UniPivot Tweeter: The tweeter is angled and can be rotated about 315° after installation. This allows you to direct the tweeters toward the listeners, very useful for speakers mounted low in a door.
- High-Output Design: The high output 3? voice coil design compensates for the high in-line resistance of small gauge factory wiring and extracts every watt from factory receivers, increasing overall system output and efficiency (relative to 4? speakers). The speakers also benefit from increased power when you upgrade the wire and add aftermarket amplifiers, designed to power a 3? load.

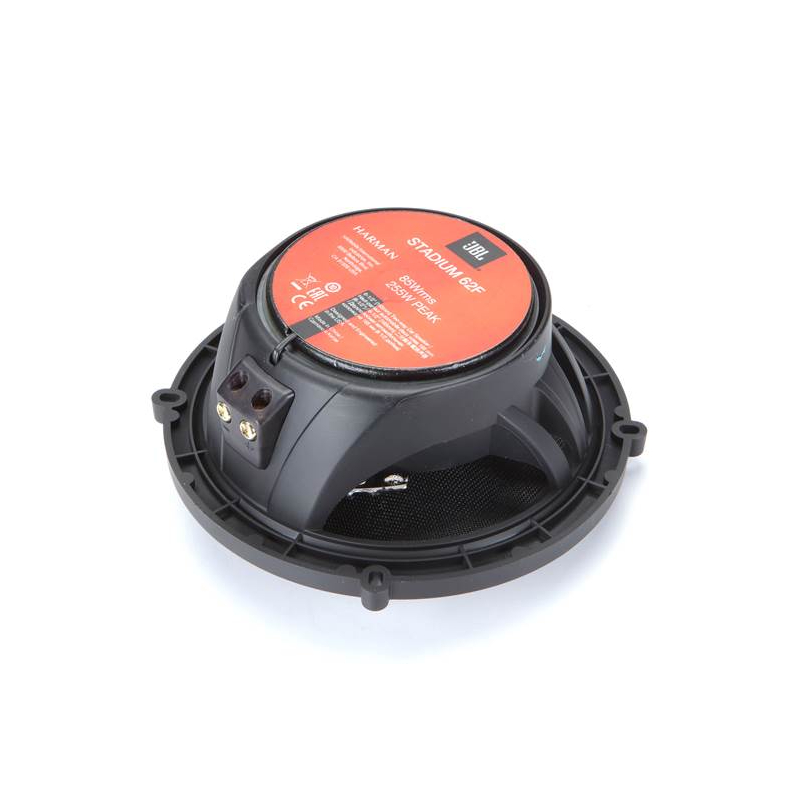

- Terminals: The input terminals are set screws that will accept up to 12 gauge bare wire.
- Mounting Applications: These speakers are marketed as 6½"; they will fit in many standard 6½" speaker openings (just over 5" diameter), but do not use the standard 6½" speaker bolt pattern. In order to install them in standard 6½" speaker openings you must drill new screw holes. If new holes are drilled in the mounting surface of the car, no bracket is needed. If drilling in the car is not an option, the included brackets can be used, which have standard 6½" mounting holes and the Ford non-symmetric four hole pattern, as well as other non-standard patterns. When using the brackets the depth becomes 1.895" and the mounting height becomes 1.119".
Specifications:
- 6-1/2" (165mm) Two-way Car Speaker
- Power Handling: 85Wrms, 255W peak
- Sensitivity (@ 2.83V): 93dB
- Frequency Response: 45Hz – 40kHz
- Impedance: 3.0 ohms
- Tweeter Composition: Aluminum
- Woofer Composition: Glass Fiber
- Woofer Surround: Rubber
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Sensitivity (1W at 1 meter): N/A
- Sensitivity at 2.83 volts: 93
- Frequency Response: 45 - 40k Hz
- Minimum RMS Wattage: ---
- Maximum RMS Wattage: 85
- Peak Power Handling (Watts): 255
- Top-mount Depth (Inches): 2 1/8
- Bottom-mount Depth (Inches): 2 1/2
- Cutout Diameter or Length (inches): 5 1/8
- Mounting Height (Inches): 0.889
- UPC: 050036381376
- Weight: 8
