JL Audio  C1-650

C1 Series 6-1/2" 225W Peak Power Handling 4 Ohm, 2-Way Car Component System

Item #48909

Condition:   Brand New

Product Highlights

  • C1 Series
  • 6.5" Component System
  • 225W Peak Power
  • 4 Ohm Impedance
  • 2-Way Design

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$149.99

Reg. Price $219.99  Save $70.00
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


JL Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

JL Audio C1-650 Clearance C1 Series 6-1/2" 50W RMS ( 4 Ohms 2-way Car Component Speaker System


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (2) C1-650cw Woofers
  • • (2) C1-075ct Tweeters (with 6" wires attached)

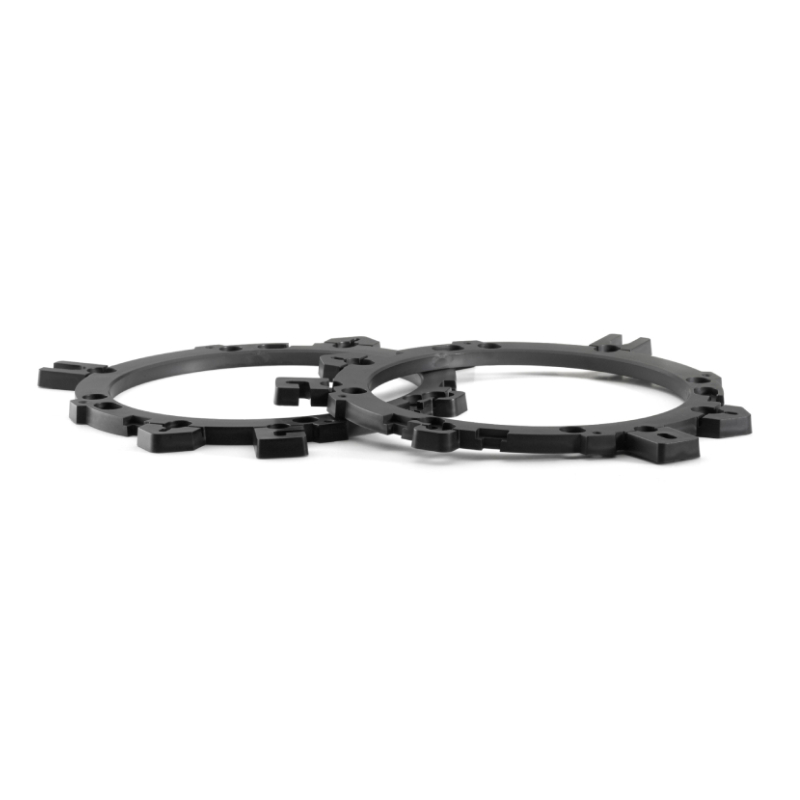

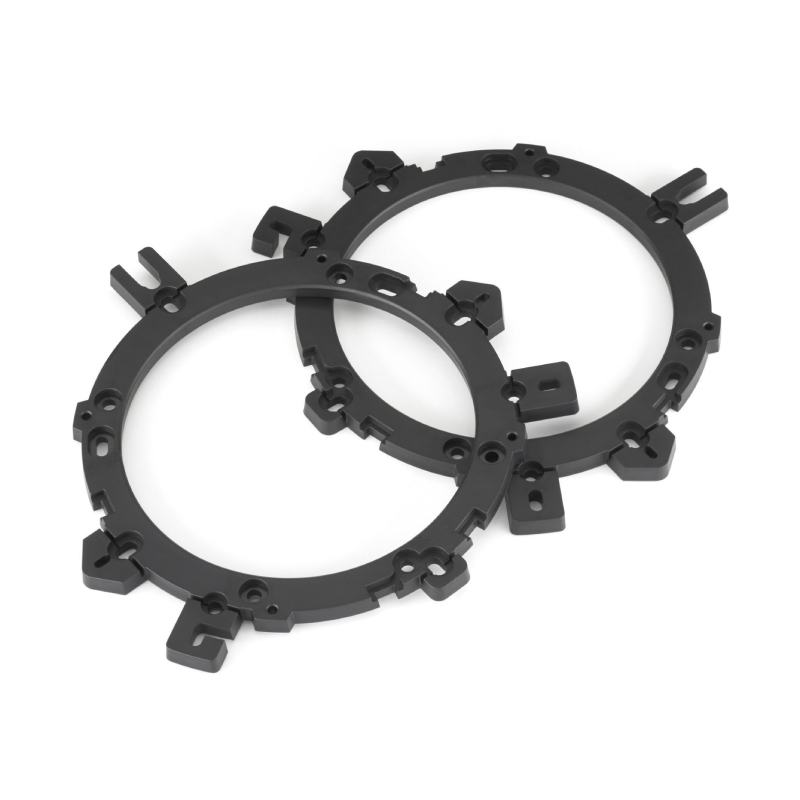

  • • (2) Multi-application woofer mounting rings

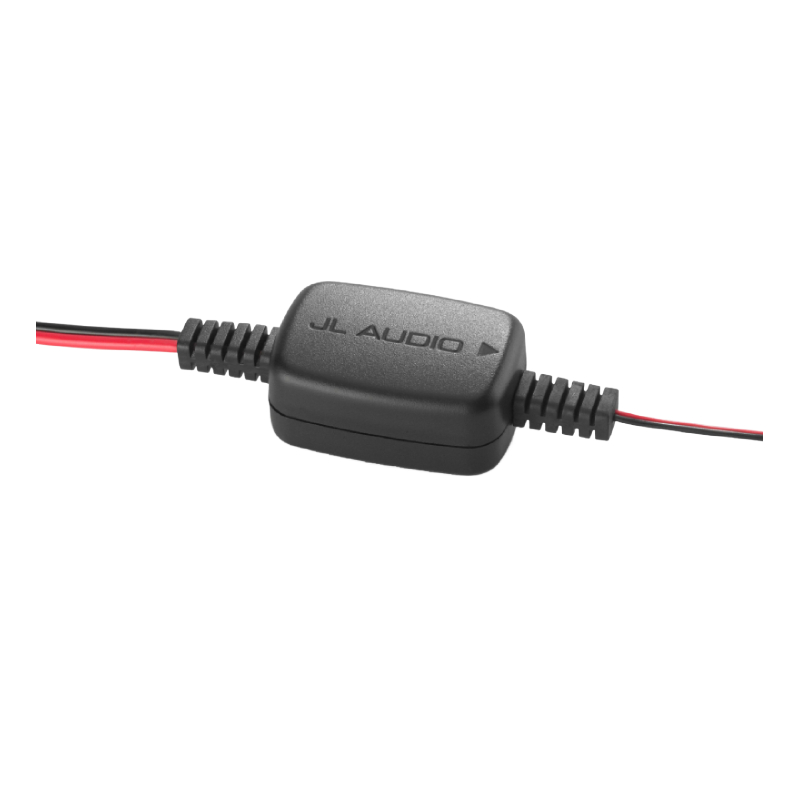

  • • (2) Tweeter crossovers
  • • (2) Flush mount tweeter housings (tweeters installed)
  • • (2) Surface mount tweeter housings
  • • (2) Metal spring clips for tweeter fixtures
  • • (2) Crimp-on 0.187" Female quick slides
  • • (2) Crimp-on 0.110" Female quick slides
  • • (4) 5/8" Flat head screws
  • • (8) 3/4" Pan head screws
  • • (8) 1/4" Pan head screws
  • • (8) Speed clips
  • • (2) 25mm Stud bolts
  • • (2) 10mm Stud bolts
  • • (2) M5 Nuts
  • • Owner's manual





Surface And Flush Mounts

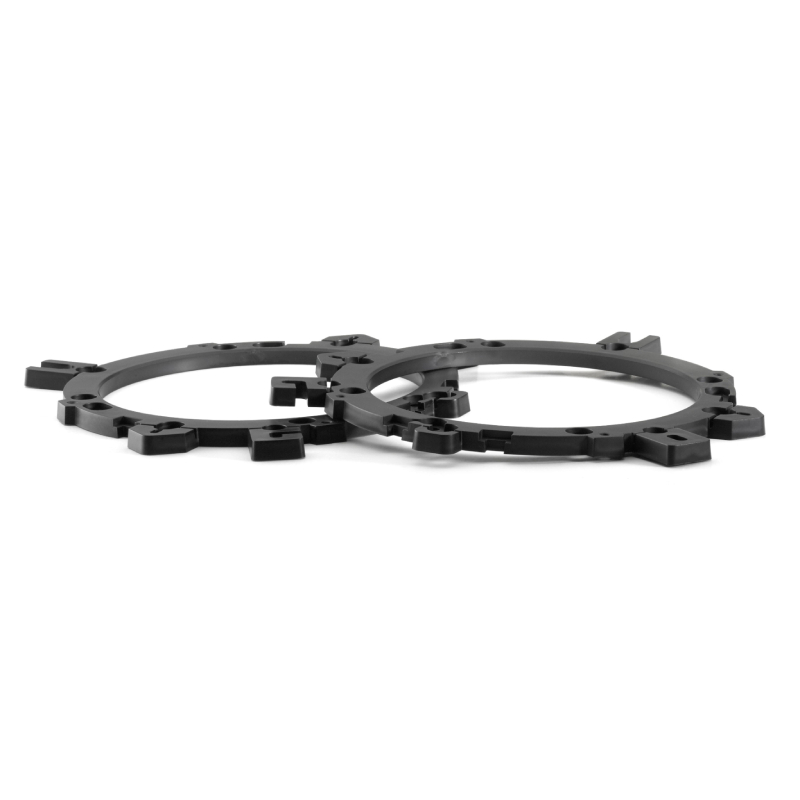

C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles. To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.

Carefully Engineered Flat Conex®

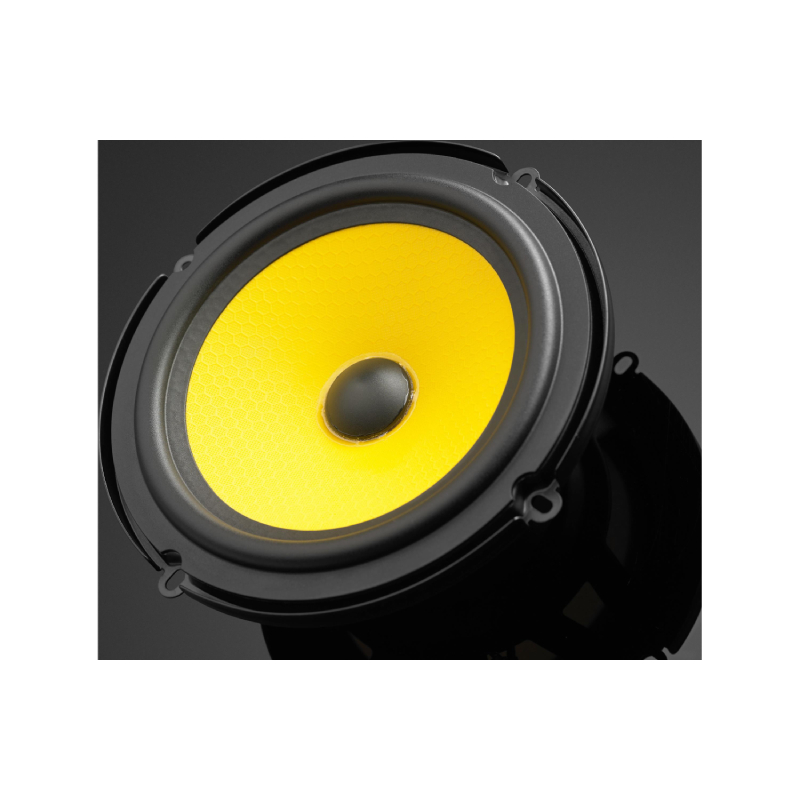

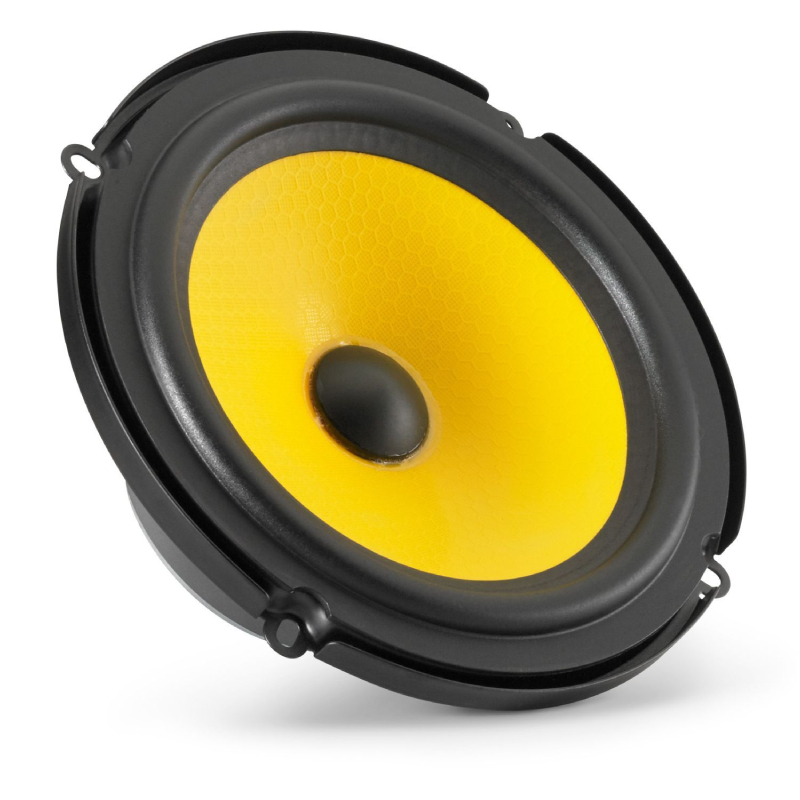

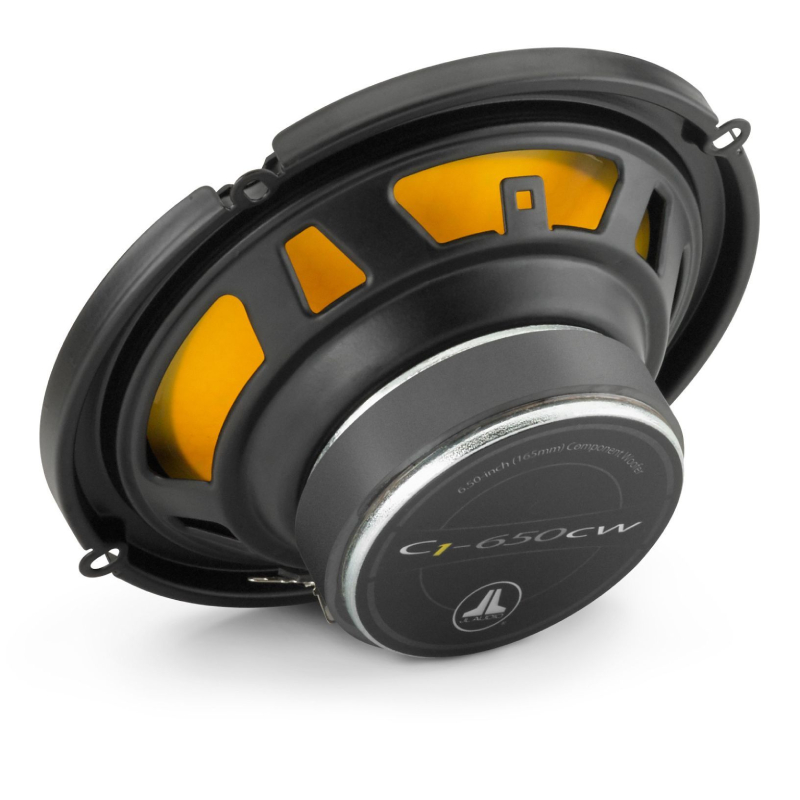

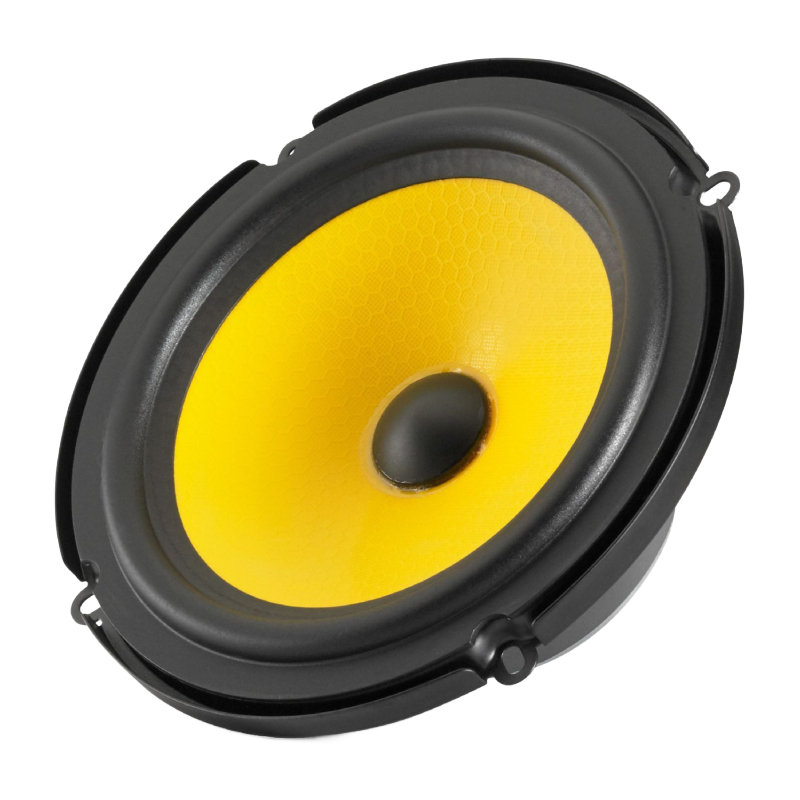

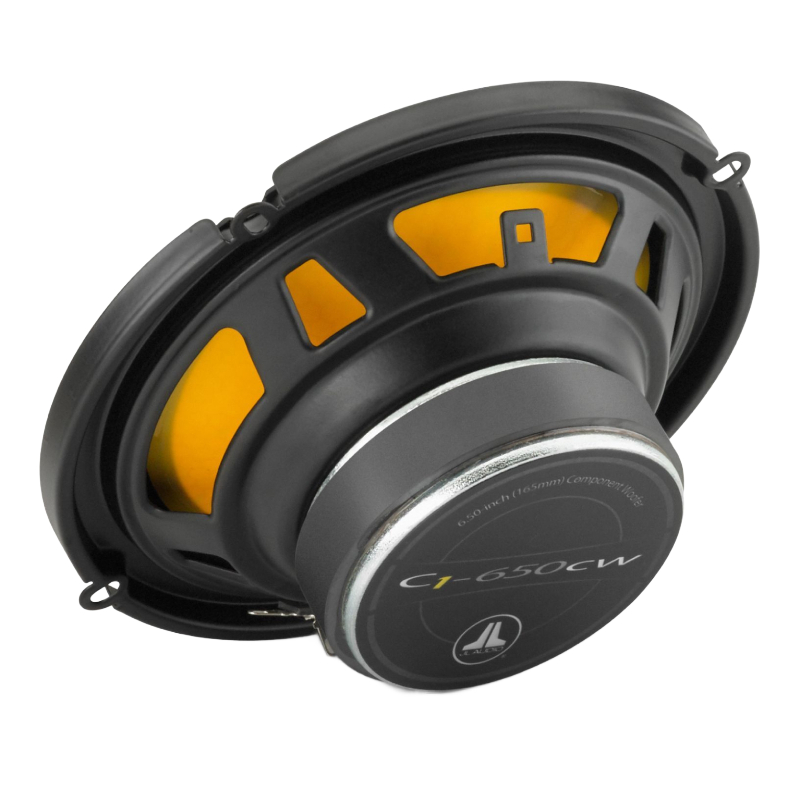

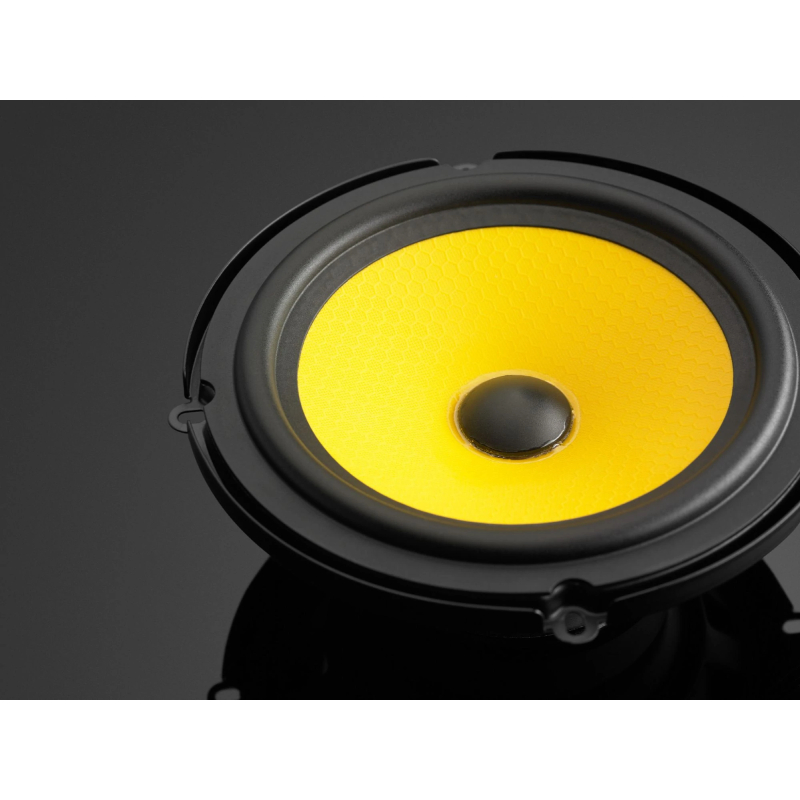

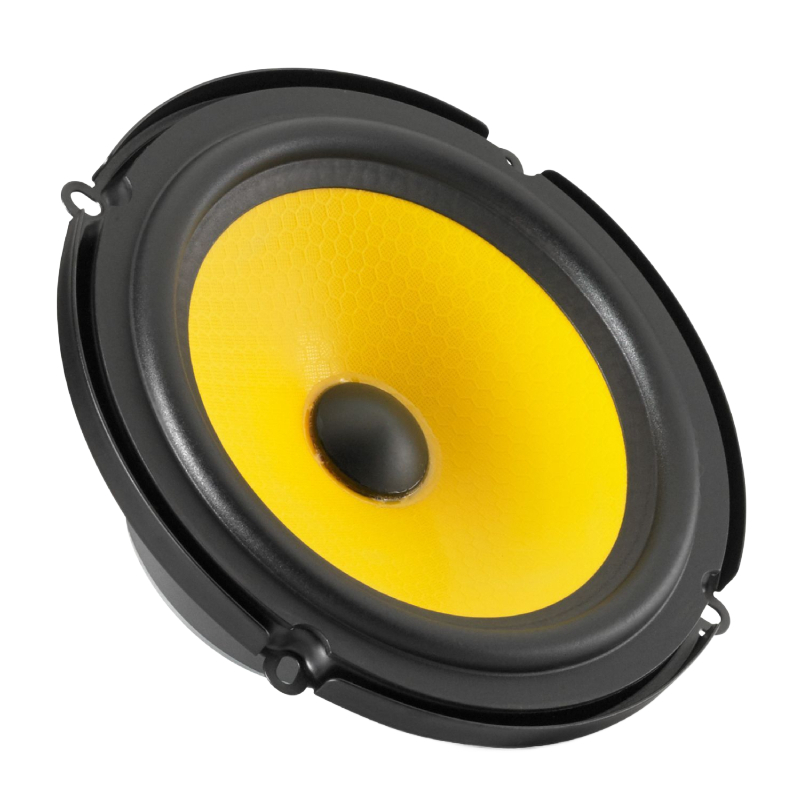

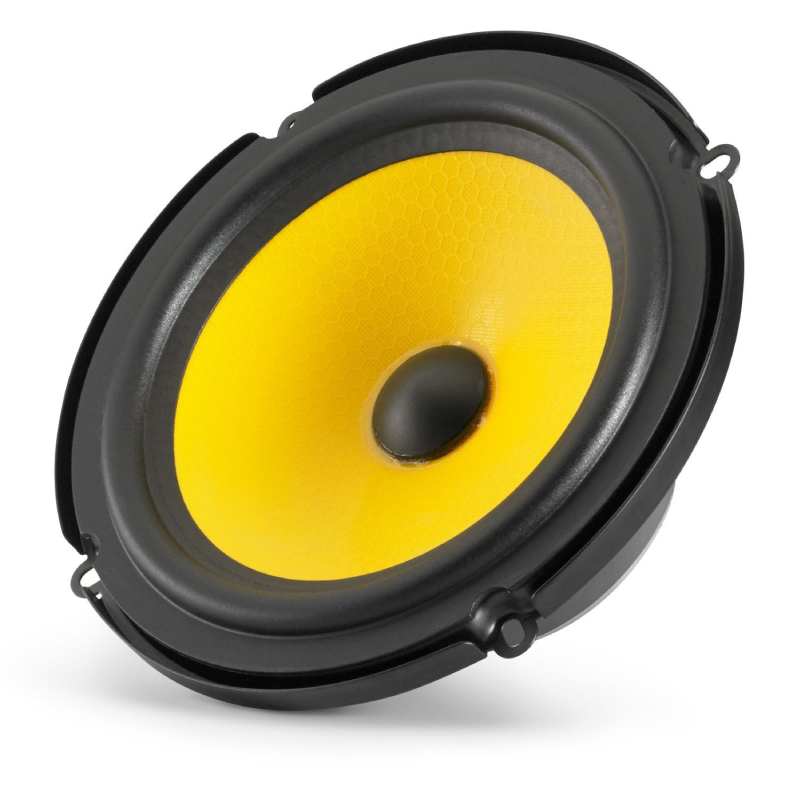

C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650 is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion.



High-frequency Extension

Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.

  • Diameter : 6.5 Inch
  • Sensitivity : 91 dB
  • Frequency Response : 59-22000 Hz
  • Peak Power Handling : 225 Watts
  • Design : 2 Way
  • RMS Power Handling : 50 Watts

Features:

  • component speaker system includes 2 woofers and 2 tweeters
  • 6-1/2" injection-molded mineral-filled polypropylene woofer cone with rubber surround
  • separate 3/4" aluminum edge-driven dome tweeter with in-line high pass filter
  • handles up to 50 watts RMS (225 watts peak power)
  • frequency response: 48-24,000 Hz
  • sensitivity: 93 dB at 2.83 volts
  • woofer top-mount depth: 2-1/16"
  • grilles not included



Specifications:

  • Sensitivity (1W at 1 meter): 90.5
  • Sensitivity at 2.83 volts: 93
  • Frequency Response: 48 - 24k Hz
  • Minimum RMS Wattage: 10
  • Maximum RMS Wattage: 50
  • Peak Power Handling (Watts): 225
  • Top-mount Depth (Inches): 2 1/16
  • Bottom-mount Depth (Inches): N/A
  • Cutout Diameter or Length (inches): 5
  • Mounting Height (Inches): 0.536
  • UPC: 699440990431
  • Weight: 7.01
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
