Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.
Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.

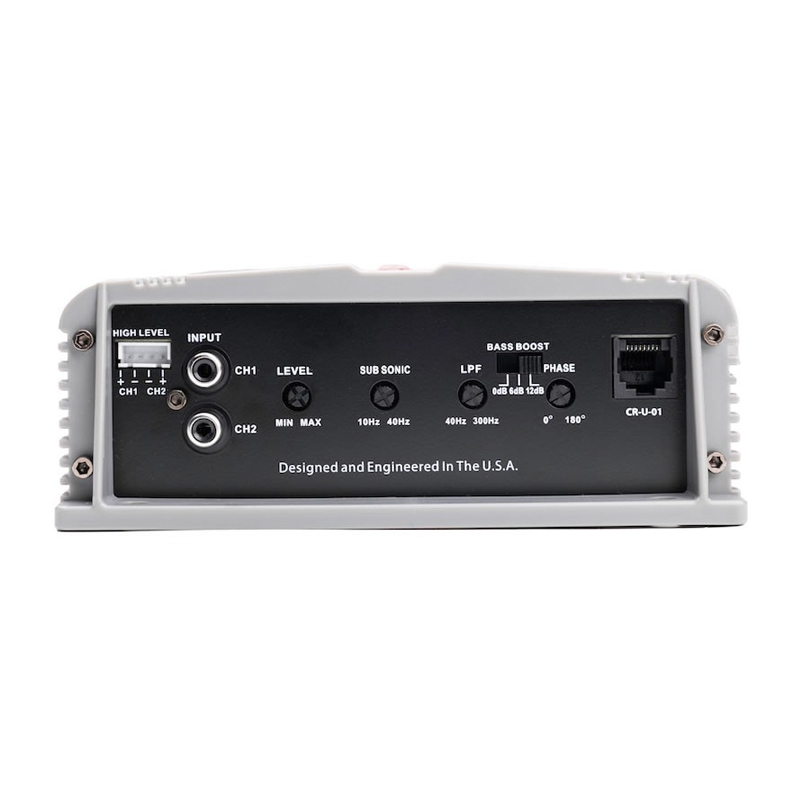

High Level Inputs
Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
Variable Electronic 12dB Per Octave.
Fully Adjustable 12dB Crossovers.
Class / Topology
Class A/B: High sound quality circuit that allows Smash to develop high levels of power with minimal distortion.
Output Device Technology
Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.
Heat Sink QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening. Power Supply High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system. Output Connections Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion. Connection Type Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection. LED System Protection Circuitry Diagnostics Monitor overload and speaker short protection with lighted indicators on the amplifier end panel. Bass Remote Included Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
Maximum Power : 1100 Watts
High Frequency Response : 10-40 Hz
Number of Channels : 1
Frequency Response : 10-500 Hz
RMS Power Output : 195x1 Watts
Amplifier Class : A/B
Fuse Rating : 25x2 A
Class: Class A/B
Total Channels: 1
Power @ 1 ohm (CH X WATTS): N/A
Power @ 2 ohms (CH X WATTS): 1 x 195
Power @ 4 ohms(CH X WATTS): 1 x 120
Mono Bridge @ 4 ohms (CH X WATTS): N/A
Crossover: Variable Electronic 12dB Per Octave
Tone Control/Parametric EQ: Built-in bass control
Bass Boost: Switchable: 0 / +6 / +12dB
Variable Voltage: .2 to 9V
Frequency Response: 10Hz-500Hz
Speaker Level Audio Inputs: Yes

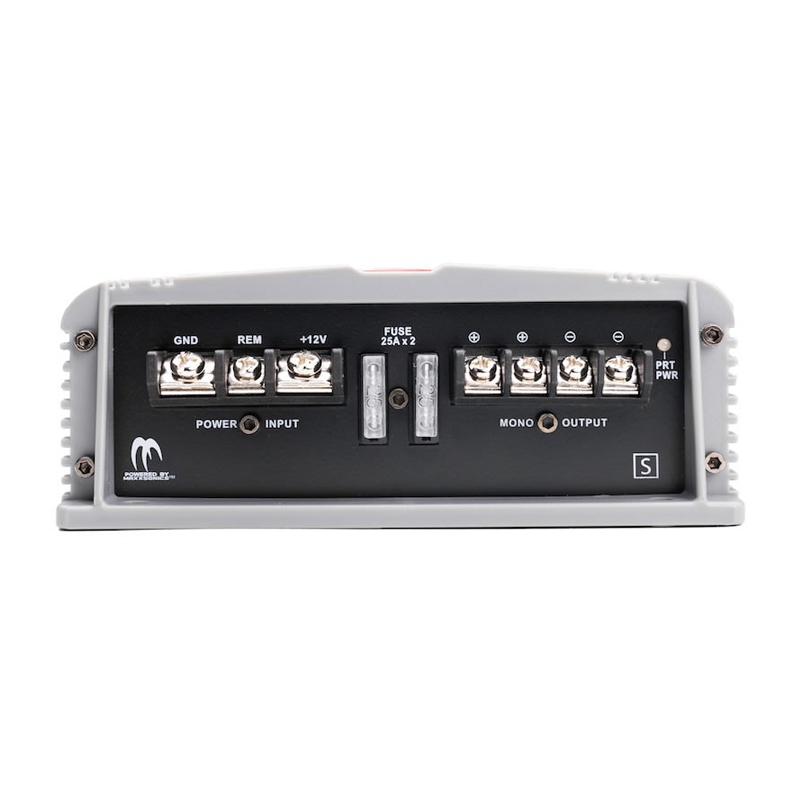

Power Terminal 12V/GND: 4 AWG
Speaker Terminal Wire Gauge: 12 AWG
Fusing: 2 x 25A
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
This amp is a great amp for the price. This amp runs cool, and sounds great. I’m using it to push an infinity reference 12” with 1200 watts Max
