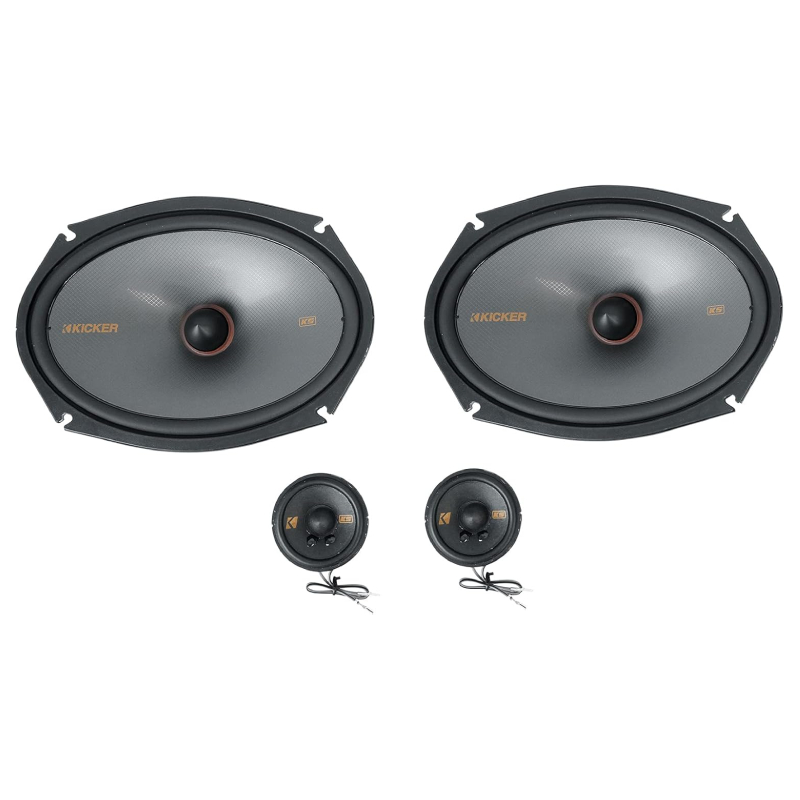

Kicker 48KSS269 KS Series 6"x9" 100W RMS (200W Peak Power Handling) 4 Ohms, 2-way Component Speaker System
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

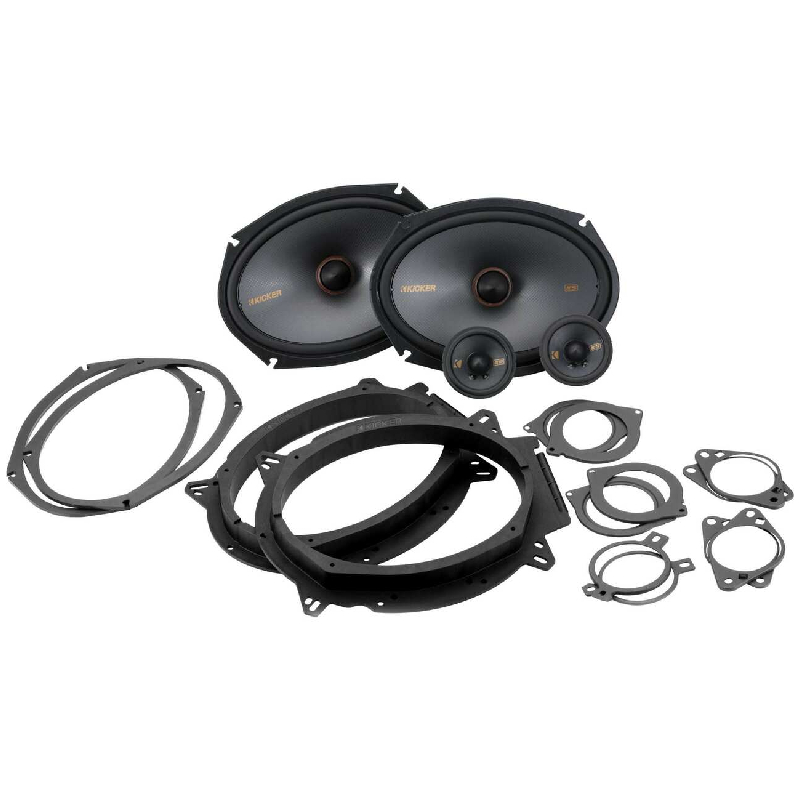

What's Inside?

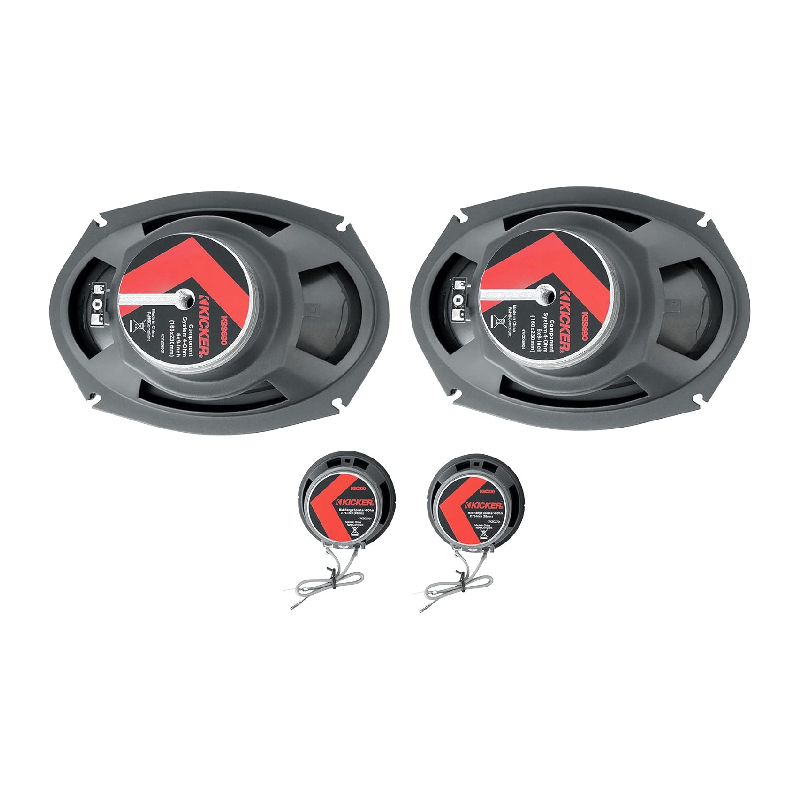

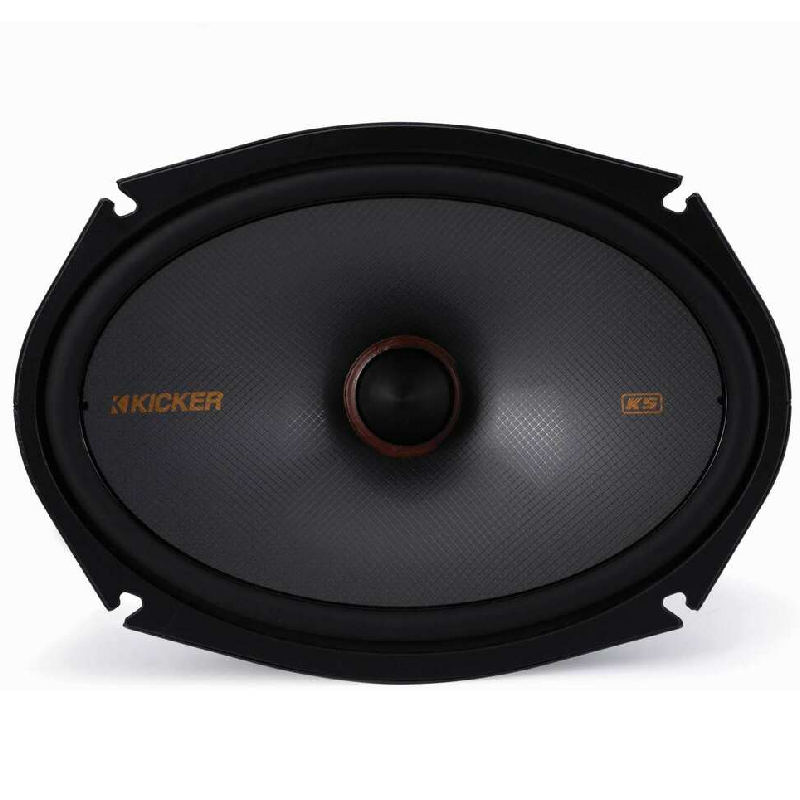

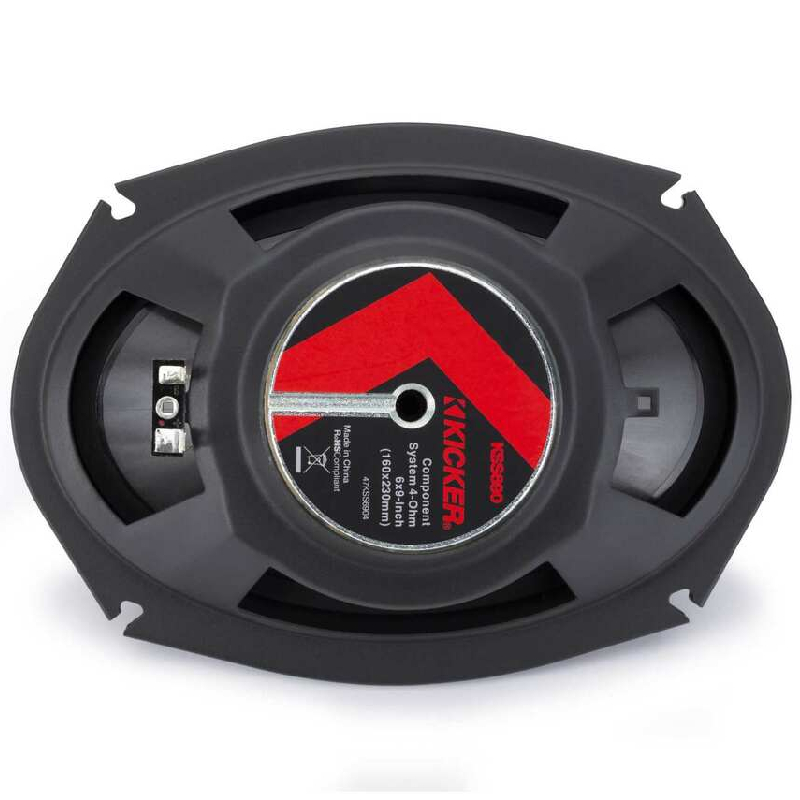

- • (2) 6"x9" Woofers

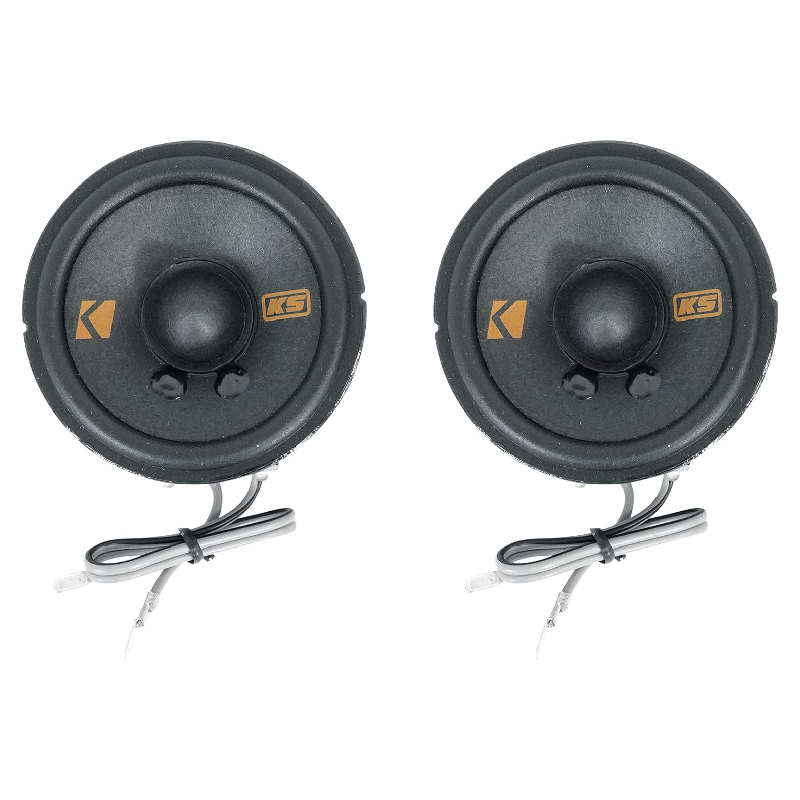

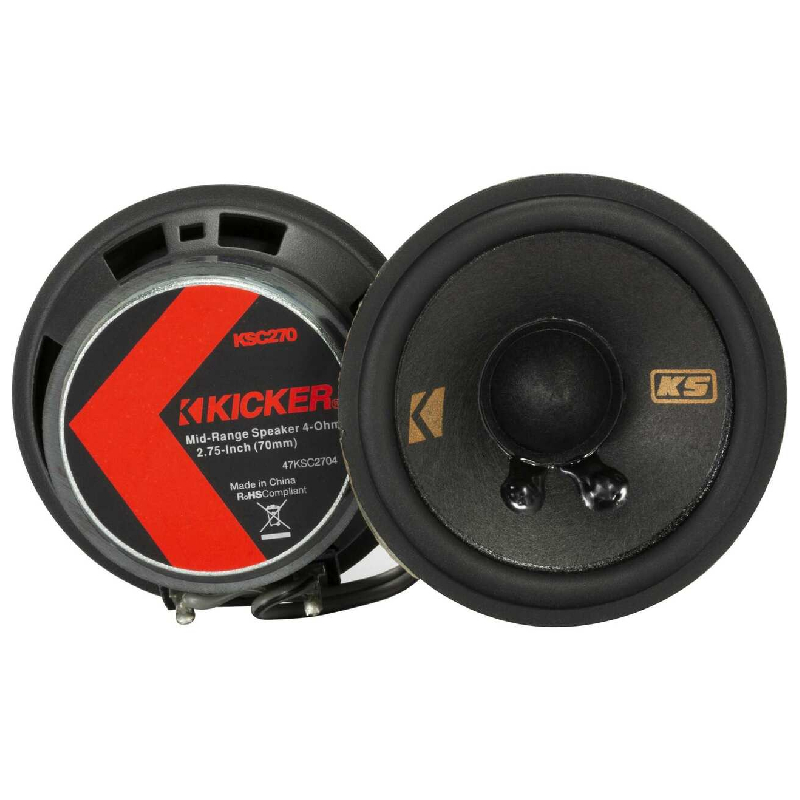

- • (2) 2-3/4 Tweeters

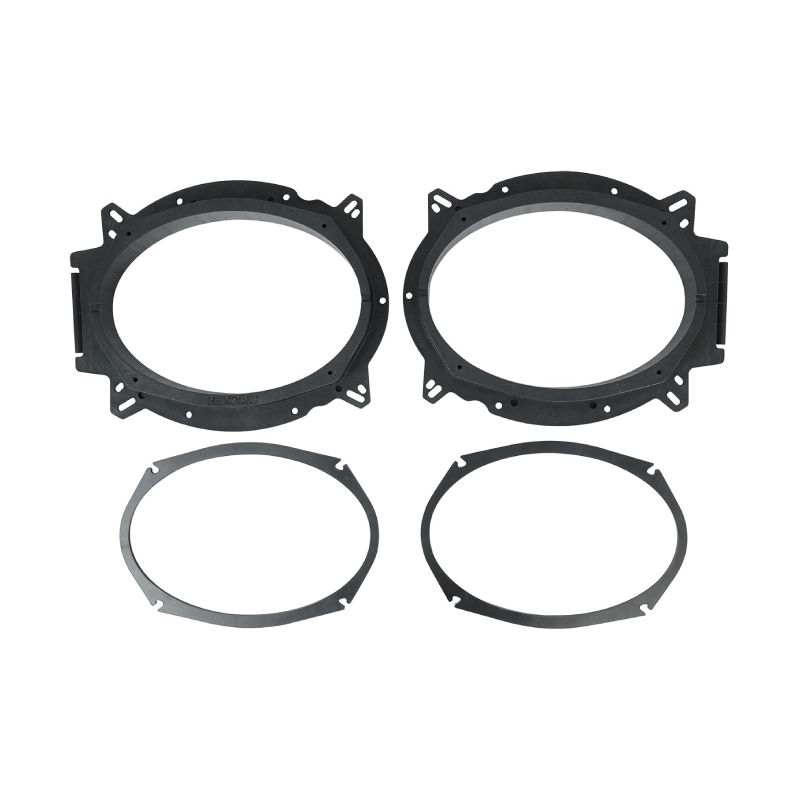

- • (2) 6x9 Spacers

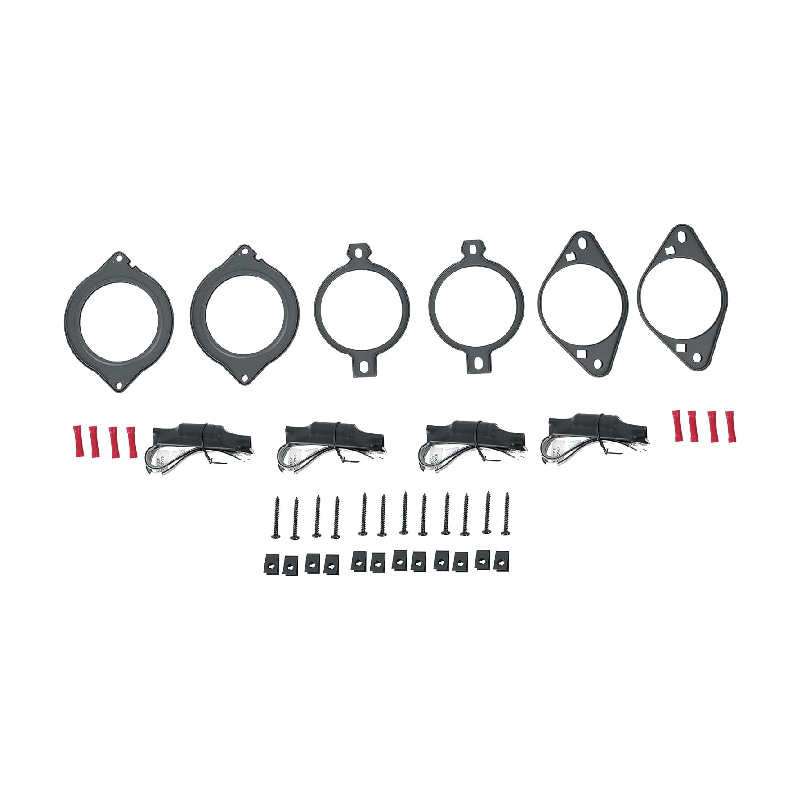

- • (2) 6x9 multi-purpose adapter brackets (fits GM & Toyota)
- • (2) GM/Mopar tweeter brackets
- • (2) Chrysler/Jeep tweeter brackets
- • (2) Toyota/Subaru tweeter brackets
- • (2) 13" woofer leads with in-line crossovers, bare-to-quick-slide
- • (2) 13" tweeter leads, integrated crossovers, bare-to-slide
- • (8) Red plastic wire caps
- • (2) Adhesive backed foam strips
- • (12) 1-1/8" Screws
- • (12) Speed clips
- • 6x9 Template
- • Specifications printed on box
- • Owner's Manual
Why Choose Kicker 48KSS269 Component System?
Stunning, Accurate Upgrades with Extraordinary Mounting Flexibility

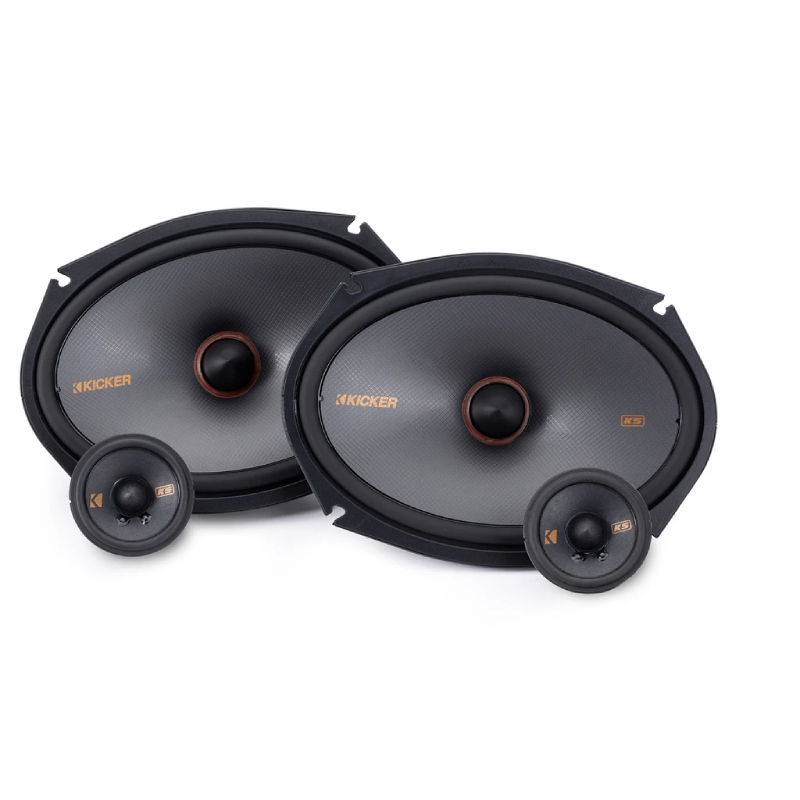

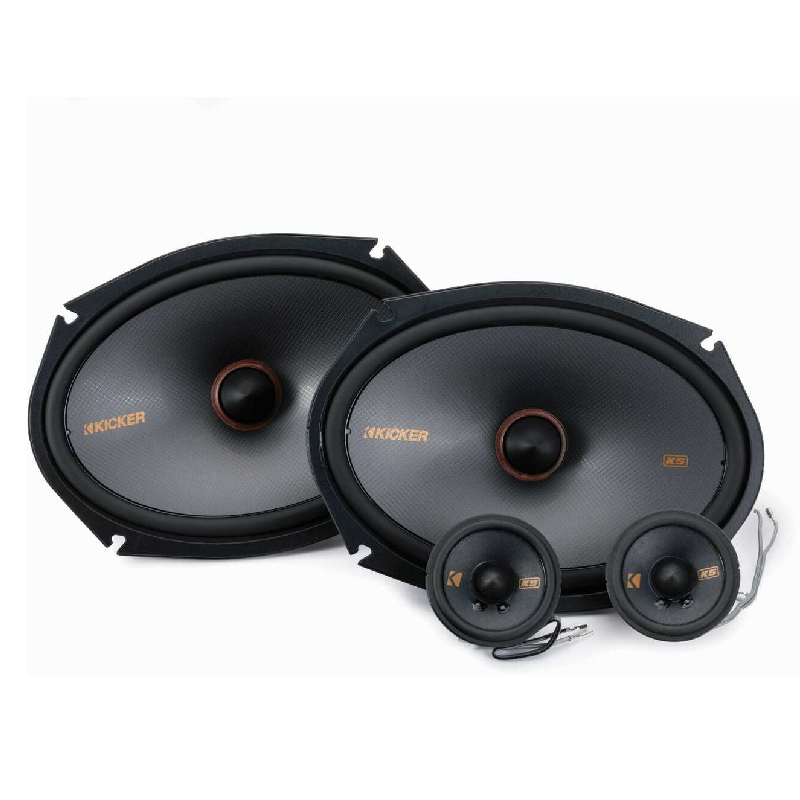

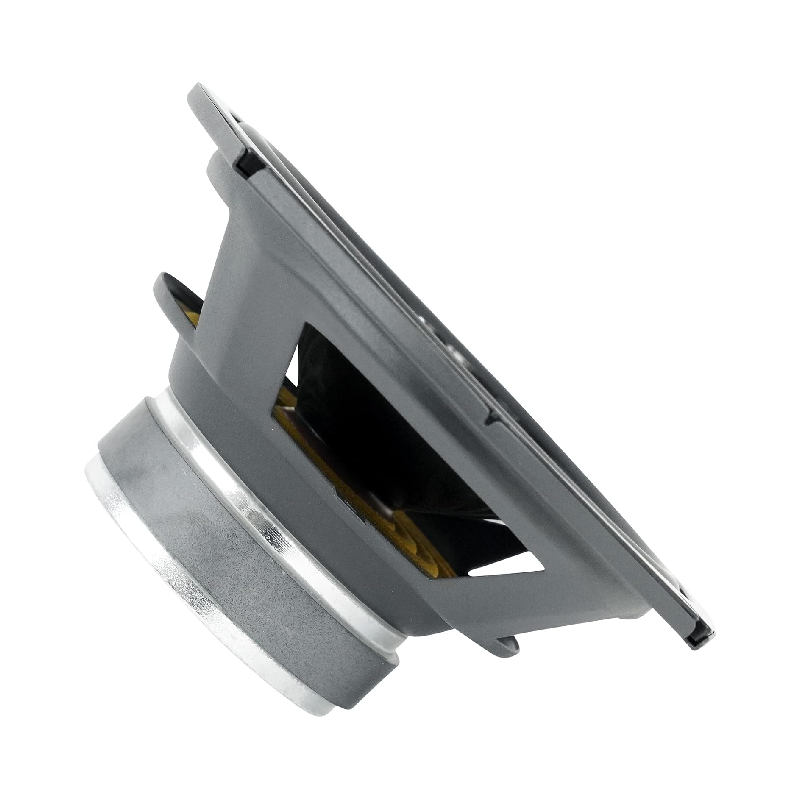

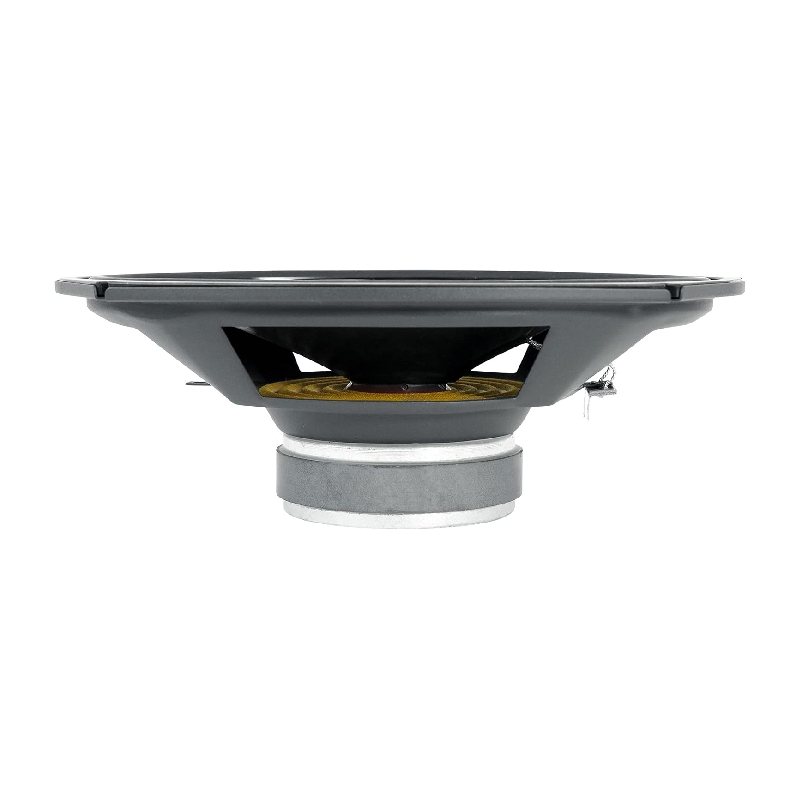

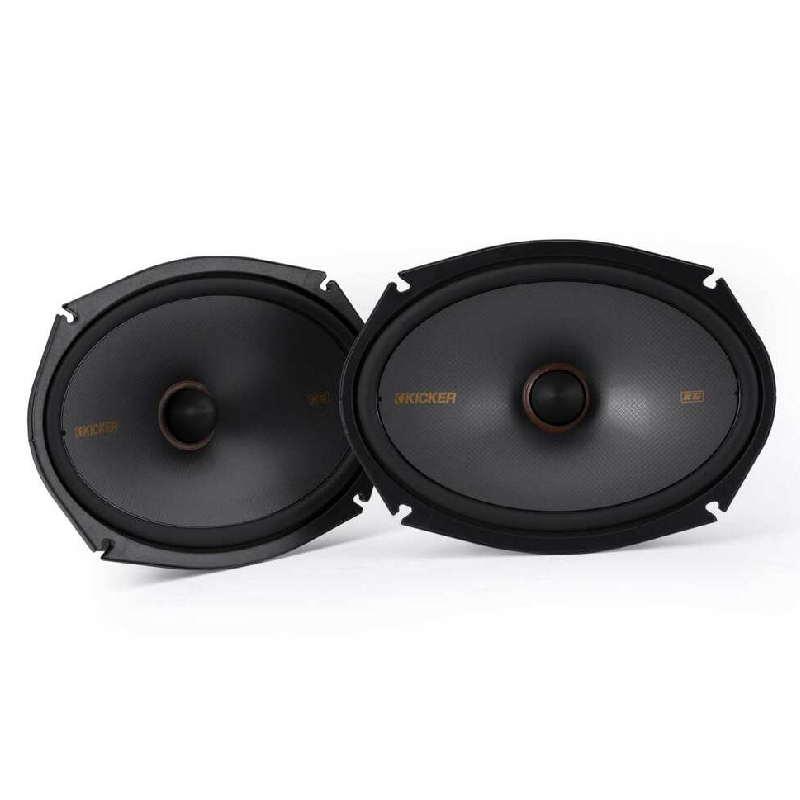

Meant to take your car audio component system to another level, the Kicker 48KSS269 is a combination of a 6"x 9" woofer and a 2.75-inch tweeter designed to give you high-quality full-range frequency performance all day inside your vehicle.
Comes With a Polypropylene Woofer Cone

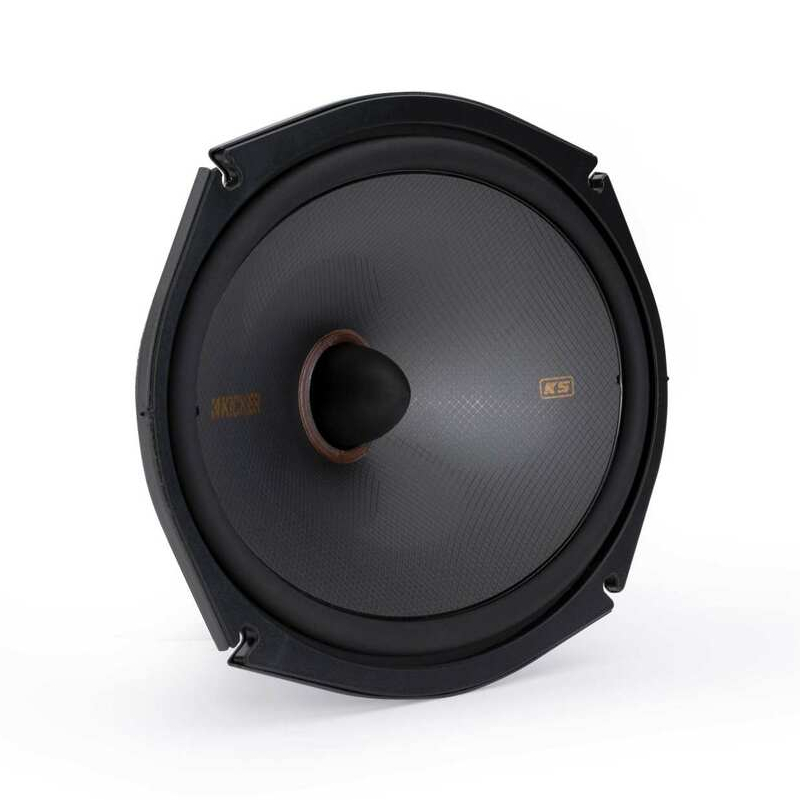

The Kicker 48KSS269 comes with a polypropylene woofer cone and a rubber surround, making sure that you'd get that famous Kicker bass output while still being able to handle the wear and tear that comes with long hours of use at high volume levels.
Comes With a Set of Custom Brackets

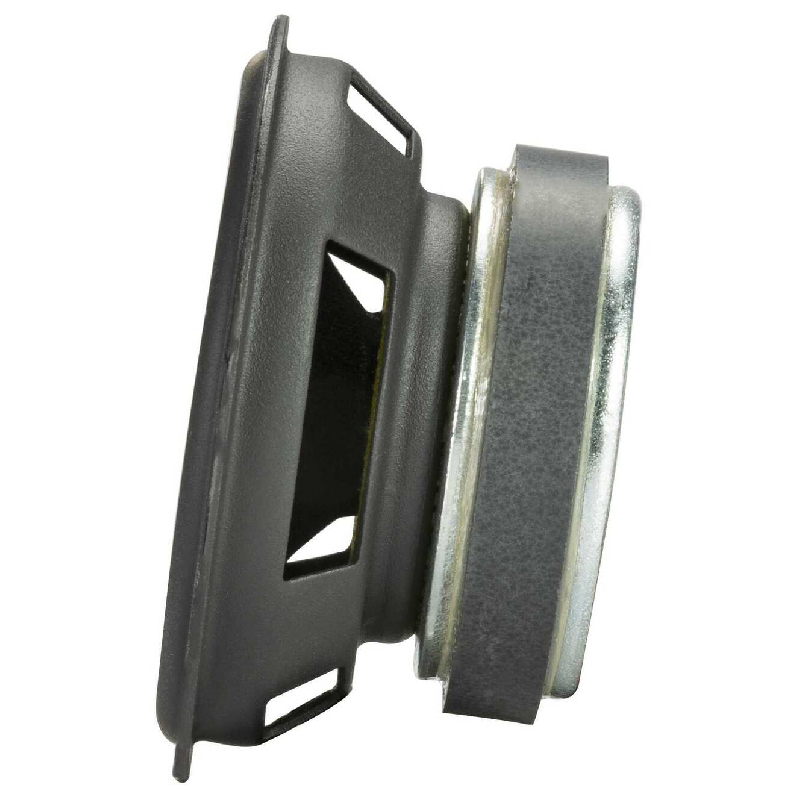

It has a 2.75-inch silk dome tweeter with an inline crossover to give you a highly detailed, smooth, and accurate high-frequency performance with a minimal breakup at high volume levels. The Kicker 48KSS269 also comes with a set of custom brackets for select GM, Ford, Jeep, Dodge, and Chrysler vehicles for easy installation.
Frequently Asked Questions (FAQ)
- • Why do my woofers have very little bass after replacing the factory speakers?
Weak bass is commonly caused by poor door sealing or reversed speaker polarity. Check the wiring and use the included foam strips to help create a tighter seal against the mounting surface.
- • Can I install this component system in a GM or Toyota vehicle without custom fabrication?
Yes. The package includes 6"x9" adapter brackets designed to fit many GM and Toyota applications for easier installation.
- • Why aren't my tweeters producing any sound?
Inspect the integrated crossover wiring and make sure every quick-slide connector is fully seated. Loose connections or incorrect wiring are the most common causes of silent tweeters.
- • Which tweeter brackets should I use for my vehicle?
The package includes dedicated brackets for GM/Mopar, Chrysler/Jeep, and Toyota/Subaru applications. Choose the bracket that matches your vehicle for the most secure factory-style installation.
- • Why do the woofers distort when I increase the volume?
Distortion is usually caused by amplifier clipping or excessive bass being sent to the speakers. Using a properly adjusted high-pass filter and correct gain settings will improve clarity.
- • Can I power this component system with my factory radio?
Yes. It is compatible with most factory head units, although adding an external amplifier will provide cleaner output and greater overall performance.
- • Why does one side of the system sound quieter than the other?
Check the balance settings, speaker polarity, and all wiring connections on both channels. A loose connector or damaged wire is often responsible for uneven sound levels.
- • What are the included 6"x9" spacers used for?
The spacers provide additional mounting depth and improve fitment in vehicles where extra clearance is required. They can also help position the woofers correctly behind factory door panels.
- • Why do my door panels rattle after installing the component system?
The improved output can cause loose trim panels, clips, or wiring inside the door to vibrate. Tightening the hardware and applying sound-deadening material can significantly reduce unwanted noise.
- • Does this package include installation accessories?
Yes. The bundle includes adapter brackets, vehicle-specific tweeter brackets, integrated crossover leads, spacers, foam strips, speed clips, screws, wire caps, a mounting template, and an owner's manual.
- Diameter : 6x9 Inch
- Sensitivity : 92 dB
- Frequency Response : 30-20000 Hz
- Peak Power Handling : 200 Watts
- RMS Power Handling : 100 Watts
Features:
- Incredible Sound Anywhere: Engineered for a full-range upgrade, these 6x9 woofers and 2-3/4" mid/tweeters deliver concert-like volume with smooth, detailed highs and precise midrange.
- High Power Handling: Recommended amplifier range of 15–100 watts RMS, with peak handling up to 200 watts.
- UV-Treated Surrounds: Durable woofers resist heat and sunlight for long-term performance.
- In-Line Crossovers: Direct frequencies to the proper drivers, allowing smooth integration and simpler installation.
- Versatile Vehicle Fit: Includes three custom mounting brackets for GM, Ford, Chrysler, Jeep, Dodge, and select Asian import factory locations.

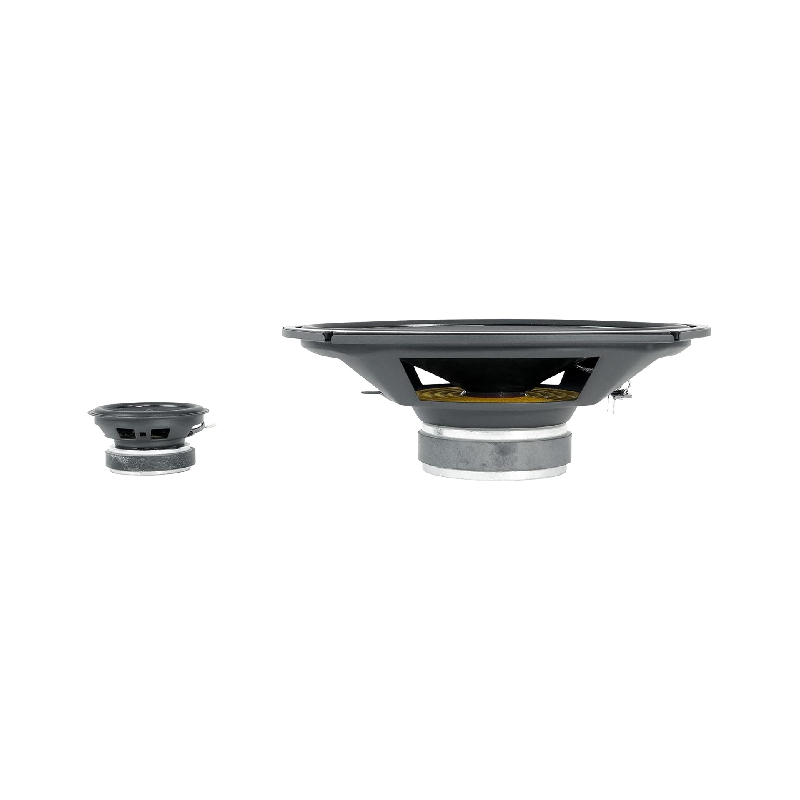

- Thin-Mount Design: Reduced mounting depth allows installation behind most factory grilles without interference.
- Musical Detail: 6x9 woofers provide deep bass while 2-3/4" dash speakers accentuate clear vocals and instrumentals.
- Power Flexibility: Sensitive design allows high volume from factory radios or enhanced performance with aftermarket amps.
Specifications:
- Speaker Design: 2-Way
- Woofer Size: 6"x9" (160x230 mm)
- Tweeter Size: 2-3/4" (70 mm)
- Woofer Design: Cone
- Woofer Material: Polypropylene
- Woofer Surround Material: Rubber
- Tweeter Design: Cone
- Tweeter Material: Treated Paper
- Rated Impedance: 4 Ω
- Sensitivity (1W @ 1m): 92 dB
- Frequency Response: 30 – 20,000 Hz
- Maximum RMS Wattage: 100 W
- Peak Power Handling: 200 W
- Woofer Mounting Hole Diameter: 5-11/16 x 8-7/16" (144 x 215 mm)
- Woofer Bottom Mount Depth: 3-3/16" (81 mm)
- Flush Mount Tweeter Hole Diameter: 2-5/8" (67 mm)
- Flush Mount Tweeter Depth: 1-1/4" (32 mm)
- Top Mount Depth: 2-15/16"
- Bottom Mount Depth: 2-3/16"
- Mounting Height: 0.328"
- Frame Width: 6.635"
- Frame Length: 9.217"
- Grilles Included: No
- Weather-Resistant: No
- UPC: 713034020134
- Weight: 8.91
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
A great 2-way for 3-way setups. The 6x9s offers some good midbass reproduction and the highs are pretty bright and clear. With a good sub, you’l really have a blast with this system. Loud but not distorted. A little bit pricey but a great purchase and addition to have on your setup.
