Kicker 48KMXL694 KMXL Series 6"x9" 150W RMS (300W Peak Power Handling) 4 Ohms, 2-way Marine Horn Loaded Compression Driver Coaxial Speakers (Pair)
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 2-way speakers (each has a 5" length of wire attached)

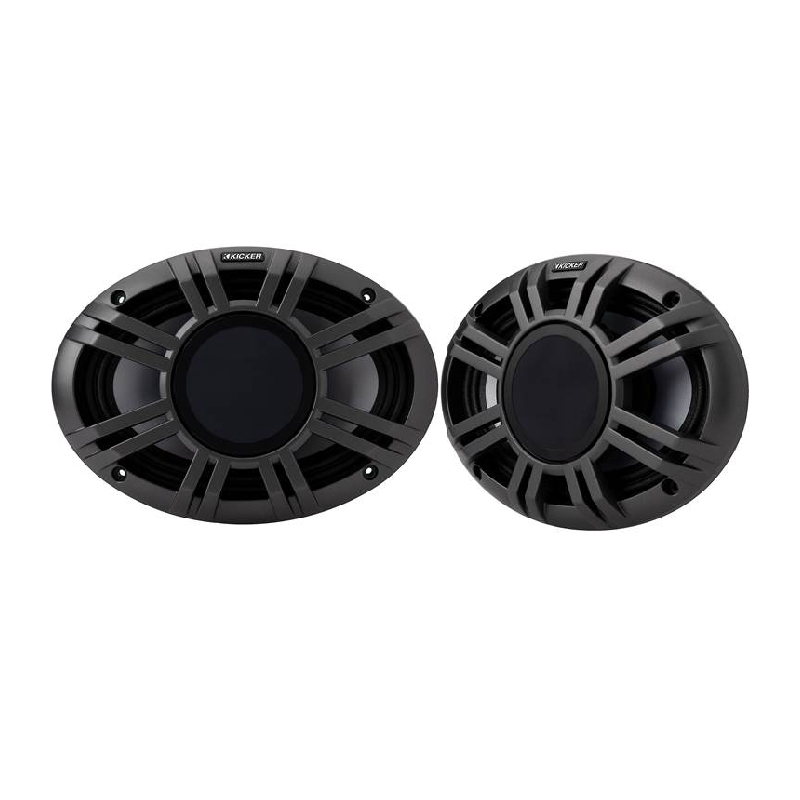

- • (2) Charcoal grilles

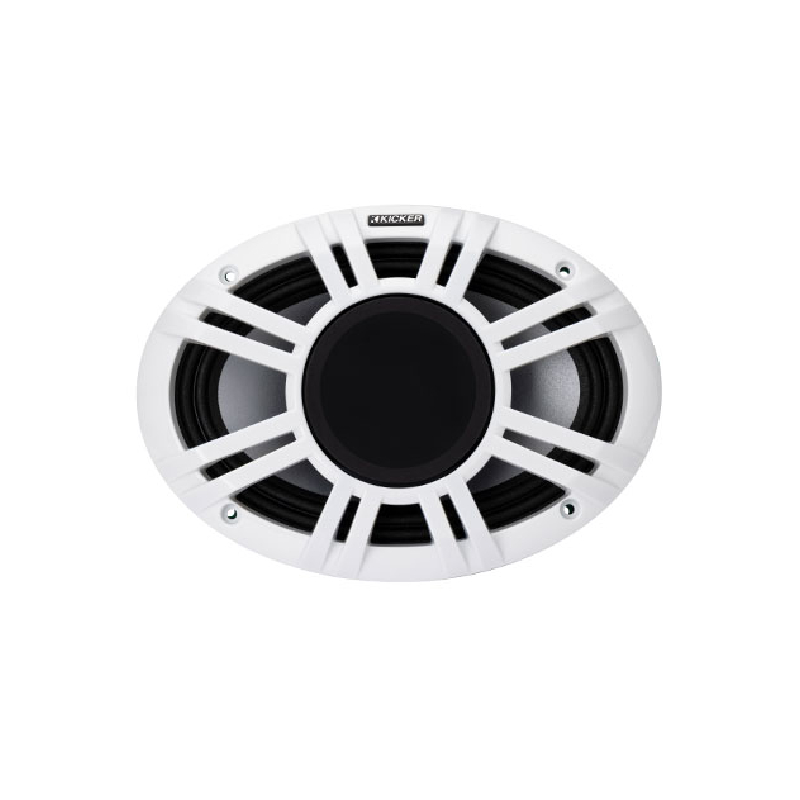

- • (2) White grilles
- • (2) 20" Speaker/LED Harnesses with in-line crossovers
- • (8) 1-1/8" Stainless steel screws
- • (8) Stainless steel speed clips
- • Info Card with QR code for owner's manual
- • Owner's Manual
Why Choose Kicker 48KMXL694 Marine Speakers?
High-Output Marine and Powersports Speakers
Designed to deliver loud, clear audio over wind, water, and engine noise, these REAL MARINE™ certified speakers feature durable marine-grade construction and horn-loaded compression drivers for crisp, high-frequency sound in all-weather conditions.
High-Fidelity Marine Speakers with LED Lighting
Featuring lightweight aluminum-dome tweeters with neodymium magnets for efficient, high-fidelity sound, UV-treated poly/carbon-fiber woofer cones for long-term durability, and integrated multi-color LED lighting controllable via the KMLC remote for enhanced aesthetics.
Shallow-Mount Powersports Speakers with Optimized Performance
Designed with a shallow mount depth to fit traditional cutouts in fairings, saddlebags, and UTVs, these IP66-rated speakers are protected against dust and water. A 12 dB/octave, 80 Hz high-pass crossover is included for optimized power handling and superior audio performance.
Frequently Asked Questions (FAQ)
- • Are these speakers durable enough for saltwater boats?
Yes. They feature marine-grade materials that resist moisture, UV rays, corrosion, and harsh marine conditions for long-lasting performance.
- • Why do the speakers sound distorted at higher volumes?
Distortion is usually caused by amplifier clipping, excessive gain, or sending more power than the speakers can cleanly reproduce. Proper amplifier tuning and gain adjustment will help maintain clear sound.
- • Can I power these speakers directly from my marine receiver?
Yes. They can operate with most factory and aftermarket marine receivers, but an external amplifier will provide greater volume and improved sound quality.
- • Why is one speaker quieter than the other?
This is commonly caused by loose wiring, incorrect balance settings, or a faulty speaker connection. Verify the wiring polarity and inspect all electrical connections before replacing any components.
- • Can I install these speakers with RGB lighting?
Yes, if you use compatible RGB lighting accessories and controllers designed for marine applications. Follow the wiring instructions carefully to ensure reliable lighting performance.
- • Why does the audio quality sound thin?
Thin sound is often a symptom of reversed polarity, where the positive and negative wires have been swapped on one speaker. Double-check your connections at both the amplifier and the speakers to ensure they are all in phase.
- • Can these be installed in an open-air boat setup?
These speakers are designed to perform exceptionally well in open-air environments and provide high-output audio that cuts through wind and engine noise. For the best sound quality in large vessels, ensure they are paired with a capable marine amplifier.
- • Why do I hear crackling or popping while playing music?
Crackling usually results from loose wiring, damaged speaker cables, or amplifier clipping. Inspect all connections and test the speakers with another audio source to isolate the issue.
- • Can I pair these speakers with a marine subwoofer?
Yes. Adding a compatible marine subwoofer provides deeper bass while allowing the speakers to focus on clean midrange and high-frequency reproduction.
- • How can I make the speakers last longer in a marine environment?
Rinse away salt residue when appropriate and inspect the wiring regularly for corrosion or loose connections. Proper maintenance and careful installation will help maximize performance and lifespan.
- Diameter : 6x9 Inch
- Sensitivity : 92 dB
- Impedance : 4 Ohm
- Frequency Response : 70-20000 Hz
- Peak Power Handling : 300 Watts
- Color : Black/White
- RMS Power Handling : 150 Watts
Features:
- High-Output Design: Plays loud and clear over wind, water, and engine noise for marine and powersport environments.
- Marine-Grade Construction: REAL MARINE™ certified for long-lasting performance in boats and other all-weather applications.
- Horn-Loaded Compression Drivers: Proprietary high-frequency horn design provides crisp, clear sound.
- Lightweight Tweeter Design: Aluminum-dome tweeters paired with neodymium magnets for efficient, high-fidelity performance.
- UV-Treated Woofer Cones: Poly/carbon-fiber cones resist water, sun, and general wear for long-term reliability.
- Integrated Multi-Color LED Lighting: LEDs enhance aesthetics and can be controlled via the KMLC LED remote.
- Shallow Mount Depth: Fits traditional speaker cutouts for easy installation in fairings, saddlebags, and UTVs.
- IP66 Rating: Protected against dust and water jets/splash.
- Crossover Included: 12 dB/octave, 80 Hz high-pass for optimized power handling and performance.
Specifications:
- Woofer Size: 6 x 9 in (160 x 230 mm)
- Tweeter Size: 1-1/4 in (32 mm)
- Tweeter Dome Material: Aluminum
- Impedance: 4 Ohm
- Recommended Amplifier Power (RMS): 15–150 W
- Peak Power Handling: 300 W
- Sensitivity (1W, 1m): 92 dB
- Frequency Response: 70 Hz – 20 kHz
- Mounting Hole Diameter: 5-13/16 x 8-9/16 in (148 x 218 mm)
- Mounting Depth: 3-3/8 in (85 mm)
- Grilles: Both White & Charcoal
- Crossover: 12 dB/octave, 80 Hz high-pass
- UPC: 713034020097
- Weight: 8.4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
