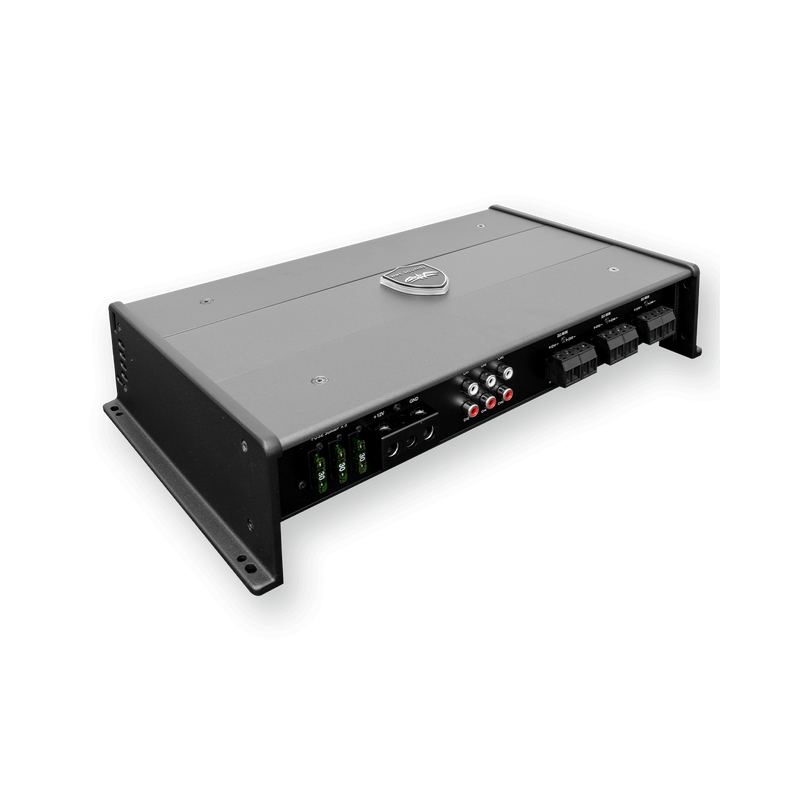

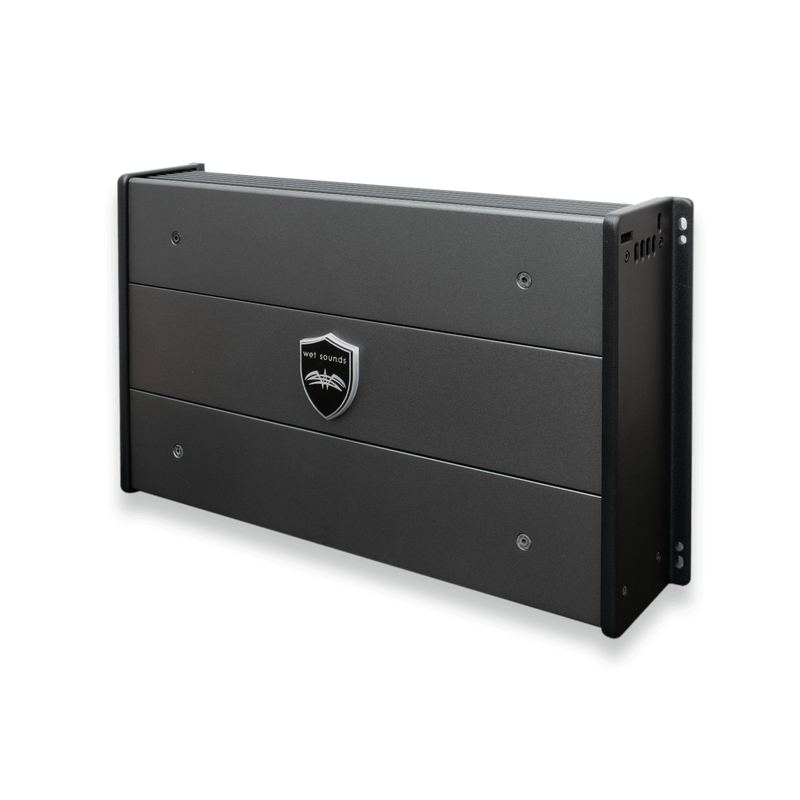

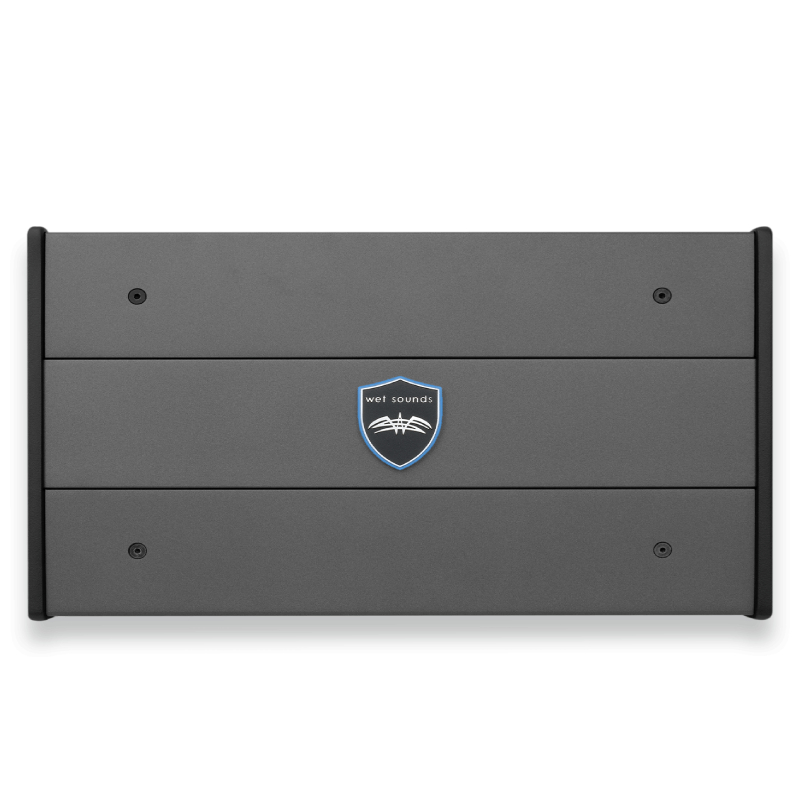

Wet Sounds SYN-DX6 SYN-DX Series 200x4W + 150x2W RMS @ 2ohms Full Range Class D, 6-Channel Marine Amplifier
We are a Wet Sounds authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •6-Channel amplifier
- •(3) 30A ATO fuses (installed)
- •Wet Sounds badge
- •Owner's Manual
Complete Solution
Wet Sounds SYN-DX Series Marine Amplifiers are designed to be a complete solution for every type of extreme marine application. SYN-DX amplifiers use superior performance circuitry by utilizing Class D Power Supplies.
Thermal Overload Protection
These amplifiers have extreme power output packed inside a small chassis, thermal overload protection, flexible crossovers, extended inputs. SYN-DX amplifiers are a well balanced match for all of the Wet Sounds™ products.
Packed With Premium Features
If you want the best boat amplifier, our SYN-DX Wet Sounds amp series is packed with premium features that lesser amps can’t match. Designed to pump out the best sound in every kind of marine environment
- Maximum Power : 600 Watts
- Low Frequency Response : 50-250 Hz
- High Frequency Response : 50-250 Hz
- Number of Channels : 6
- Frequency Response : 20-20000 Hz
- Built In Crossovers : Yes
- Aux Input : Yes
- Color : Black
- Amplifier Class : D
Features:

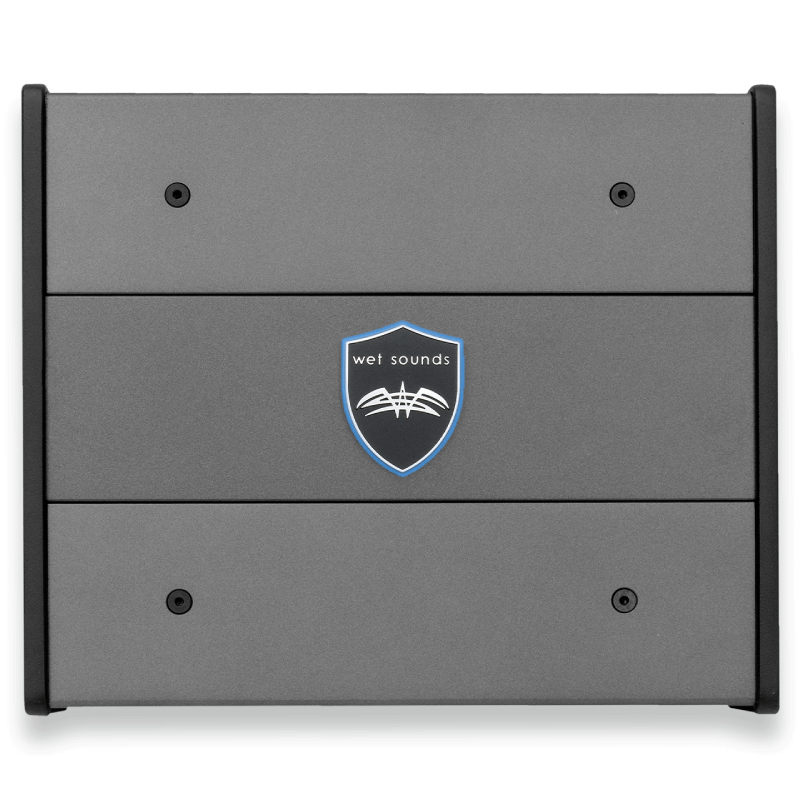

- Marine Amplifier: This Wet Sounds SYN-DX series marine amplifier features a completely sealed die-cast aluminum chassis to keep out water, making them ideal for extreme marine applications. The SYN-DX amplifiers feature chassis that are raised 3/8" above the mounting surface to help keep the amplifier cool, and prevent direct contact with water. The SYN DX-6 is a 6-channel that can drive full-range speakers and subwoofers in many configurations.
- Control Panel: The top-mounted control panel is protected by a cover to help keep the controls dry, and to prevent unwanted adjustments. The cover screws can be removed with a 2.5 mm Allen wrench. The rotary controls and recessed slide switches require the use of a narrow flat-head screwdriver to make adjustments.
- Input Mode: Two switches are provided to indicate the source of the audio signals for Channels 3-4 and Channels 5-6. The six channels can receive signals from one, two, or three pairs of connected inputs. Channels 3-4 can receive signals from a source connected to the Channel 1-2 or Channel 3-4 inputs. The signal for Channels 5-6 can be obtained from Channels 1-2 or Channels 5-6. If you use only one pair of inputs, there will be no fading capabilities between the front and rear outputs.
- Crossovers: Each pair of channels has a 3-way switch that lets you set the crossover for low-pass, high-pass, or full-range operation. The rotary controls lets you set the low-pass or high-pass frequency between 50 Hz and 250 Hz. The crossovers have a 12dB/octave slope.
- Gain: The Gain controls let you match the amplifier input to the output of source unit. The input sensitivity of the amp ranges from 0.2V (Min) to 6.0V (Max).

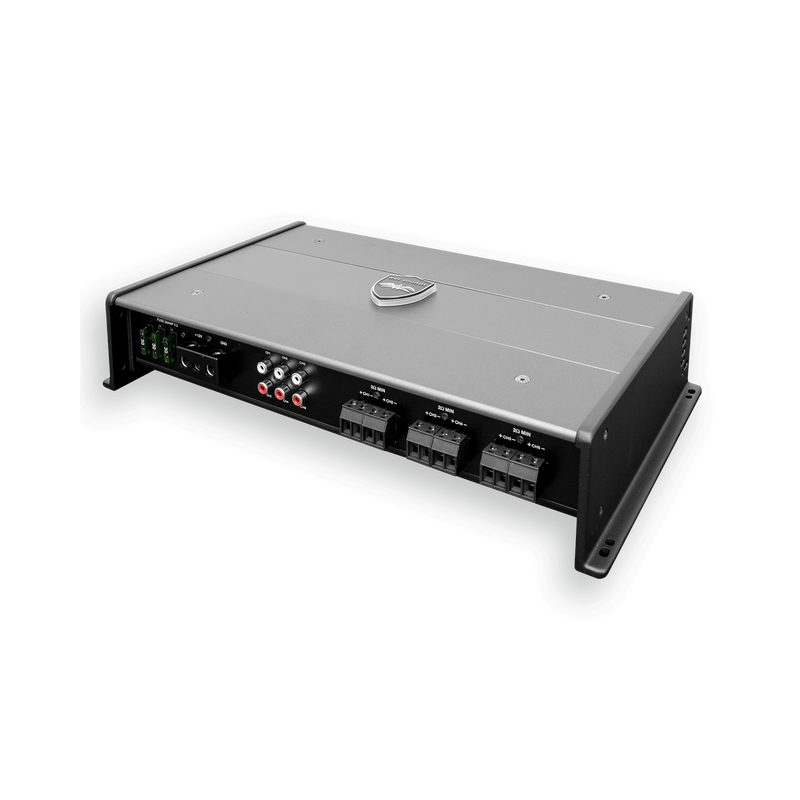

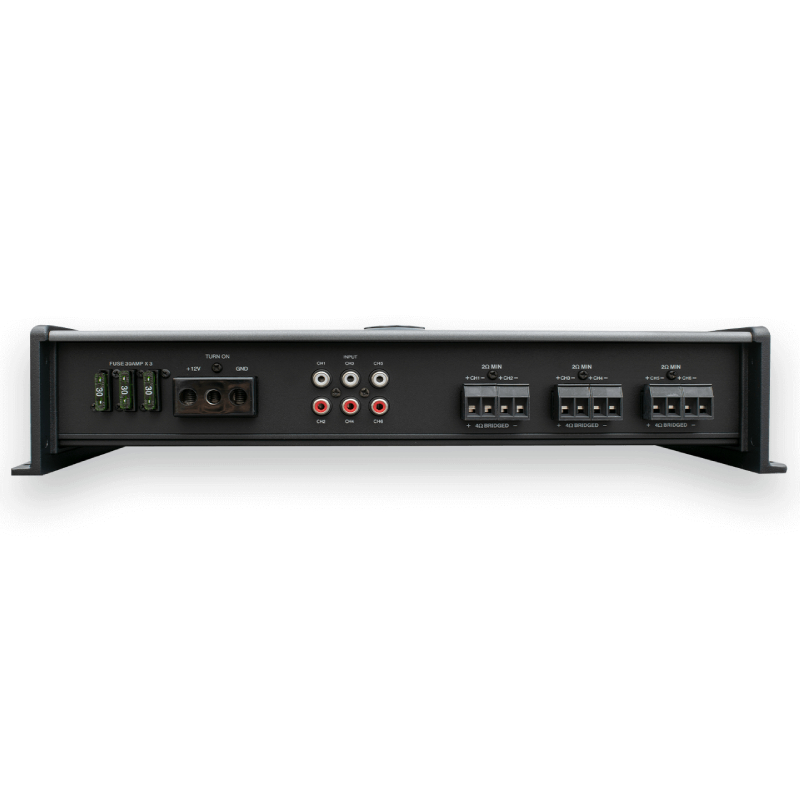

- Connections: The Wet Sounds SYN DX-6's wiring connections are on one side of the amplifier for a clean installation.
- Power/Ground: The power and ground connections feature set-screw terminals that will accept up to 4-gauge wire.
- Remote Turn-on: The Remote Turn-on connection is a set-screw terminal that will accept up to 8-gauge wire.
- Speaker Outputs: The amp has C-clamp terminals for all six channels. The terminals will accept 12-gauge to 16-gauge speaker wire. A small flat-head or Phillips-head screwdriver is needed to tighten/loosen the C-clamp screws.
- Inputs: The amp features three pairs of RCA jacks for connecting the source unit.
Specifications:
- A smart microprocessor and conformal coated PCB board, meaning reliable power and great control
- Backed by Wet Sounds’ 2-year limited warranty to protect your investment
- Superior performance circuitry with class-D power supplies
- Extreme power output packed inside a small chassis
- Thermal overload protection
- Flexible crossovers
- Extended inputs
- SYN-DX amplifiers are a well balanced match for all of the Wet Sounds products.
- Stereo @ 4 Ohms (CH1-4): 125 x 4 watts RMS >1.0% THD
- Stereo @ 2 Ohms (CH1-4): 200 x 4 watts RMS >1.0% THD
- Mono @ 4 Ohms (CH1-4): 400 x 2 watts RMS >1.0% THD
- Stereo @ 4 Ohms (CH5-6): 150 x 2 watts RMS >1.0% THD
- Stereo @ 2 Ohms (CH5-6): 300 x 2 watts RMS >1.0% THD
- Mono @ 4 Ohms (CH5-6): 600 x 1 watts RMS >1.0% THD
- Input Sensitivity: 0.2 V - 6.0 V
- Crossover Range High Pass: 50 Hz - 250 KHz 12dB/Octave
- Crossover Range Low Pass: 50 Hz - 250 KHz 12dB/Octave
- Channels: 6
- Frequency Response: 20 Hz - 20 KHz
- Series: SYN-DX
- UPC: 814820022568
- Weight: 12
